JBL Professional AC18-26-WH - 8" 2-Way Passive Loudspeaker (White) with 120° × 60° Rotatable PT™ Driver

JBL Professional AC18-26-WH - 8" 2-Way Passive Loudspeaker (White) with 120° × 60° Rotatable PT™ Driver

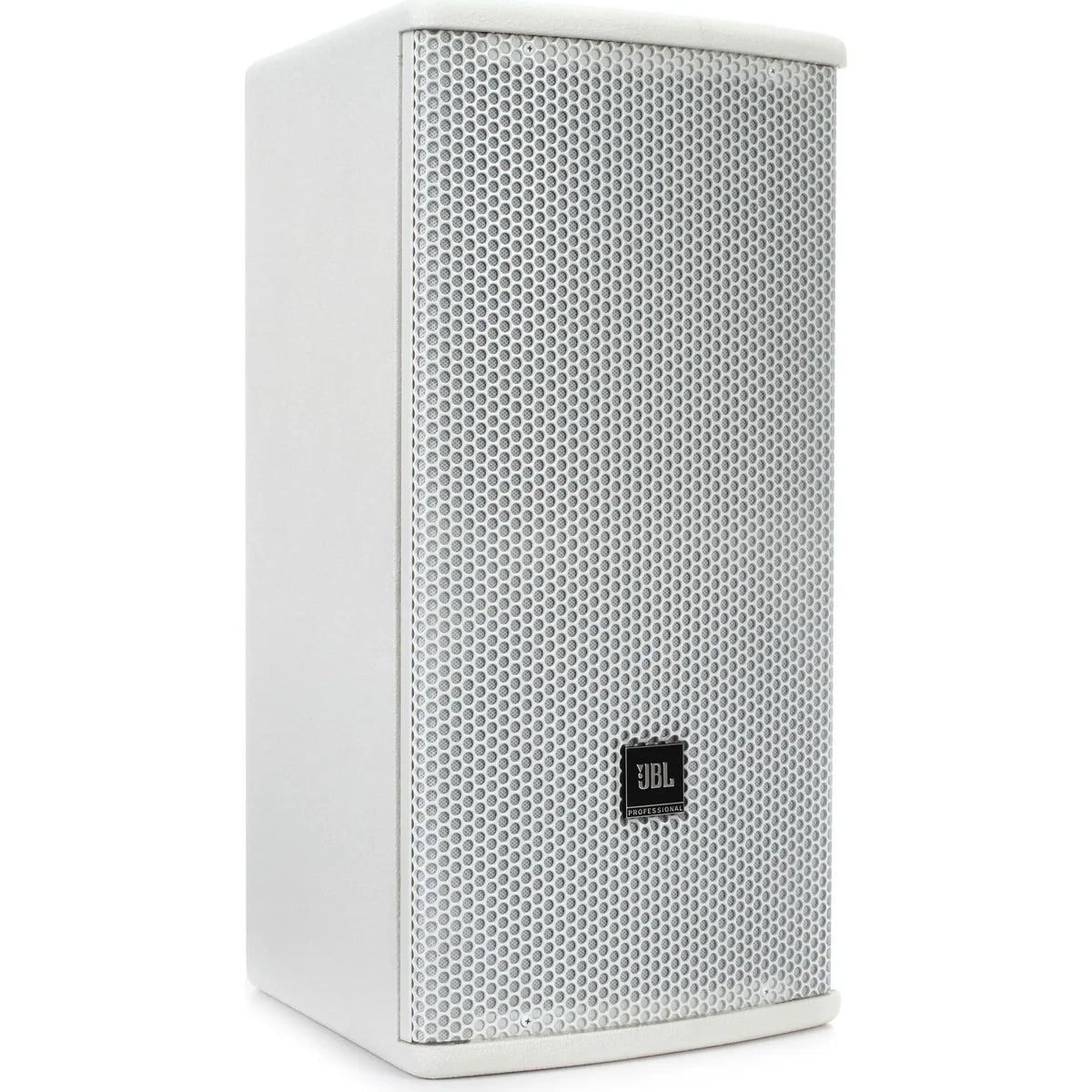

The JBL Professional AC18-26-WH (official designation AC18/26-WH ) is an installation loudspeaker from the AE Compact family that combines high output, fidelity and a discreet form factor. It integrates a 205 mm JBL 228H woofer with SFG ™ geometry (64 mm voice coil) and a 25 mm exit 2408H-1 compression driver , coupled to a 120° × 60° rotatable PT ™ waveguide to ensure uniform coverage in vertical or horizontal mounting. With a sensitivity of 92 dB (1 W/1 m) , a max SPL of 116 dB and a power rating of 250/500/1000 W (continuous/program/peak, IEC), the AC18-26-WH delivers intelligibility and punch in theaters, houses of worship, hospitality or retail without compromising aesthetics. The DuraFlex™ finished plywood enclosure with a steel grille incorporates fabric behind the grille on white units for seamless visual integration. Professional connectivity includes two parallel Speakon® NL4s and a covered CE terminal block ; multiple M8/M6 mounting points simplify installation with U-brackets and third-party hardware. Official Crown amplifier presets and EASE GLL/CLF and Revit/BIM files are available for design and simulation.

Main features

• Controlled, Rotatable Coverage: 120° × 60° PT™ guide can be rotated to maintain directivity in vertical or horizontal orientation.
• JBL Reference Transducers: 205mm LF 228H (SFG™, 64mm voice coil) + 25mm exit HF 2408H-1 (38mm voice coil).
• Verified performance: 63 Hz – 19 kHz (±3 dB) ; range 52 Hz – 20 kHz (−10 dB) ; 92 dB (1 W/1 m) and 116 dB SPL max.
• System power: 375 W AES and 250/500/1000 W (continuous/program/peak, IEC).
• Impedance and crossover: nominal 8 Ω ; passive crossover at 1.6 kHz .
• Professional connectivity: 2 × Neutrik Speakon® NL4 in parallel + terminal block (NL4 +1/−1 in parallel with terminal block; +2/−2 for loop-through ).
• Construction and finish: 12/15 mm exterior plywood with DuraFlex™ and 16-gauge foam-filled grille; interior fabric in white (-WH) units.
• Versatile installation: 6 × M8 (1 top, 3 bottom, 2 rear) + 4 × M6 rear (OmniMount® 30.0/MultiMount®); compatible with MTU-18 U-bracket and foot accessories.
• Environment and protection: Mil-Std 810 and IPx3 ; WRC/WRX versions available for advanced weather resistance.
• Dimensions and weight: 469.9 × 237.5 × 254.0 mm (H × W × D); 12.8 kg .
• System integration: Presets for Crown I-Tech HD, DCi, and CDi ; updated EASE GLL/CLF and Revit/BIM data.

Product benefits

• Aesthetics in light interiors: The white version (-WH) with fabric behind the grille blends discreetly into walls and ceilings.
• Homogeneous coverage with less overlap: The 120° × 60° rotating pattern facilitates consistent designs and improves intelligibility.
• Solid output in a compact form factor: The 8" SFG™ and compression driver deliver punch and definition in a small footprint enclosure.
• Quick and secure installation: Multiple M8/M6 points, dual connectors and dedicated U-bracket simplify mounting on a wall, column or under a balcony.
• Professional workflow: Presets and simulation files (GLL/CLF/BIM) streamline design and commissioning.

Use cases

• Theaters, auditoriums and performing arts halls.
• Places of worship and educational centers.
• Hospitality, retail and corporate spaces.
• Reinforcement under balconies, column or wall mounts, and spot coverage areas.

Frequently Asked Questions

• What does “26” mean in AC18/26? It indicates the nominal 120° × 60° coverage of the PT™ (rotating) waveguide.
• Can it be installed outdoors? The standard version is IPx3 compliant; for direct exposure or harsh climates, use WRC/WRX .
• Does it include a U-bracket? No. The MTU-18 is purchased separately.
• What amplification is appropriate? A power amp delivering 500 to 1000 W at 8 Ω per channel provides headroom and dynamic control; use the recommended Crown presets .

Compatibility and accessories

• Dedicated bracket: MTU-18 (U-bracket).
• Compatible hardware: OmniMount® 30.0; MultiMount® MM-022-BT / MM-024-BT / MM-020-CM ​​; Ultimate Support™ foot BMB-200K or K&M 195/8 ; K&M wall 24470/24480 .
• Software and files: EASE GLL , CLF , and Revit/BIM ; preset libraries for Crown I-Tech HD, DCi, and CDi.

Description for projects

2-way passive loudspeaker in white (-WH) finish with 1 × 205 mm JBL 228H (SFG™, 64 mm voice coil) and 1 × 2408H-1 on 120° × 60° rotatable PT™ guide. Response 63 Hz–19 kHz (±3 dB), range 52 Hz–20 kHz (−10 dB), sensitivity 92 dB (1 W/1 m), max. SPL 116 dB , impedance 8 Ω . Power 375 W AES and 250/500/1000 W (IEC). Crossover 1.6 kHz . Connectors 2 × NL4 in parallel + terminal block (NL4 +1/−1 in parallel; +2/−2 loop-through ). 6 × M8 and 4 × M6 anchor points. Dimensions 469.9 × 237.5 × 254.0 mm ; weight 12.8 kg ; IPx3 , Mil-Std 810. Accessory: MTU-18 .
