JBL Professional AC15-WH - 2-Pack Ultra-Compact 2-Way Passive Loudspeakers (White) with 5.25" and 90° × 90° Coverage

JBL Professional AC15-WH - 2-Pack Ultra-Compact 2-Way Passive Loudspeakers (White) with 5.25" and 90° × 90° Coverage

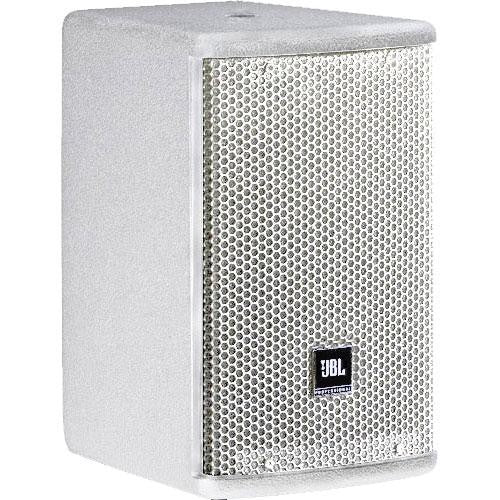

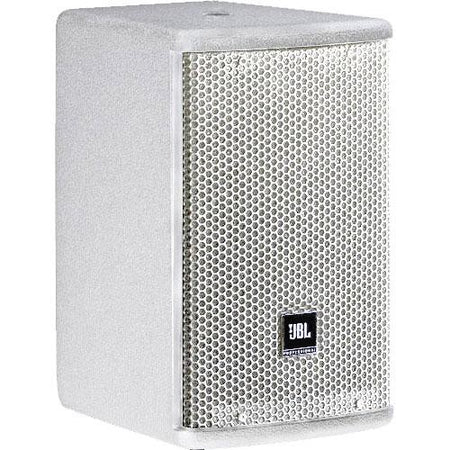

The JBL Professional AC15-WH is an AE Compact series installation loudspeaker designed to deliver maximum intelligibility and natural response in a truly discreet format. This pack includes 2 units in white (-WH) finish , ideal for integrating into light interiors without visual impact. Each speaker combines a 135 mm (5.25") JBL 225J woofer with SFG™ technology and a 25 mm (1") JBL 201J dome tweeter housed in a 90° × 90° waveguide , delivering homogeneous coverage of voice and music. With 150/300/600 W (continuous/program/peak, IEC) power , 225 W AES , nominal impedance of 16 Ω , sensitivity of 86 dB (1 W/1 m) and max SPL. With 108 dB per unit, the AC15-WH is perfect for performing arts, houses of worship, hospitality, retail, or corporate environments. The 12 mm plywood enclosure with a DuraFlex™ finish and 18-gauge steel grille with foam insert features a white interior fabric for a seamless aesthetic. Professional connectivity includes dual parallel Speakon® NL4 ports plus a covered terminal block , and installation is simplified with M8/M6 points compatible with the MTU-15 U-bracket and OmniMount®/MultiMount® hardware.

Main features

• Consistent Coverage: 90° × 90° waveguide with 25mm dome tweeter for even dispersion.
• Optimized LF Transducer: JBL 225J 135mm with 38mm voice coil and copper core that reduces inductance and distortion ( SFG™ technology).
• Response and power (per unit): 90 Hz – 18 kHz (±3 dB) ; range 80 Hz – 20 kHz (−10 dB) ; 150/300/600 W (IEC), 225 W AES .
• SPL and Sensitivity: 108 dB SPL max. (1 m, calculated) and 86 dB sensitivity (1 W/1 m).
• Impedance: nominal 16 Ω . Passive crossover at 3.3 kHz .
• Connectivity: 2 × Neutrik Speakon® NL4 in parallel + terminal block (up to 5.2 mm² ; NL4 +1/−1 in parallel with the terminal block; +2/−2 for loop-through ).
• Installation: 4 × M8 (1 top, 1 bottom, 2 rear) + 2 × M6 bottom for OmniMount® 20.5 or MultiMount® MM-008-BT ; Optional MTU-15 U-bracket .
• Construction and finish: 12mm plywood exterior enclosure with DuraFlex™ ; steel grille with foam and fabric interior in white units .
• Environment: Mil-Std 810 , IPx3 . Not available on WRC/WRX variants.
• Dimensions and weight (per unit): 241.3 × 150.3 × 177.8 mm (H × W × D); 4.7 kg .
• System integration: preset libraries for Crown amplifiers (I-Tech HD, DCi, CDi) and updated EASE GLL/CLF and Revit/BIM simulation files.

Product benefits

• A refined white aesthetic: the -WH finish with fabric behind the grille blends discreetly into light walls and ceilings.
• Natural sound in a small form factor: The 5.25" + 1" dome speaker offers balanced timbre and wide coverage with minimal visual intrusion.
• Agile and reliable deployment: professional connectors, multiple anchor points and dedicated accessories simplify installation.
• Professional workflow: GLL/CLF/BIM presets and data streamline design, simulation, and commissioning of installation projects.

Use cases

• Theaters, auditoriums and performing arts halls (under balcony, columns or wall).
• Places of worship and educational centers.
• Hospitality, retail and corporate spaces with aesthetic requirements.
• Background music and voice reinforcement systems for small and medium-sized venues.

Frequently Asked Questions

• What's included with this product? 2 AC15-WH speakers (pair). Specifications per unit .
• Is there an outdoor version (WRC/WRX)? No. This model is not offered with WRC/WRX coatings.
• What amplification is best? Per unit, a power amp delivering around 300–600 W at 16 Ω per channel provides adequate headroom. Use the recommended presets where appropriate.
• Is the diffuser rotatable? No. The AC15's 90° × 90° guide is fixed.

Description for projects

Pack of 2 × AC15-WH . Specifications per unit : 2-way passive speaker with LF JBL 225J (135 mm, SFG™, 38 mm voice coil) and HF JBL 201J (25 mm dome) on 90° × 90° guide . Response 90 Hz–18 kHz (±3 dB), range 80 Hz–20 kHz (−10 dB), sensitivity 86 dB (1 W/1 m), max. SPL 108 dB , impedance 16 Ω . Power 225 W AES and 150/300/600 W (IEC). Crossover 3.3 kHz . Connectors 2 × NL4 in parallel + terminal block (NL4 +1/−1 in parallel; +2/−2 loop-through; up to 5.2 mm² ). 4 × M8 (top/bottom/rear) + 2 × M6 lower (OmniMount® 20.5/MultiMount® MM-008-BT) mounting points. Dimensions 241.3 × 150.3 × 177.8 mm ; weight 4.7 kg ; IPx3 , Mil-Std 810 . Accessory: MTU-15 .
