JBL Professional 9320 - 12" High-Power Home Theater Surround Speaker (120° × 60°)

Out of stock
SKU: 9320 EAN13: 691991015397
(0)
1.655,87 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
The 9320 surround theater speaker offers very high power handling, high sensitivity, and extended bass response. The performance characteristics of the two-way 9320 model position it as the ideal high-power surround speaker for multi-channel surround applications. Features: 35 Hz to 20 kHz frequency range? High sensitivity, 98 dB SPL, 1 W, 1 m (3.3 ft)? High power handling capability. 400 watts of continuous pink noise? Multiple M-10 threaded mounting points? 120° x 60° coverage? Multi-ply birch enclosure? Soft-transition high-frequency waveguide? Input terminals located on the top of the cabinet for easy access
  • Brand:JBL Professional
  • Model:9320
  • Guy:2-way cinema surround speaker (large format)

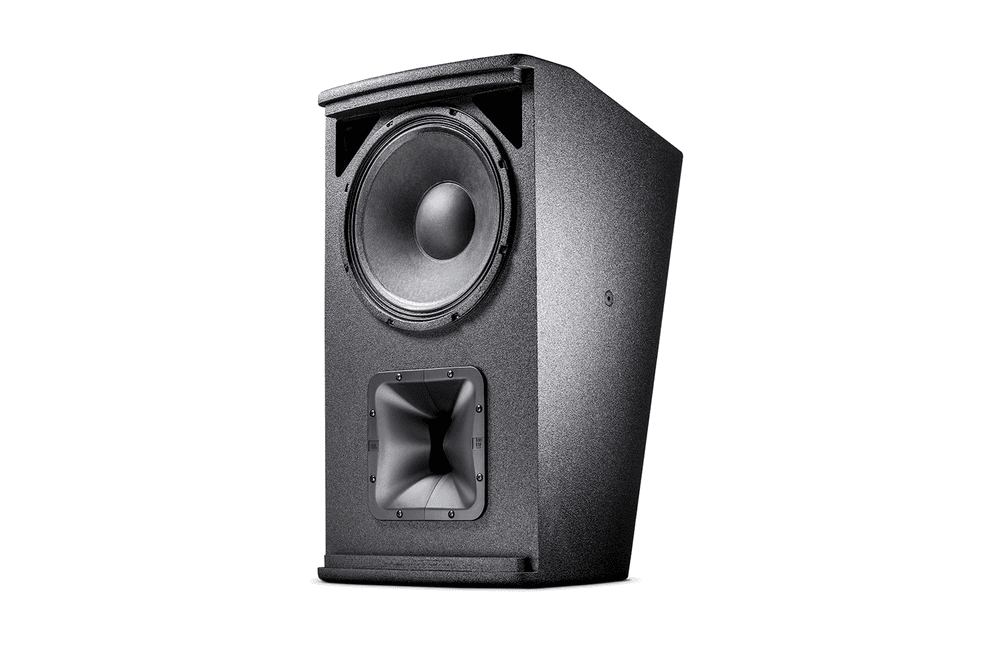

  • Transducers:LFMB12-8(300 mm, 12"); HF2408H-1(38 mm / 1.5" coil)

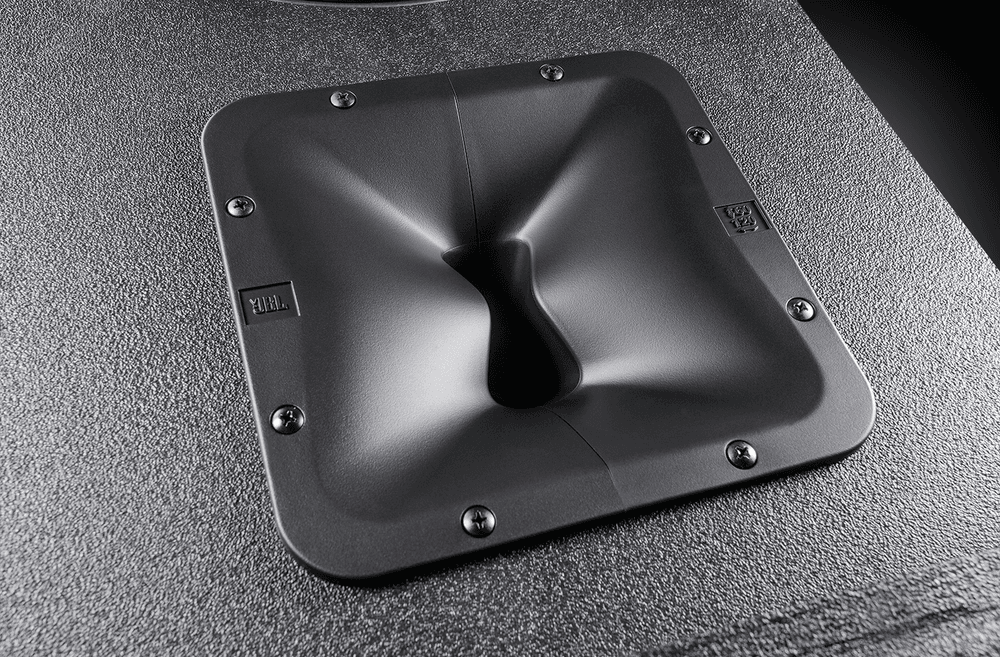

  • Waveguide:PT™ (Progressive Transition)rotary
  • Nominal coverage: 120°(H) ×60°(V)
  • Frequency response (±3 dB):50 Hz – 19 kHz
  • Frequency range (−10 dB):35 Hz – 20 kHz
  • Sensitivity (1 W/1 m):98 dB SPL
  • Maximum SPL (calculated peak, 1 m):124 dB
  • Nominal impedance:8 Ω
  • AES Power (2 h):400 W (pink/IEC)
  • AES Power (100 h):200 W (pink/IEC)
  • Crossover frequency:1.9 kHz

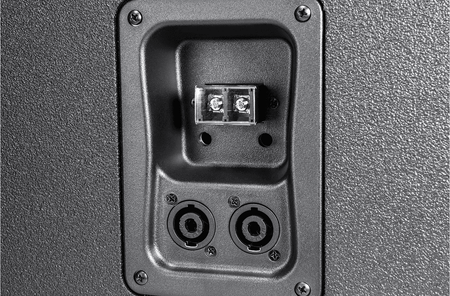

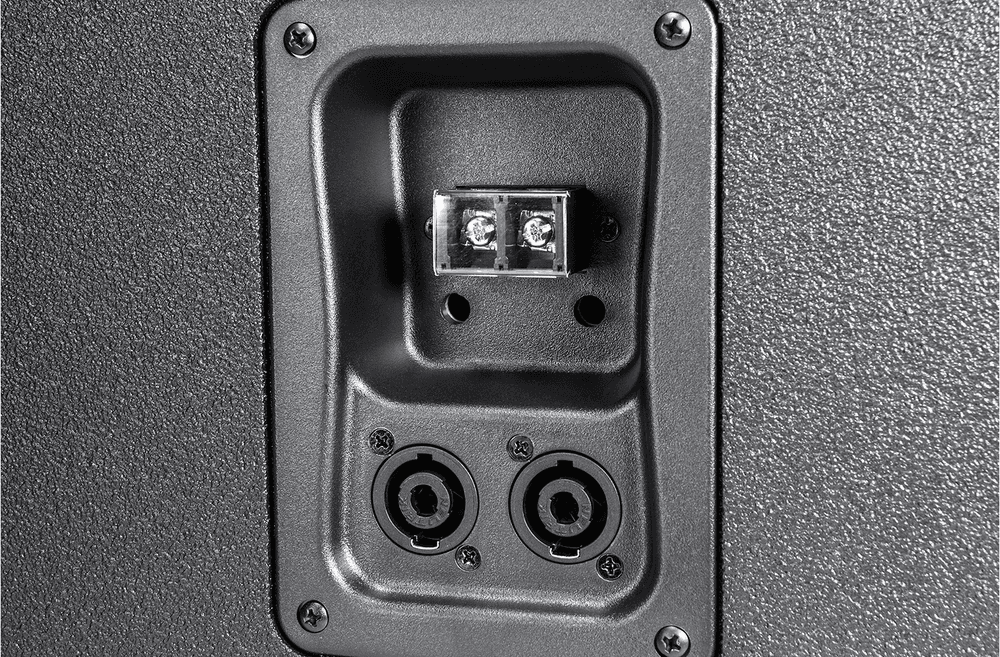

  • Connectivity:NL4 Speakon® and screw terminal block (terminals on top of cabinet)
  • Front angle (wall installation):15° down
  • Mounting points: 9 × M10(2 top, 1 bottom, 2 sides, 4 rear)
  • Enclosure material:Multi-layer birch plywood, DuraFlex™ finish
  • Rack:Powder-coated perforated steel
  • Dimensions (H × W × D):638.3 × 368.3 × 416.6 mm
  • Net weight:17.5 kg
  • Compatible accessories:U-shaped bracketMTU-9320;2520 Quick Mount Surround Bracket
  • Type Audio
  • Vendor JBL PROFESSIONAL
  • SKU 9320
  • Bar-code 691991015397
