JBL AW595-LS - High-power, all-weather, two-way speaker, 1 x 15" LF, EN 54-24 compliant

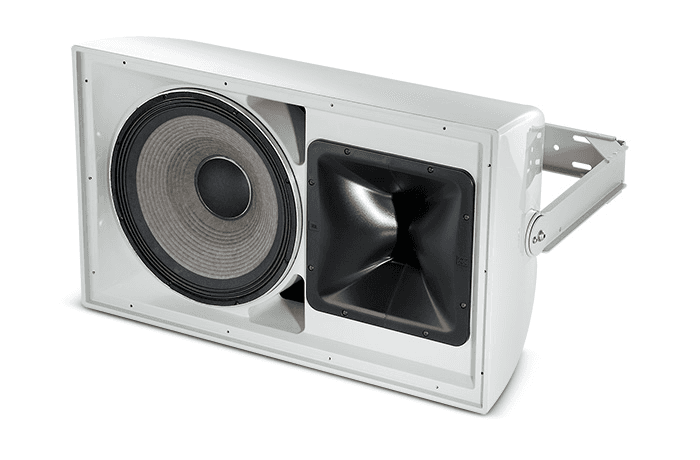

The JBL AW595-LS is a professional 2-way loudspeaker designed for permanent installations in demanding outdoor and indoor environments. It features a 15" JBL 2265H woofer with Differential Drive® technology and a 1.5" (3") output JBL 2432H compression driver, coupled to a large-format PT™ waveguide with controlled 90° × 50° coverage. The LS model includes sealed parts and hardware specifically designed for life-safety applications; therefore, the product image may show a non-LS version for illustrative purposes, while the AW595-LS unit meets EN 54-24 requirements and is equipped with an internal 400W transformer for 70/100V lines.

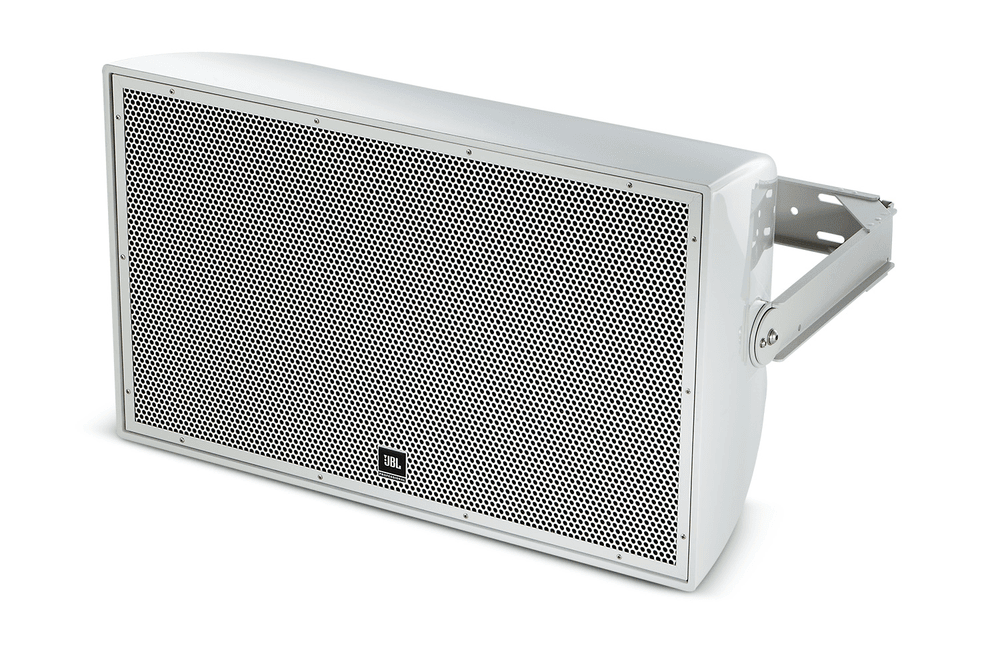

Its hand-laminated fiberglass enclosure, three-layer stainless steel grille, and IP55C environmental rating ensure weather resistance in environments such as sports arenas, theme parks, outdoor entertainment centers, cruise ships, and water parks. The horn is rotatable to maintain correct directivity in both vertical and horizontal mounting. It comes with a heavy-duty U-shaped mounting bracket and is available in a gray (similar to Pantone 420C) or black finish.
Main features
- All-weather 2-way loudspeaker with 1 x 15" LF and 1.5" HF compression driver
- Controlled coverage of 90° × 50° using a rotating PT™ waveguide.
- LS model with sealed parts and EN 54-24 compliance for voice alarm systems.
-
Internal 400W transformer for 70/100V lines (70V outlets: 400/200/100W; 100V outlets: 400/200W) and operation at 8 Ω .
-
100% fiberglass enclosure and three-layer stainless steel grate for maximum durability.
-
IP55C environmental classification according to IEC 529.
- Frequency response (±3 dB): 88 Hz – 19 kHz ; range (-10 dB): 41 Hz – 20 kHz .
- Long-term power (IEC, 100 h): 400 W (1600 W peak); 127 dB SPL continuous (133 dB peak).
- Sensitivity: 100 dB (1 W/1 m).
- Includes U-bracket ; M10/M6 anchor points for stabilization and safety.
- Finishes: gray or black .
Product benefits
-
Certified reliability : compliance with EN 54-24 and the sealed parts design of the LS model make it suitable for life safety and voice evacuation applications.
-
Uniform coverage : The large-format PT™ waveguide maintains the 90° × 50° pattern with low distortion, improving long-distance intelligibility.
-
Installation versatility : operation on low impedance (8 Ω) or on 70/100 V lines with high power taps, plus a rotating horn to maintain vertical or horizontal coverage.
-
True “all-weather” construction : fiberglass enclosure and three-layer stainless steel grille rated IP55C to withstand rain, humidity and salt spray.
-
High performance : 15" Differential Drive® with dual voice coil and double air gap for high power with less thermal compression and great bass punch.
Use cases
- Sports facilities (stadiums, pavilions and outdoor courts).
- Theme parks and outdoor leisure centers.
- Cruises and marinas.
- Water parks and municipal swimming pools.
- Public squares and fairgrounds.
Frequently Asked Questions
-
How does the AW595 differ from the AW595-LS? The AW595-LS adds sealed parts and specific components to comply with EN 54-24, in addition to the internal 400W transformer for 70/100V.
-
Can I mount it horizontally? Yes. The waveguide is rotatable, allowing the 90° × 50° pattern to be maintained when changing the enclosure's orientation.
-
What weather protection does it offer? The fiberglass construction, stainless steel grille, and IP55C rating allow for permanent outdoor use.
-

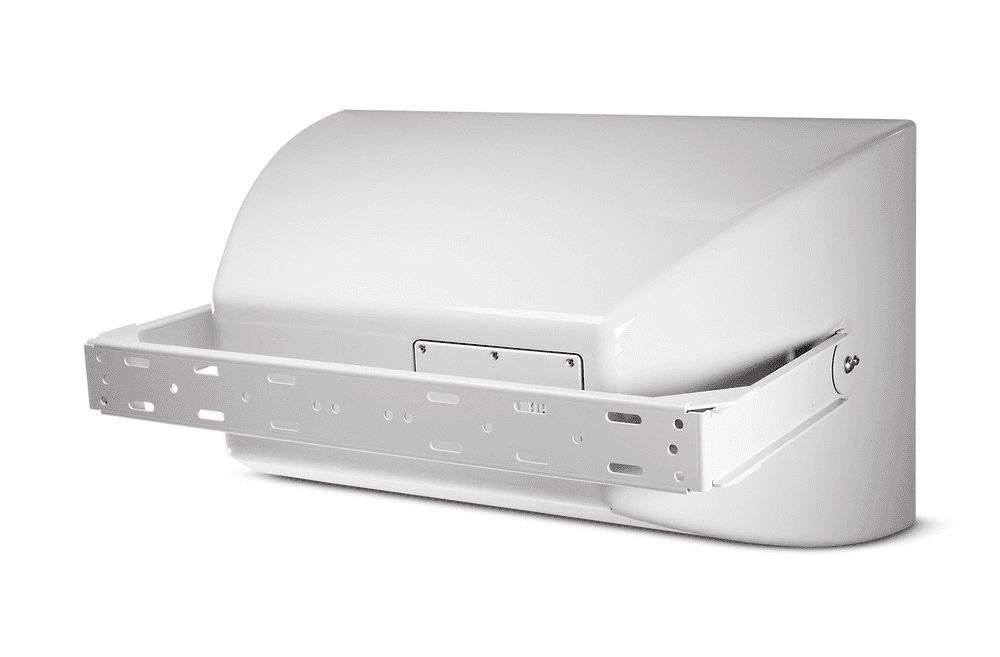

Does it include a stand? Yes, it comes with a U-shaped steel mounting bracket with a corrosion-resistant coating.
-
What line outputs does it have? 70 V: 400/200/100 W; 100 V: 400/200 W. It can also be used at 8 Ω.
Project description

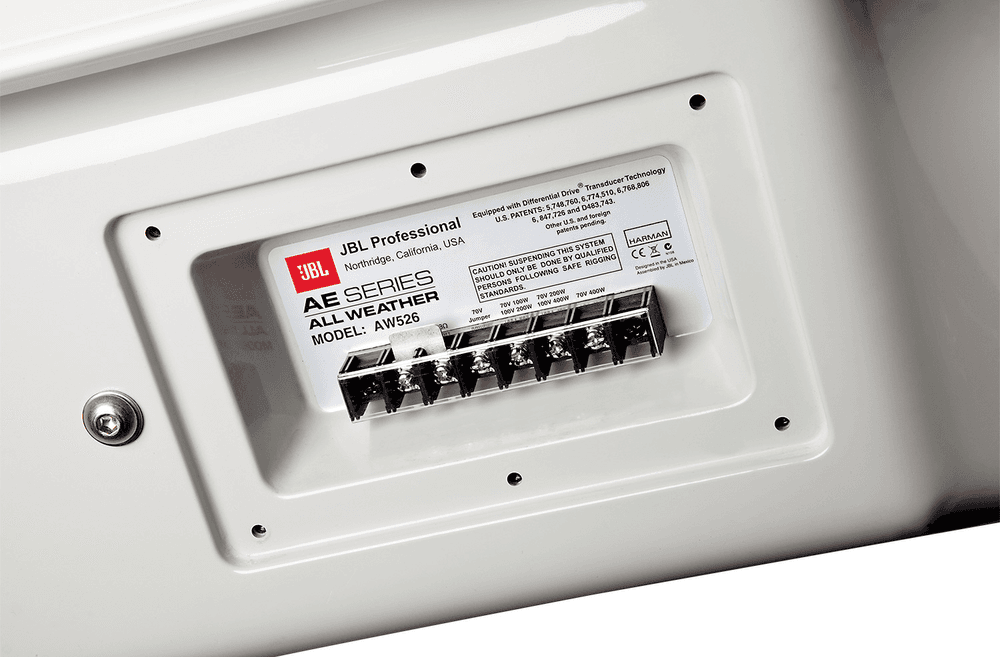

Two-way loudspeaker for fixed installation, 1 × 15" LF JBL 2265H and 1.5" HF JBL 2432H driver (3"), PT-H95HF-1 rotatable waveguide 90° × 50°, frequency response (±3 dB) 88 Hz–19 kHz, frequency range (-10 dB) 41 Hz–20 kHz, IEC power 400 W (1600 W peak), sensitivity 100 dB (1 W/1 m), max. SPL 127 dB continuous/133 dB peak, internal 400 W transformer with 70 V 400/200/100 W and 100 V 400/200 W sockets, 8 Ω, fiberglass enclosure, three-layer stainless steel grille, IP55C, CE barrier terminals, dimensions (H×W×D) 485 × 810 × 478 mm, weight 28.3 kg, includes U-bracket, grey or black finishes, compliant with EN 54-24.
