JBL Professional AW266 - All-weather 2-way speaker with 1 x 12" LF, 60° x 60° coverage and 400W transformer

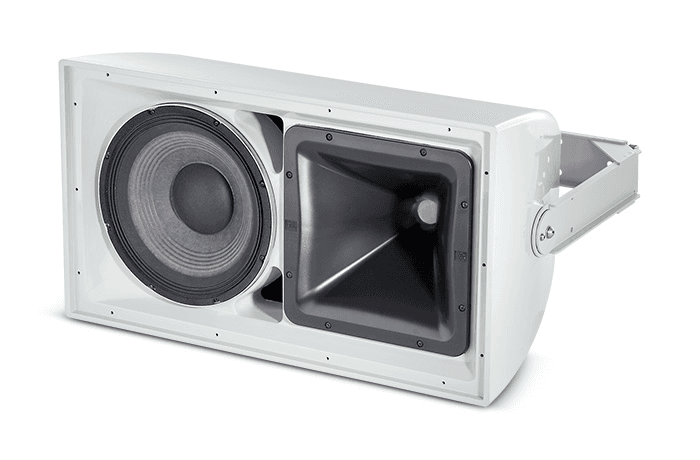

The JBL Professional AW266 is a high-power passive loudspeaker for fixed installations, designed to provide controlled coverage and reliability in exposed outdoor and indoor environments. It features a 12" JBL 2262H woofer with Differential Drive® technology (dual 3" voice coils) and a JBL 2432H compression driver (1.5" exit, 3" voice coil), coupled to a large-format PT™ (Progressive Transition) waveguide with a 60° × 60° pattern . The system maintains the same directivity in both vertical and horizontal orientations, facilitating its integration into bleachers, facades, or technical walkways.

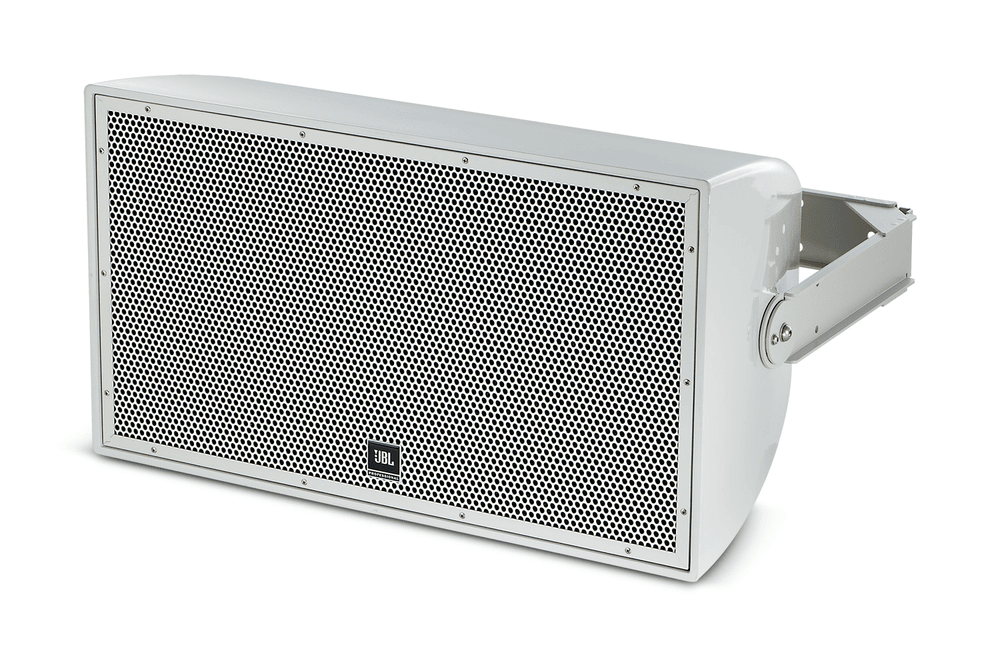

For added versatility, the AW266 can operate on 8 Ω or distribution networks thanks to its internal 400 W 70/100 V transformer with selectable taps. Its all-weather construction is truly exceptional: a 100% hand-laminated fiberglass enclosure with heavy-duty bracing and a three-layer (16-gauge) stainless steel grille with open-cell foam and mesh, certified IP55C (IEC 529) against rain, humidity, dust, and salt spray. It includes a corrosion-resistant U-shaped mounting bracket and is available in gray (gel-coat similar to Pantone 420C) and black . Note: Parts are sealed on LS models; some images may show a non-LS unit .
Main features
-
All-weather 2-way architecture with 1 x 12" LF JBL 2262H Differential Drive® and HF JBL 2432H driver.
-
Uniform 60° × 60° coverage using large PT-H66HF-1 guide.
-
Integrated 400W transformer for 70/100V (70V sockets: 400/200/100W; 100V sockets: 400/200W) and 8Ω option.
-
100% fiberglass enclosure and three-layer stainless steel grille ; IP55C for permanent outdoor use.
-
Verified performance : response (±3 dB) 51 Hz – 18 kHz , range (−10 dB) 40 Hz – 20 kHz , sensitivity 98 dB (1 W/1 m), max SPL 126 dB continuous / 132 dB peak, IEC power 500 W (peak 2000 W ), crossover at 1.1 kHz , DI 12 dB and Q 15.8 .
-
Professional installation : covered barrier terminals (CE), 2 × M10 fixing points (U-bracket included), 2 × M6 (stabilization) and 1 × rear M10 (safety).
Product benefits
-
Consistent intelligibility thanks to the 60° × 60° pattern control with low distortion of the PT™ guide.
-
High sustained output : the Differential Drive® design reduces thermal compression and maintains bass punch.
-
Versatile integration in low impedance or 70/100 V networks without additional external transformers.
-
Durable in outdoor environments with anti-corrosion materials and seals that minimize maintenance in demanding environments.
-
Agile deployment with included U-shaped support and hardware designed for precise orientation and secure installation.
Use cases
- Sports facilities and outdoor entertainment venues.
- Theme parks, water parks, swimming pools and seafront promenades.
- Public spaces, fairgrounds, marinas and cruise ship decks.
Frequently Asked Questions
-
Is it EN 54-24 certified? No. The certification corresponds to AW266-LS , which also incorporates sealed components. The standard AW266 shares the same acoustic architecture, but not the certification.
-
Can I mount it horizontally? Yes. It maintains the 60° × 60° pattern both vertically and horizontally.
-
Does it include the stand and can it operate at 100V? Yes. It comes with a U-bracket and has 70/100V sockets, as well as 8Ω operation.
Project description
2-way all-weather passive loudspeaker, 1 × JBL 2262H LF (300 mm) and 1 × JBL 2432H HF (38 mm exit, 75 mm voice coil); PT-H66HF-1 waveguide with 60° × 60° coverage ; frequency response (±3 dB) 51 Hz – 18 kHz , frequency response (−10 dB) 40 Hz – 20 kHz ; crossover point 1.1 kHz ; IEC power rating 500 W ( 2000 W peak); sensitivity 98 dB (1 W/1 m); max. SPL 126 dB continuous / 132 dB peak; 400 W transformer with 70 V 400/200/100 W and 100 V 400/200 W taps; nominal impedance 8 Ω ; IP55C (IEC 529) ; CE barrier terminal connectors (up to 5.2 mm² or 9 mm lug); hand-laminated fiberglass enclosure; three-layer stainless steel grille (16-gauge); mounting points 2 × M10 (U-bracket included), 2 × M6 and 1 × M10 rear; dimensions (height × width × depth, horizontal orientation) 409 × 732 × 452 mm ; weight 25.2 kg ; finishes grey or black.
