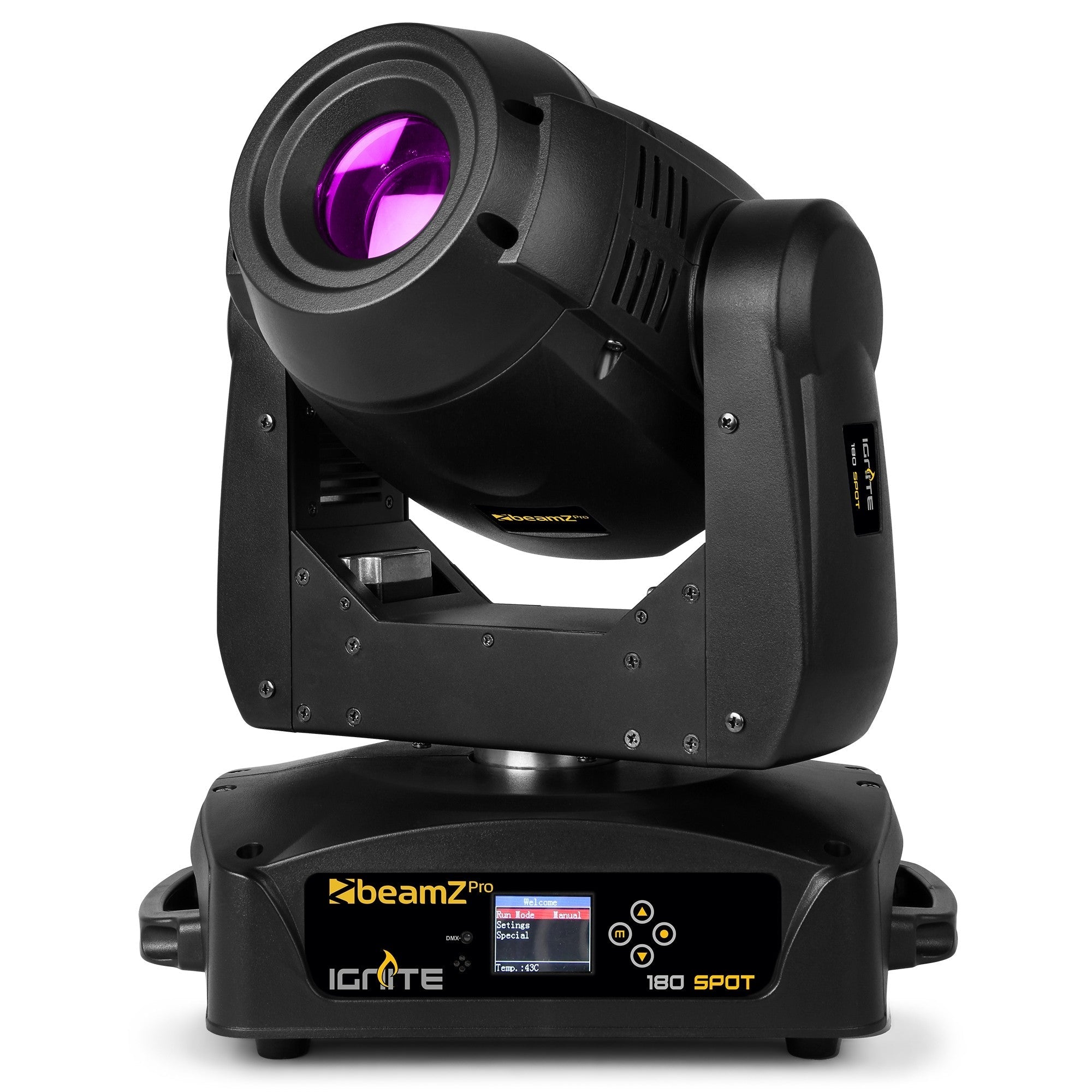

beamZ Pro IGNITE180S - 180W LED Moving Head Spot
The beamZ Pro IGNITE180S is a spot moving head designed for lighting professionals seeking power, versatility, and high-impact visual effects. Equipped with a powerful 180W white LED, this moving head projects a crisp, bright beam, ideal for stages, nightclubs, corporate events, and live productions. Its high-quality optics generate a 15-degree beam angle, perfect for creating sharp gobo projections and spectacular aerial effects, even in large venues.

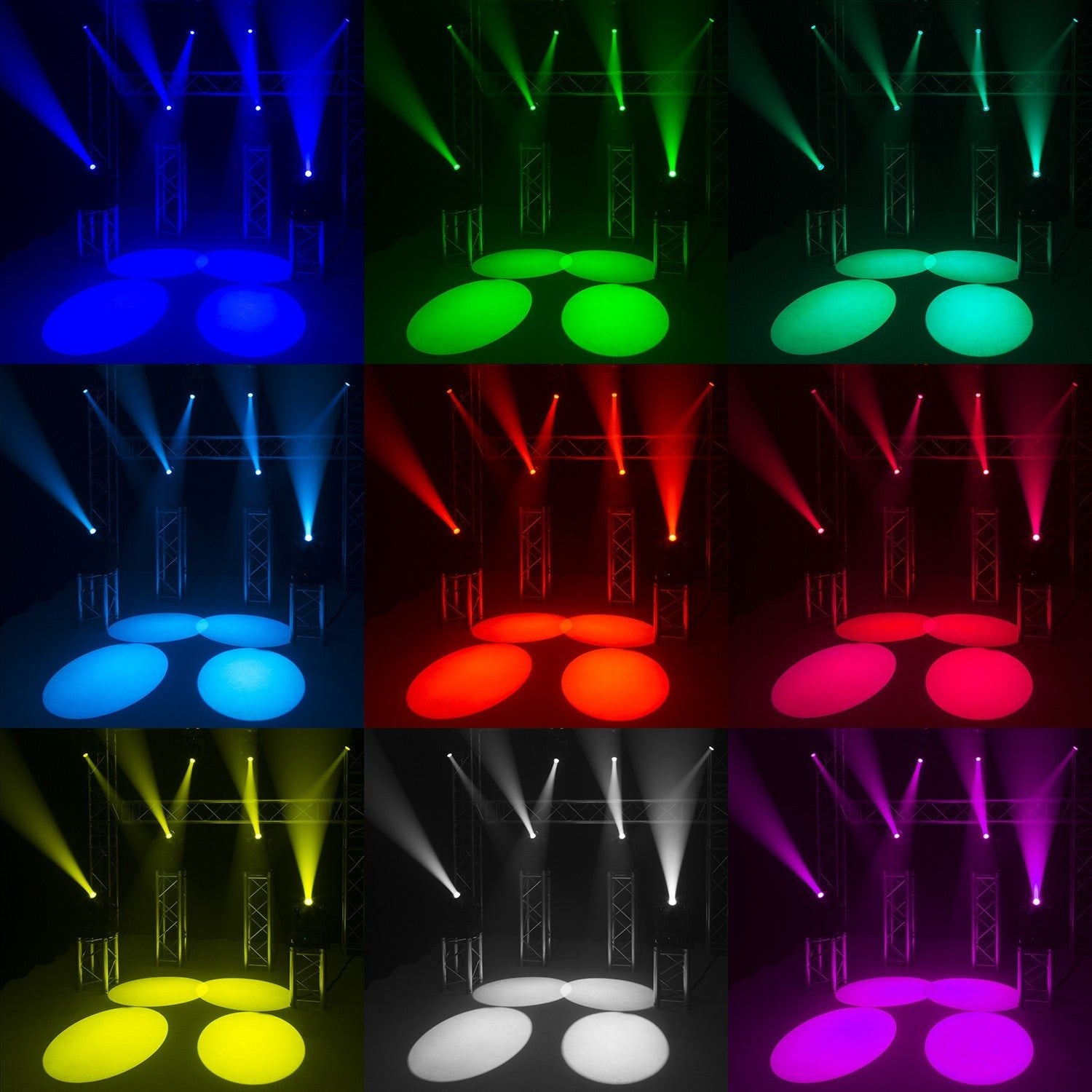

One of its most outstanding features is its dual gobo wheel system. The first wheel includes six rotating gobos (three crystal and three metallic) that are interchangeable, allowing for complete customization for each event. The second wheel features eight fixed metallic gobos. This combination, along with the gobo-shake (vibration effect) and rotation functions, opens up a vast array of creative possibilities. Furthermore, the IGNITE180S incorporates a seven-color dichroic wheel plus white, capable of creating split colors and a stunning rainbow effect, adding dynamism and color to any show.
Main Features
-
180W LED Light Source: A powerful, high-intensity LED that provides an exceptional light output of 131,000 lx at 1 meter, ensuring bright and visible projections.
-

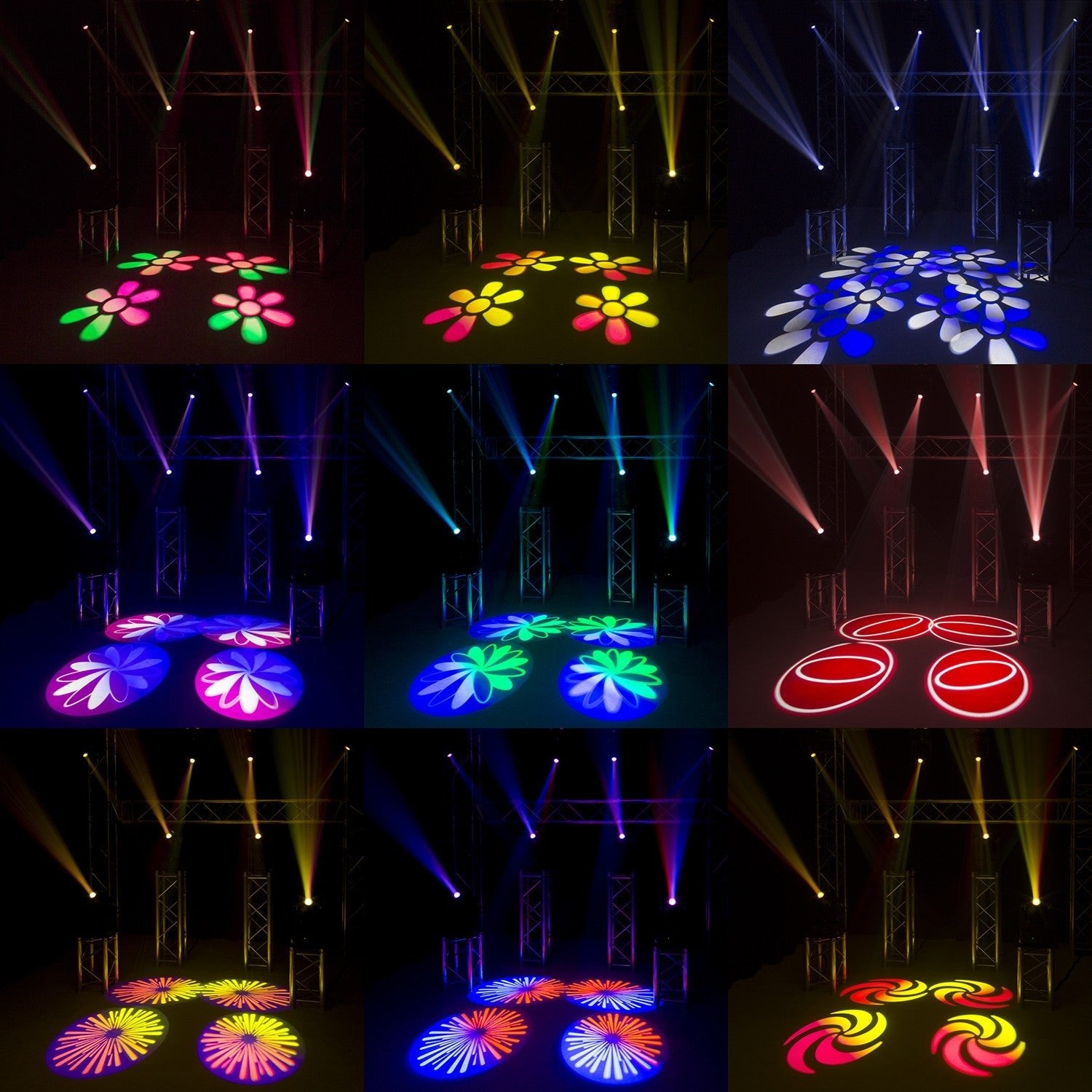

Dual Gobo Wheel: Maximize creativity with a wheel of 6 rotating and interchangeable gobos and a second wheel with 8 fixed gobos, allowing you to layer complex effects and textures.
-

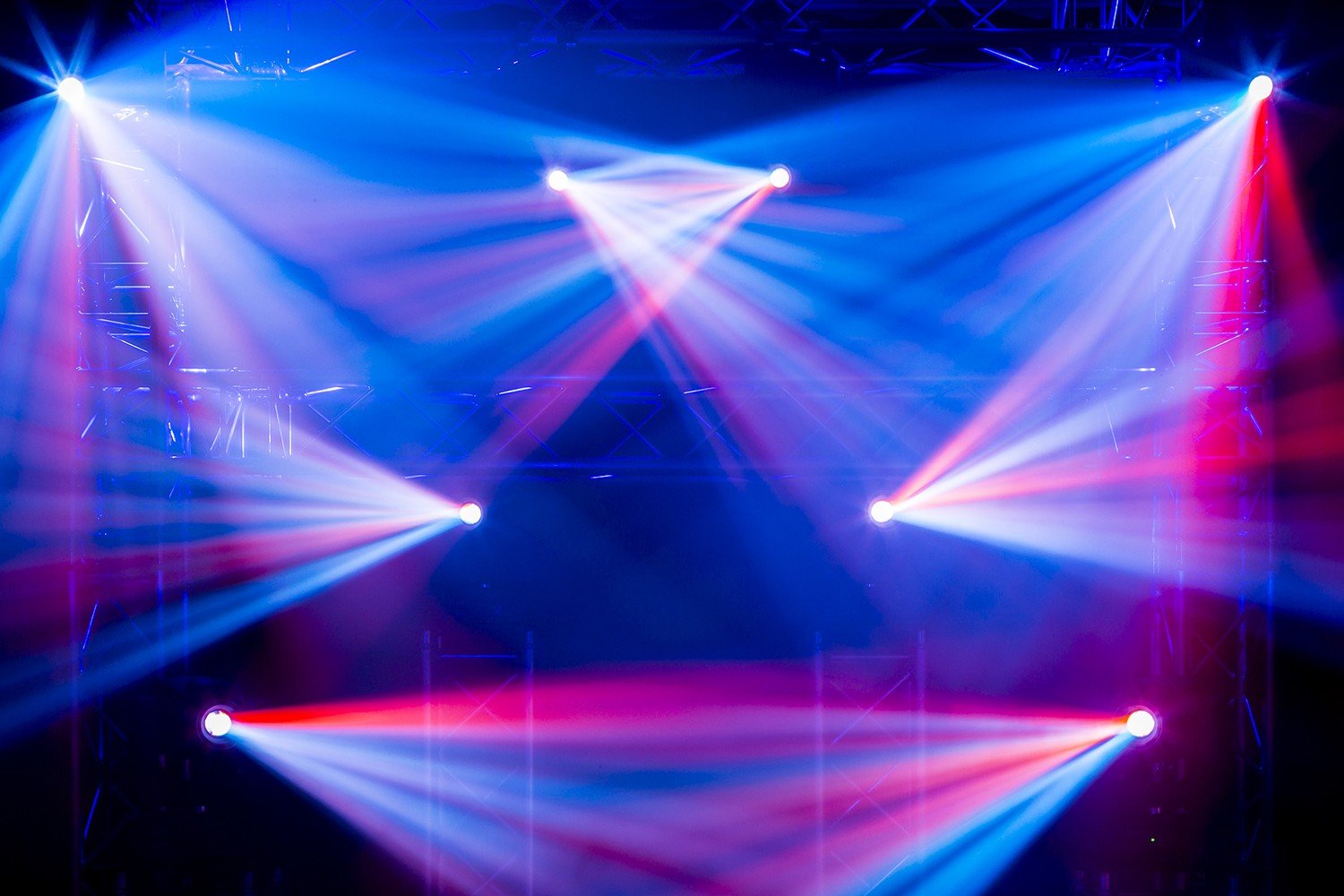

Dual Prism System: Equipped with two independent rotating prisms, one with 3 facets and another linear prism with 6 facets, which can be combined to multiply and energize the light beams, creating immersive aerial effects.
-
Motorized Focus: Adjust the sharpness of gobo projections at any distance remotely and precisely via DMX.
-
Precise and Fast Movement: Offers a wide range of movement with 540° Pan and 270° Tilt, with automatic position correction to ensure the effect always returns to its programmed point.
-
Flexible Control: It can be operated via 13 or 17 DMX channels, in standalone mode with predefined programs, sound-activated with adjustable sensitivity, or in Master/Slave configuration to synchronize multiple units.
Benefits for Lighting Professionals

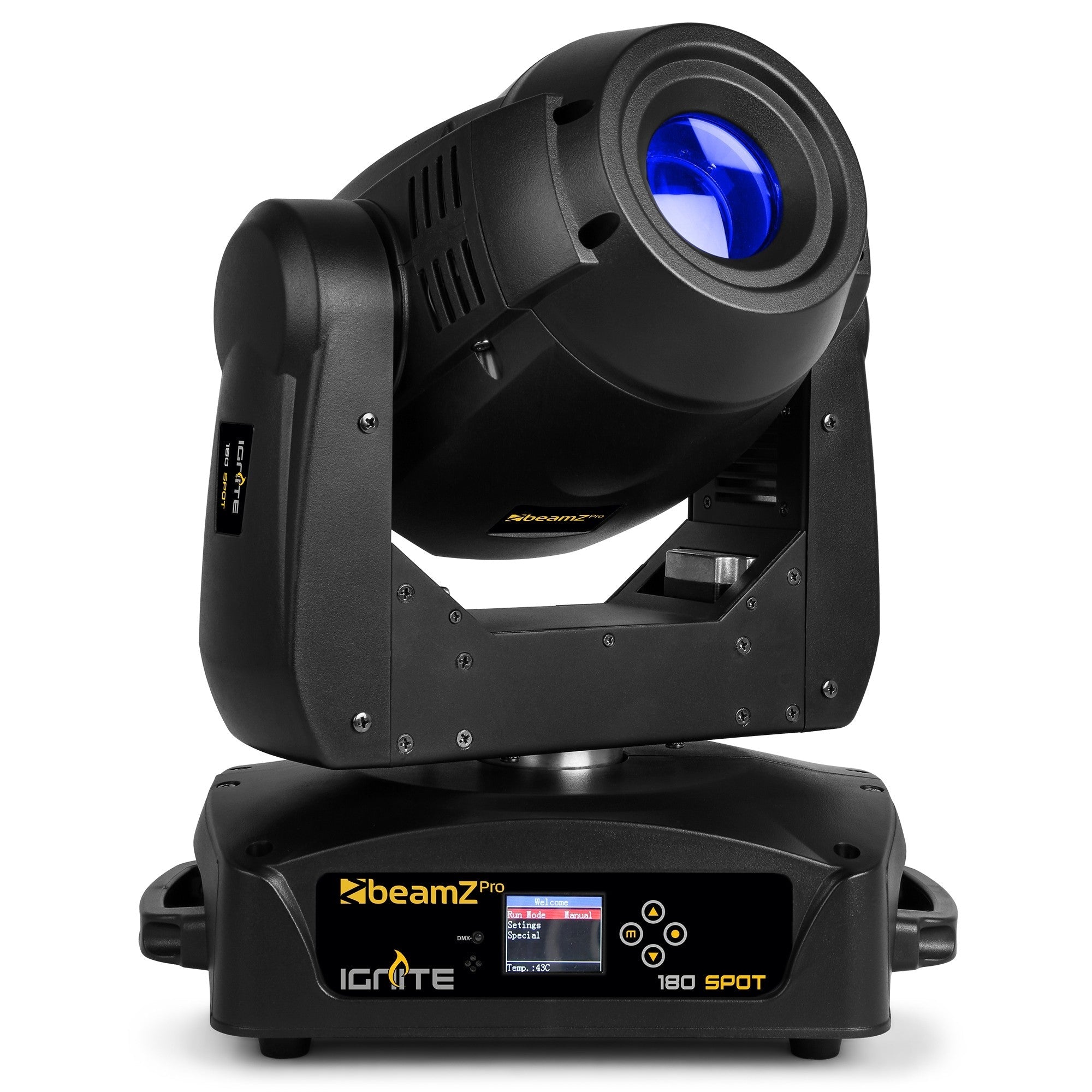

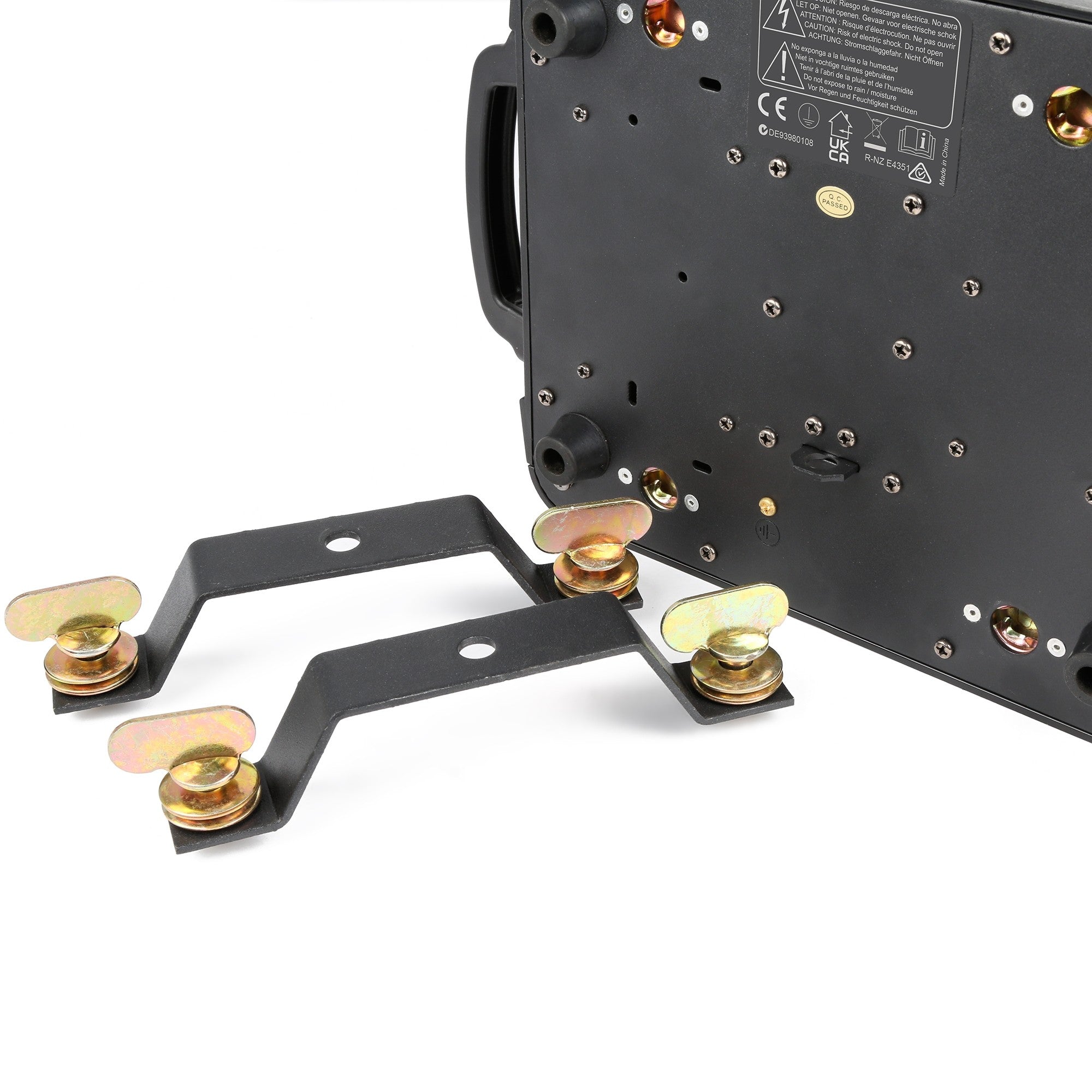

The IGNITE180S is designed to make the lighting technician's job easier. Its color LCD control panel allows for quick and intuitive setup. The inclusion of PowerCON input and output connectors simplifies daisy-chaining multiple units, reducing cable clutter. Two Quick Lock omega clamps and DMX and power cables are also included, ensuring the unit is ready to mount and use right out of the box.
Use Cases

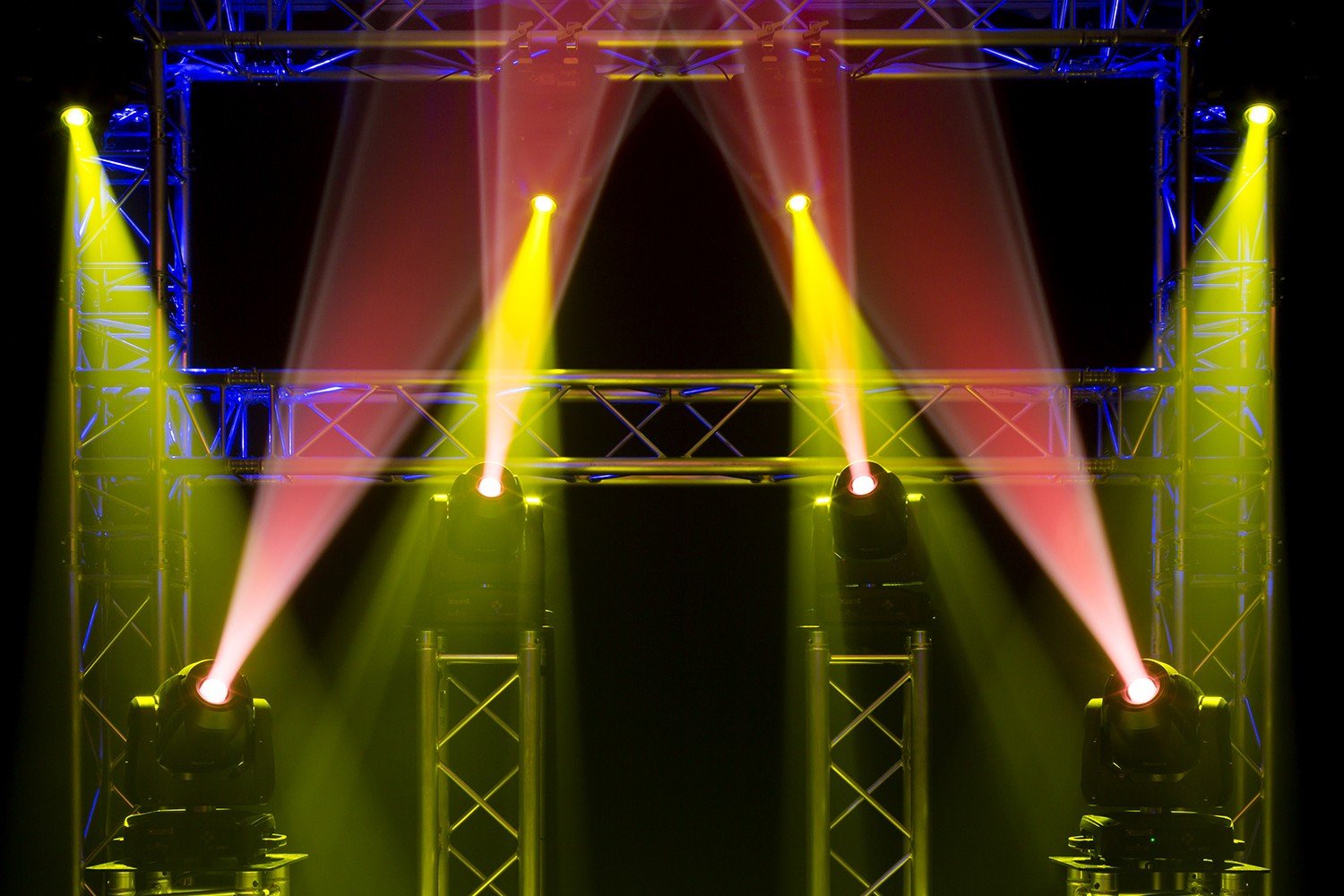

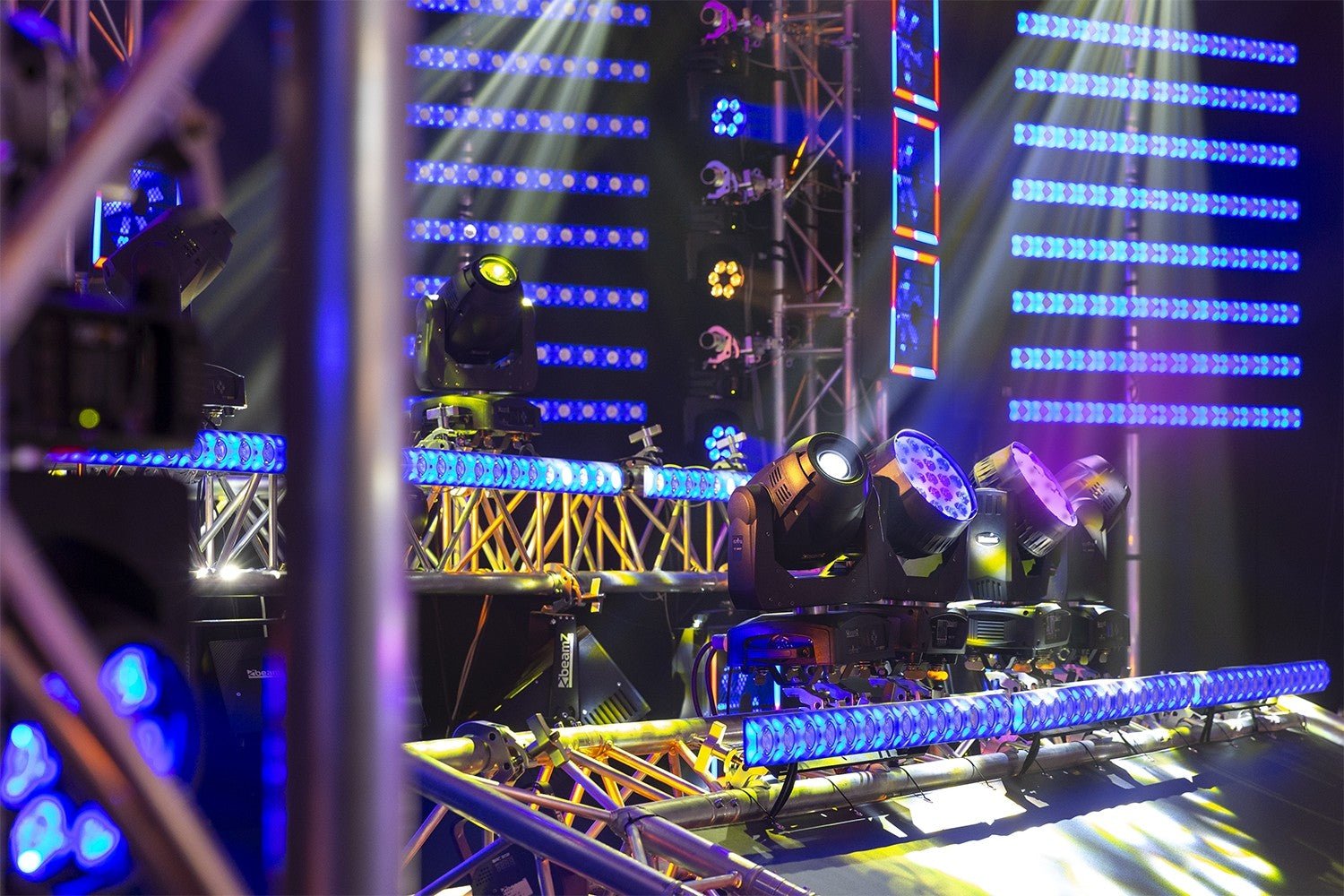

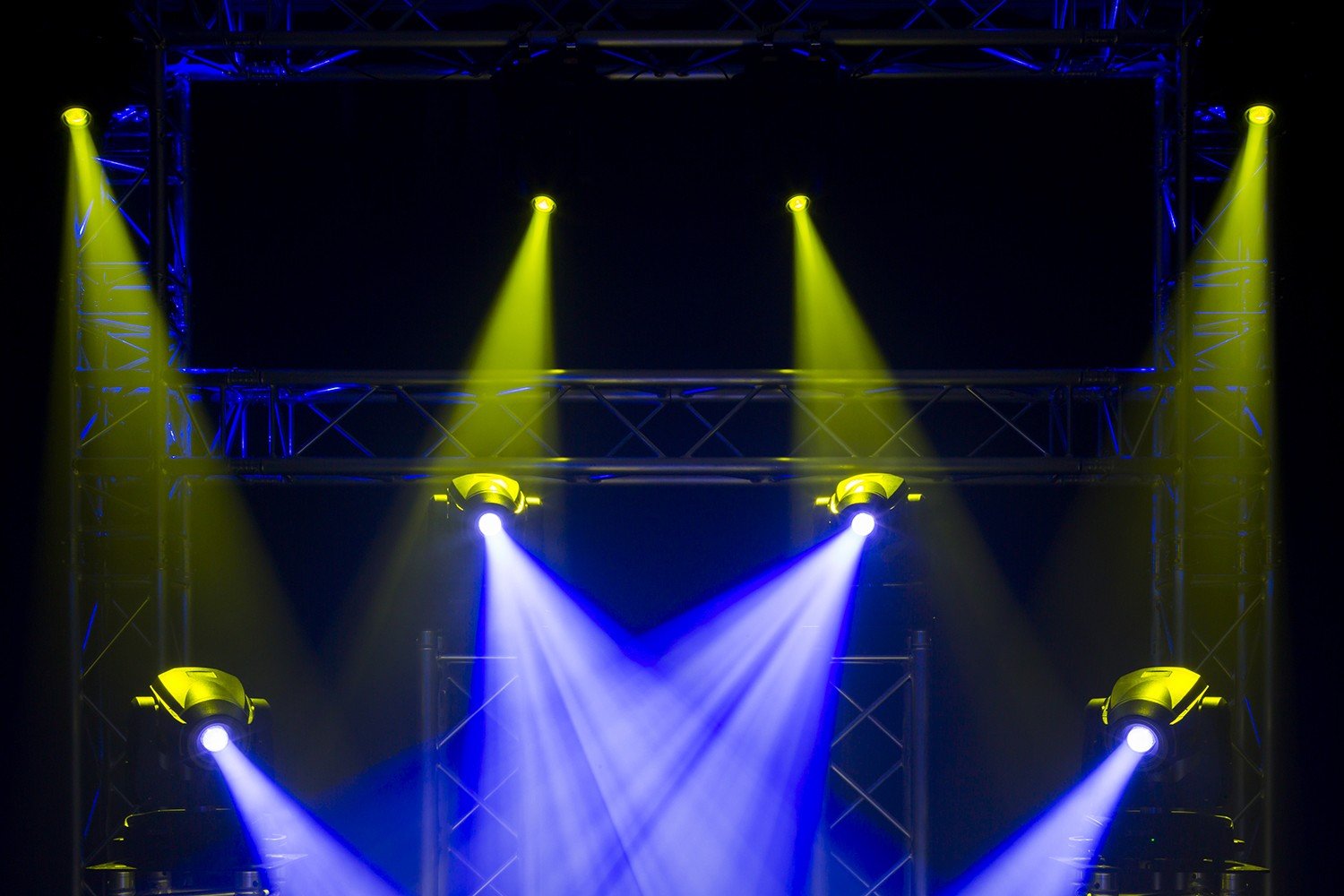

This moving head is the perfect tool for a wide variety of applications. At concerts and festivals, its powerful beams and aerial gobos slice through the atmosphere to create memorable visual spectacles. For mobile DJs and nightclubs, its sound-activated mode and automatic programs offer a dynamic light show without the need for constant DMX control. In theaters and audiovisual productions, the motorized focus and high-quality gobos allow for the precise projection of textures and shapes onto stages and sets.
Frequently Asked Questions
Are the gobos customizable?
Yes, the first gobo wheel has 6 interchangeable gobos (3 crystal and 3 metal). These can be replaced with custom gobos that fit the standard 21mm size.
Can I control this unit without a DMX console?
Yes, the IGNITE180S includes standalone modes, such as automatic programs and sound activation with adjustable sensitivity. It can also operate in Master/Slave mode to synchronize multiple units without an external controller.
What type of connectors does it use?

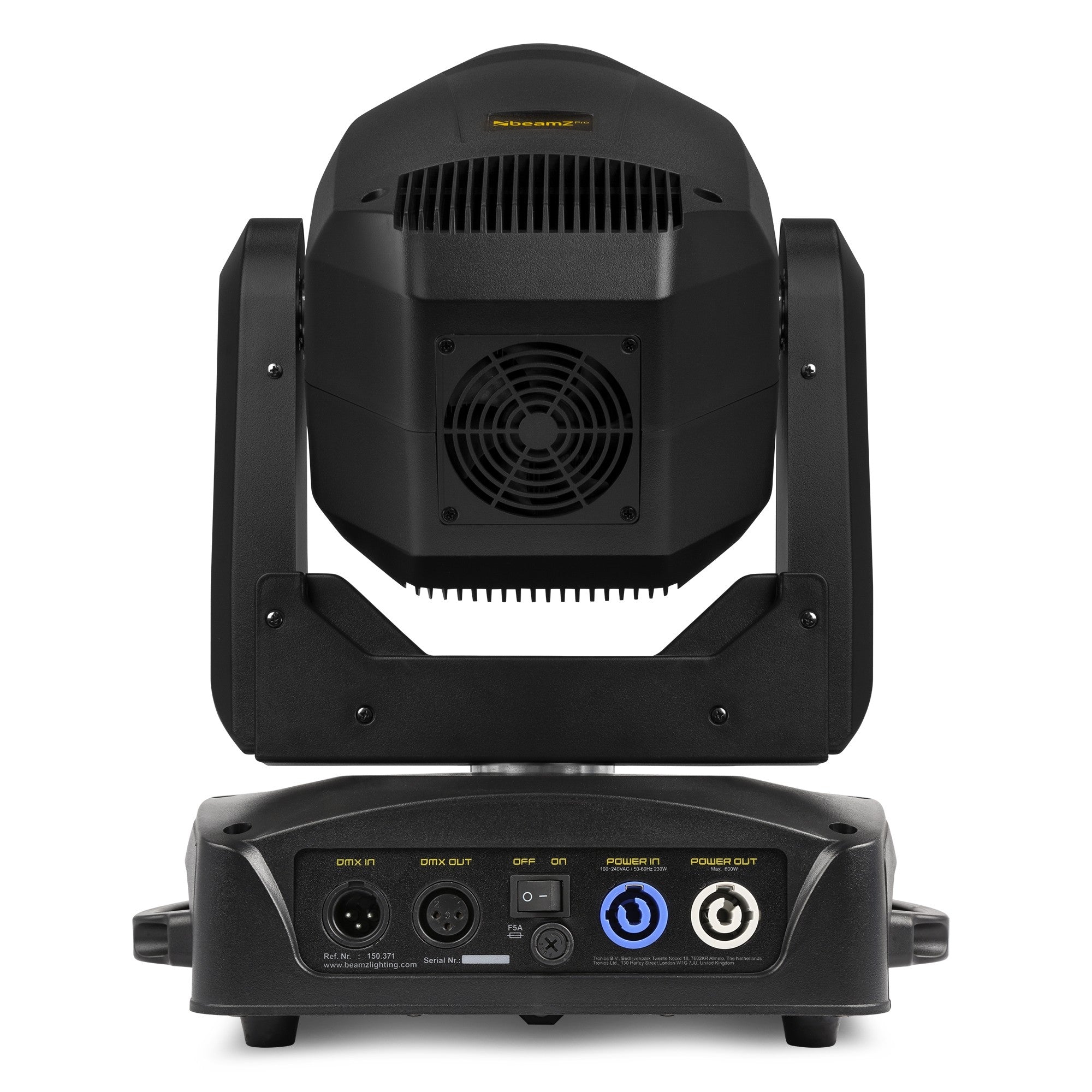

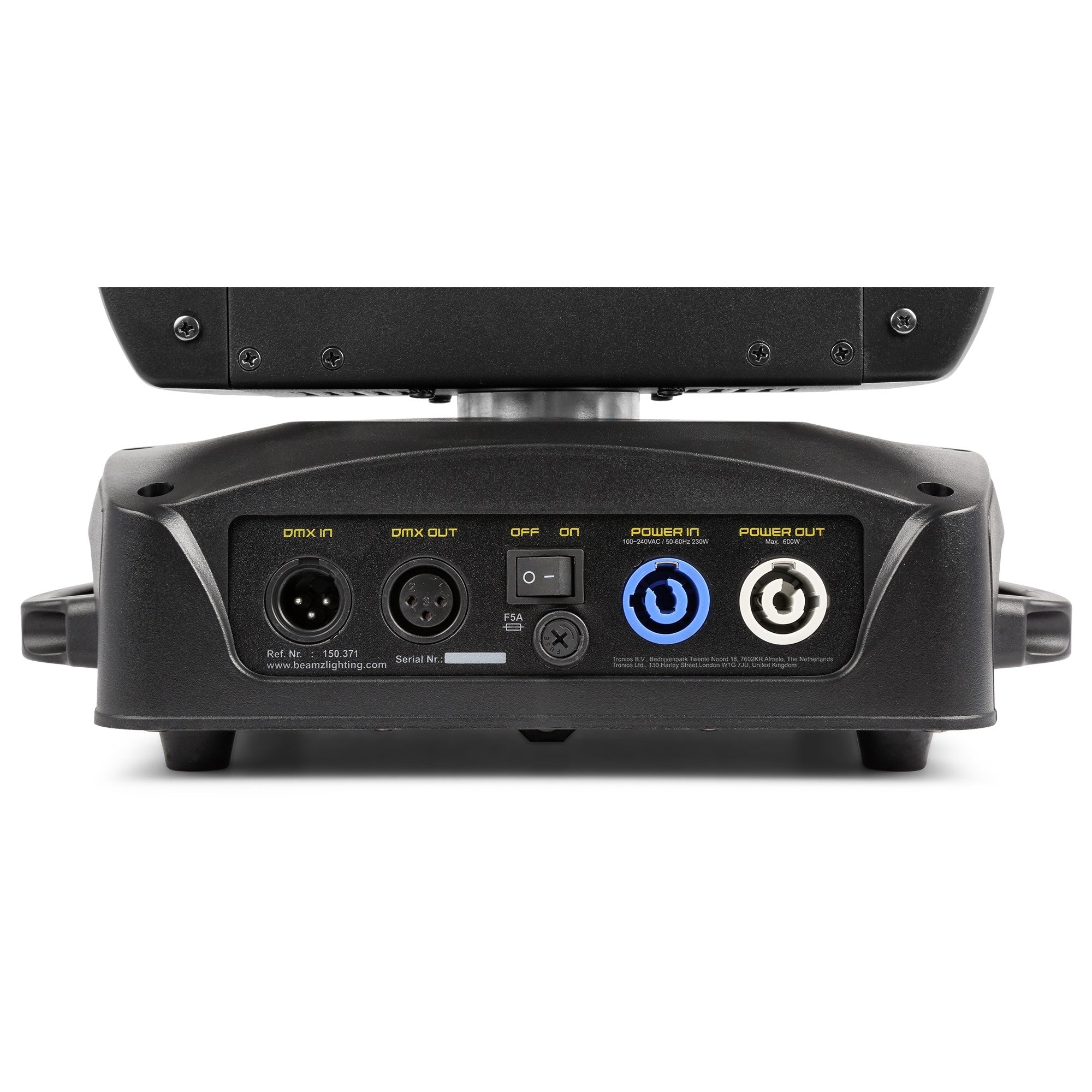

It uses 3-pin XLR connectors for DMX input and output, and PowerCON connectors for power input and output, allowing for a secure and professional connection.
Project description
Spot-type moving head with a 180W white LED light source and a 15-degree beam angle. Luminance of 131,000 lx @ 1m. Features 540° pan and 270° tilt movement with automatic position correction. Includes a dual gobo wheel: one with 6 rotating and interchangeable gobos (21mm size) and another with 8 fixed gobos. Also includes a 7-color wheel plus white with a rainbow effect. Equipped with two rotating prisms (3-facet and 6-facet linear), motorized focus, 0-100% electronic dimmer, and 0-20Hz strobe effect. Operable via 13 or 17 DMX channels, standalone mode, sound activation, and Master/Slave mode. DMX connectivity via 3-pin XLR and power via PowerCON in/out. Control panel with LCD screen. Temperature-controlled fan cooling.
