AFX Light HOTBEAM-10R - Moving head 10R (BEAM - SPOT - WASH)

AFX Light HOTBEAM-10R - Moving head 10R (BEAM - SPOT - WASH)

The AFX Light HOTBEAM-10R is a 3-in-1 hybrid moving head that integrates Beam , Spot and Wash functions in a single fixture. Equipped with a high-power 280W OSRAM 10R lamp and a motorized optical system, it offers a narrow beam of 2.8°–7° for beam effects, a 22°–28° angle in spot mode and a wide color wash of 5°–32° in wash mode. It incorporates static (14 + open) and rotating (9 + open) gobo wheels, a color wheel (13 + white) with rainbow effect and gobo shake function, as well as an 8-facet rotating prism, frost filter, adjustable strobe and fully DMX controllable focus and zoom. Its three-phase motor and 540° pan/270° tilt ensure smooth, precise movements, while the high-resolution reversible LCD screen and operating modes (Automatic, Sound, DMX, Master-Slave and Manual) facilitate programming in any professional environment.

Main features

• Lamp: OSRAM 10R 280 W ultra bright
• Optical modes: Beam (2.8°–7°), Spot (22°–28°), Wash (5°–32°)

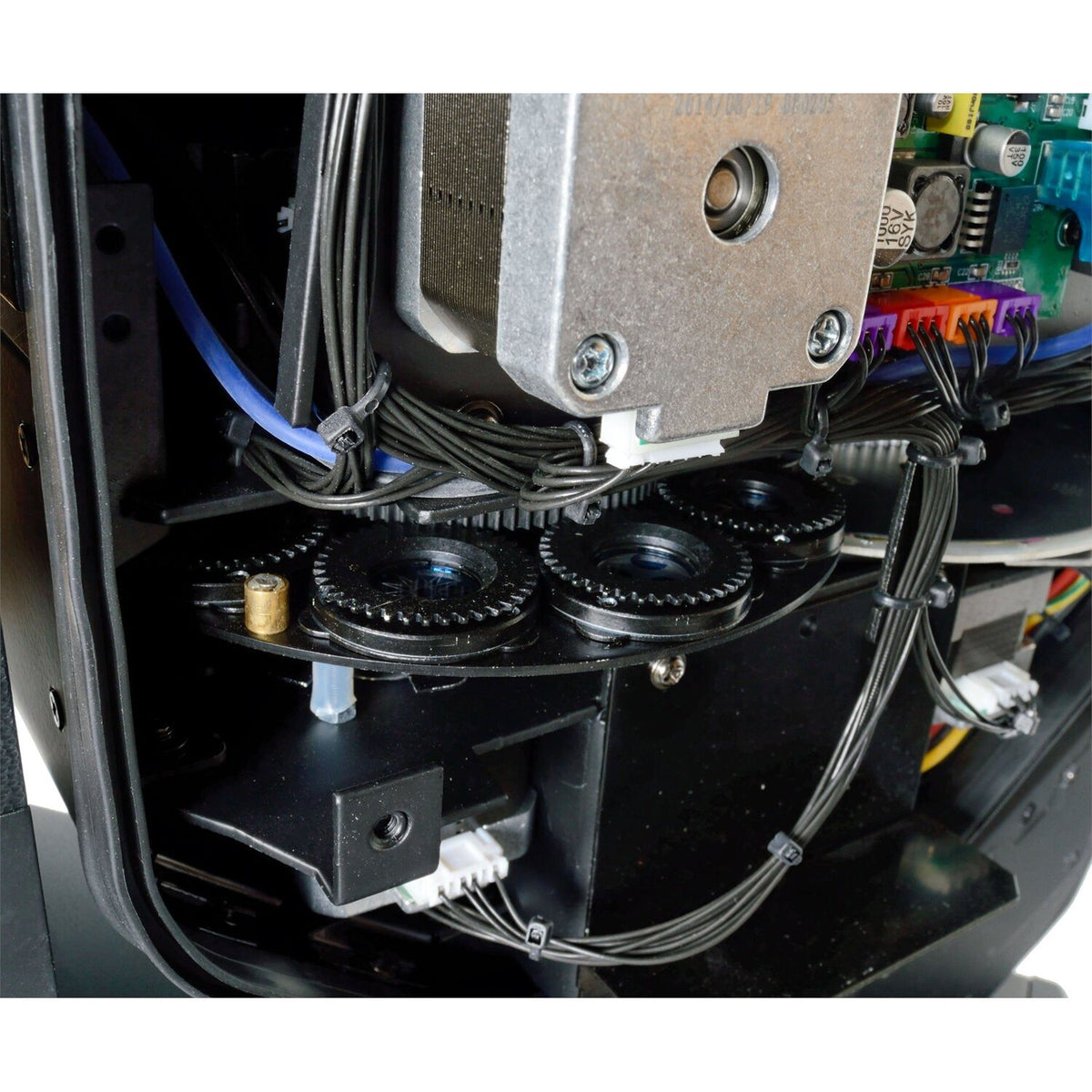

• Gobo wheels: 14 static + open; 9 rotating + open; gobo shake

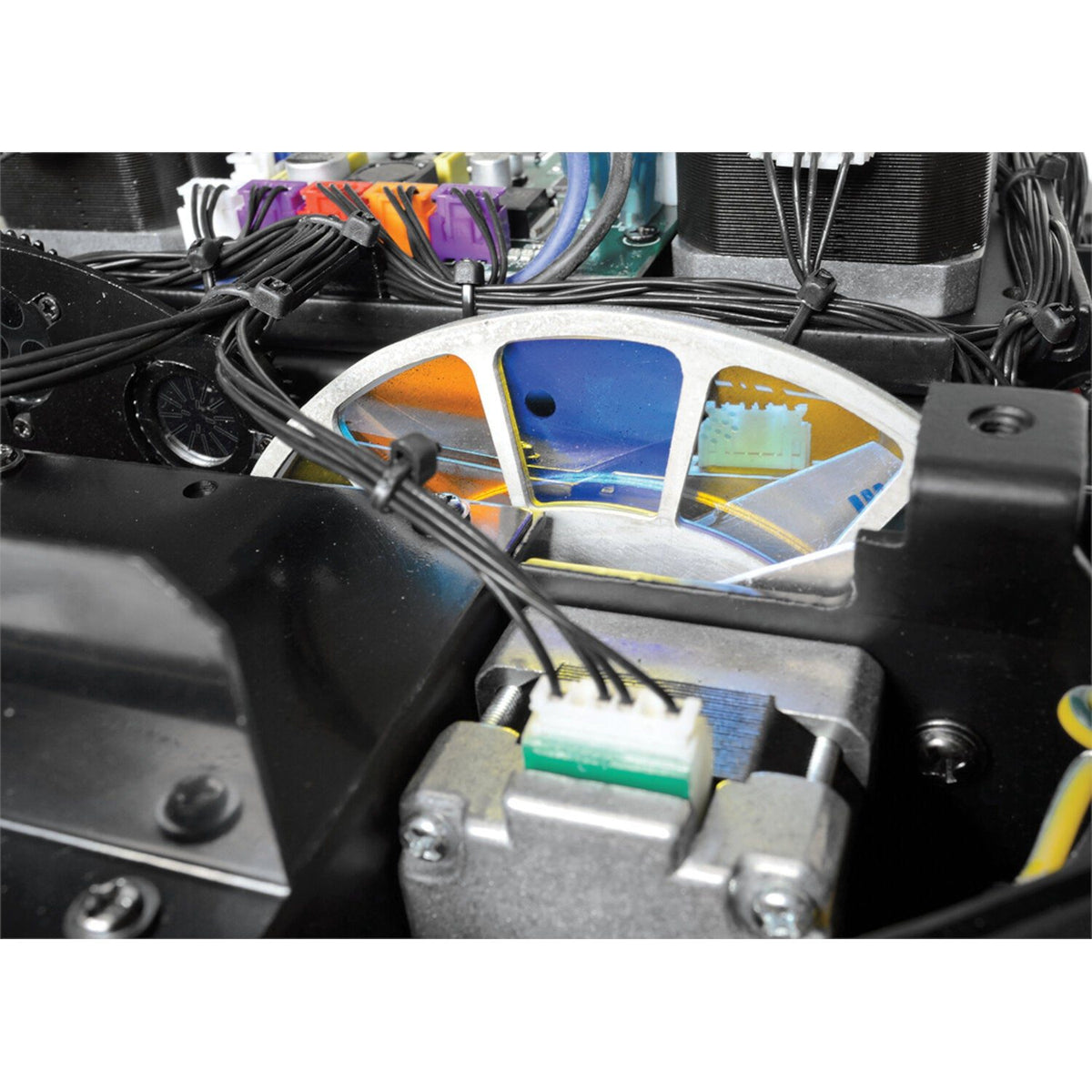

• Color wheel: 13 colors + white with rainbow effect
• Prism: 8-sided rotating
• Filter: Integrated Frost
• Strobe: Adjustable speed

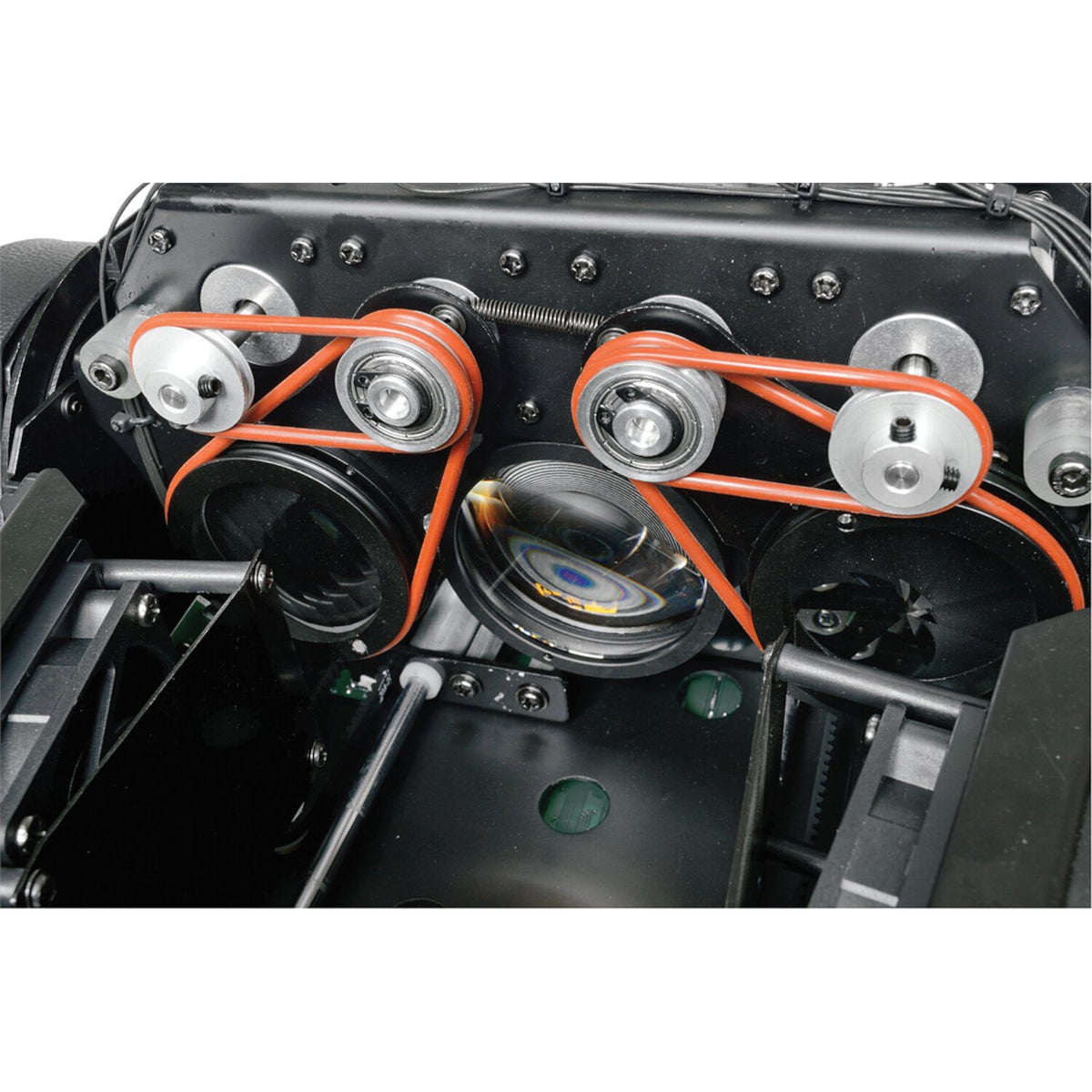

• Focus and zoom: Motorized and DMX controllable
• DMX Channels: Selectable 16 or 24
• Movement: Pan 540° / Tilt 270° with three-phase motor
• Display: High-resolution reversible LCD
• Operating modes: Automatic, Sound, DMX, Master-Slave, Manual
• Power supply: 220–240 V ~ 50/60 Hz | Consumption: 470 W
• Dimensions: 385 × 365 × 589 mm | Weight: 19 kg

Product benefits

• Maximum versatility: Three lighting functions in a single unit, optimizing space and budget.
• Power and range: High intensity 10R lamp for indoor or outdoor shows.
• Optical Quality: Gobo wheels, prism and frost filter offer endless creative possibilities.
• Motion Precision: Three-phase motor and wide pan/tilt range for fast or slow sweeps.
• Easy integration: Wide range of DMX channels and standalone modes for mobile installation and events.

Use cases

• Concerts and tours: lighting large stage spaces with impressive effects.
• Discos and clubs: synchronizing beam, spot, and wash with music.
• Corporate and theatrical events: elegant transitions between color environments.
• Professional rental: all-in-one equipment for lighting operators and technicians.

Frequently Asked Questions

• What beam angles does it offer? Beam 2.8°–7°, Spot 22°–28°, Wash 5°–32°.
• How do I change the number of DMX channels? Use the LCD menu to select 16 or 24 channels as needed.
• Can it be used without a DMX console? Yes; it has Automatic, Sound, and Master-Slave modes for independent operation.
• Is the frost filter permanent? No; it can be installed or removed without tools.

Description for projects

3-in-1 hybrid moving head with OSRAM 10R 280 W lamp, beam 2.8°–7°, spot 22°–28°, wash 5°–32°, static and rotating gobos, color wheel, gobo shake, 8-facet prism, frost filter, strobe, three-phase motor, pan 540°/tilt 270°, DMX zoom and focus, reversible LCD screen, 16/24 DMX channels, Auto/Sound/DMX/Master-Slave/Manual modes, 470 W consumption.
