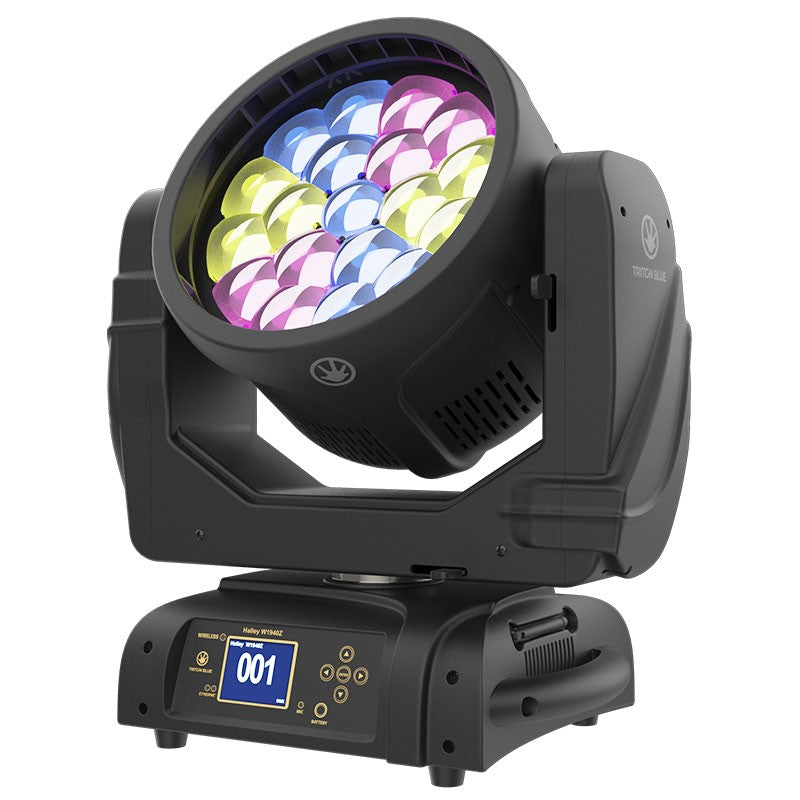

Triton Blue HALLEY-W1940Z - TRITON MOVING HEAD WASH ZOOM 19 LED OSRAM X 40W

Triton Blue HALLEY W1940Z - 19x40W OSRAM RGBW Wash Moving Head with 4°–54° Zoom, Pixel Control and DMX/RDM/Art-Net

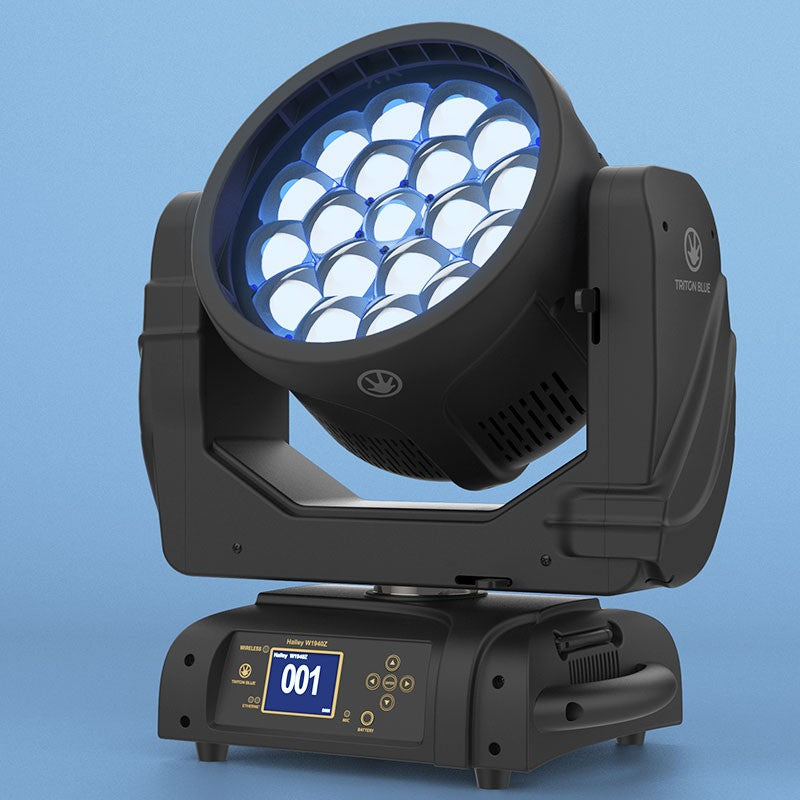

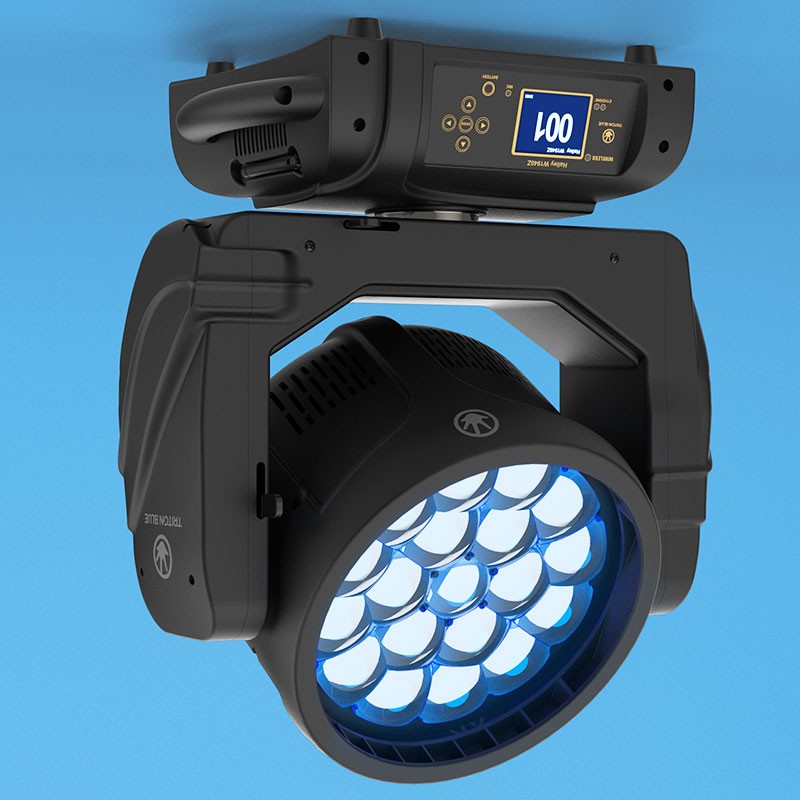

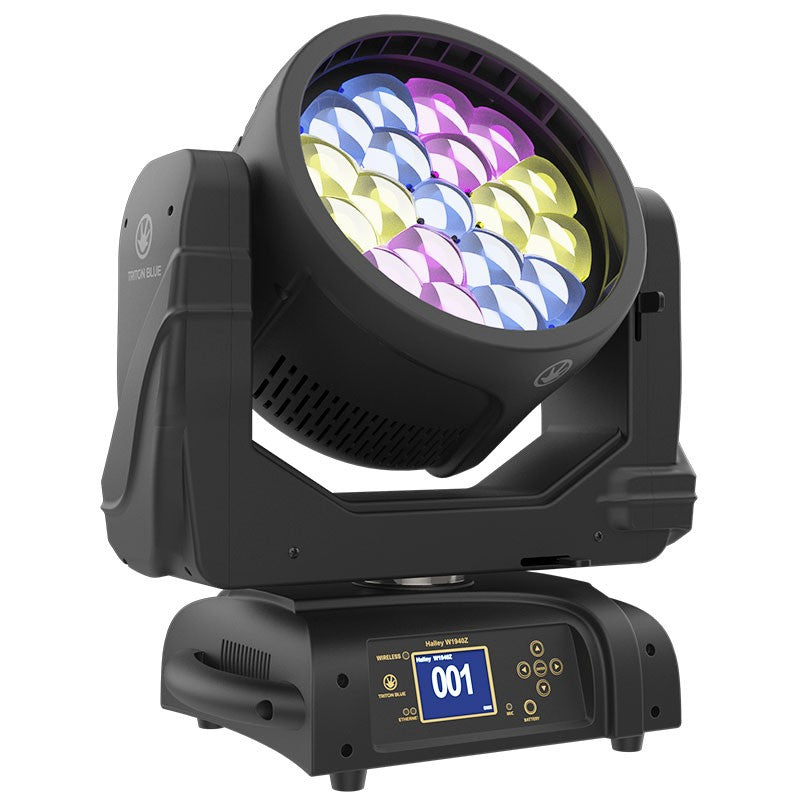

The Triton Blue HALLEY W1940Z is a high-performance wash moving head with 19 x 40W OSRAM LEDs (RGBW) , designed for demanding live, theatre and broadcast productions. Its 4°–54° motorized zoom delivers everything from tightly focused narrow beams to even stage washes, with autofocus and 140mm glass lens optics for maximum efficiency. It delivers 7,996 lm and reaches 110,621 lux at 3 m (4°) and 2,355 lux at 3 m (54°) , with CRI > 92 and calibrated and adjustable color temperature from 2,800 K to 10,000 K for integration with cameras and flicker-free white luminaires.

The LED engine works flicker-free thanks to its adjustable frequency (600 Hz, 1,200 Hz, 2 kHz, 4 kHz, 6 kHz, 25 kHz, 50 kHz). It incorporates LED to LED pixel control , effects generator, frost , 0–100% dimmer at 16 bits with 4 curves and strobe. For professional integration it has DMX-512 ( 18/25/37 channel maps), RDM , Art-Net via RJ45 and integrated LumenRadio Wireless DMX . The chassis (technical plastic) includes Pan/Tilt lock , omega clamping lyre and Neutrik powerCON TRUE1 ; 5-pin REAN XLR signal connectors. With a maximum consumption of 492 W , PF> 0.98 and silent active cooling, it maintains stability in a range of −10 °C to +45 °C .

Main features

• Light source: 19 × 40 W OSRAM RGBW with pixel control (each LED).
• Optics and zoom: 4°–54° motorized zoom, 140 mm glass lens, autofocus.
• Output: 7,996 lm ; 110,621 lux @3 m (4°) / 2,355 lux @3 m (54°) .
• Color and CCT: RGBW mix with calibrated CCT 2,800–10,000 K ; CRI > 92 .
• Anti-flicker frequency: 600 Hz–50 kHz selectable for video.
• Dimmer and effects: 0–100% 16-bit; 4 curves; strobe; frost effect; effects generator.
• Control: DMX-512 (18/25/37 channels), RDM , Art-Net and LumenRadio Wireless DMX .

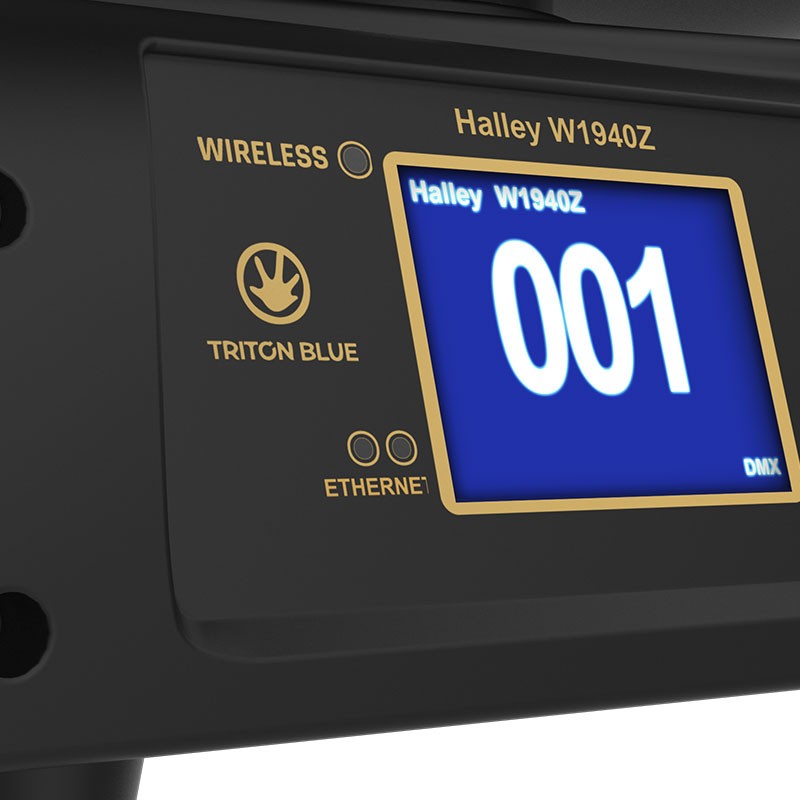

• Interface: 2.4” LCD screen with display battery for configuration without network.
• Mechanics: Pan 540° / Tilt 265° (16 bits), Pan/Tilt lock, quick-release omegas.

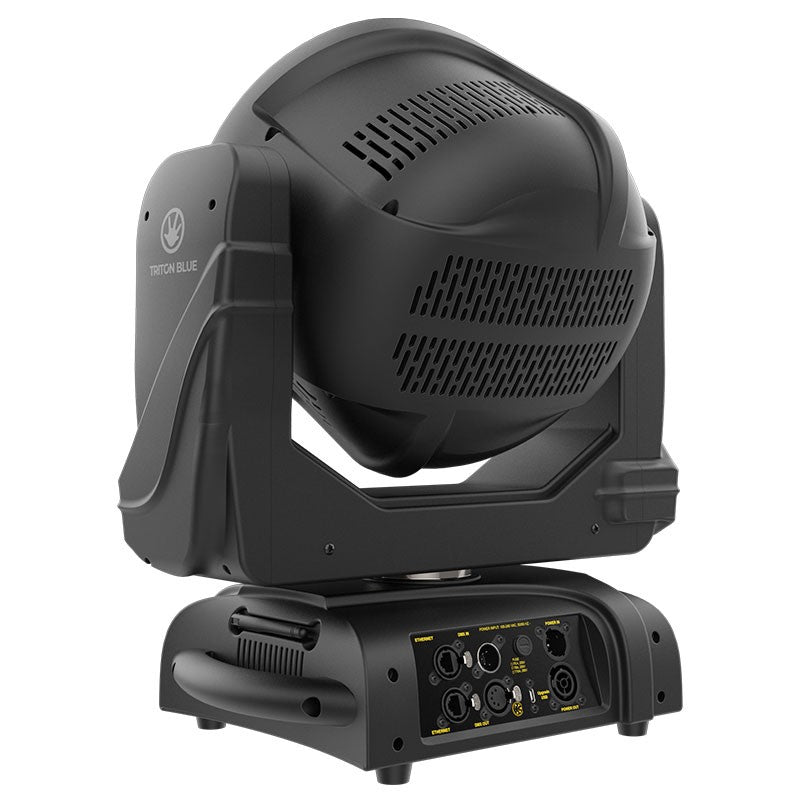

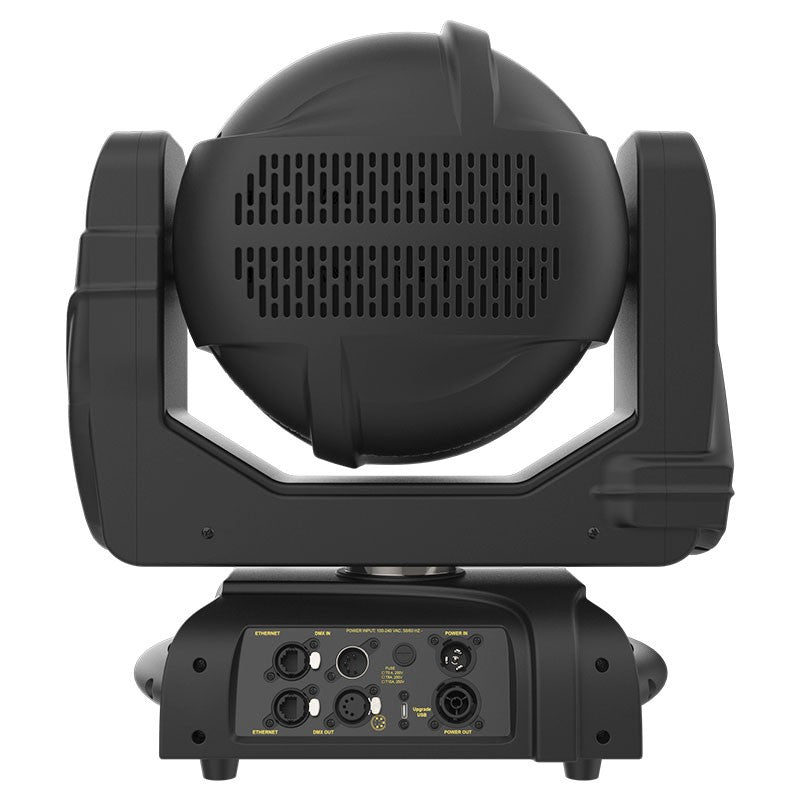

• Connections: Neutrik TRUE1 (power IN/OUT), REAN XLR 5 pins (DMX), RJ45 Art-Net .
• Power consumption and power: 492 W max.; 100–240 V~ 50/60 Hz ; PF > 0.98.
• Construction: IP20 , silent active cooling, black body.

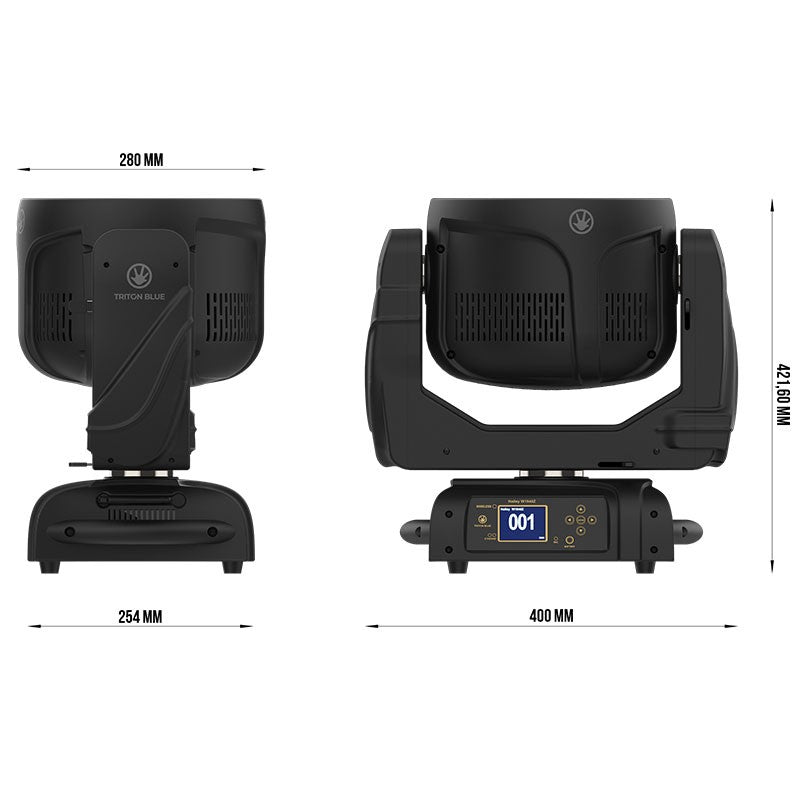

• Dimensions and weight: 399 × 335.8 × 408 mm ; 15.5 kg .

Product benefits

• Top-level performance : high illuminance with closed zoom and uniform RGBW mixing .
• Consistent camera color : CCT calibrated 2,800–10,000 K and CRI > 92 flicker-free.
• Advanced Creativity : Per-pixel control, effects generator and frost for smooth transitions.
• Professional integration : DMX/RDM, Art-Net and Wireless DMX LumenRadio as standard.
• Reliable operation : PF > 0.98, quiet cooling and professional TRUE1/XLR5 connectivity.

Use cases

• Live and festivals : powerful beam-wash for accents, audiences and large stages.
• Premium theater, TV, and events : stable color reproduction and selectable anti-flicker frequency.
• Fixed installations : high-demand rigs with network control (Art-Net) and easy maintenance.

Modes and control

• DMX-512 : 3 maps ( 18 / 25 / 37 ch ) with pixel control.
• RDM : Remote Steering, Monitoring and Adjustments.
• Art-Net : network control via RJ45; LumenRadio Wireless DMX integrated.
• Curves and Dimming : 4 dimmer curves; 16-bit dimmer and Pan/Tilt.

Description for projects

IP20 wash moving head with 19 × 40 W OSRAM RGBW , zoom 4°–54° , 140 mm glass lens , motorized focus, 7,996 lm , 110,621 lux @3 m (4°) / 2,355 lux @3 m (54°) , CRI > 92 , CCT 2,800–10,000 K , anti-flicker 600 Hz–50 kHz, dimmer 0–100 % (16-bit), strobe, frost , pixel control, DMX (18/25/37 ch) , RDM , Art-Net , Wireless DMX LumenRadio , TRUE1 , XLR5 and RJ45 connectors. Power supply 100–240 V~ , 492 W max., PF > 0.98. Measurements 399 × 335.8 × 408 mm , weight 15.5 kg .
