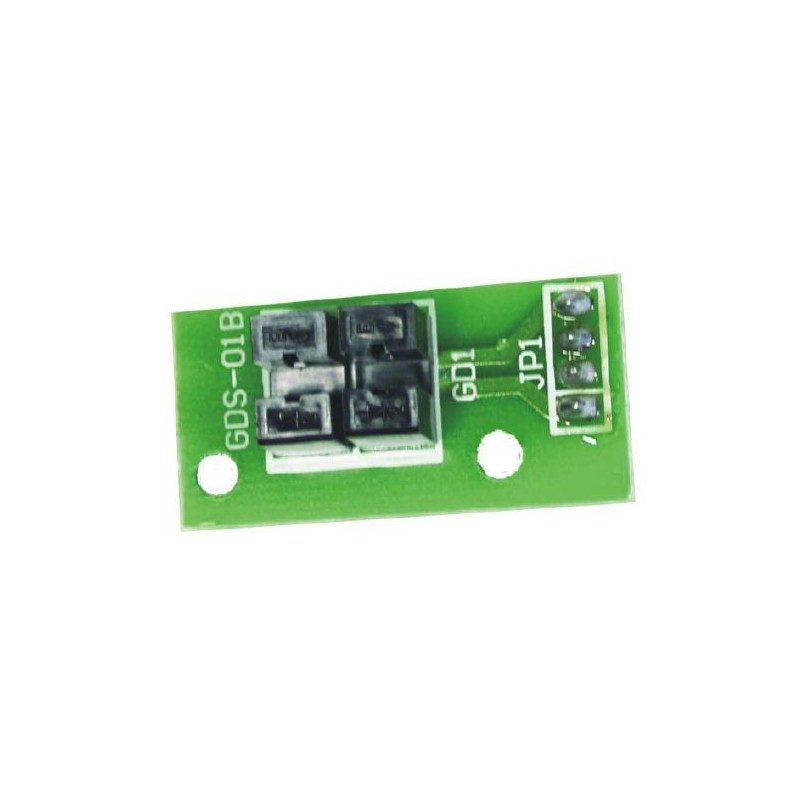

Triton Blue GDS01B - Positioning Photocell for Moving Heads

Triton Blue GDS01B - Positioning Photocell for Moving Heads

The Triton Blue GDS-01B photocell is an original replacement part, specifically designed to ensure the proper functioning of Triton Blue professional moving heads. This optical sensor, also known as an opto-interrupter, plays a crucial role in the calibration and precise positioning of the equipment's internal mechanisms, such as gobo wheels, color wheels, and pan and tilt functions.

Manufactured to the highest quality standards, this replacement part ensures perfect compatibility and restores the system's original functionality. Its installation resolves common problems caused by wear or failure of the old sensor, such as effects out of sync, erratic gobo positioning, or the unit's inability to perform its reset sequence correctly. Using a genuine Triton Blue component extends the unit's lifespan and ensures reliable, consistent performance in any professional environment.

Main Features

• Original Replacement Part: Genuine Triton Blue component, guaranteeing compatibility and performance identical to the factory part.
• High Precision: Designed to offer reliable and accurate optical detection, essential for the correct calibration of moving head effects and movements.
• Essential Function: Indispensable for the internal positioning system, allowing the unit to know the exact location of its mechanical components.
• Durable Construction: Made with quality materials to withstand the demanding working conditions at live events and shows.
• Direct Installation: Designed for easy replacement by qualified technical personnel, without the need for adaptations.

Benefits for the Technician and the User

Using the genuine GDS-01B photocell provides peace of mind, knowing you're installing a verified component that won't compromise the rest of the equipment's electronics. For rental companies, maintenance technicians, and Triton Blue equipment owners, this replacement part enables:

• Restore Functionality: Effectively solves positioning and calibration failures, returning the moving head to its full performance.
• Avoid Higher Costs: Replacing a faulty sensor in time prevents further damage to motors and associated mechanisms, which could result in more complex and costly repairs.
• Maintaining Consistency: Ensures that all units of the same model behave identically, which is crucial for programming synchronized lighting shows.
• Maximize Useful Life: Using original replacement parts is the best practice to maintain the integrity and extend the durability of your investment in professional lighting equipment.

Use Cases

This component is the ideal solution for the technical service and maintenance of Triton Blue moving heads that exhibit symptoms such as:

• The gobo or color wheel spins without stopping or does not align in the correct position.
• The unit does not complete its initialization cycle or displays an error on the display.
• Prism or focus effects are not activated accurately.
• Pan or Tilt movements that do not find their origin point ("home" position).

Frequently Asked Questions

What exactly is the function of the GDS-01B photocell?
It acts as an optical switch. It detects the passage of a tab or mark on a rotating wheel (like that of gobos) or on a moving mechanism, sending a signal to the motherboard so that it knows its exact position and can stop it or move it to the programmed point.

Is it compatible with any Triton Blue moving head?
The GDS-01B model is designed for specific models within the Triton Blue range, typically more compact devices such as the Mini series. It is essential to verify compatibility with your device's service manual before purchasing.

Can I install this part myself?
Installation requires knowledge of electronics and experience repairing lighting equipment. It is recommended that the replacement be carried out by a qualified technician to avoid damage to the component or the moving head itself.

Why is it important to use an original replacement part instead of a generic one?
An original replacement part guarantees electrical, mechanical, and software compatibility. Generic components may have different tolerances, incorrect operating voltages, or lower durability, which can cause erratic operation or even damage the equipment's main control board.

Project description

The GDS-01B positioning photocell is designed as an original replacement part for Triton Blue brand moving heads. It is an optical sensor (opto-interrupter) responsible for the precise detection and calibration of the position of internal mechanical components, such as gobo and color wheels.
