Gator Frameworks GFW-MIC-MINIBM9 - 23cm Mini Microphone Arm with Adjustable Angle and Lifting Insert
The Gator Frameworks GFW-MIC-MINIBM9 is a fixed-length mini boom arm designed to extend the reach and flexibility of any standard microphone stand. Measuring 23 cm in length and featuring a 270° angle adjustment system, it allows for precise positioning of capsules and clips in tight spaces , on stages, in studios, or in streaming booths. Its locking teeth design securely locks the position, while the 5/8"-27 female threaded adapter attaches to most tripods and boom arms on the market. The arm end incorporates a 5/8"-27 male threaded connection with a lock nut for attaching microphone stands, clips, or shock mounts. For added clearance, a 7.6 cm riser is included on the threaded adapter, and it supports up to 1.36 kg of load, sufficient for most dynamic microphones, clips, and small shock mounts.
Main features
-
23cm mini-arm (reach to the end) to extend microphone placement without changing the stand.
-
Adjustable angle 270° using clamp with locking teeth for a firm lock.
-
5/8"-27 female thread on the adapter for mounting on standard brackets.
-

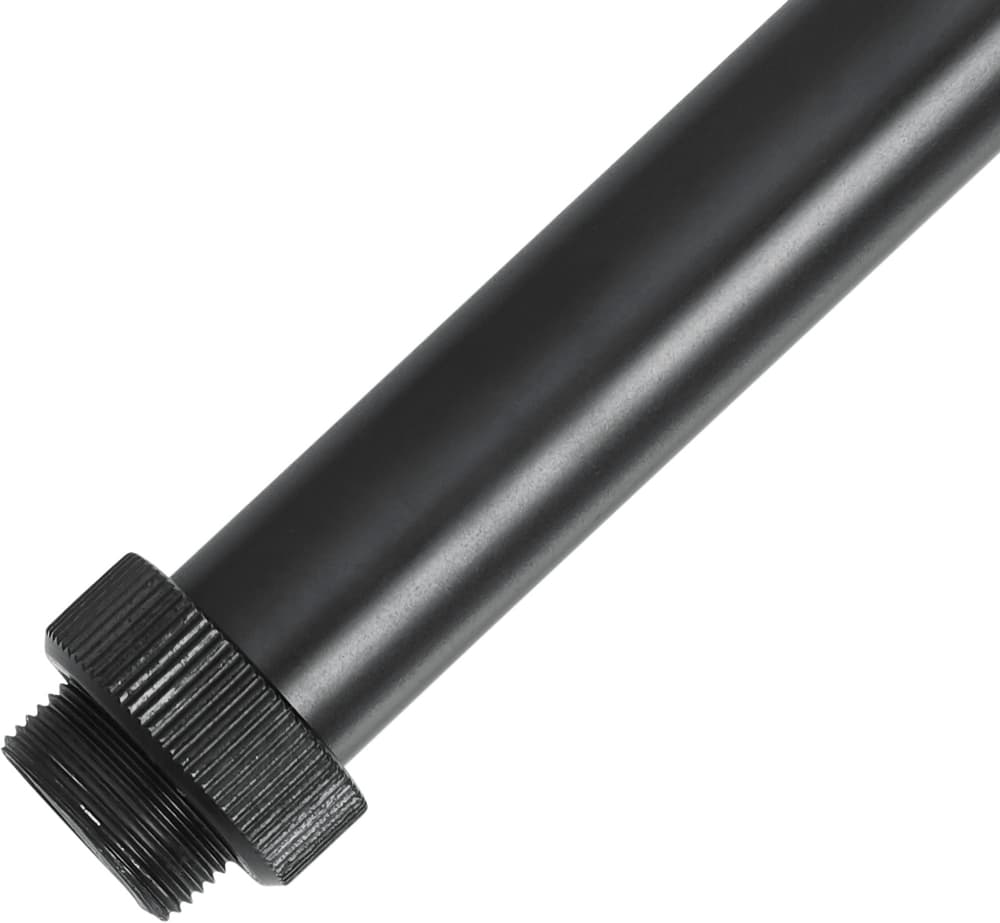

5/8"-27 male thread at the arm end with jam nut (lock nut) to secure accessories.
-
Integrated 7.6 cm riser in the adapter, providing additional height and clearance.
-
Load capacity: 1.36 kg (3 lb).
-
Product weight: 0.27 kg ; approximate external dimensions: 26.7 × 6.4 × 3.8 cm.
- Finished in black; compact design for microphones in tight spaces .
Product benefits
-
Precise placement without changing the stand : gain range and angle to orient the microphone towards the source.
-
Stability when locked : the toothed gear prevents the arm from giving way under the weight of the microphone.
-
Universal compatibility : 5/8"-27 (female/male) threads for integration with most brackets and clamps.
-
Optimizes space : designed for racks, drum kits, combos, tables and areas with little margin.
-
Quick assembly : the integrated lifter and lock nut speed up fine-tuning in seconds.
Use cases

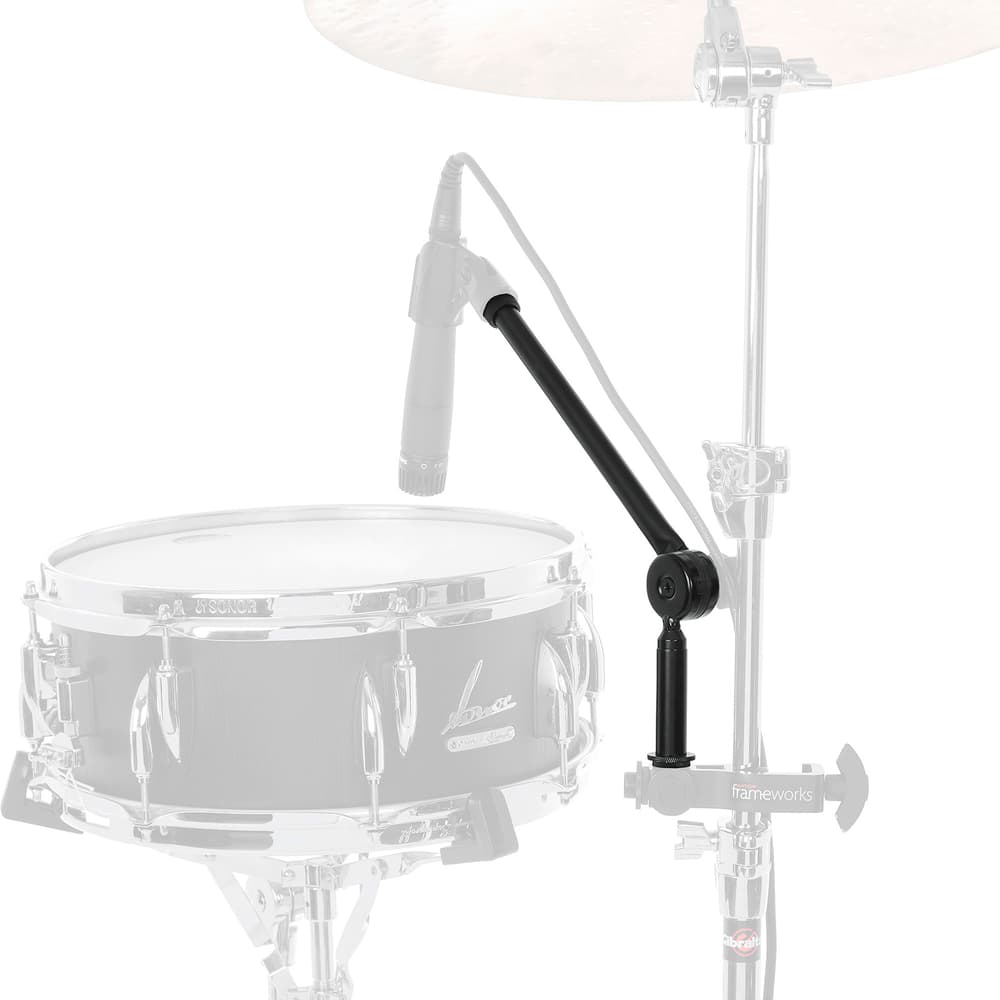

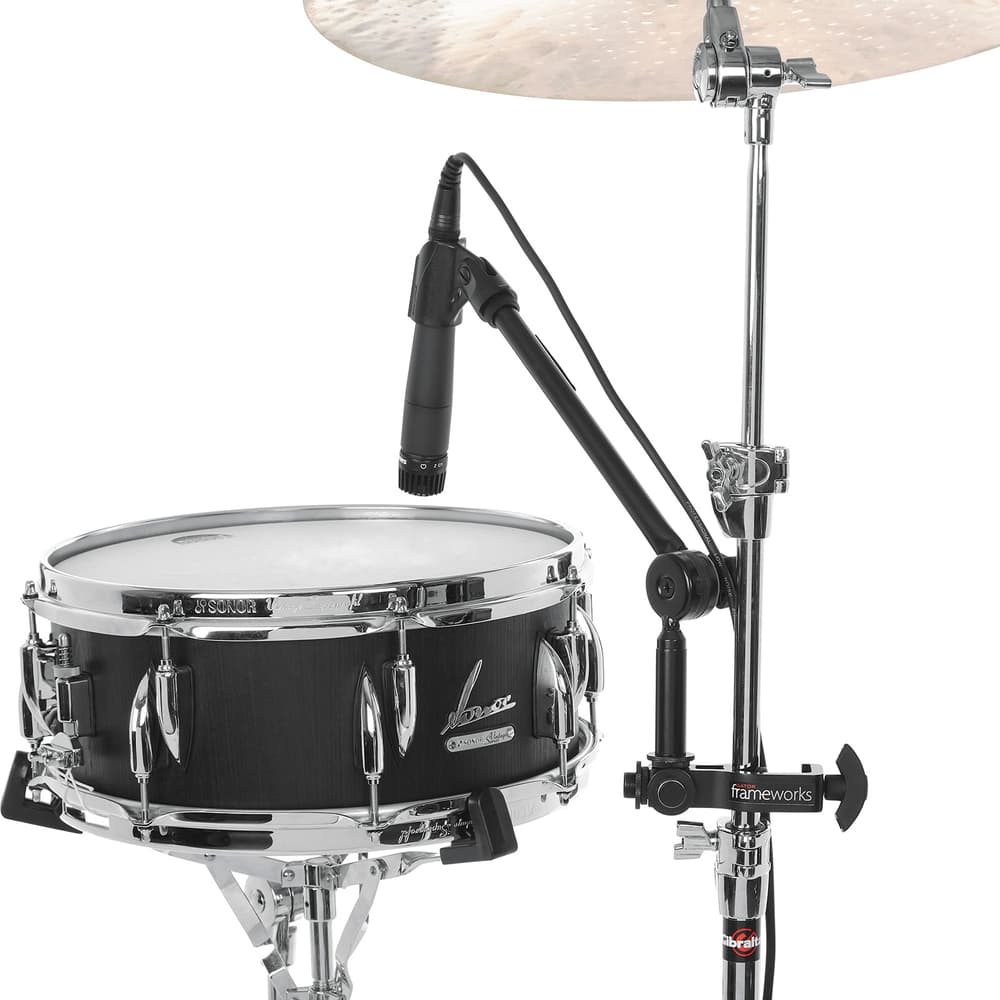

- Close miking of snare drums, toms, guitar or bass amplifiers, and auxiliary percussion.
- Precise microphone placement in home studios , isobooths, or streaming sets with limited space.
- Reinforcement of an existing foot when you need an additional point of reach or angle.
Frequently Asked Questions
-
Does it fit any microphone stand? Yes, the adapter has a standard 5/8"-27 female thread.
-
What type of thread does it have at the end? 5/8"-27 male thread with lock nut for calipers and suspensions.
-
How much does the arm rotate? Up to 270° of angle adjustment.
-
What weight does it support? Up to 1.36 kg .
-
What is the usable length? 23 cm to the end of the arm.
Compatibility and assembly
Screw the GFW-MIC-MINIBM9 onto your stand using the adapter's 5/8"-27 female thread. Use the 7.6 cm riser to gain clearance over clips, clamps, or other elements of the main stand. Adjust the angle to the desired position and lock it in place with the locking mechanism; secure your accessory at the tip with the lock nut to prevent rotation during performance or recording.
Project description
Fixed-length mini microphone arm 23 cm; 270° angle adjustment with locking teeth; adapter with 5/8"-27 female thread and 7.6 cm riser; end with 5/8"-27 male thread and lock nut; load capacity 1.36 kg; weight 0.27 kg; external dimensions approx. 26.7 × 6.4 × 3.8 cm; color black.
