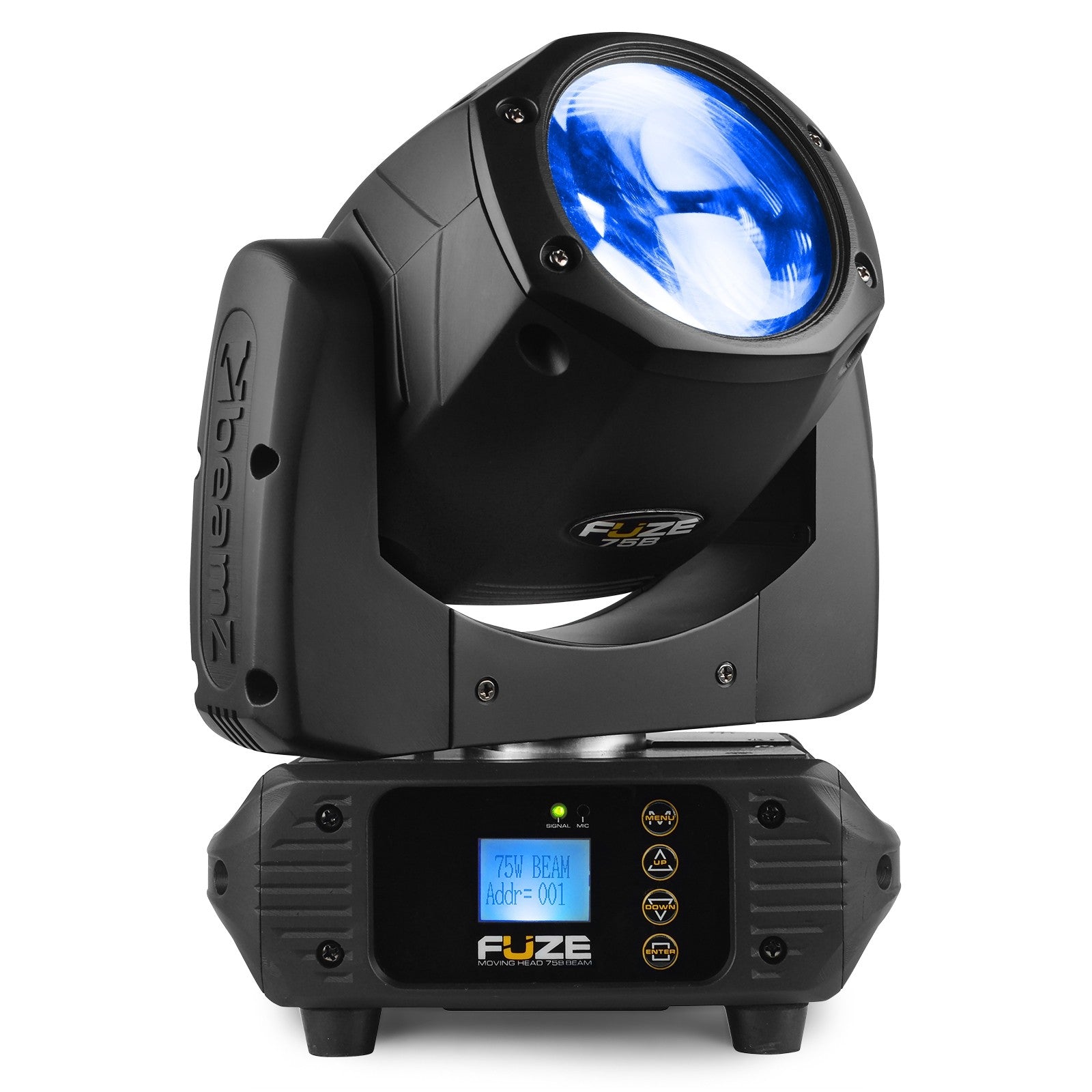

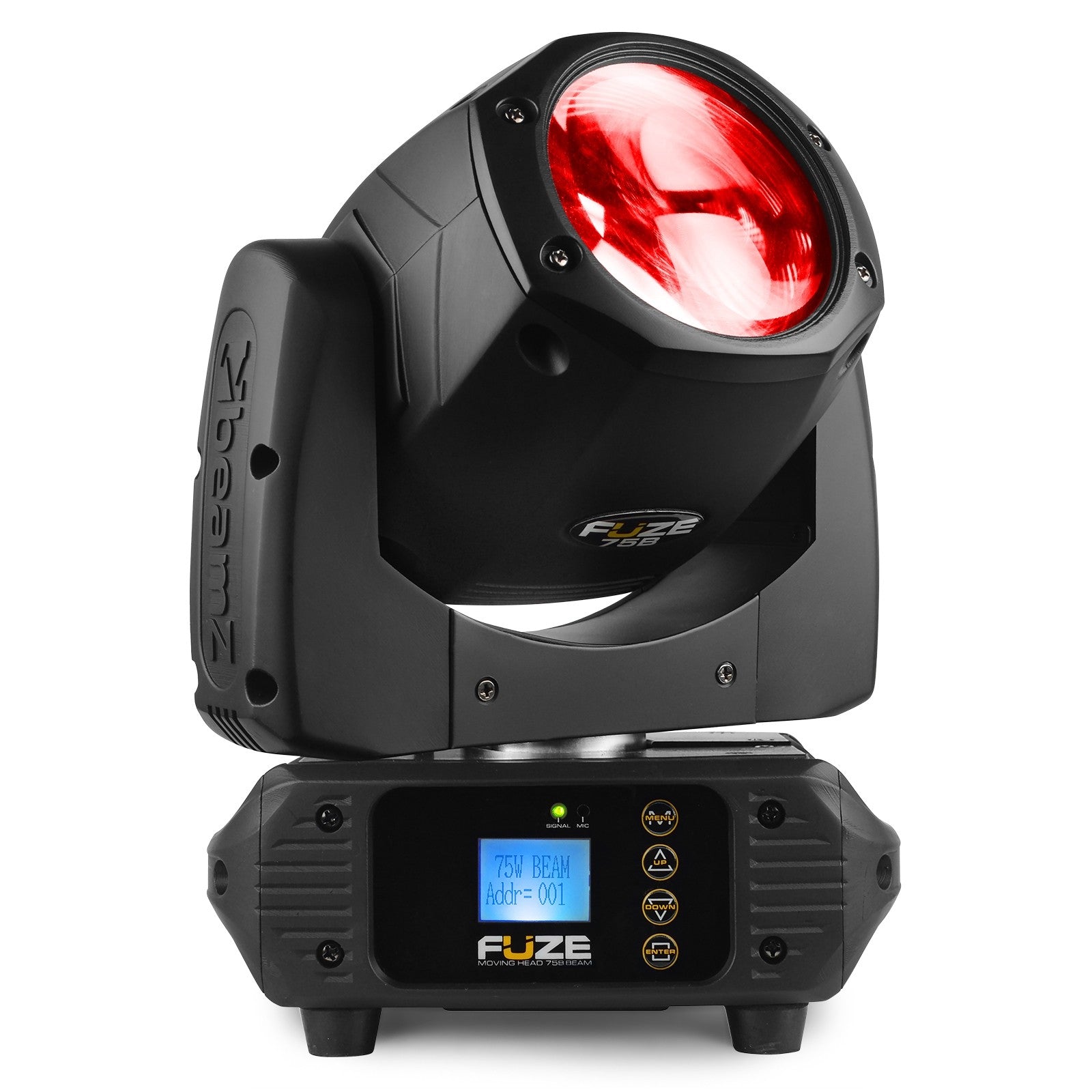

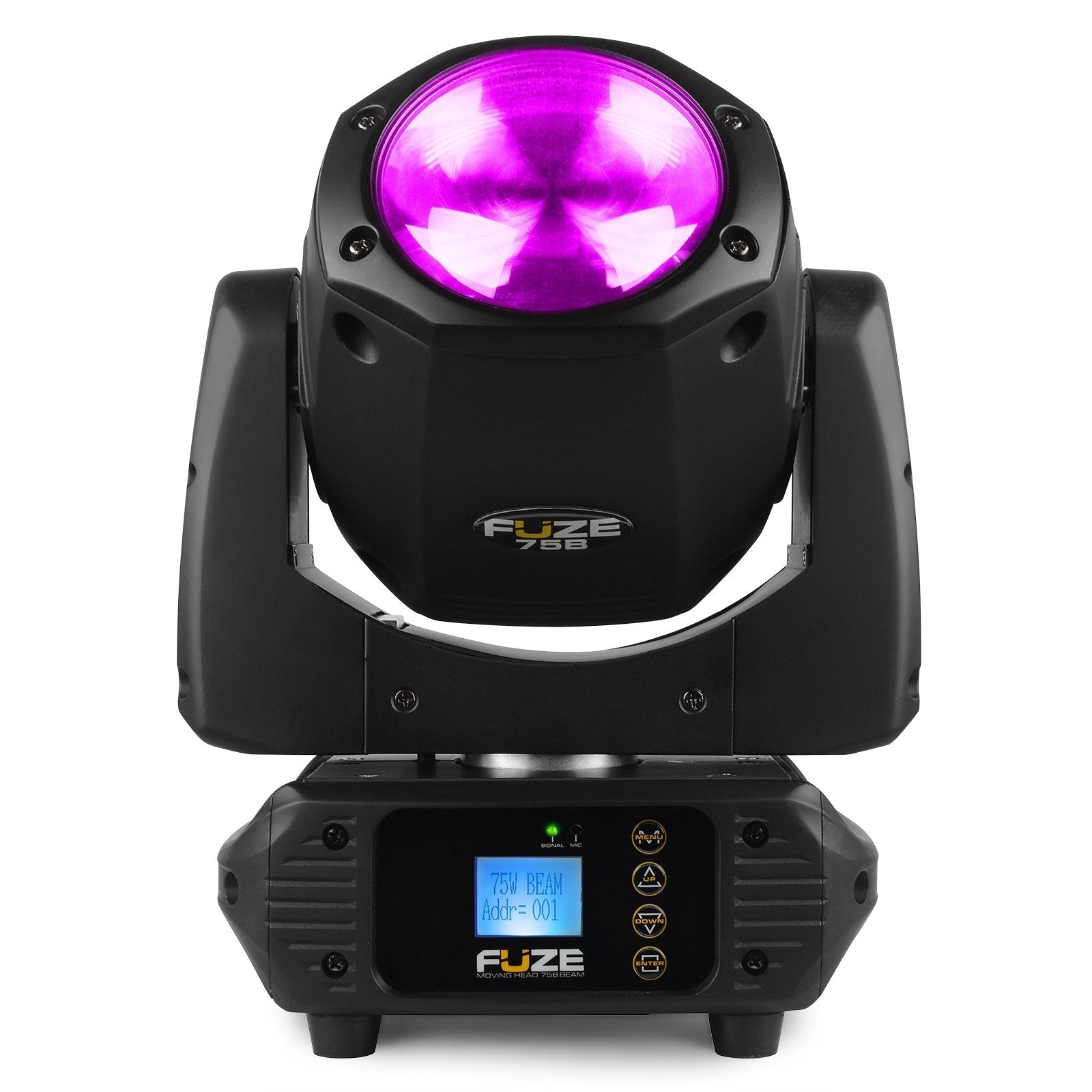

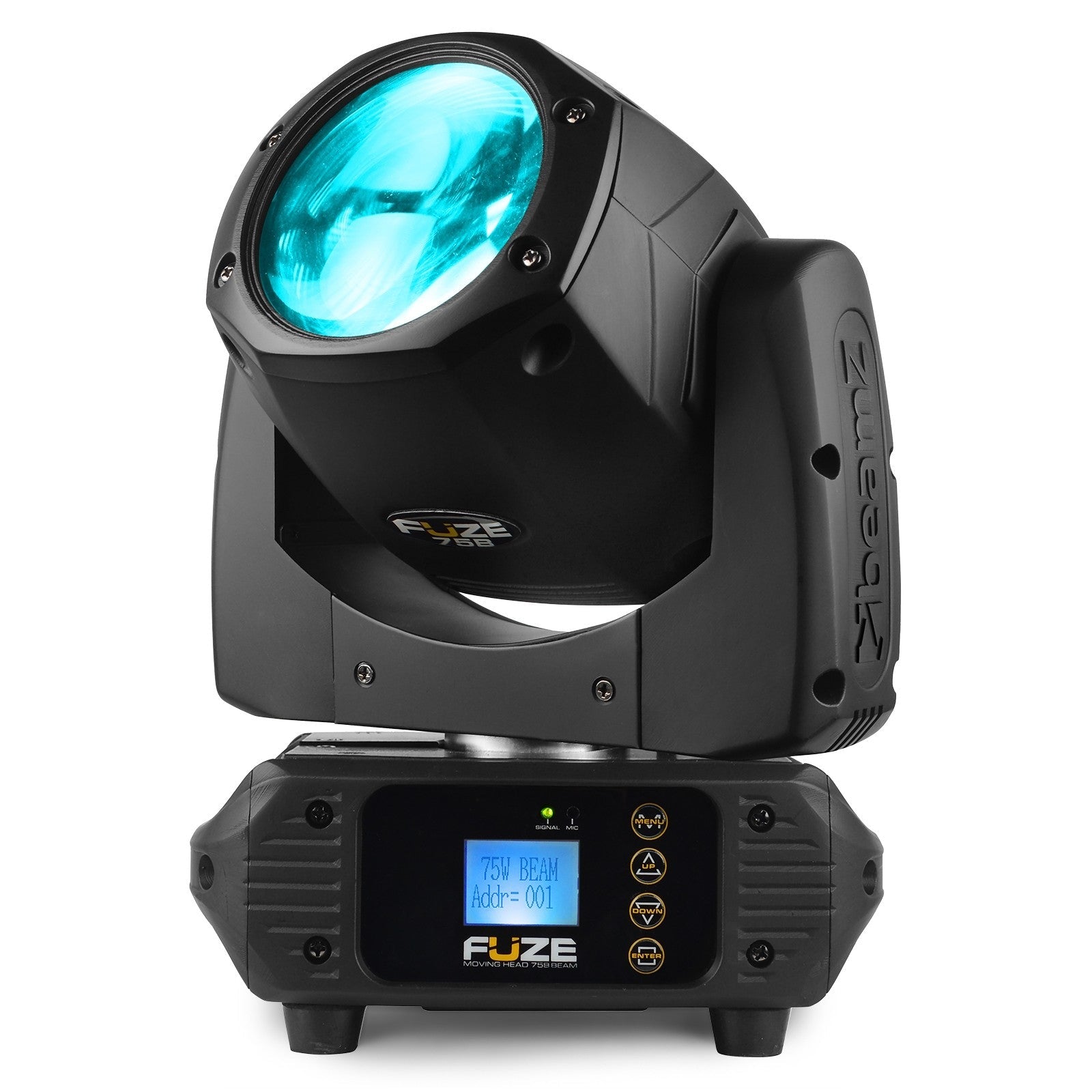

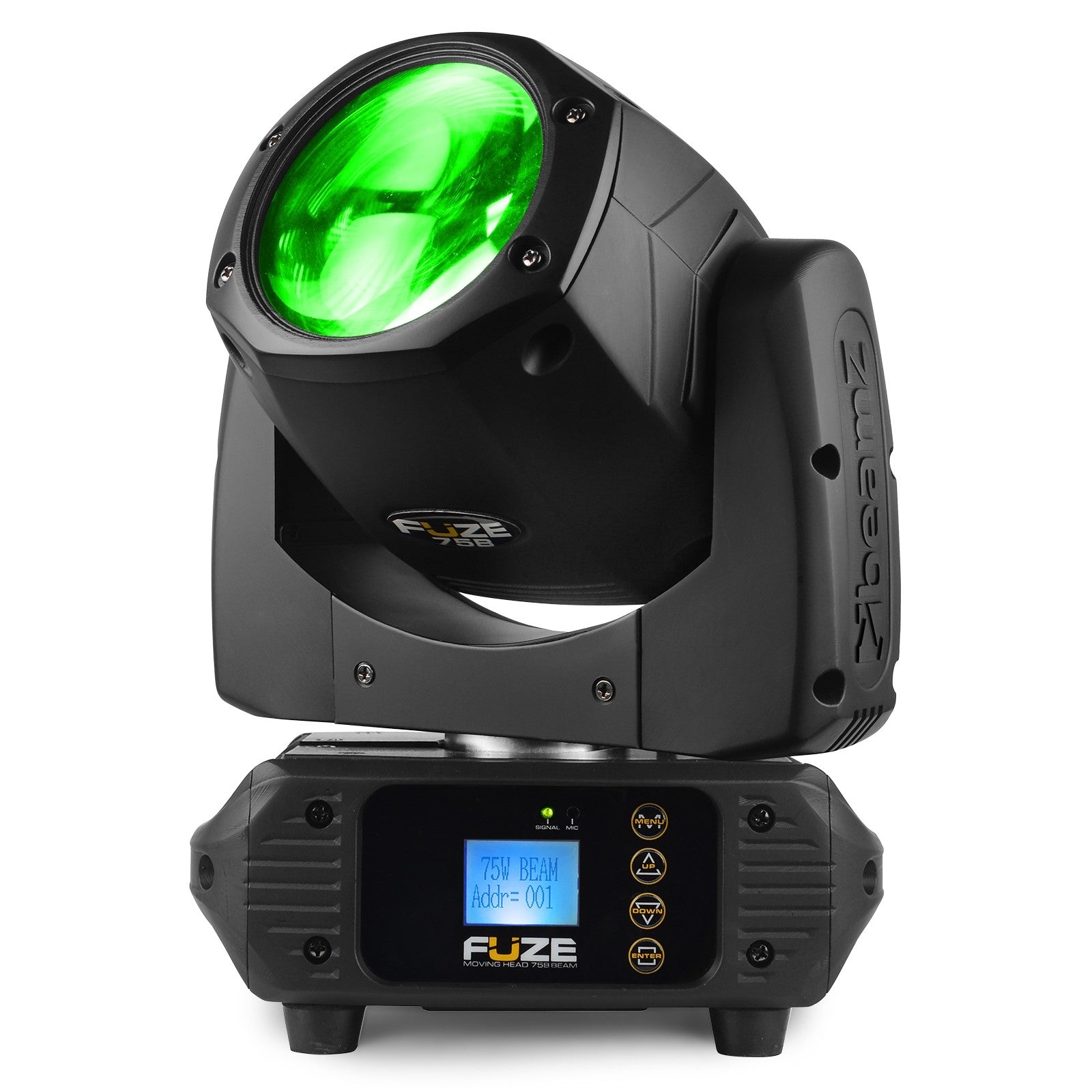

beamZ Fuze75B - 75W LED Beam Moving Head, 2° Beam Angle, 8-Facet Prism and Frost Filter (Wash Effect)
The beamZ Fuze75B is a compact and lightweight 75W white LED moving head that produces extremely fine and defined beams with a 2° beam angle . It features an integrated Fresnel lens and Frost filter to transform the beam into a wash effect when the scene calls for it. Its 12-color wheel (plus open) , static gobo wheel (17 colors plus open) with gobo shake , and 8-facet rotating prism allow for the creation of highly versatile looks. It can be controlled via DMX (10/12 channels) , automatic programs , sound-to-light , or master/slave configuration. Included are a wireless remote control , Omega quick-release clamp , DMX cable , PowerCON cable , and safety cable .
Main features
-
Light source: 75W white LED (1 LED) with 190,000 lx @ 1 m .
-

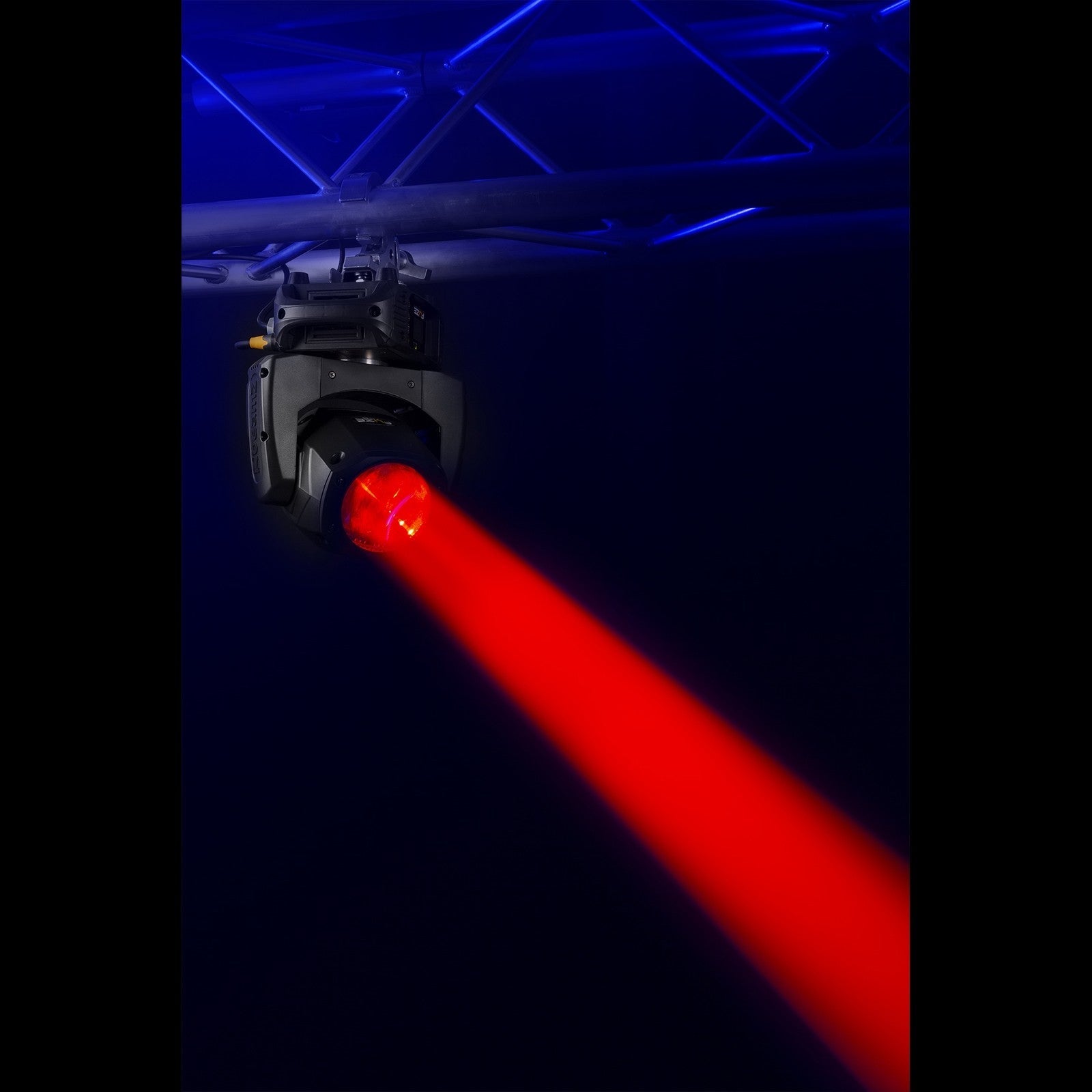

Optics: 2° beam , Fresnel lens and Frost filter to enlarge to wash.
-

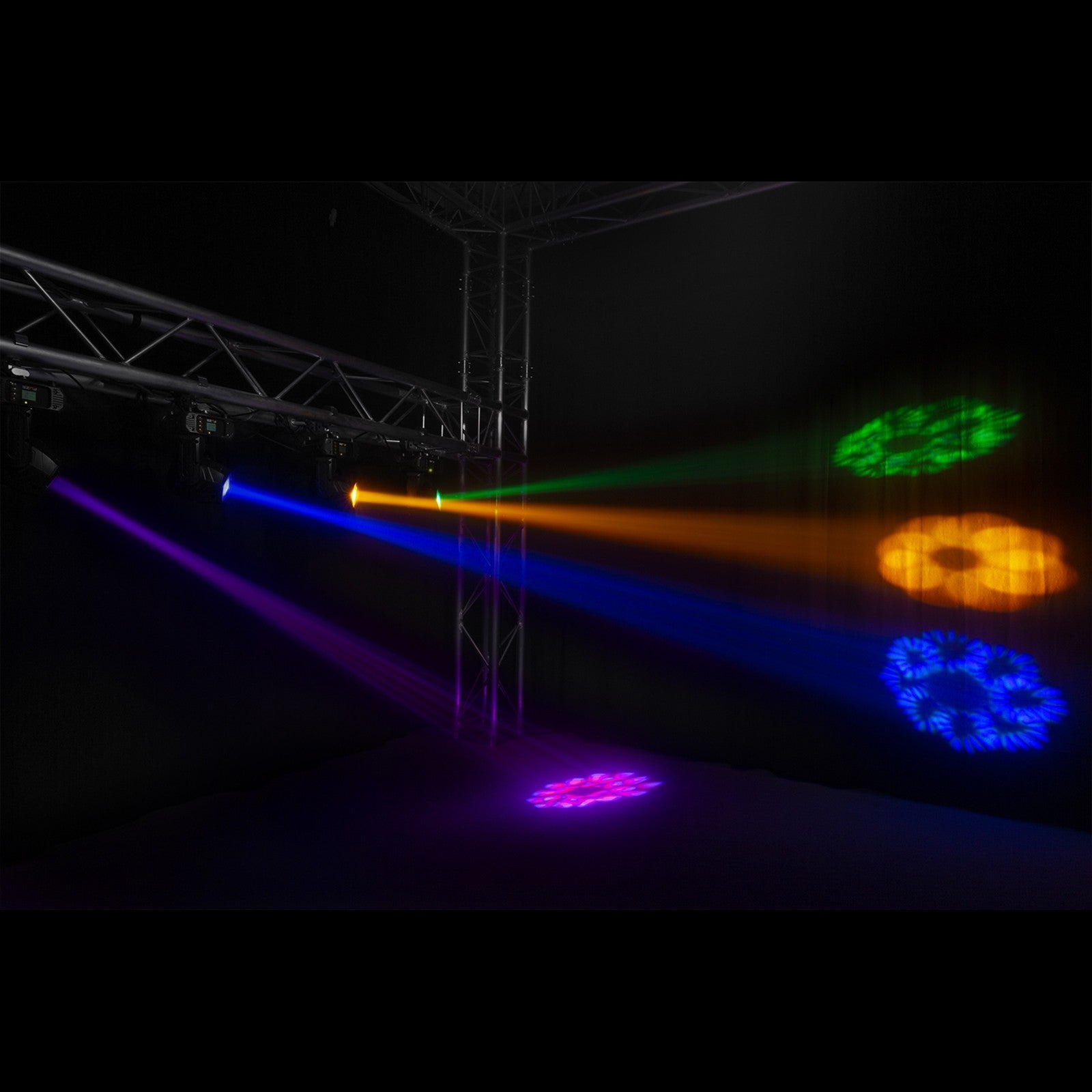

Color and gobos: 12 color wheel + open ; 17 metallic gobos + open (static) with gobo shake .
-
Effects: 8-facet rotating prism , 0–100% dimmer and 1–11 Hz strobe .
-
Movement: Pan 630° and Tilt 270° with auto-correction and reset function; selectable ranges 360°/540°/630° in Pan and 90°/180°/270° in Tilt.
-
Control: DMX 10/12 channels , Auto , Master/Slave and Sound-to-Light (adjustable sensitivity).
-
Interface and connectivity: LCD display , XLR 3 pin DMX in/out, PowerCON in/out .
-

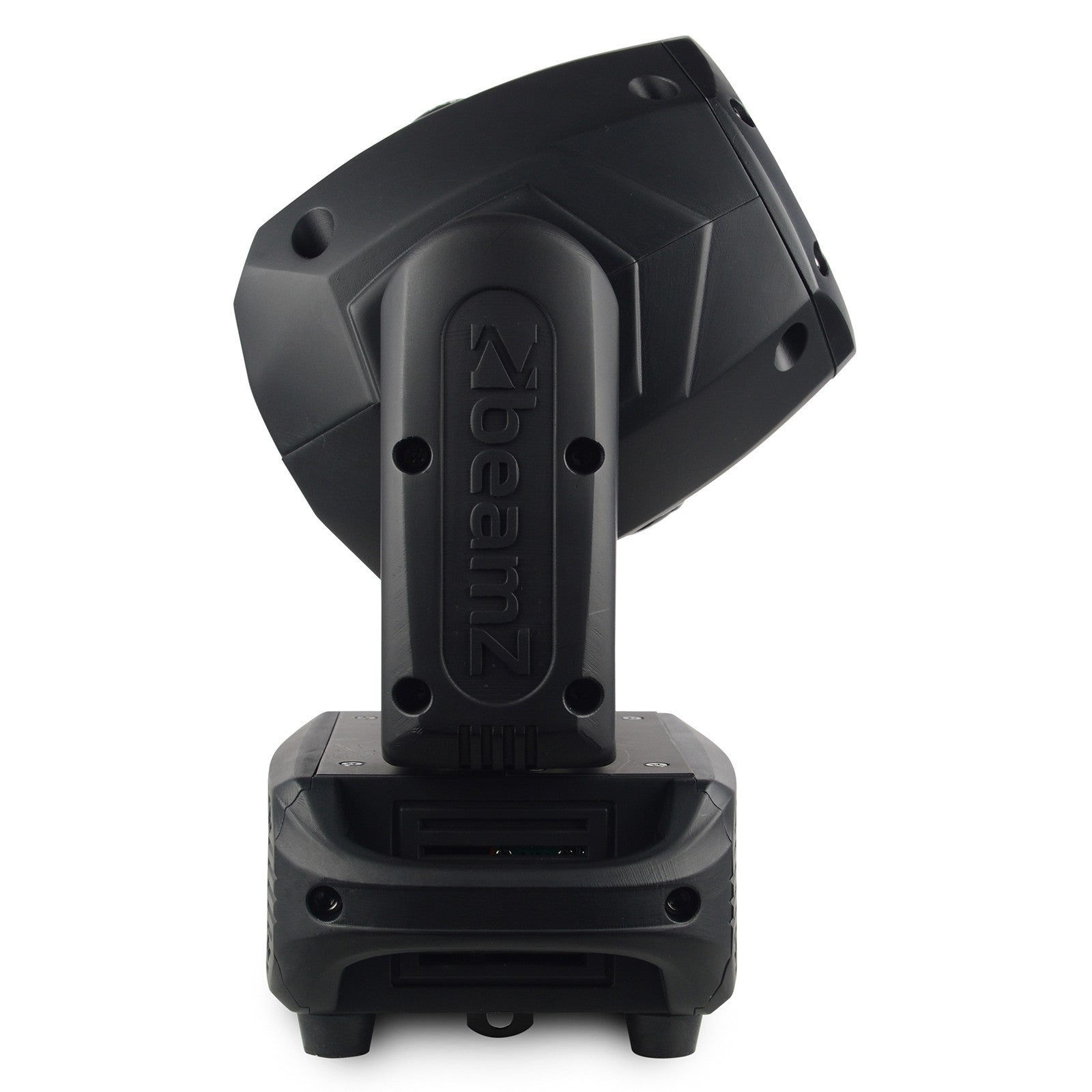

Construction: IP20 , temperature-controlled fan, 245 × 230 × 290 mm , 5.2 kg .
-

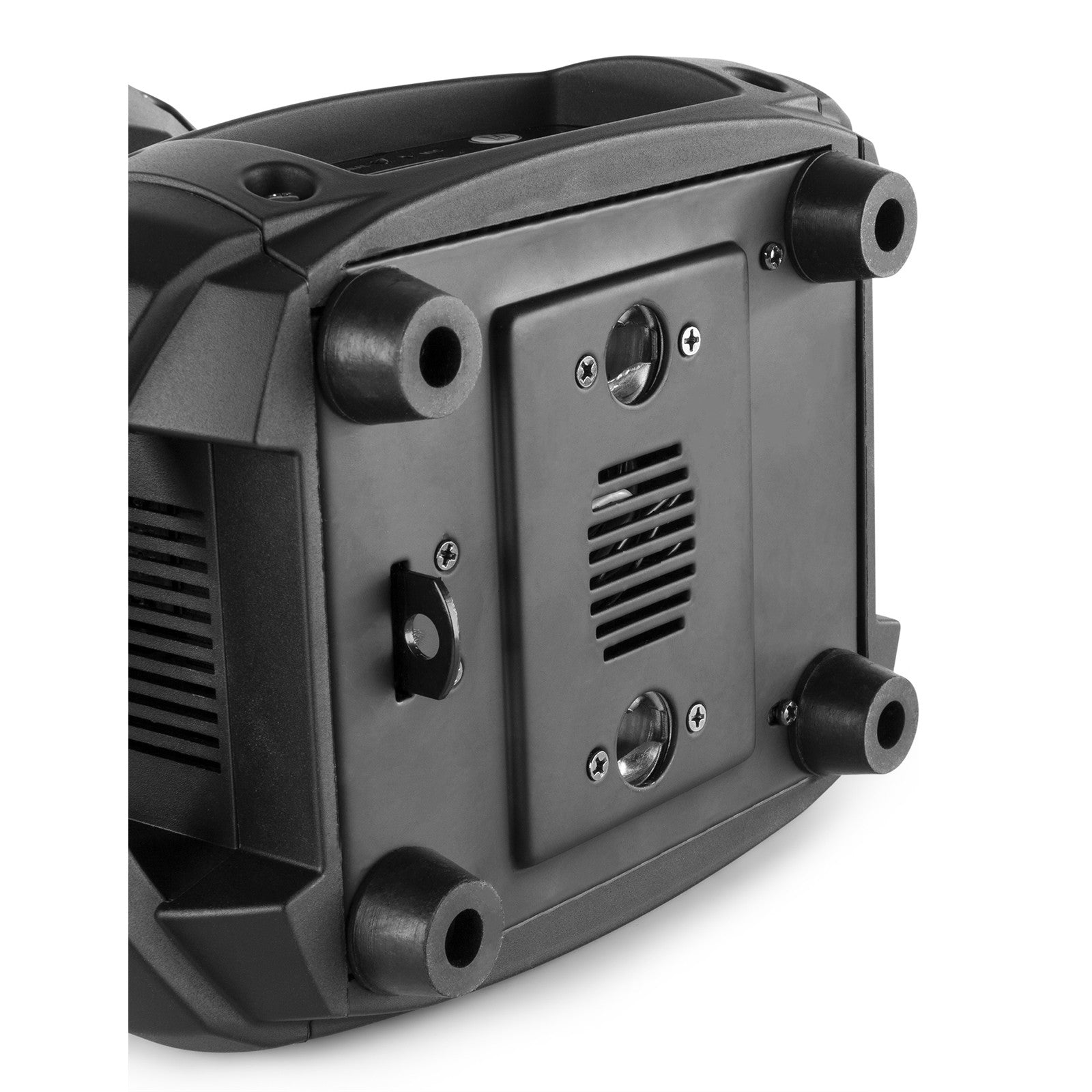

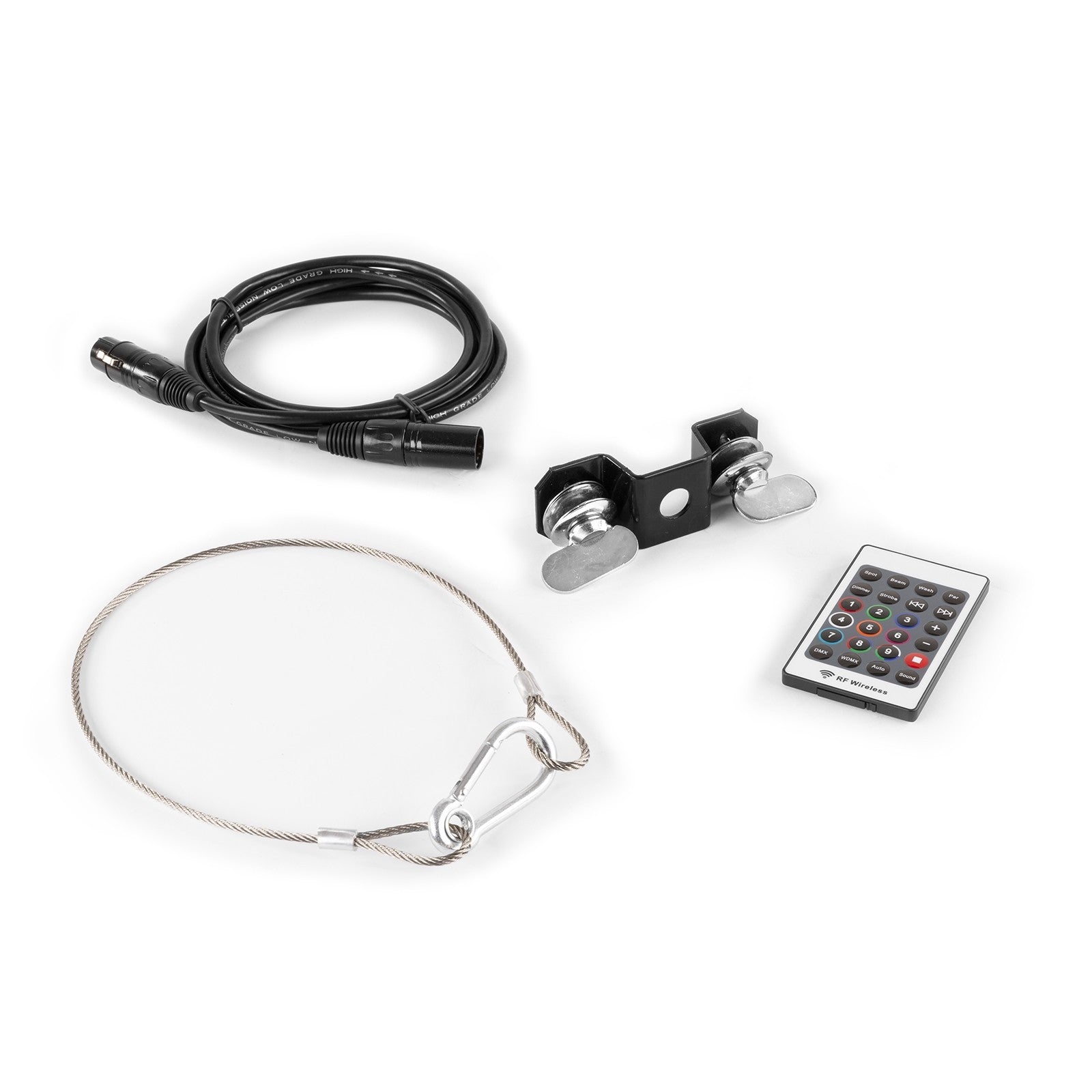

Included accessories: wireless remote , Omega , security cable , PowerCON cable and DMX cable .
Product benefits
-
Total scenic versatility: from a narrow 2° beam to a soft wash with Frost, including combinations of gobos, color and prism.
-

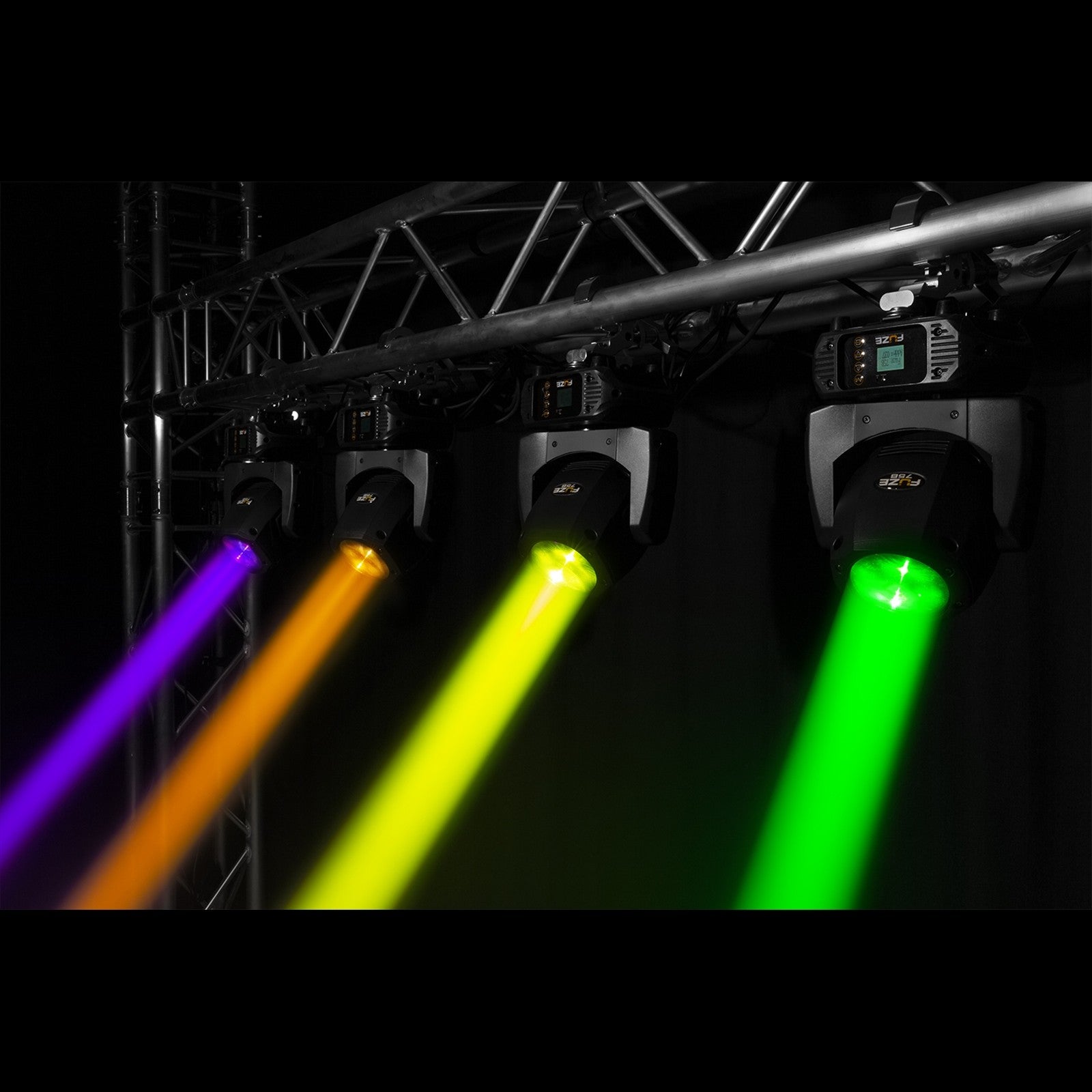

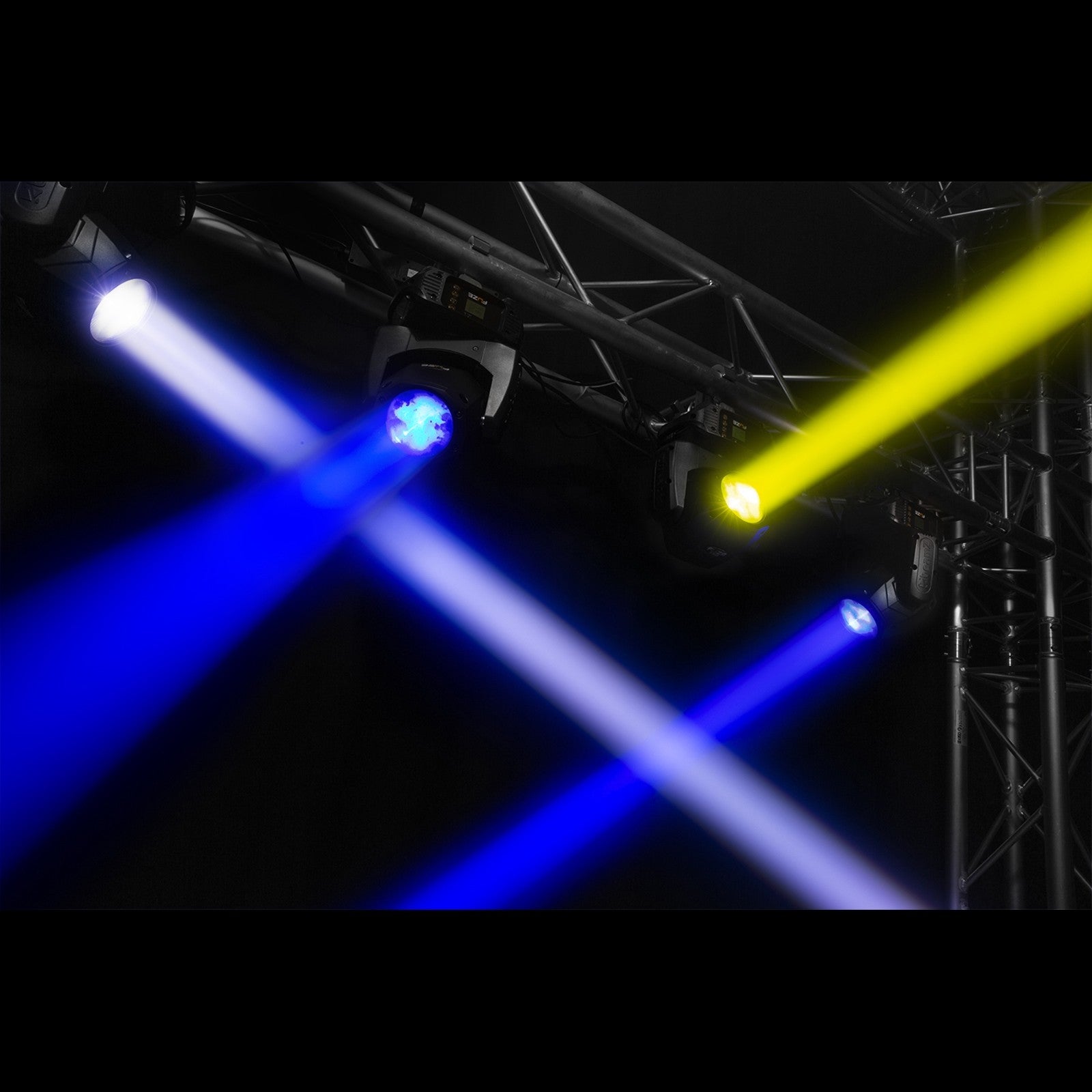

Designed for speed and impact: highly defined beams and ultra-fast movements with high illuminance for rooms and stages.
-
Professional integration: DMX 10/12 profiles, PowerCON in/out and included accessories for quick and reliable assembly.
-
Compact format: ideal when space and weight are critical without sacrificing performance.
Use cases
-

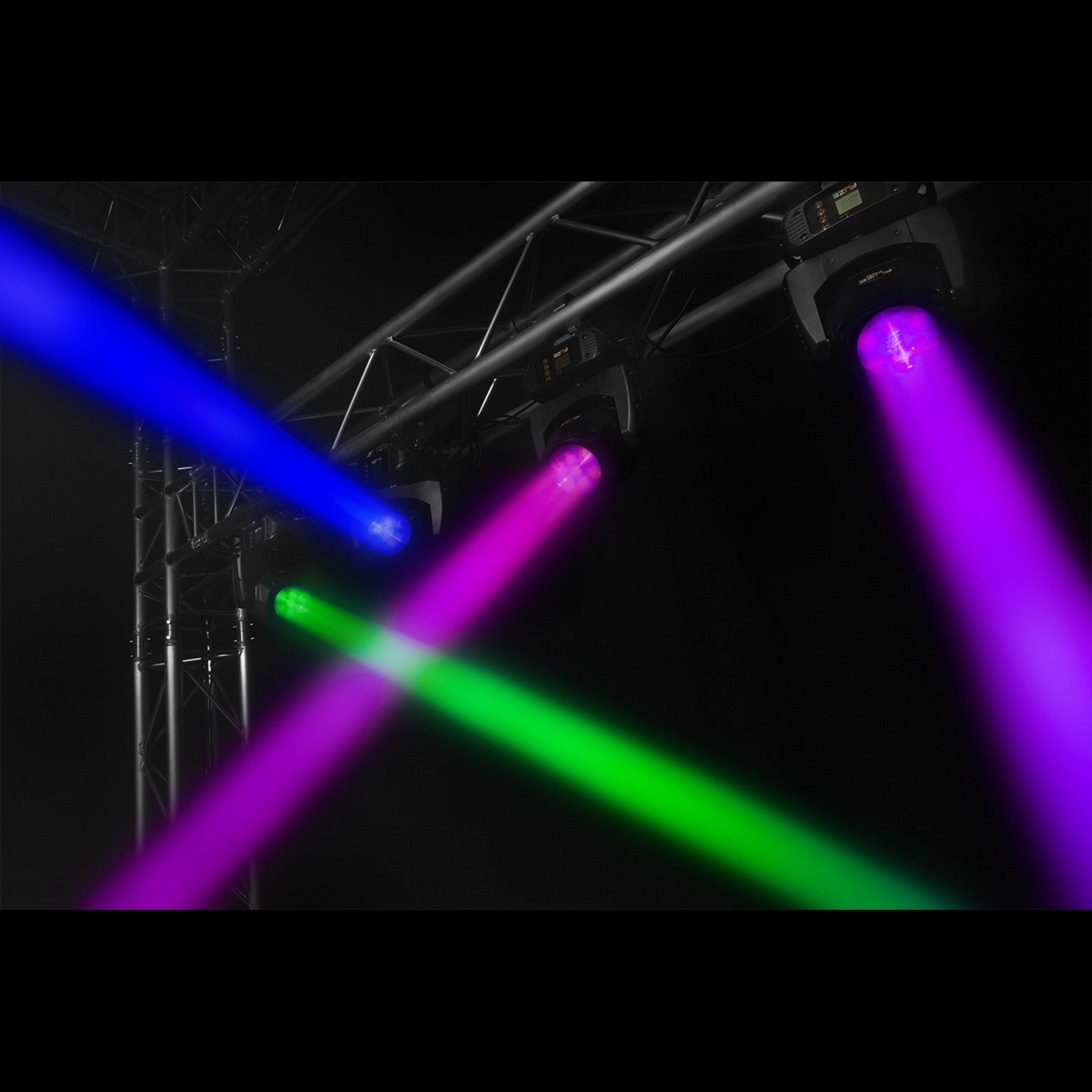

Mobile DJ and social events: powerful beams and "punch" in the drops .
-
Clubs and rooms: crisp effects with prisms and gobos that cut through the atmosphere.
-
Bands, theater and corporate : quick changes between beam and wash with the Frost filter.
Frequently Asked Questions
Is the Fuze75B a BEAM or SPOT? It's a BEAM head (narrow 2° beam) with a Frost filter for a wash effect.

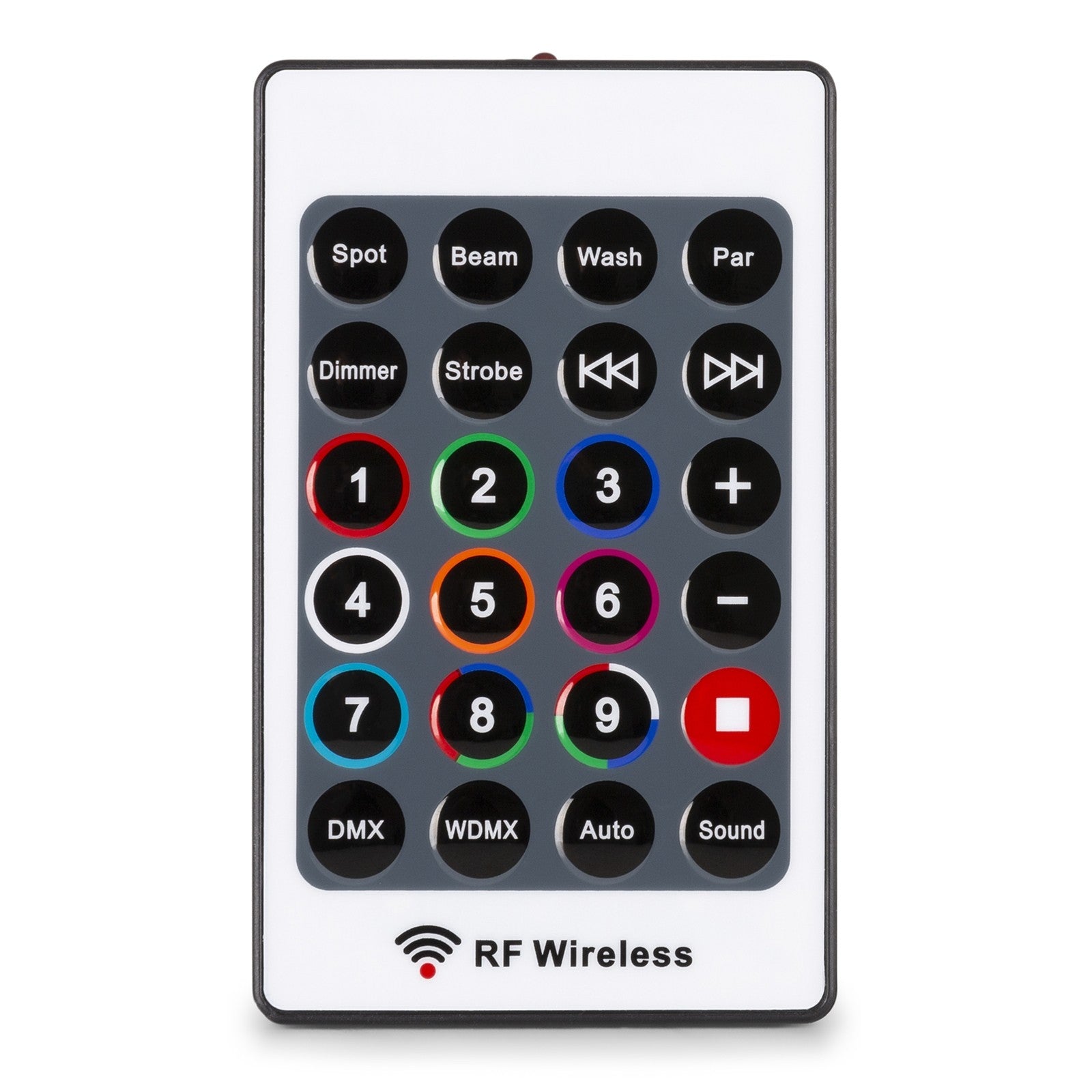

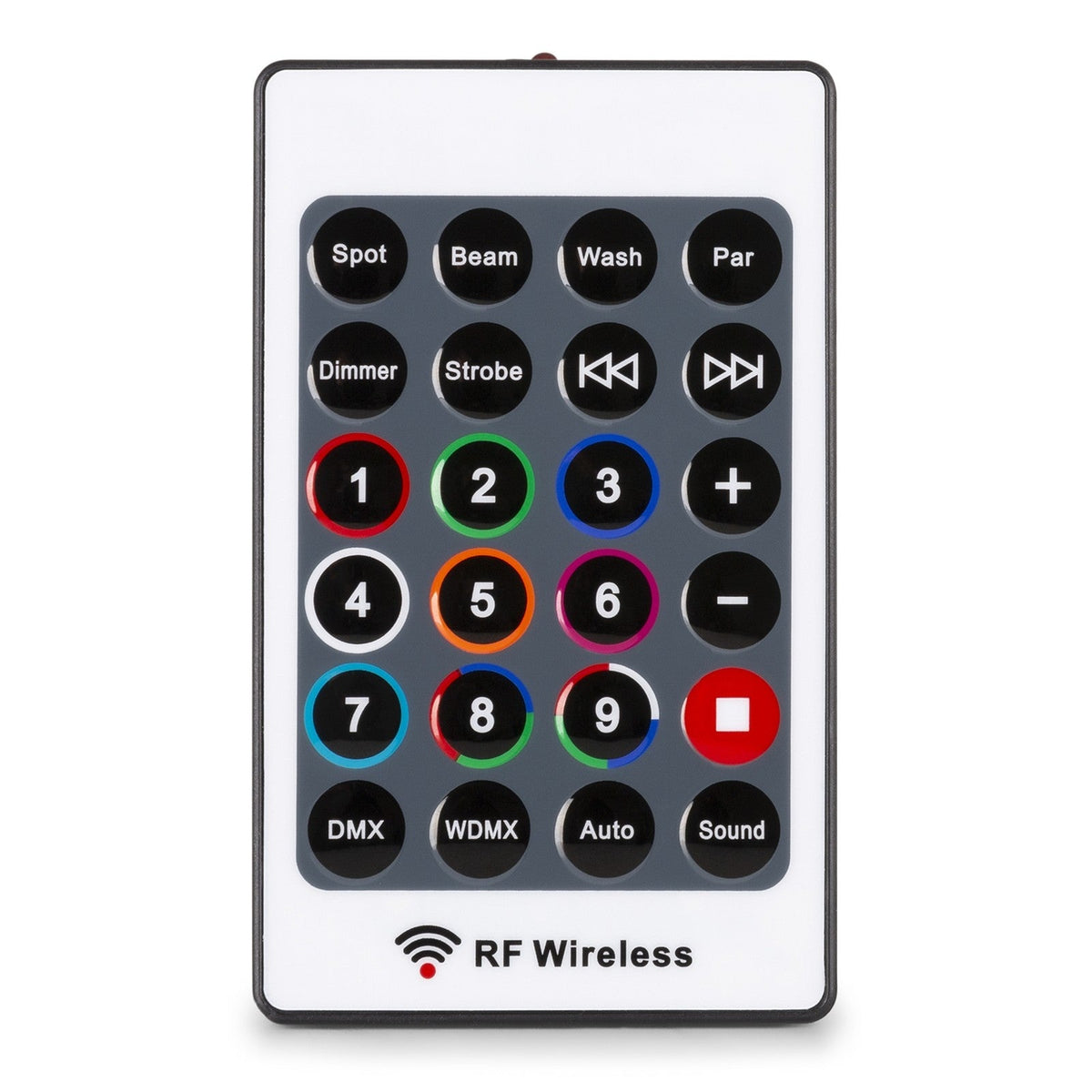

Does it include a remote control and hardware? Yes. It comes with a wireless remote , Omega , safety cable , PowerCON , and DMX .
What Pan/Tilt ranges does it support? Switchable Pan 360°/540°/630° and Tilt 90°/180°/270° , with auto-correction .
Control and connectivity
-
Modes: Automatic (internal programs), DMX , Master/Slave and Sound to Light .
-

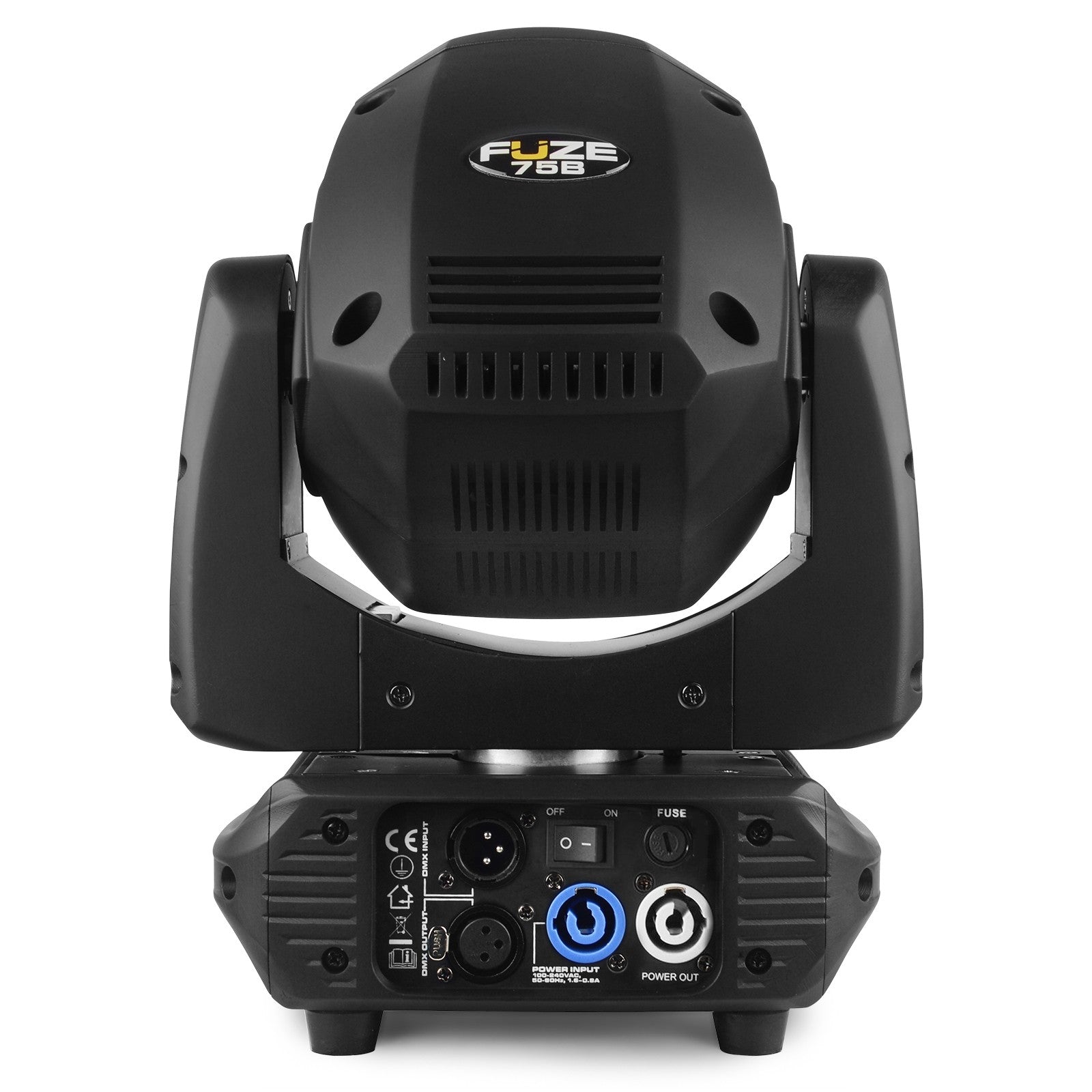

Connections: XLR 3 pins DMX in/out and PowerCON in/out.
-
Power supply: 100–240 VAC 50/60 Hz , consumption of 0.8–1.6 A.
Project description
75W LED BEAM moving head (1 LED, white); 2° beam angle ; 190,000 lx @ 1 m ; Fresnel lens and Frost filter (beam→wash); 12 color wheels + open ; 17 static gobo wheels + open with shake ; 8-facet rotating prism ; 0–100% dimmer ; 1–11 Hz strobe ; 360°/540°/630° pan and 90°/180°/270° tilt (max. 630°/270°) with auto-correction and reset; 10/12 channel DMX ; LCD ; 3-pin XLR DMX ; PowerCON in/out ; IP20 ; temperature-controlled fan cooling; 245 × 230 × 290 mm ; 5.2 kg ; Includes wireless remote , Omega , safety cable , PowerCON and DMX .
