Samson Expedition XP1000B - 1000W Portable PA System with 10-Channel Mixer and Bluetooth

Samson Expedition XP1000B - 1000W Portable PA System with 10-Channel Mixer and Bluetooth

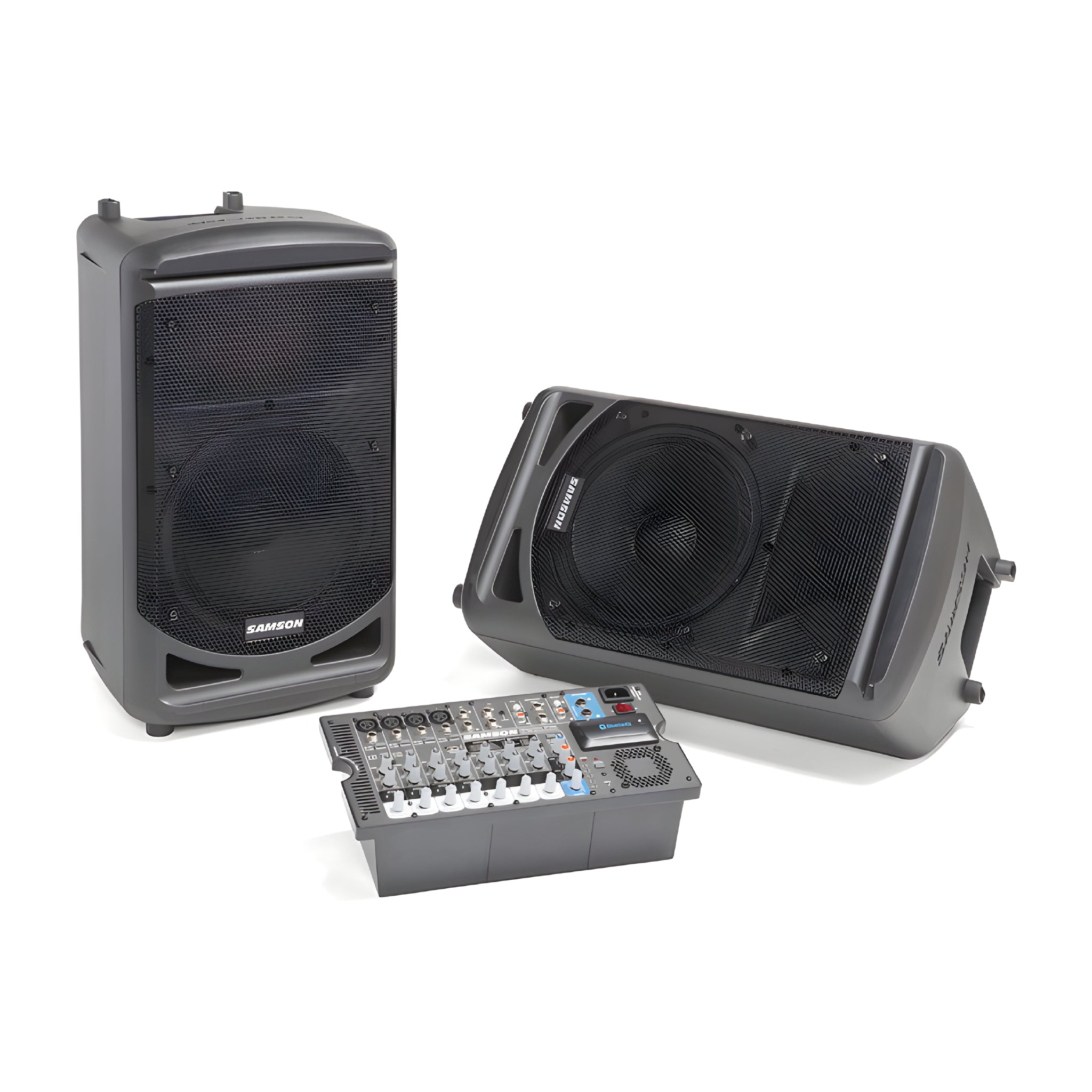

The Samson Expedition XP1000B is a portable PA system that combines two 2-way active-passive speakers (10" + 1") with a 10-channel powered mixer and Bluetooth connectivity . It delivers 1000W peak through an integrated 2 × 500W (peak) Class D amplifier ( 500W total average / 2 × 250W @ 4 Ω ), enough for outdoor events, theaters, conference rooms and live music . The mixer is detachable , suitable for tabletop use or mic stand mounting (accessory), and can be stored back in one of the transport cases; the other case has an integrated cable compartment. The system incorporates 24-bit DSP with 16 effects presets , equalization per channel (Bass/Treble) , SPEECH/MUSIC selector to shape the tonal curve of the set, Monitor L/R outputs to expand the system and a Wireless USB port for Samson XPD receivers.

Each speaker is a high-impact ABS enclosure, with a 10" woofer and a 1" driver in a 60° x 90° horn for wide coverage. They have a 35mm socket for tripod mounting and a monitor angle for floor use. On the master panel you will find REC OUT (RCA) outputs , Monitor 1/4" outputs , LED indicators (5-point level, LIMITER, PHANTOM, READY, EFFECTS) and Bluetooth 3.0 (A2DP) with a pairing button. Built-in phantom power is +15 V DC (fixed), suitable for compatible condenser microphones.

Main features

• Power and power output: 1000 W peak (2 × 500 W); 500 W mid (2 × 250 W) @ 4 Ω; efficient and lightweight Class D amplification.
• Speakers: 2 × 2-way enclosures with 10" woofer and 1" driver in 60° × 90° horn; ABS enclosures with 35 mm cup and monitor angle .

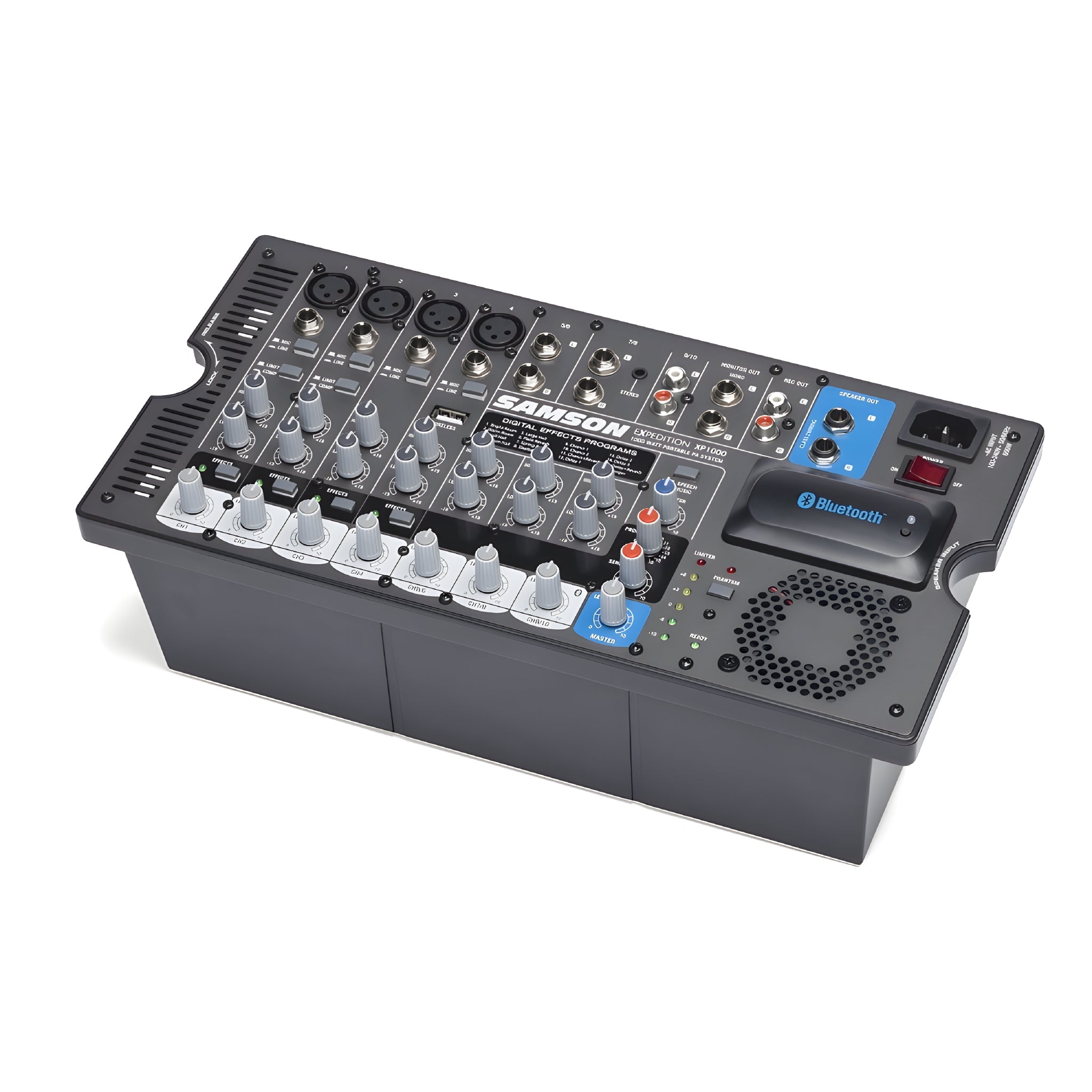

• 10-channel mixer (removable): 4 Mic/Line inputs (XLR + 6.35 mm Jack) and 3 stereo channels with 6.35 mm Jack, 3.5 mm minijack and RCA options; integrated Bluetooth channel .
• Processing: 16 24-bit digital effects (reverbs, delays, etc.) selectable from the encoder.
• EQ per channel: Bass 100 Hz and Treble 10 kHz (±15 dB); SPEECH/MUSIC switch for contouring the overall response.
• Additional connectivity: USB Wireless for Samson XPD microphones; Monitor Out L/R (6.35 mm jack) for active speakers or subwoofers; REC OUT (RCA).
• Bluetooth: BT 3.0 A2DP to play audio from mobile, tablet or computer.

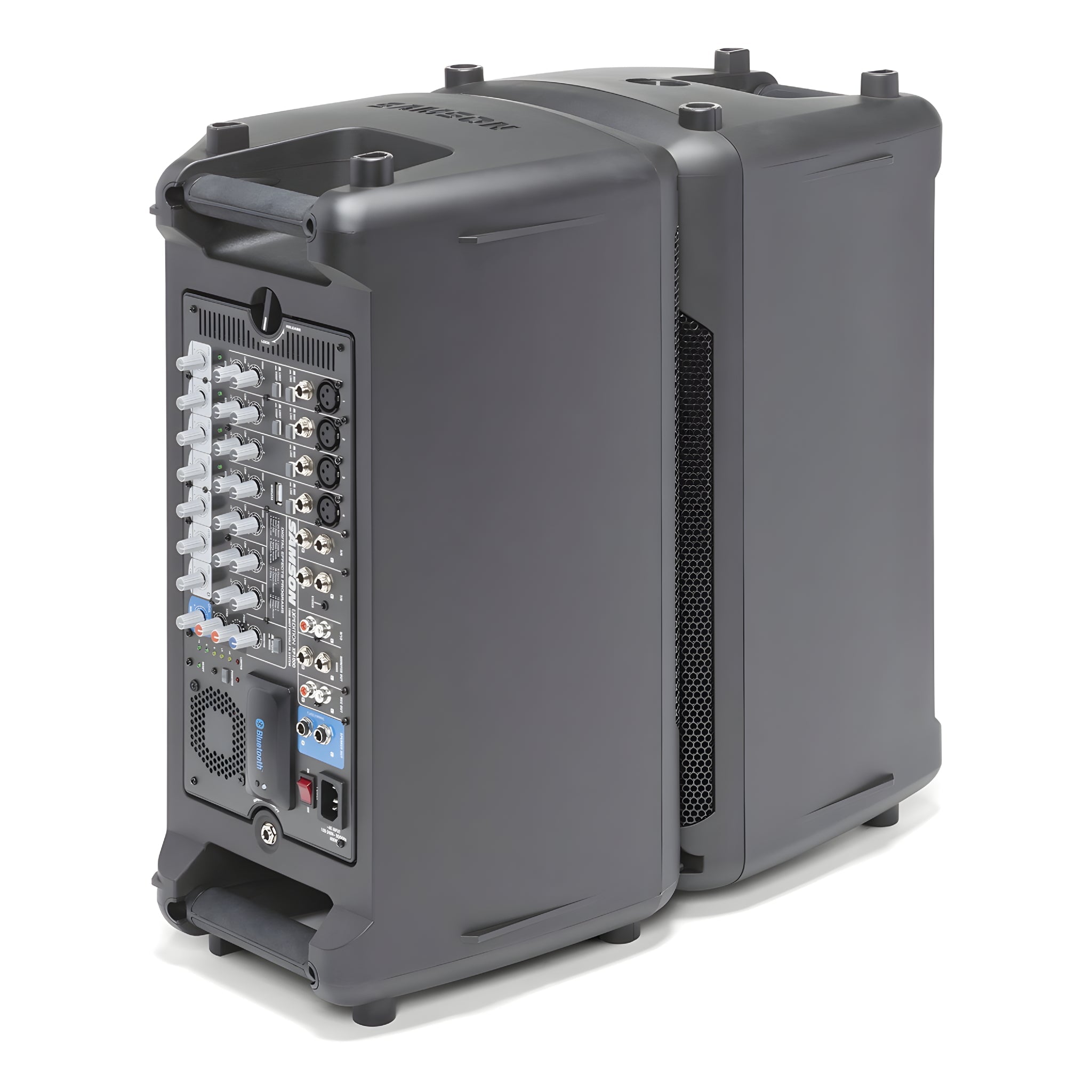

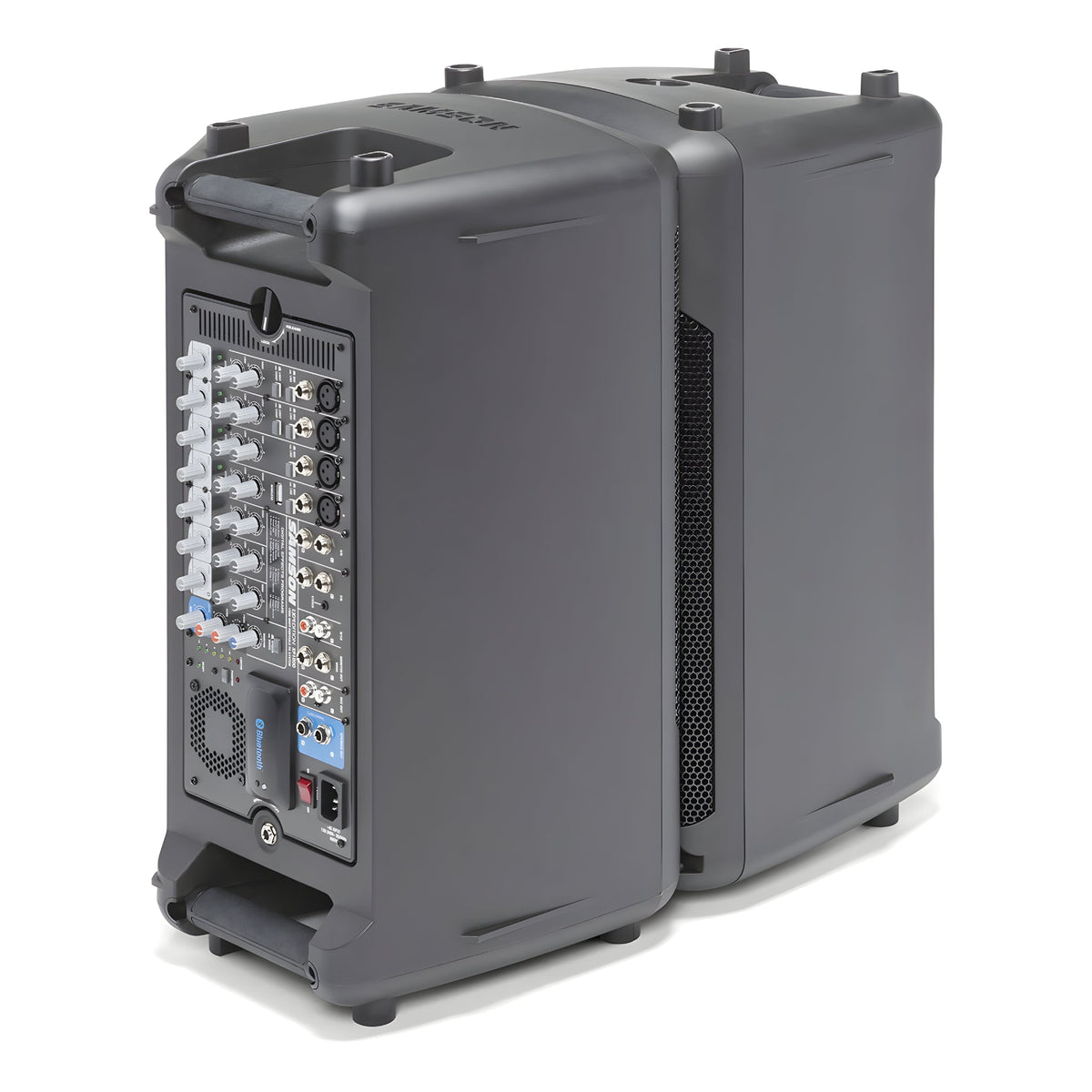

• Smart transport: Slide & Lock system that connects both cases; cable compartment.
• Indicators: 5-segment level meter, LIMITER , PHANTOM , READY and EFFECTS .

Product benefits

• Real portable power: 2 × 500 W (peak) in a system that ships as one piece and sets up in minutes.
• Connection versatility: 10-channel mixer with Mic/Line inputs, multiple stereo (RCA/Jack/3.5 mm), Bluetooth and USB for XPD wireless microphone .
• Integrated sound control: 16 24-bit FX , EQ per channel and SPEECH/MUSIC to adapt the curve to voice or music.
• Scalability: Monitor Out L/R to add active tops or subwoofers and cover larger audiences.

Use cases

• Outdoor events and trade shows with music and basic microphones without the need for an external rack.
• Theaters, schools, and conference rooms with Bluetooth/USB playback and REC OUT recording.
• Mobile DJs and performances with tripod mounting and use as floor monitors when needed.

Frequently Asked Questions

• How many usable channels does it have? 10: 4 Mic/Line + 3 stereo (Jack/RCA/3.5mm inputs) + Bluetooth channel in pair 9/10.
• Can I add more speakers? Yes, you can connect active speakers or subs via Monitor Out L/R (do not connect more passive speakers to the mixer's power outputs).
• Does it have phantom power? Yes, +15 V DC fixed for compatible condenser mics.
• Can you record? The REC OUT (RCA) output delivers the main mix to audio recorders/inputs.

Description for projects

1000W (peak) portable PA system with 10-channel powered mixer and Bluetooth; 500W average power (2×250W @ 4Ω); 2×10" + 1" speakers; 60°×90° horn; ABS enclosures with 35mm cup and monitor angle; mixer inputs: 4×Mic/Line (XLR + 6.35mm jack), 3×Stereo (6.35mm jack / RCA / 3.5mm), Bluetooth; USB Wireless for Samson XPD systems; 24-bit processing with 16 presets ; EQ per channel (100Hz / 10kHz, ±15dB), SPEECH/MUSIC switch; Monitor Out L/R (Jack), REC OUT (RCA), Speaker Out 1/4" outputs to included boxes; indicators (5 points, LIMITER, PHANTOM, READY, EFFECTS); Bluetooth 3.0 A2DP ; AC power supply 100–240 V~ 50/60 Hz, max. consumption 800 W; assembly dimensions 577 × 301 × 560 mm; weight 24 kg.
