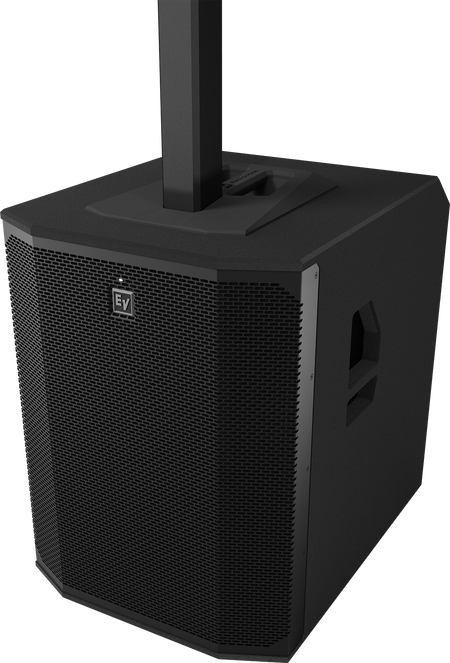

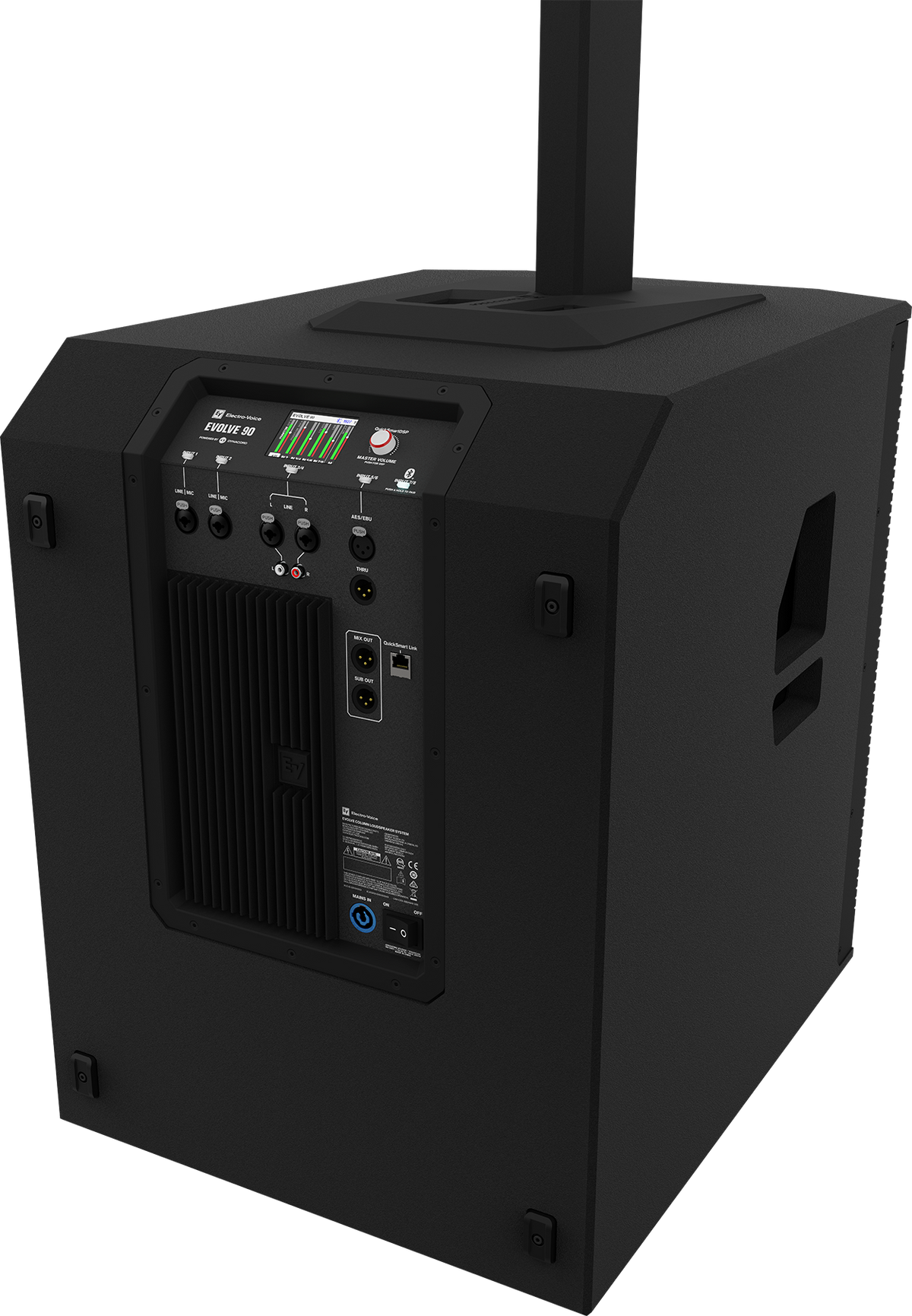

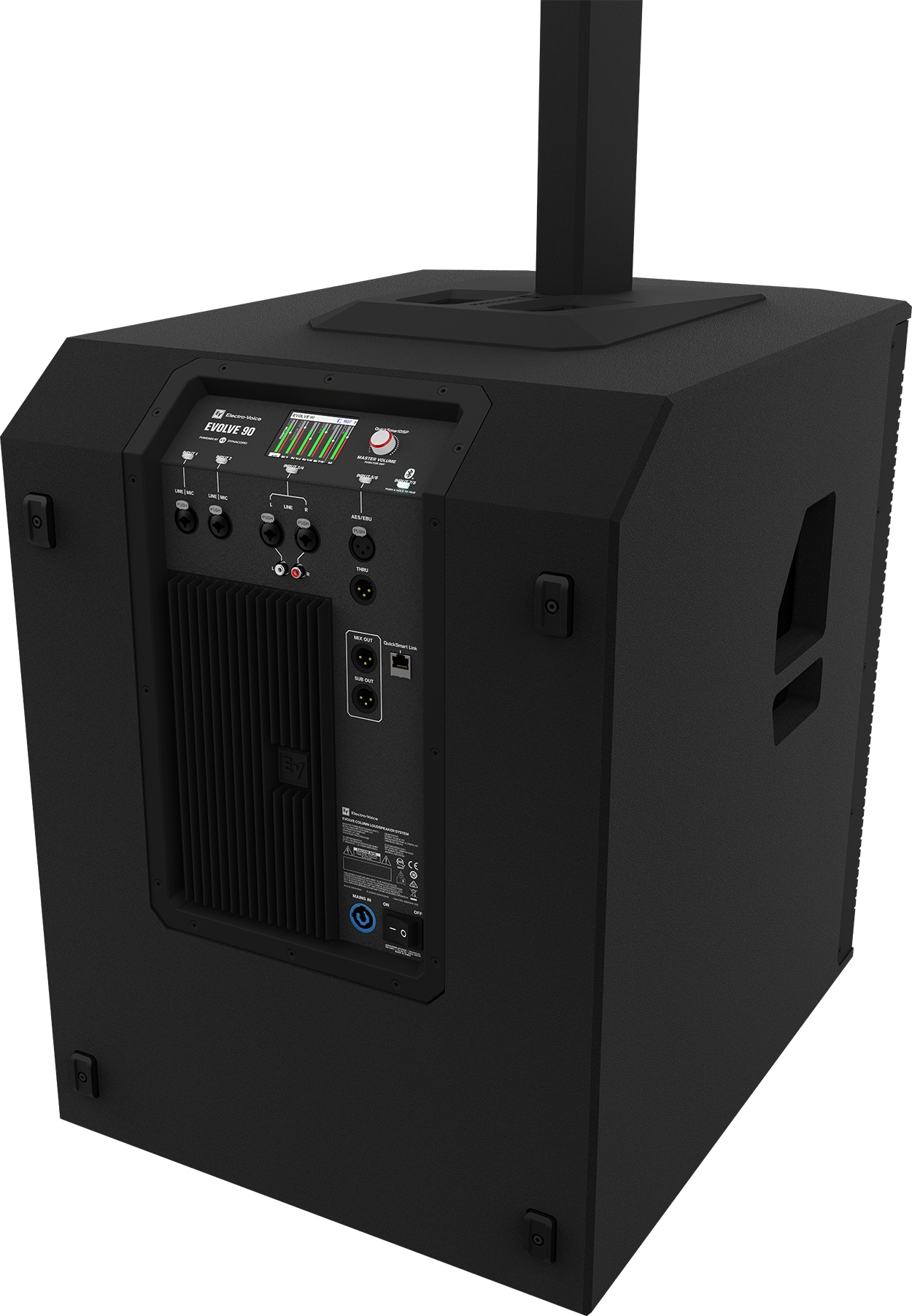

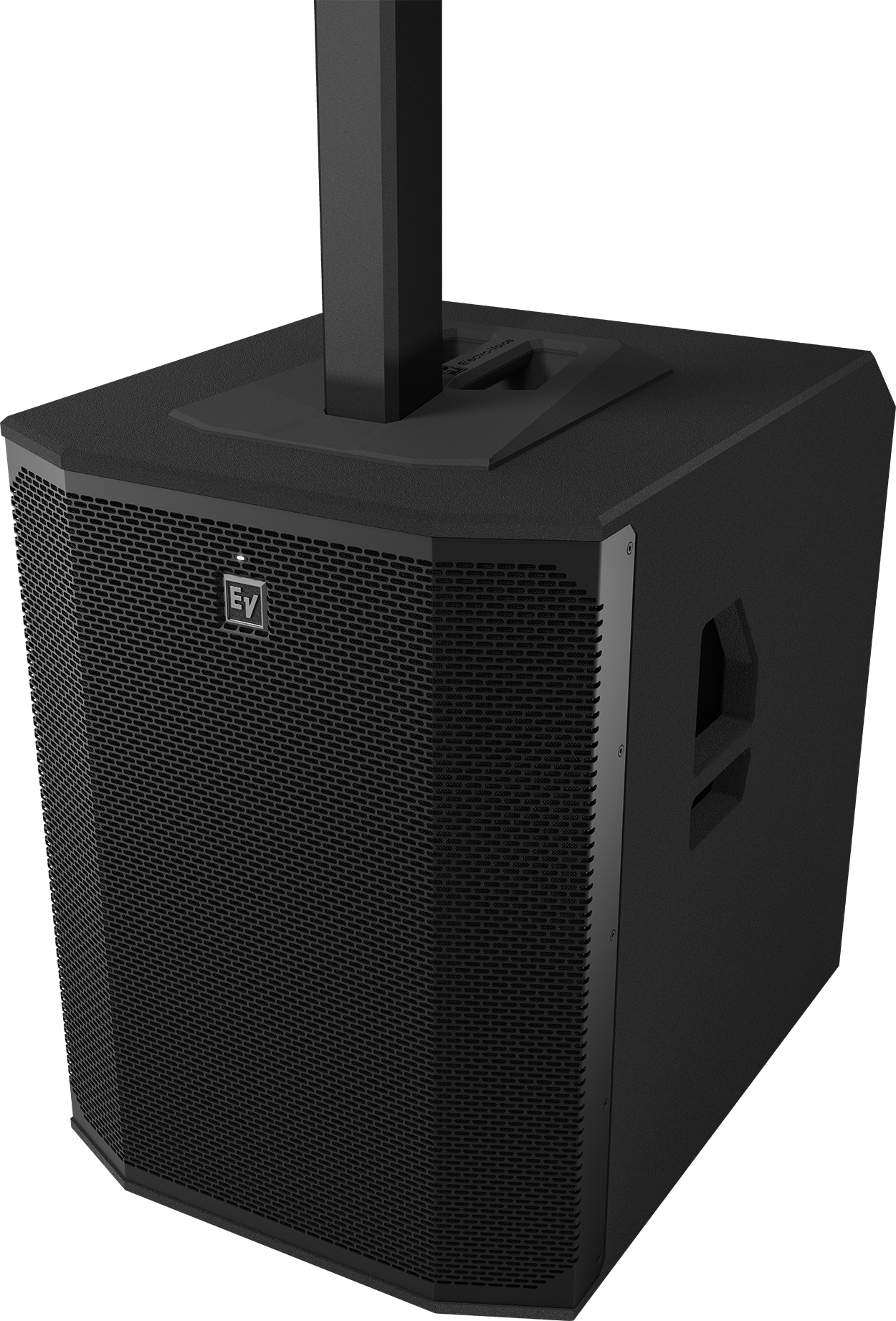

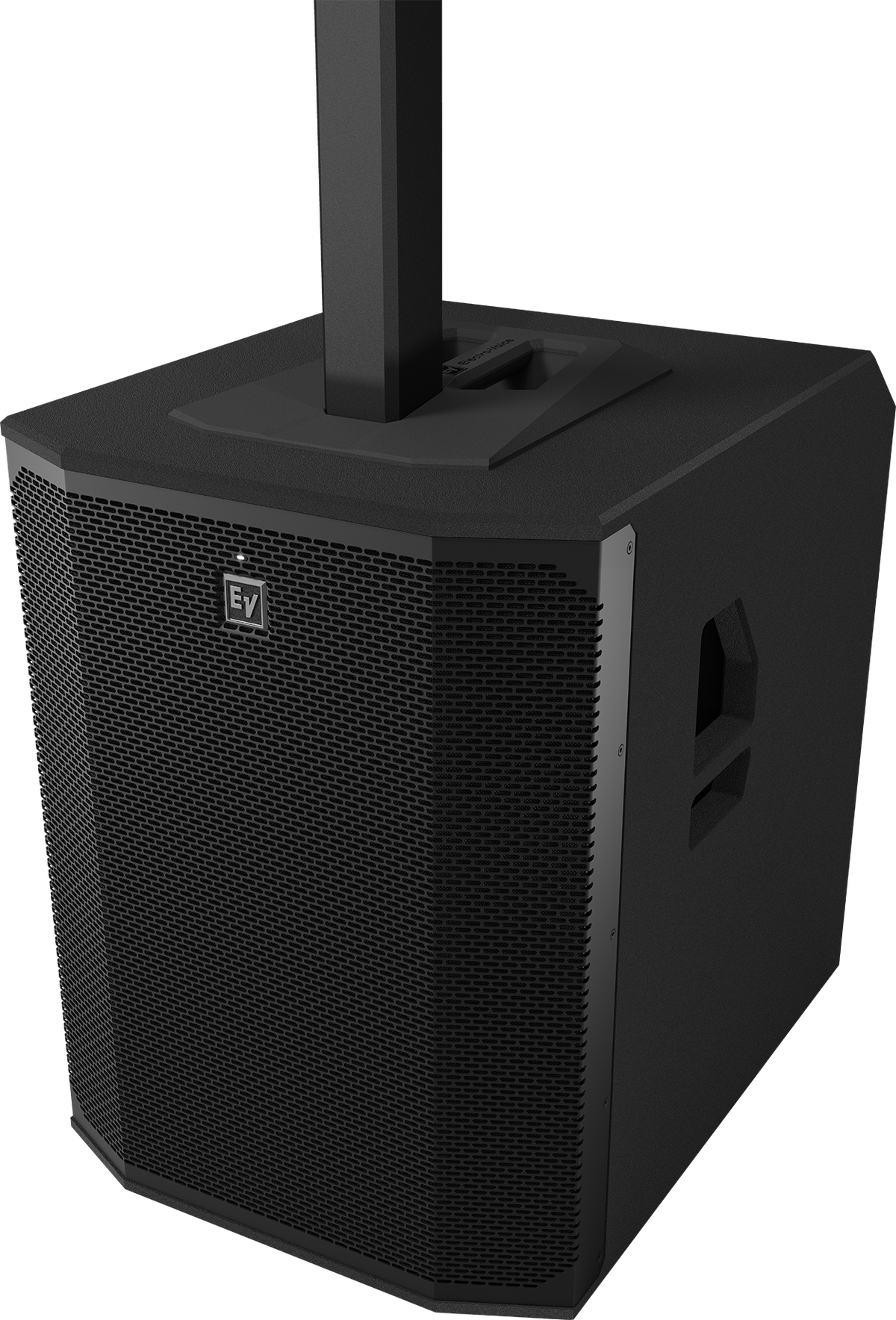

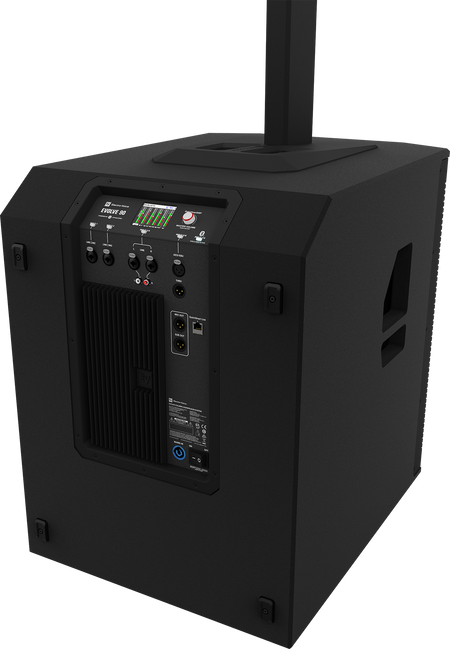

Electro-Voice EVOLVE90-SB (Black) - 18" Active Subwoofer for EVOLVE 90 Floorstanding System

In stock
SKU: EVOLVE90-SB-736232 EAN13: 4060039201928
(0)
2.514,90 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
AMPLIFIED PA SPEAKER
  • Brand:Electro-Voice
  • Model:EVOLVE90-SB
  • Guy:Active subwoofer for PA column system
  • LF transducer format:18″
  • LF coil:4″
  • LF amplification channel (on the sub):1000 W
  • Total system amplification:2000 W (1000 W LF + 1000 W HF)
  • System response (–3 dB):35 Hz – 18 kHz
  • System range (–10 dB):28 Hz – 20 kHz
  • Maximum system SPL:134 dB
  • System coverage:120° (H) × 25° (V) asymmetric
  • Subwoofer range:28 Hz – 160 Hz
  • Analog inputs:2 × XLR/TRS mic/line; 1 × XLR/RCA stereo
  • Digital audio:AES/EBU (I/O)
  • Departures:XLR Mix Out; XLR Sub Out
  • Network/Link:QuickSmart Link via RJ45
  • Wireless:Stereo Bluetooth; control via EV QuickSmart Mobile app
  • Feeding:PowerCON; 100–240 V~, 50/60 Hz
  • Sub dimensions (H × W × D):694 × 510 × 680 mm
  • Sub weight:35.6 kg
  • Color:Black
  • Compatibility:EVOLVE 90 Column (top 8 × 4.7″)
  • Mounting system:3-2-1 assembly (three pieces, two clicks)
  • Configuration options:Cardioid array with two subs
  • Type Audio
  • Vendor ELECTRO-VOICE
  • SKU EVOLVE90-SB-736232
  • Bar-code 4060039201928
