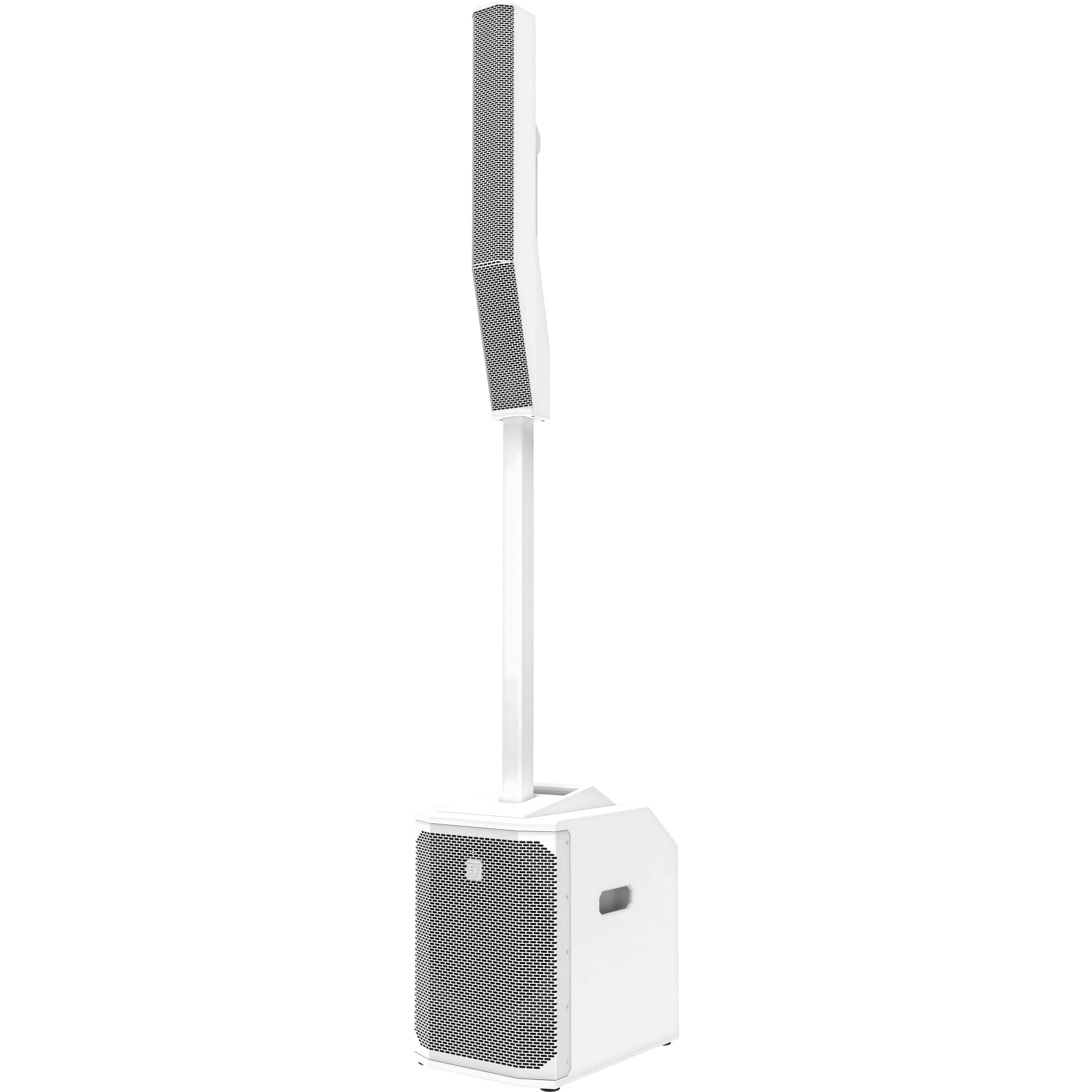

Electro-Voice EVOLVE50M-KW (White) - Portable Column System with Bluetooth, QuickSmart Link, and 8-Channel Digital Mixer

Electro-Voice EVOLVE50M-KW (White) - Portable Column System with Bluetooth, QuickSmart Link, and 8-Channel Digital Mixer

The Electro-Voice EVOLVE50M-KW is the white version of the renowned EVOLVE 50M floorstanding system, designed to deliver professional sound in a stylish, portable format. It combines a 12" subwoofer in a 15mm wood enclosure with a column of 8 x 3.5" neodymium speakers and an internally wired , magnetically mounted aluminum pole. Its 1000W Class D amplification (500W LF + 500W HF) and proprietary waveguide provide wide, even 120° × 40° coverage , with 43Hz to 20kHz (±3dB) response and 127dB maximum SPL.

The M suffix identifies the integrated 8-channel digital mixer , developed in collaboration with Dynacord, featuring professional preamps , two FX buses with 30 presets (reverb, delay, chorus, flange), AUX send per channel, and QuickSmart DSP with LCD display and encoder control. It features Bluetooth for stereo streaming and is compatible with the EV QuickSmart Mobile app (iOS/Android) for simultaneous control and monitoring of up to 6 systems . QuickSmart Link technology allows two EVOLVE 50Ms to be interconnected via Ethernet and input doubling with full app control.

Main features

• 12" + 8×3.5" System : 12" subwoofer in a wooden enclosure (15 mm) and a column composed of 8 3.5" neodymium drivers.
• 1000 W amplification : 500 W LF + 500 W HF; 127 dB SPL max.; 120° × 40° coverage ; 200 Hz crossover.
• Frequency response : 43–20,000 Hz (−3 dB) ; 37–20,000 Hz (−10 dB) .
• Integrated digital mixer (8 ch) with effects (2 buses/30 presets), AUX sends, channel control and mix output.
• QuickSmart DSP with presets ( Music , Live , Speech , Club ), EQ and 5 user memories.
• Full connectivity :
  • Inputs : 4× XLR/TRS combo mic/line, 2× XLR/TRS combo for stereo line, 1× TRS 6.3 mm Hi-Z (instrument), 1× stereo RCA, 1× 3.5 mm stereo minijack, 1× stereo Bluetooth .
  • Control/I/O : 1× 6.3 mm jack for footswitch , 1× XLR Mix Out , 1× XLR Aux Out , 1× RJ45 QuickSmart Link .
• EV QuickSmart Mobile App : Control and monitor up to 6 speakers via BLE; pair two EVOLVE 50M speakers via QuickSmart Link for expanded inputs and control.
• Portability and Mounting : Aluminum pole with internal wiring and magnetic closure; includes pole and column sleeve.
• Finish : white with steel grille (powder-coated); also available in black.

Product benefits

• Coherent sound throughout the venue : 120° horizontal and 40° asymmetrical vertical dispersion for seated and standing audiences.
• Less external equipment : Integrated mixing, effects and DSP reduce setup and wiring times.
• True scalability : link two EVOLVE 50M via QuickSmart Link to double channels and control both from the app.
• Audience management : Adjust levels, EQ, and effects with QuickSmart Mobile while listening to the results in the audience.
• Aesthetic integration : discreet white finish for events, hotels, corporate or worship spaces.

Use cases

• Events and weddings : music and speeches with full response and controlled presence.
• Mobile bands/DJs : portability, power, and fast connection; expandable inputs with a second 50M.
• AV Installations : aesthetics and basic remote control without the need for an external console.

Frequently Asked Questions

• Can I link more than two wired systems? QuickSmart Link is designed for two EVOLVE 50M speakers (dual inputs and joint control). The app can control up to six compatible speakers, but the RJ45 audio link is between two 50M speakers.
• Is Bluetooth only for control? No. In addition to app control, the 50M supports Bluetooth stereo audio playback.
• Does color affect performance? No. Black and white share the same specifications.

Description for projects

Electro-Voice EVOLVE50M-KW active floorstanding system (white): 8x3.5" neodymium + sub 12" drivers ; 120° × 40° coverage; 43–20,000 Hz response (−3 dB) , 37–20,000 Hz range (−10 dB) ; 127 dB max SPL; 1000 W Class D amplifier (LF 500 W + HF 500 W); 8-channel digital mixer with QuickSmart DSP ; 4x XLR/TRS mic/line inputs, 2x XLR/TRS stereo line inputs , 1x TRS Hi-Z , stereo RCA , 3.5 mm stereo , Bluetooth ; XLR Mix Out and XLR Aux Out outputs; QuickSmart Mobile and QuickSmart Link control via RJ45 ; Materials: composite column, aluminum post, 15 mm plywood; painted steel grating.
