Electro-Voice EVOLVE50-KB Portable Column System with Bluetooth (12" + 8 x 3.5", 1000 W, 120° x 40°)

Electro-Voice EVOLVE50-KB Portable Column System with Bluetooth (12" + 8 x 3.5", 1000 W, 120° x 40°)

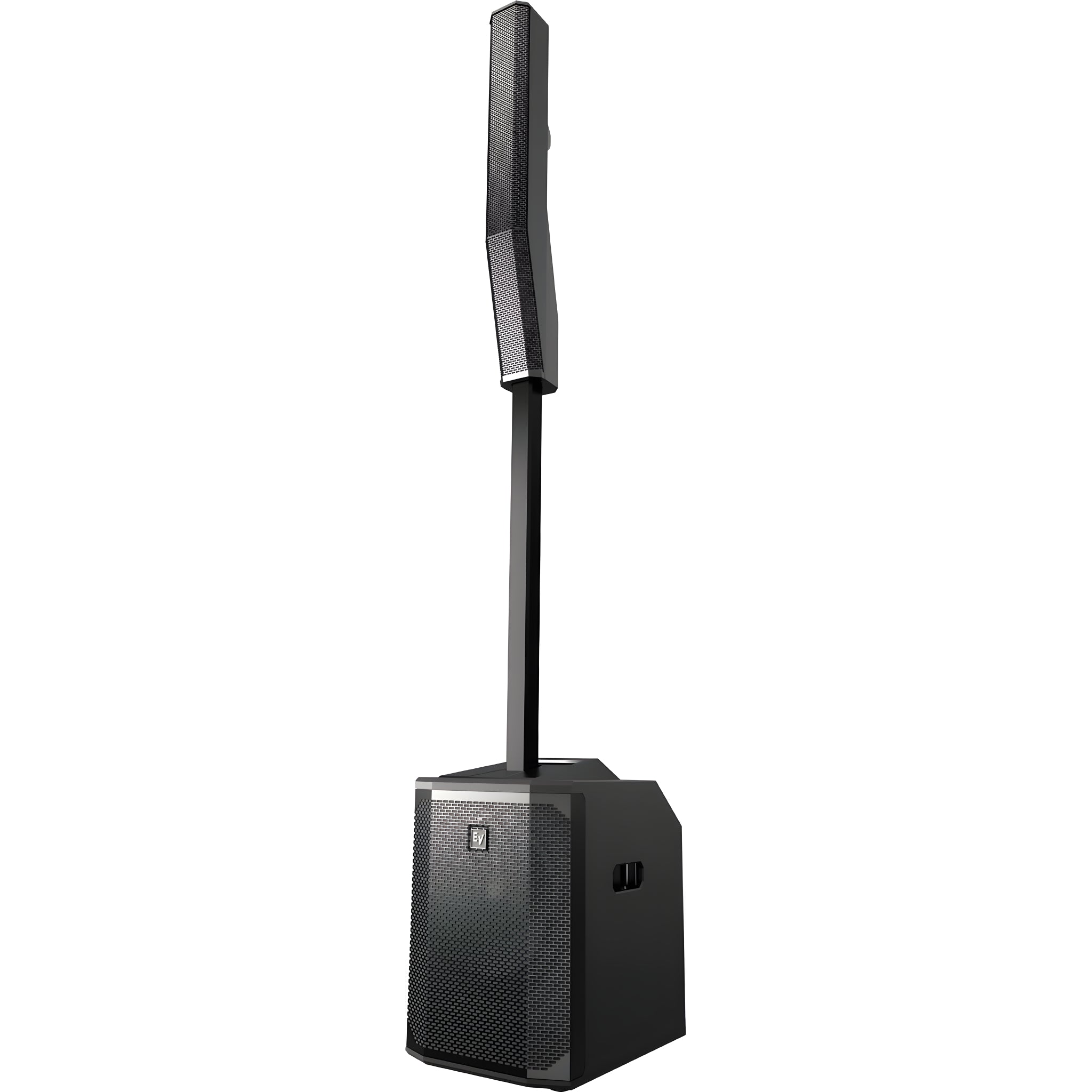

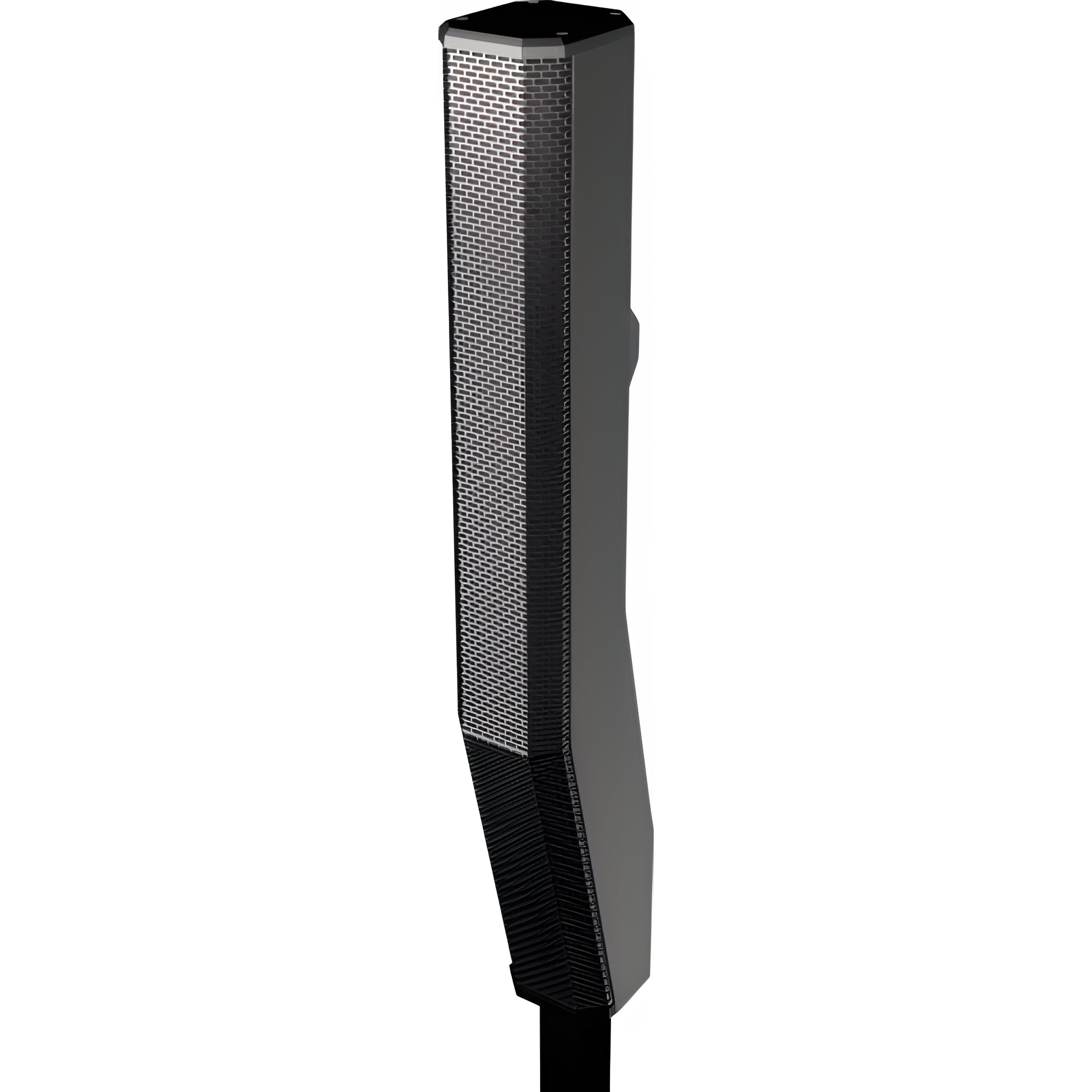

The Electro-Voice EVOLVE50-KB is a three-piece active floorstanding system (subwoofer, pole and column) that delivers EV’s renowned sound quality in a sleek, easy-to-transport format. Its architecture combines a 12” subwoofer in a 15mm plywood enclosure with a column of 8 x 3.5” neodymium drivers , powered by a 1000W Class D amplifier ( 500W LF + 500W HF ) and managed by QuickSmart DSP . The result is a defined response from 43Hz – 20kHz (±3dB) — 37Hz – 20kHz (-10dB) —, up to 127dB SPL and wide, even 120° × 40° coverage with asymmetrical vertical control (directed towards seated and standing audiences).

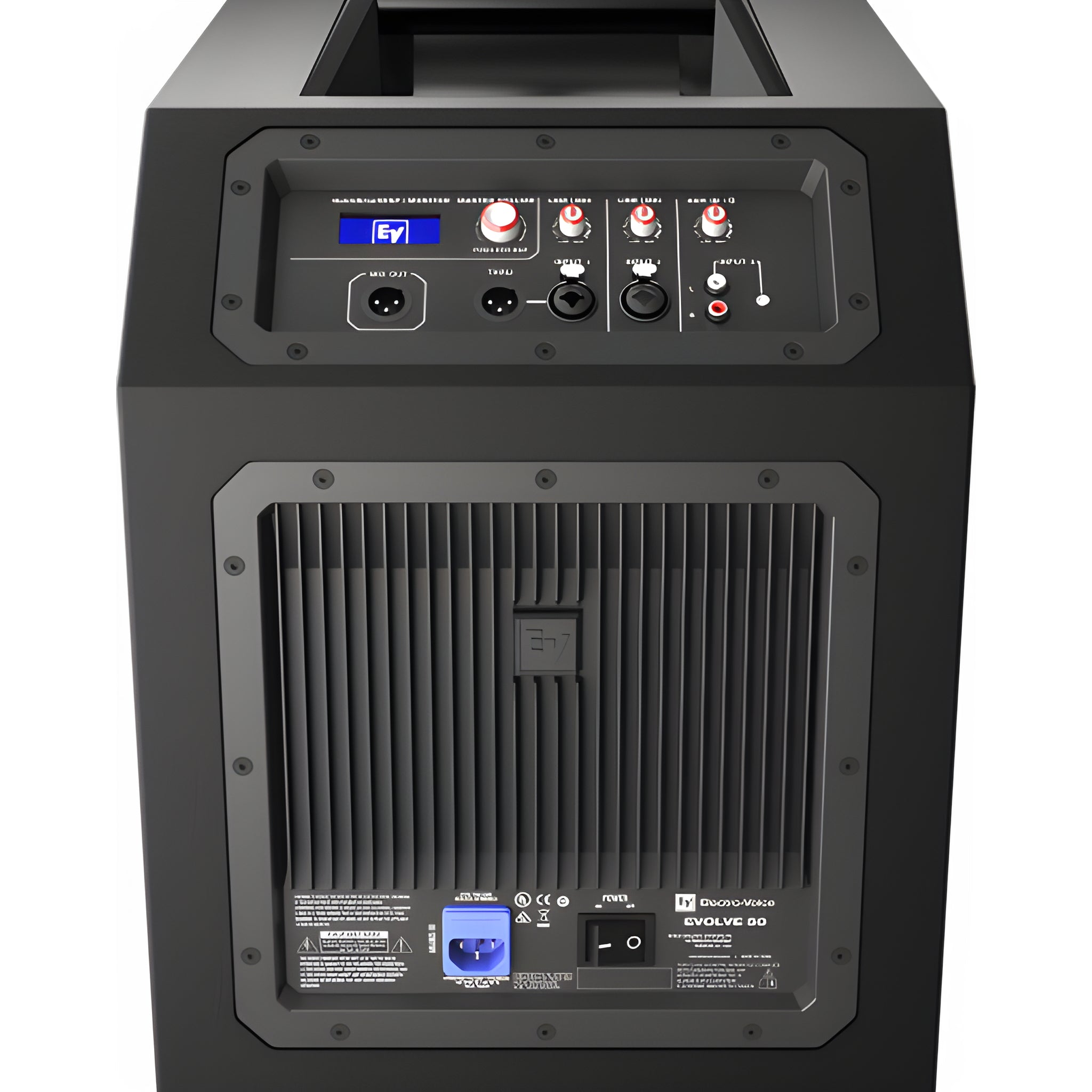

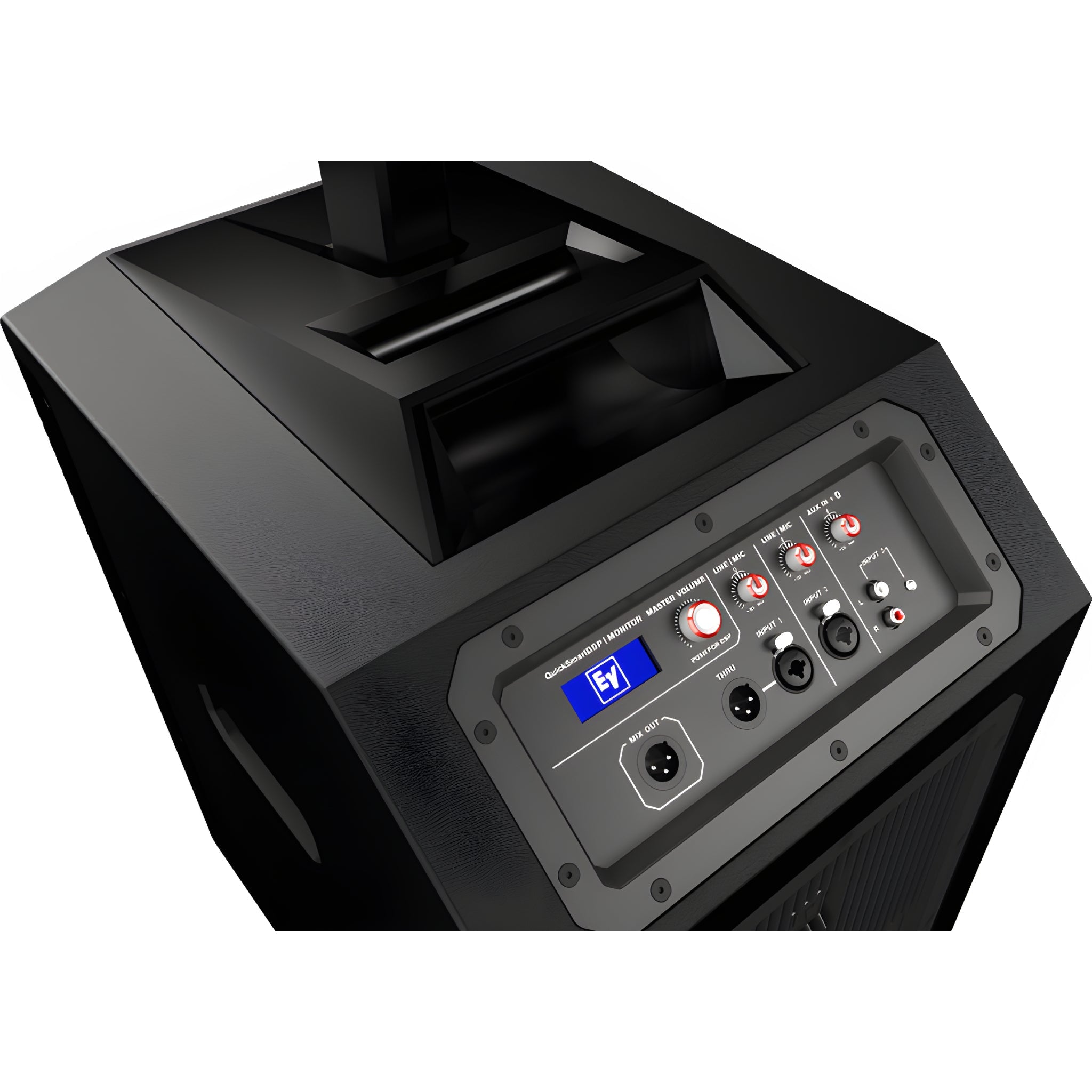

The panel incorporates 2 combo XLR/TRS MIC/LINE inputs , 1 3.5mm mini jack input , 1 stereo RCA input , 1 Bluetooth audio input , plus 1 XLR THRU output and 1 XLR MIX OUT output . The single-knob interface with LCD allows you to select presets (Music/Live/Speech/Club), apply 3-band EQ , delay , +15V phantom power and save 5 user memories . With the EV QuickSmart Mobile (BLE) app you can control and monitor up to 6 EVOLVE 50 systems simultaneously and receive status alerts; simultaneous Bluetooth playback on multiple systems is transmitter dependent . The set up takes seconds: aluminum pole with magnetic coupling to the sub and column that fits into gravity; a carrying bag for both column and pole is included.

Main features

• High-performance column + sub: 8 × 3.5" (neodymium) + 1 × 12" in bass-reflex enclosure (15 mm wood).
• Amplification: 1000 W Class D (LF 500 W + HF 500 W) with QuickSmart DSP .
• Range and pressure: 43–20 kHz (±3 dB) , 37–20 kHz (-10 dB) ; max. 127 dB SPL .
• Controlled coverage: 120° × 40° with waveguide and asymmetric vertical pattern.
• Full connectivity: 2 × XLR/TRS, 1 × 3.5 mm , 1 × stereo RCA, Bluetooth audio , XLR THRU and MIX OUT.
• Agile workflow: presets (Music/Live/Speech/Club), 3-band EQ , delay , +15 V phantom , 5 memories .
• Wireless control: QuickSmart Mobile via BLE (up to 6 systems in parallel).
• Assembly and transport: magnetically coupled pole, internal wiring; bag included (column+pole).

Product benefits

• Professional sound in minutes : installation without visible cables, quick adjustments and homogeneous coverage.
• True versatility : from corporate events and weddings to mobile DJs and acoustic duos.
• Scalability and control : manage multiple systems from the app and link audio via MIX OUT.
• Thoughtful portability : stylish design and weight distributed by components for effortless movement.

Use cases

• Mobile events (DJ, live music, presentations) with rapid deployment and discreet aesthetics.
• Multipurpose spaces (hotels, places of worship, conference rooms) with a need for vocal clarity and music.
• Lightweight backline for soloists and speakers looking for an all-in-one solution.

Frequently Asked Questions

• Can multiple systems be used simultaneously via Bluetooth? The app allows you to control/monitor up to six EVOLVE 50s; sending Bluetooth audio to multiple systems depends on the transmitting device.
• What crossover does the system use? Internal crossover at 200 Hz between the subwoofer and the speaker.
• What's included for shipping? Column and pole bag ; the sub case is optional.

Description for projects

Electro-Voice EVOLVE50-KB active floorstander system; 1000 W Class D (LF 500 W + HF 500 W); 8 × 3.5" (floorstand) + 1 × 12" (sub, 15 mm wood); response 43–20 kHz (±3 dB) , range 37–20 kHz (-10 dB) ; 127 dB SPL max.; coverage 120° × 40° ; crossover 200 Hz ; connectivity: 2 × XLR/TRS MIC/LINE, 1 × 3.5 mm , 1 × stereo RCA , Bluetooth audio , 1 × XLR THRU , 1 × XLR MIX OUT ; QuickSmart DSP control (presets, 3-band EQ, delay, +15 V phantom, 5 memories) and QuickSmart Mobile (BLE, up to 6 systems); dimensions (H × W × D): Sub 530 × 345 × 471 mm , Column 825 × 102 × 172 mm , Pole 929 × 48.5 × 55 mm ; approximate net weight of the system 26.25 kg (Sub 20.3 kg + Column 4.7 kg + Pole 1.25 kg ).
