Electro-Voice EVOLVE30M-W (White) - 1000W Portable Column System with Digital Mixer, QuickSmart DSP and Bluetooth

Electro-Voice EVOLVE30M-W (White) - 1000W Portable Column System with Digital Mixer, QuickSmart DSP and Bluetooth

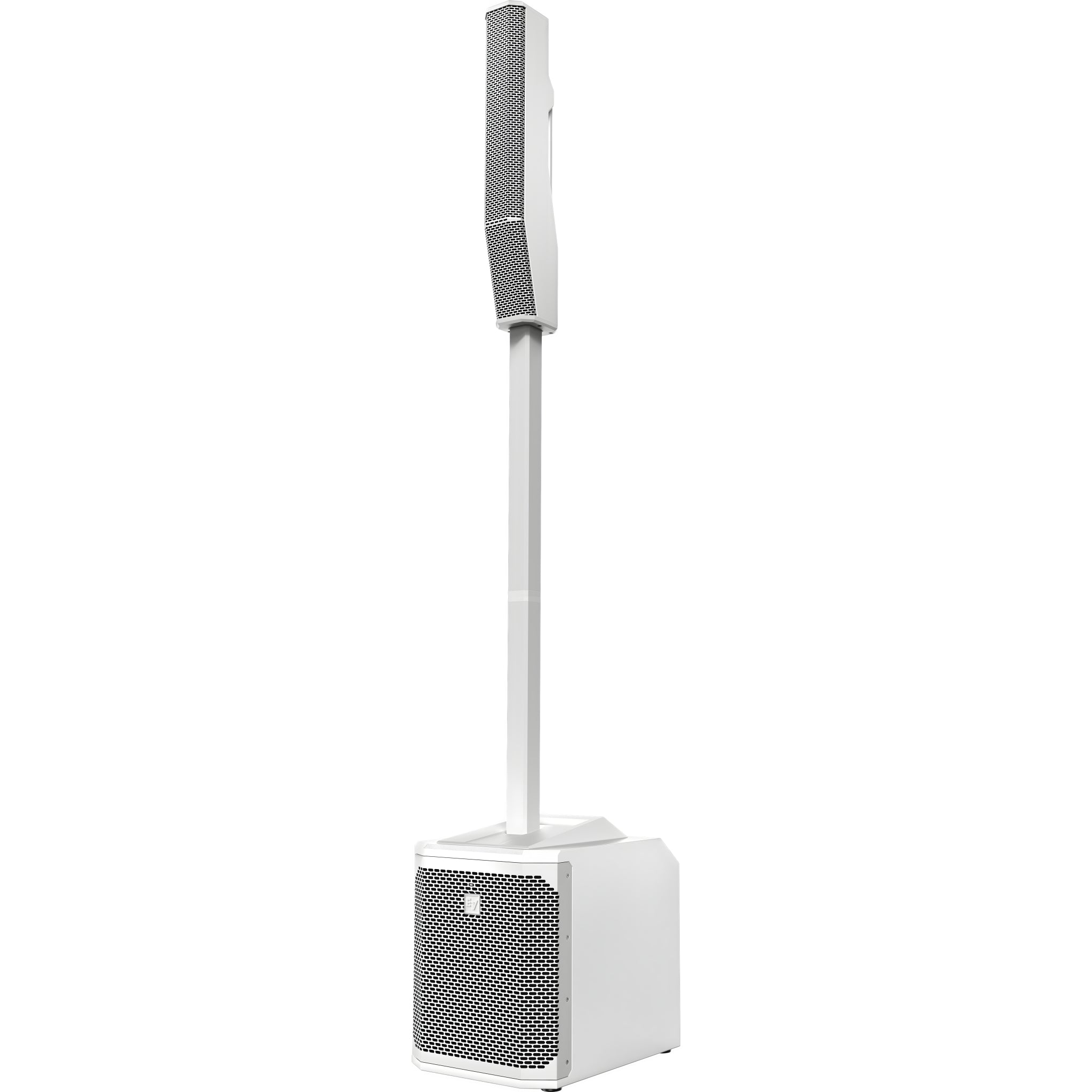

The Electro-Voice EVOLVE30M-W is a floorstanding PA system featuring 1000W Class D amplification (500W subwoofer and 500W floorstanding), an 8-channel digital mixer with effects, and remote control via EV QuickSmart Mobile . Its architecture combines a 10" subwoofer housed in a 15mm plywood enclosure with a 6-way, 2.8" composite column driver array , delivering 120° × 40° coverage and up to 123 dB SPL with a 51 Hz–20 kHz (-3 dB) response. The two-section aluminum pole features internal wiring and magnetic locking for quick and secure mounting, and includes a carrying bag for both the column and pole.

The QuickSmart DSP allows operation from the LCD screen with a single encoder or from the app, with presets (Music, Live, Speech, Club), 3-band EQ , 7-band graphic EQ on Main / Aux , 5 user memories , phantom power on the mic channels, Aux sends per channel and two effects engines with chorus , delay , flanger and reverb . In addition to BLE monitoring and control of up to 6 systems , it incorporates Bluetooth for audio streaming . For stereo configurations, it can be linked to another unit via QuickSmart Link via a network cable.

Main features

• Total power 1000 W (500 W LF + 500 W column) with crossover at 200 Hz .
• Transducers : 10" subwoofer + column with 6 × 2.8" neodymium.
• Wide and uniform coverage : 120° (H) × 40° (V) ; Max SPL 123 dB.
• QuickSmart DSP : 4 presets, 3-band EQ, 7-band graphic EQ on Main/Aux , 5 user presets, phantom , Aux sends and 2 FX with 30 presets.

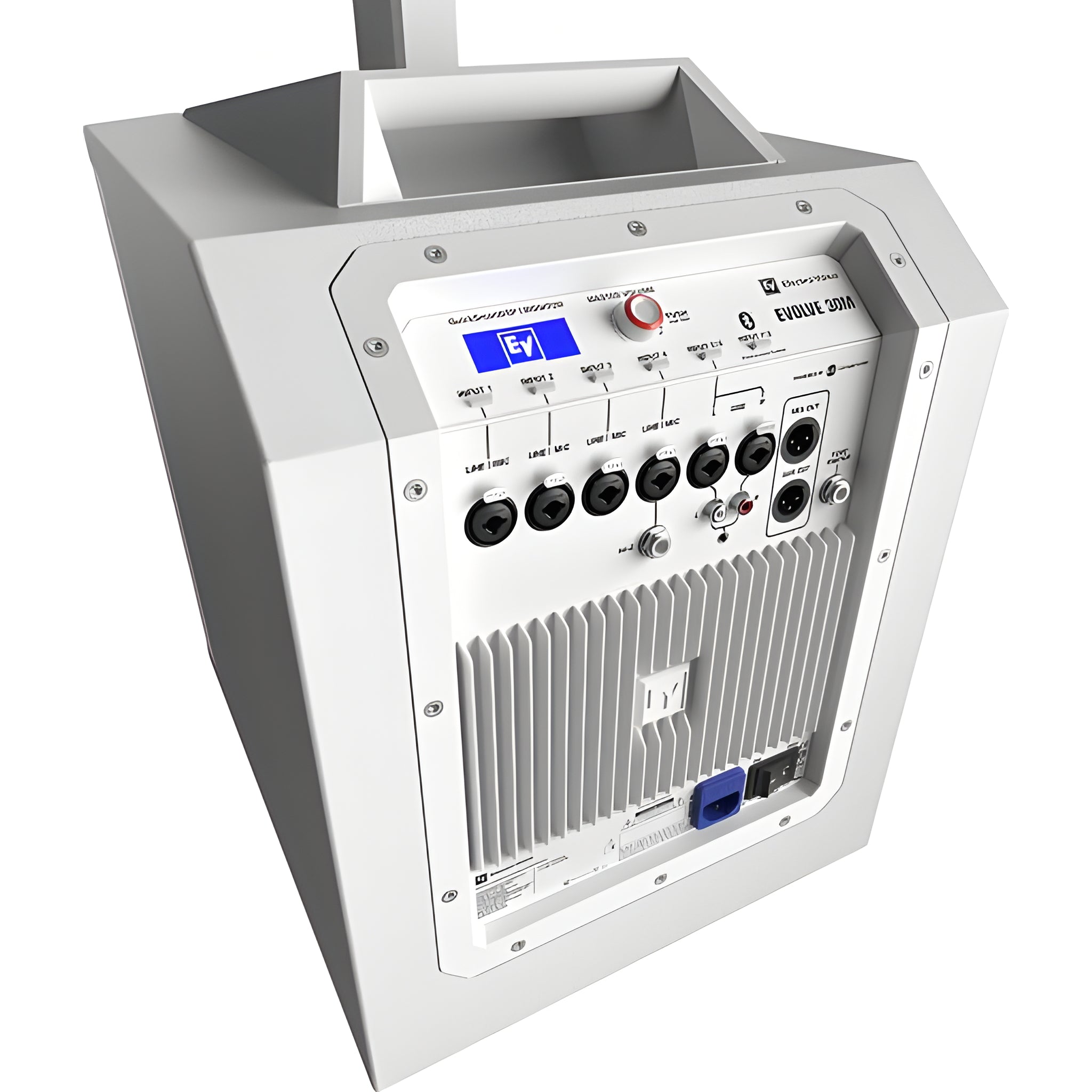

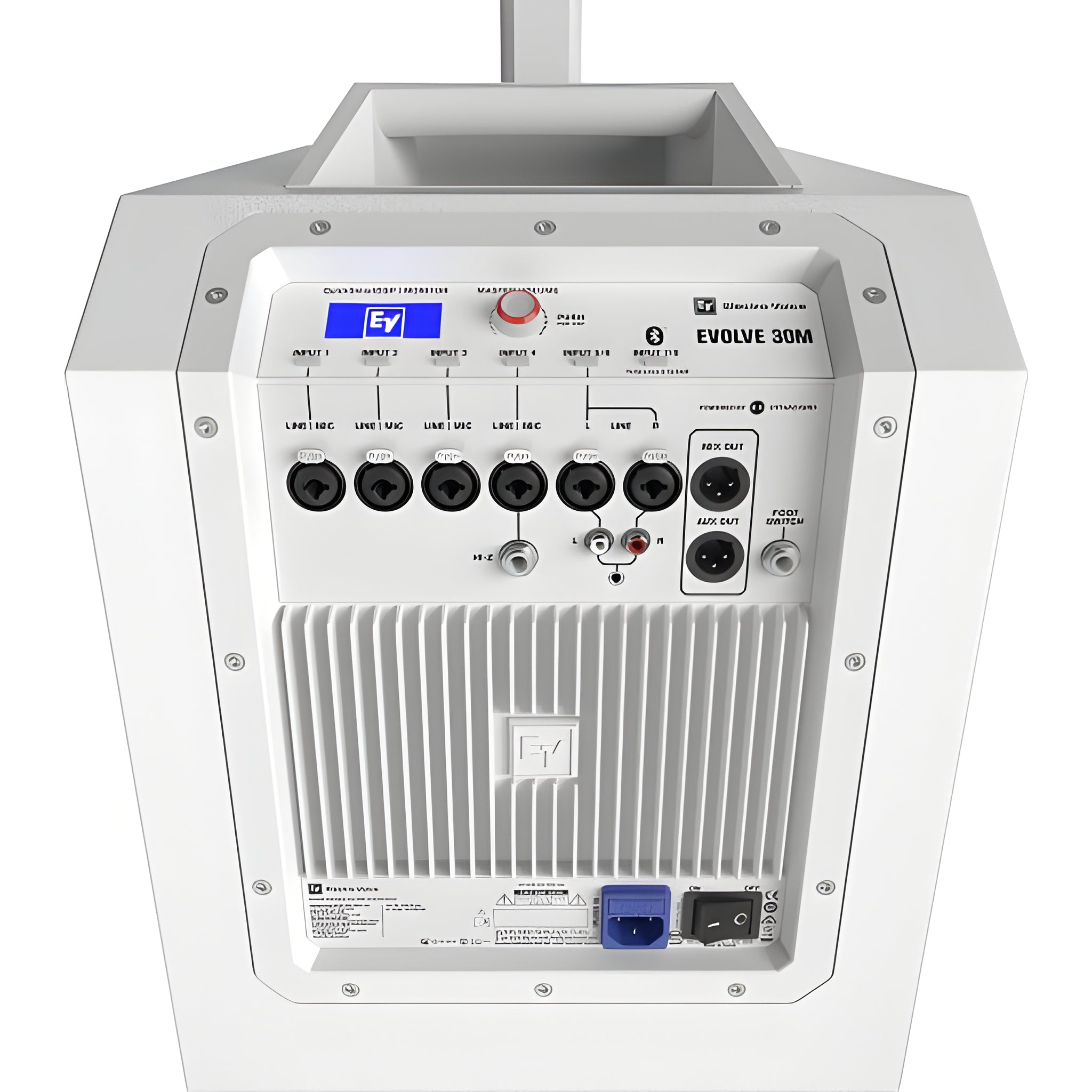

• Complete connectivity : 6 XLR/TRS combos (4 mic/line + 2 stereo line), Hi-Z 6.3 mm , stereo RCA , 3.5 mm minijack , footswitch input , Bluetooth audio, XLR Mix and XLR Aux outputs.
• Wireless control with EV QuickSmart Mobile (BLE) for up to 6 units .
• Robust construction : 15mm wood sub, composite column, aluminum post, powder-coated steel grille ( white finish).
• Includes bag for column and pole ; quick assembly with 2-piece pole and magnetic lock .

Product benefits

• Professional all-in-one : mixing, effects, DSP and power in a lightweight and elegant format for musicians, DJs and events.
• Ultra-fast deployment : internally wired pole with magnetic lock, presets ready, and app control.
• Controlled sound : 120° wide and optimized vertical coverage, graphic EQ and FX to refine the result in the room.
• Maximum flexibility : inputs for microphone, instrument (Hi-Z) , stereo sources, and Bluetooth streaming ; Mix/Aux outputs for expansion.

Use cases

• Live performances by soloists and duos, small bands and DJs .
• Weddings and corporate events : speech, background music and dancing with the same system.
• Portable facility for schools, churches, gyms and multipurpose spaces.

Connectivity and control

• EV QuickSmart Mobile App with Bluetooth Low Energy to adjust and monitor up to 6 units.
• Bluetooth audio streaming for music playback.
• QuickSmart Link : connecting two systems via a network cable for stereo operation and joint control.

Frequently Asked Questions

• Does Bluetooth transmit audio? Yes, in addition to BLE control, it has a Bluetooth audio input for streaming .
• Does it have phantom power? Yes, on the microphone channels of the integrated mixer.
• Can I link two stereo units? Yes, using QuickSmart Link via a network cable.
• Does it include a case? It includes a bag for the column and pole; the sub's dust cover/case is optional.

Description for projects

Active floorstand system with 1000W Class D amplification (500W LF + 500W floorstander); 10" subwoofer in 15mm wood; floorstand with 6 × 2.8"; 120° × 40° coverage; response (-3 dB) 51 Hz–20 kHz / (-10 dB) 45 Hz–20 kHz; max. SPL 123 dB; crossover 200 Hz; 8-channel digital mixer with 4 combo mic/line inputs, 2 stereo line combos, 1 Hi-Z 6.3 mm, stereo RCA, 3.5 mm minijack, Bluetooth audio and footswitch; XLR Mix and XLR Aux outputs; QuickSmart DSP with 4 presets, 3-band EQ, 7-band graphic EQ, 5 user presets, phantom power and 2 FX engines; BLE control of up to 6 systems; includes floorstander and pole bag; dimensions (mm): sub 448 × 332 × 432, column 620 × 95 × 157, post (2 pcs) 600 × 48 × 55; weights: sub 15.8 kg, column 2.7 kg, post (set) 1.4 kg; power supply 100–240 V~, 50/60 Hz.
