Electro-Voice EVOLVE30M-EU - 1000W Portable Column System with Digital Mixer, QuickSmart DSP and Bluetooth

Electro-Voice EVOLVE30M-EU - 1000W Portable Column System with Digital Mixer, QuickSmart DSP and Bluetooth

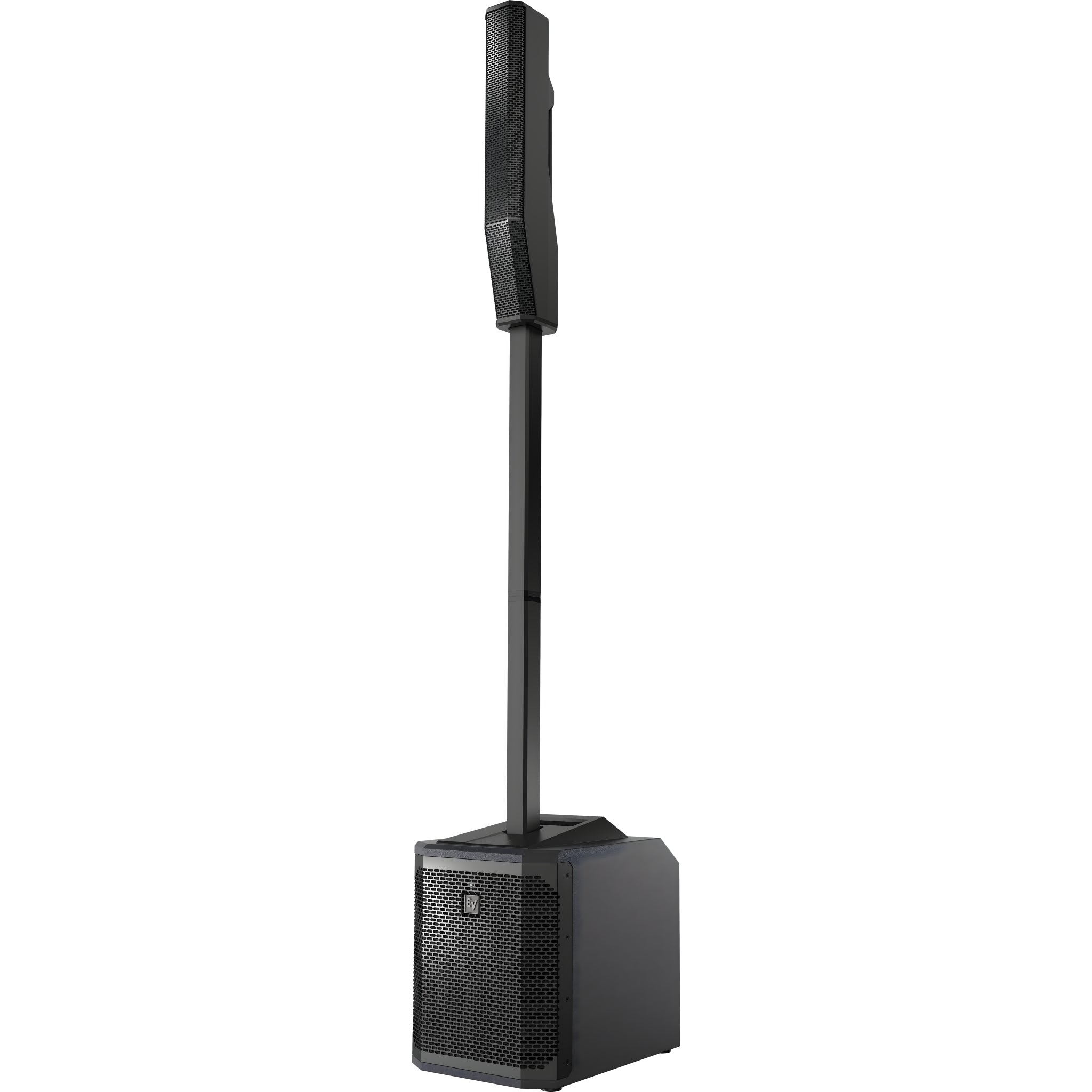

The Electro-Voice EVOLVE30M-EU is a floorstanding PA system that integrates 1000W Class D amplification (500W for the subwoofer and 500W for the floorstander), an 8-channel digital mixer with studio-grade effects, and wireless control via the EV QuickSmart Mobile app for iOS and Android. Its architecture combines a 10" subwoofer in a 15mm plywood enclosure with a column of 6 x 2.8" neodymium speakers and a proprietary waveguide to deliver 120° × 40° coverage , a max SPL of 123 dB , and a 51 Hz–20 kHz (-3 dB) / 45 Hz–20 kHz (-10 dB) response. The two-piece aluminum pole incorporates internal wiring and magnetic locking for quick and secure mounting. A carrying bag for the column and pole is included.

Main features

• Total power: 1000 W (LF 500 W + column 500 W); crossover: 200 Hz.
• Transducers: 1 × 10" subwoofer + 6 × 2.8" column (neodymium).
• Coverage: 120° (H) × 40° (V); Max SPL: 123 dB.
• QuickSmart DSP: 4 presets (Music, Live, Speech, Club), 3-band EQ , 7-band graphic EQ (Mixer mode), 5 user memories , phantom power , meters and master control.
• Integrated effects: 2 engines with 30 presets (reverb, delay, chorus, flanger, etc.).
• Bluetooth: BLE control of up to 6 systems and high-resolution audio streaming .
• Construction: 15mm wood sub, composite column, aluminum post, powder-coated steel grid .
• Includes: Pole and column bag; 2-piece pole with magnetic lock.

Connectivity and control

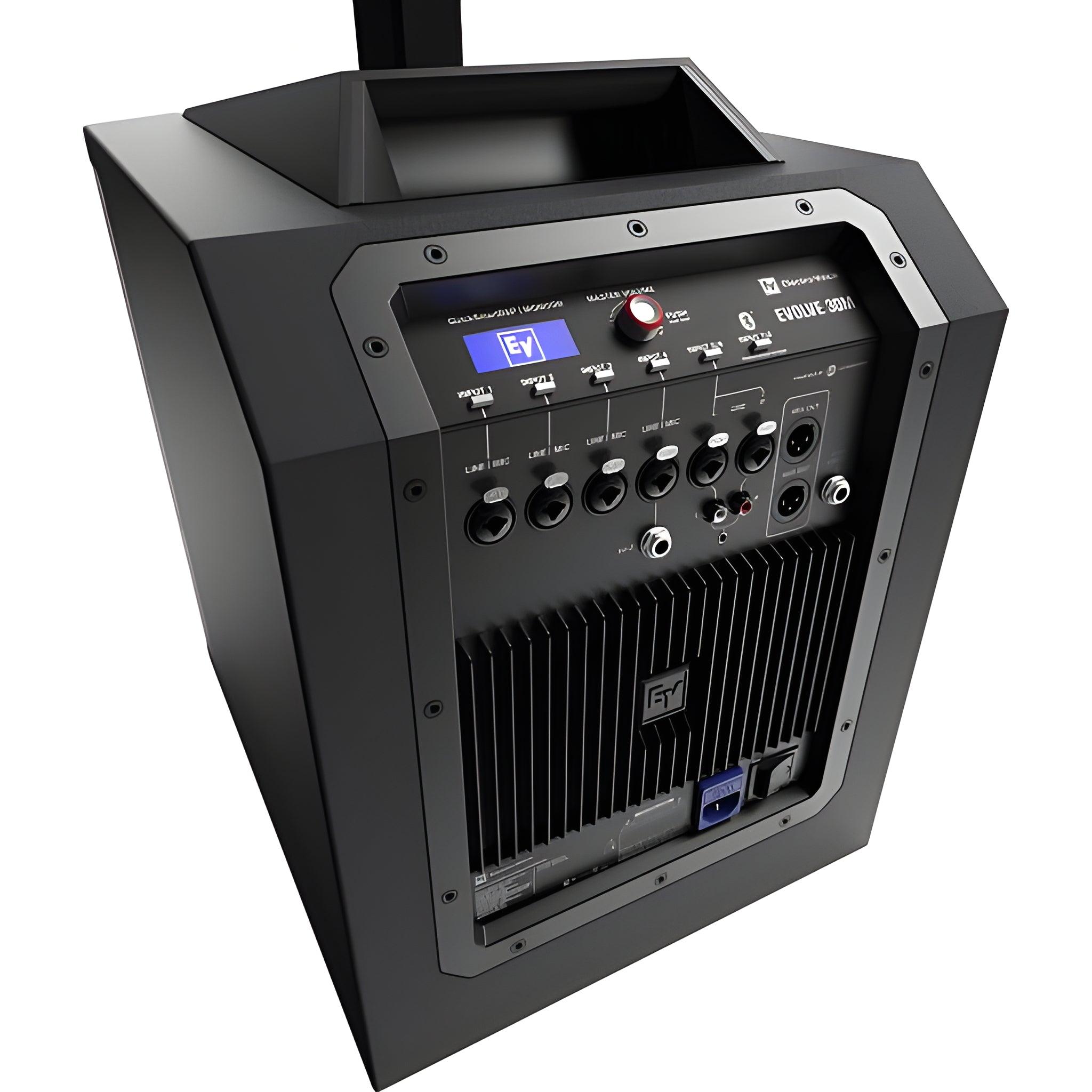

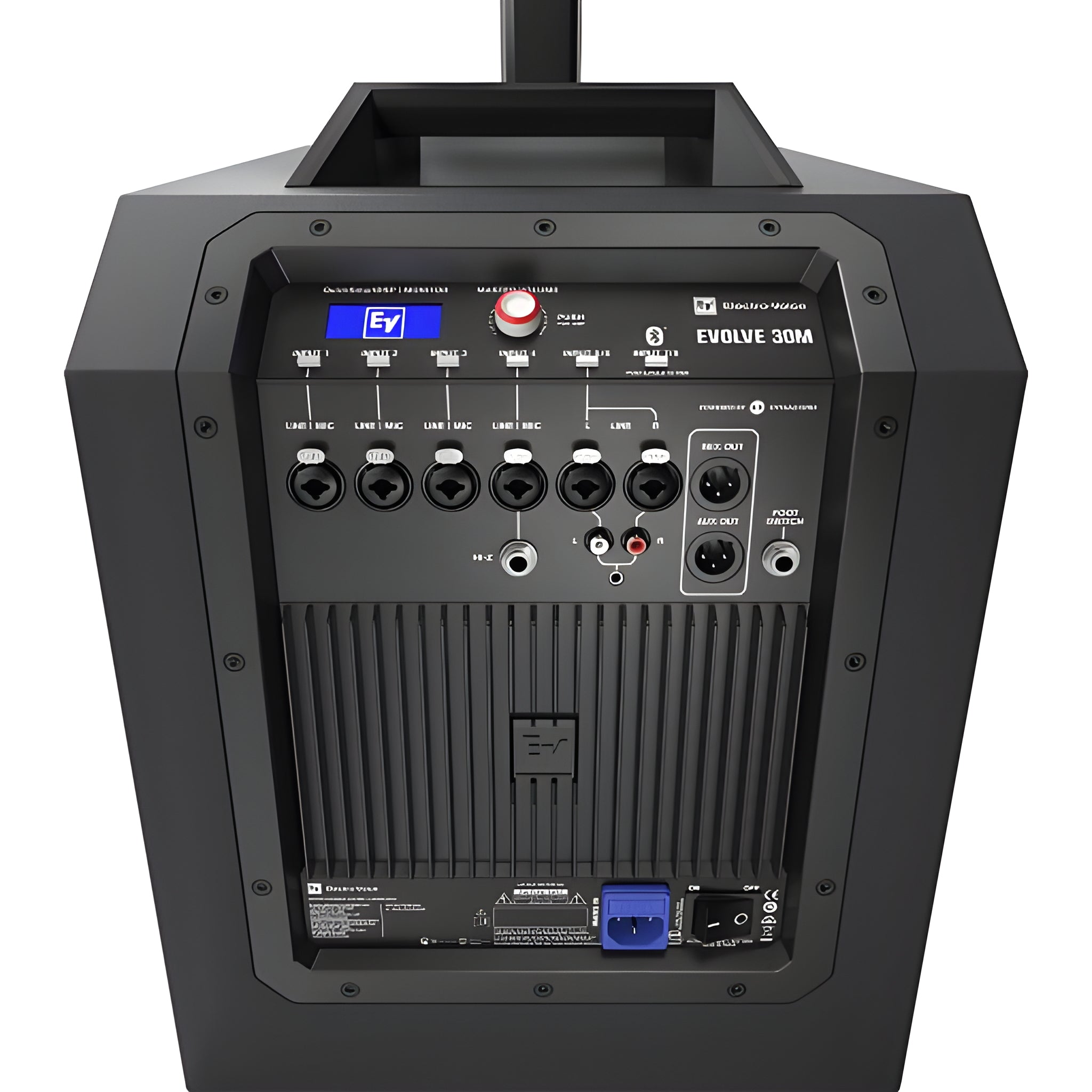

• Inputs: 4 × combo XLR/TRS mic/line, 2 × combo XLR/TRS for stereo line, 1 × Hi-Z (6.3 mm jack), 1 × stereo RCA , 1 × minijack 3.5 mm , stereo Bluetooth , 1 × footswitch (6.3 mm jack).
• Outputs: 1 × XLR Mix Out and 1 × XLR Aux Out .
• Adjustable output delay for time alignment in multi-device configurations.
• EV QuickSmart Mobile (BLE) app to configure, control and monitor up to 6 units.

Product benefits

• Professional and compact all-in-one : power, mixer, DSP and effects ready for live, events and corporate AV.
• Ultra-fast deployment : internally wired pole with magnetic lock; presets and memories speed up work.
• Uniform sound : 120° wide coverage with optimized vertical for seated and standing audiences.
• True flexibility : inputs for mic, instrument ( Hi-Z ), stereo sources, and Bluetooth audio ; Mix/Aux outputs for expansion or monitors.

Use cases

• Mobile musicians and DJs who require portability and precise control from the venue.
• Corporate and social events requiring microphones, background music, and a dance floor.
• Portable facilities in educational centers, places of worship, and gymnasiums.

Notes and accessories

• Regional Compatibility (EU): EVOLVE30M-EU variant for European markets; same audio specifications.

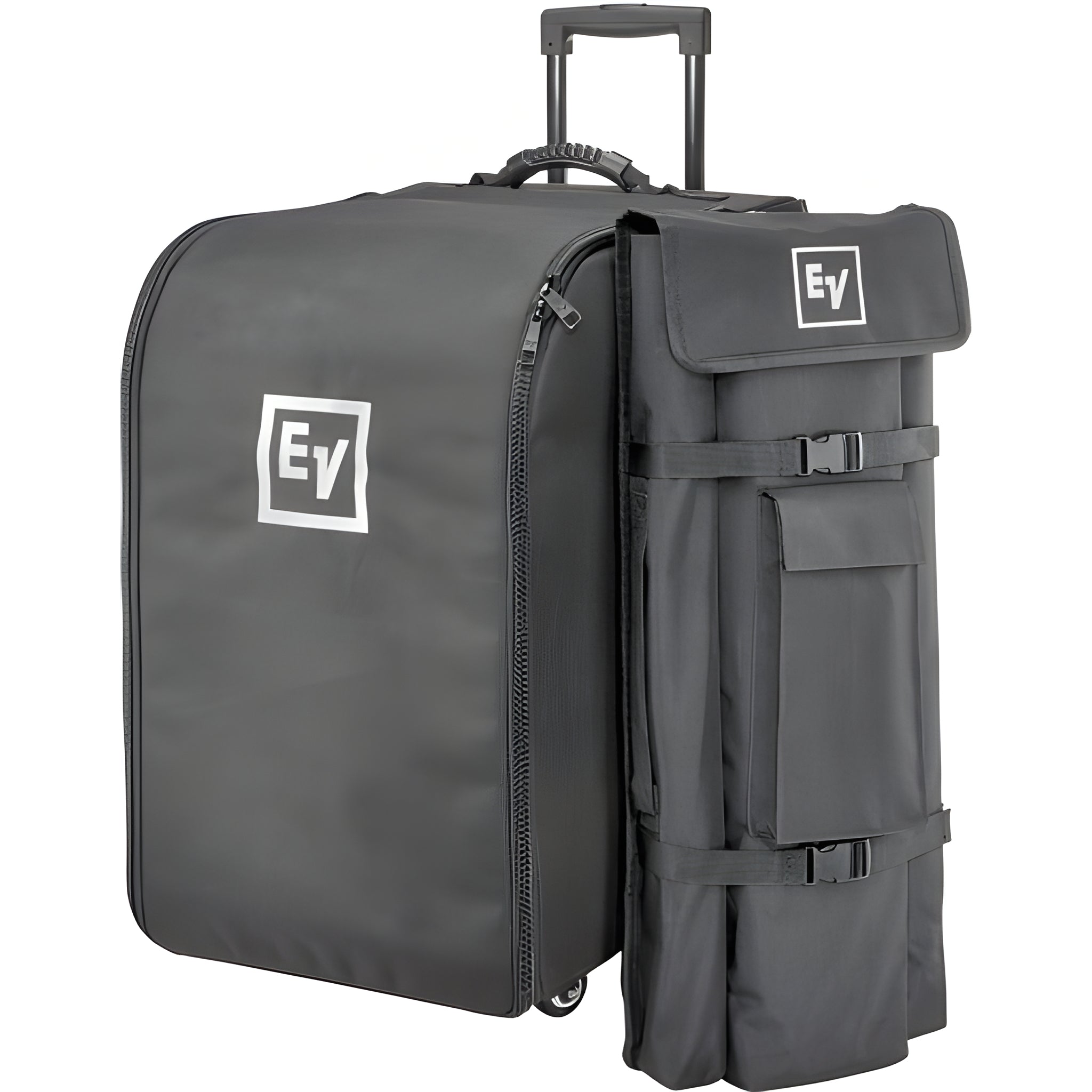

• Optional accessories: EVOLVE30M-SUBCVR sub case, EVOLVE30M-CASE rolling case and compatible short pole .
• Bluetooth available in select countries.

Description for projects

Active floorstander system; power 1000 W (LF 500 W + floorstand 500 W); response (-3 dB) 51 Hz–20 kHz; range (-10 dB) 45 Hz–20 kHz; max. SPL 123 dB; coverage 120° × 40°; crossover 200 Hz; 8-channel digital mixer with 2 FX engines (30 presets), 3-band EQ, 7-band graphic EQ, 5 user presets, phantom power, output delay; 4 × XLR/TRS mic/line inputs, 2 × stereo line combo, 1 × Hi-Z, RCA, 3.5 mm minijack, Bluetooth; XLR Mix and XLR Aux outputs; BLE control (up to 6 units); sub 448 × 332 × 432 mm, column 620 × 95 × 157 mm, post (2 pcs) 600 × 48 × 55 mm; weights: sub 15.8 kg, column 2.7 kg, post 1.4 kg; shipping weight 24.2 kg; power supply 100–240 V~, 50/60 Hz.
