Electro-Voice EVOLVE-WMK-NW - NL4 Wall Mount in White for EVOLVE 30M, EVOLVE 50, and EVOLVE 50M Columns

Electro-Voice EVOLVE-WMK-NW - NL4 Wall Mount in White for EVOLVE 30M, EVOLVE 50, and EVOLVE 50M Columns

The Electro-Voice EVOLVE-WMK-NW is the official wall mounting kit for separating the EVOLVE 30M , EVOLVE 50 and EVOLVE 50M floorstanders from the subwoofer, eliminating the spacer pole and allowing each element to be positioned wherever it is most aesthetically or acoustically convenient. This NW version features NL4 connections on the subwoofer and floorstander adapters, and a white finish to match the EVOLVE floorstanders. It offers a robust mount with -15° vertical tilt and ±45° horizontal swivel , plus compatibility with 1.5 to 2.5 mm² speaker cable . It is a quick and secure solution for fixed indoor installations that need to raise the floorstander higher than the pole allows and relocate the subwoofer.

Main features

• Native support: EVOLVE 30M, EVOLVE 50, and EVOLVE 50M columns.
• NL4 Connectivity: Specific subwoofer and column adapters, ready for standard speaker cable.
• Mechanical adjustment: −15° downward tilt and ±45° swivel for precise coverage targeting.

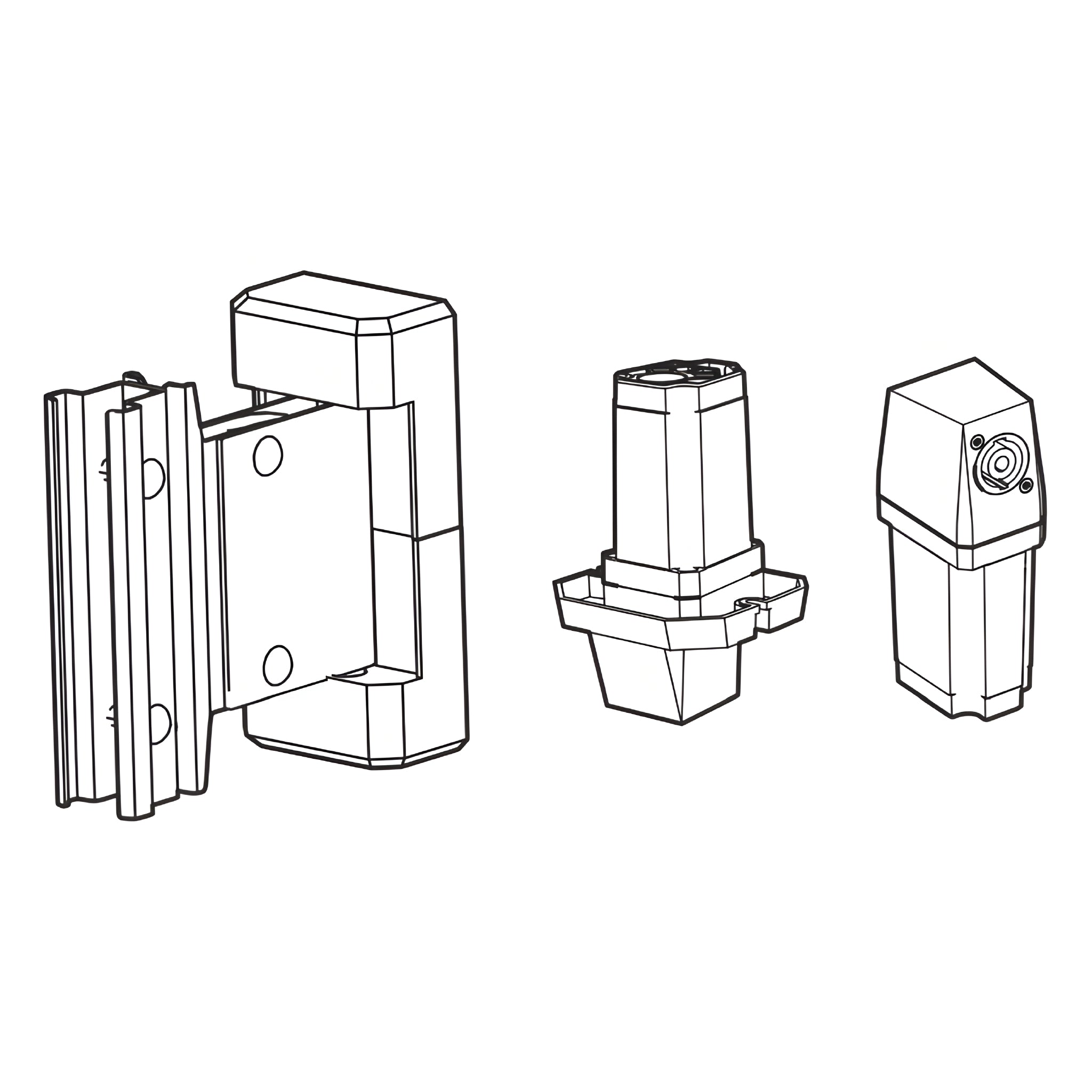

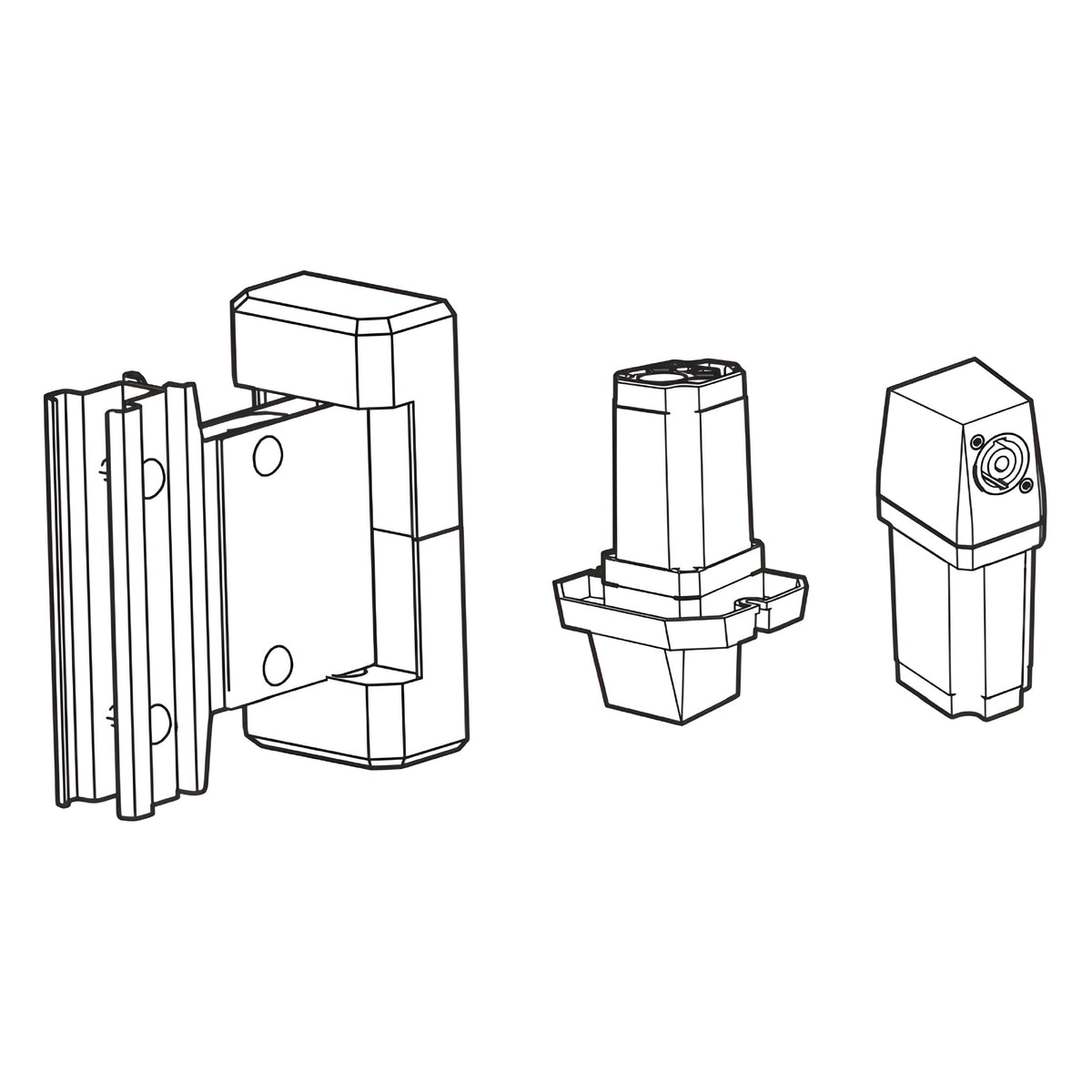

• Clean Installation: Includes wall mount bracket , amplifier/subwoofer input cover, column adapter, subwoofer adapter, and secondary auxiliary support cable .
• Recommended wiring: 1.5–2.5 mm² cross section (equivalent to approx. AWG16–AWG14).
• Indoor Use: Designed for permanent indoor installations.
• Finish: white (NW) . Also available in black ( NB ).

Product benefits

• Greater effective coverage: Raising the speaker improves range and uniformity, keeping the subwoofer in its optimal position.
• Clean scenes: Visually separates the mid/high source from the subwoofer and frees up space in stages and multi-purpose rooms.
• Guaranteed integration: Genuine Electro-Voice accessories for perfect fit, consistent aesthetics, and secure wiring.
• Precise steering: Tilt and swivel control to adapt the column beam to the room geometry.

Use cases

• Conference rooms and hospitality: discreet wall mounting, with the subwoofer hidden.
• Theaters, churches, and auditoriums: fine column orientation to cover stalls and balconies with minimal reflections.
• Retail and corporate spaces: clean white aesthetics, with easily maintainable NL4 cabling.

Frequently Asked Questions

• Does it include wall hardware? The selection of fixings depends on the type of wall (concrete, brick, plasterboard, etc.). The installer must use appropriate hardware properly certified for the load.
• Can I use a different connector type? This EVOLVE-WMK-NW model uses NL4 . If fixed wiring with terminals is required, Phoenix/Euroblock variants are available (EVOLVE-WMK-PW/PB).
• Is it suitable for outdoor use? No. The kit is designed for indoor use.

Description for projects

Electro-Voice EVOLVE-WMK-NW wall mount kit (white) for EVOLVE 30M/50/50M speakers; tilt adjustment −15° and swivel ±45°; subwoofer and speaker adapters with NL4 connectors; recommended cable cross-section 1.5–2.5 mm²; indoor use; includes wall bracket, amplifier/subwoofer input cover, speaker adapter, subwoofer adapter, and auxiliary safety cable.
