Electro-Voice EVID 6.2 - 2-Way Installation Speaker (2 x 6", IP34, 100° x 80° Coverage) — Pair, Black

Electro-Voice EVID 6.2 - 2-Way Installation Speaker (2 x 6", IP34, 100° x 80° Coverage) — Pair, Black

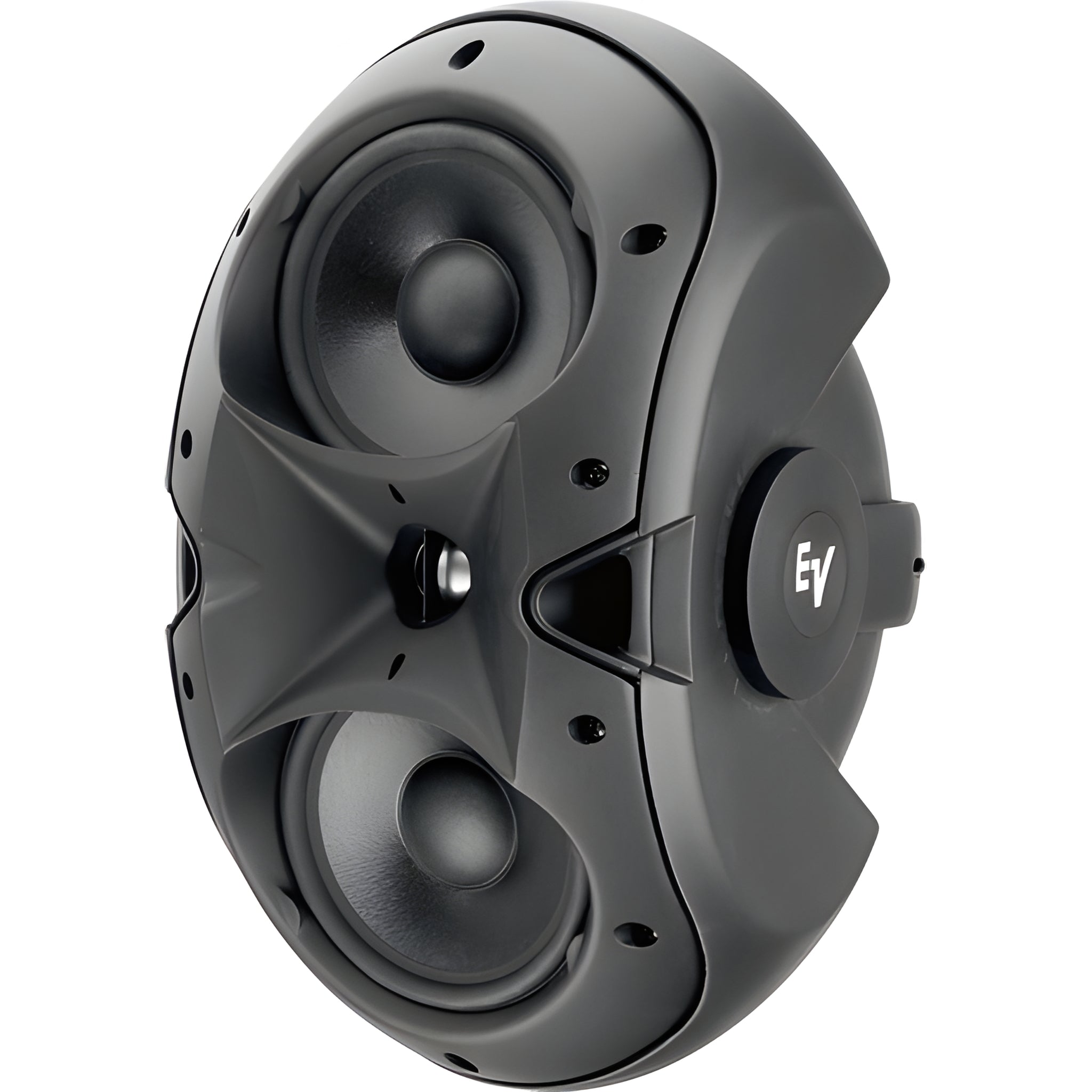

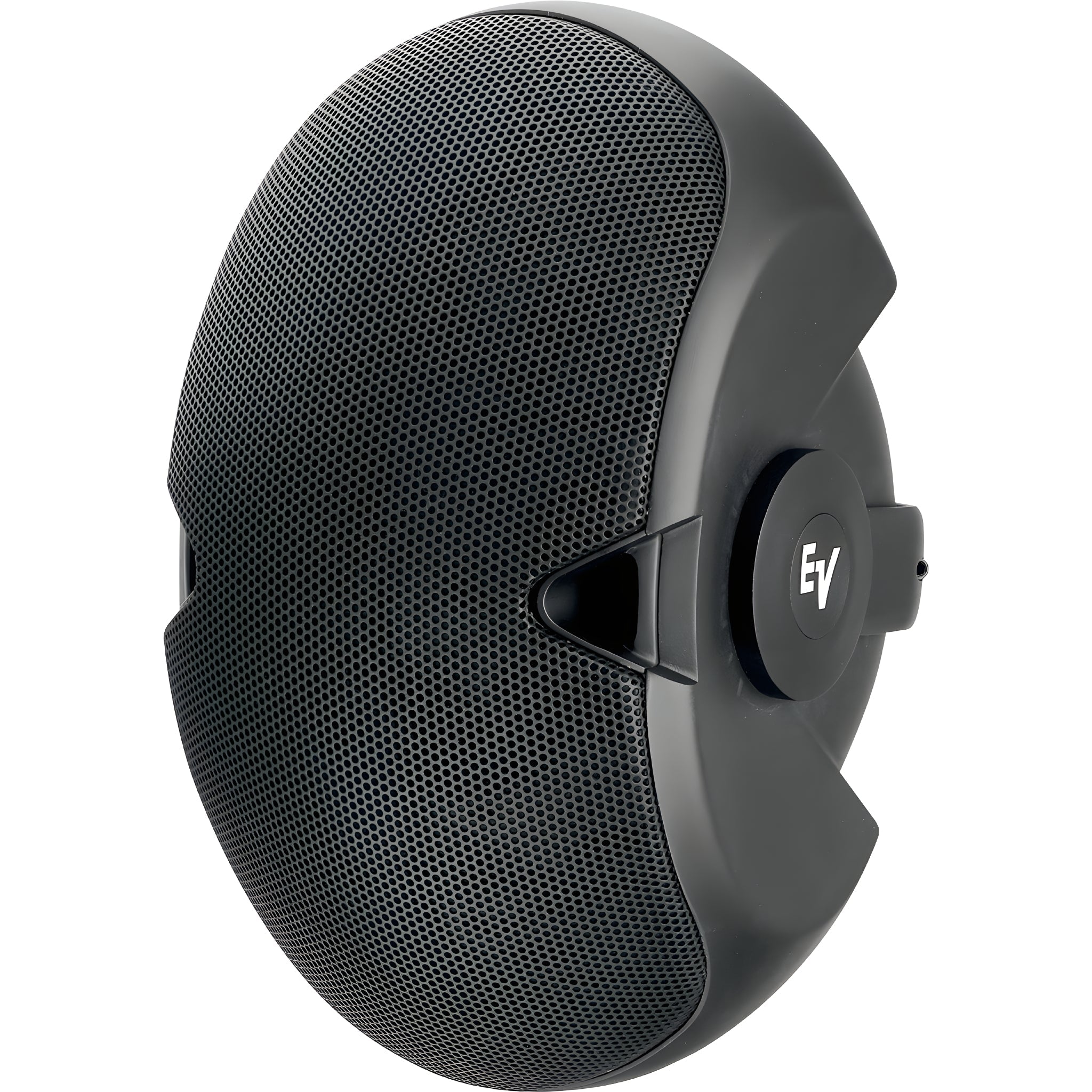

The Electro-Voice EVID 6.2 is a passive, surface-mount full-range system combining two 6" tropicalized woofers with a 1" titanium diaphragm tweeter in a Coherent Coverage waveguide , delivering wide, controlled 100° × 80° coverage. Its paintable ABS elliptical enclosure is magnetically shielded , meets Mil-Spec 810 (humidity, salt spray, temperature, and UV), and has an IEC 529 IP34 splash-proof rating , making it a reliable choice for indoor commercial applications and protected semi-outdoor areas. With a 62 Hz to 20 kHz (-10 dB) response , 94 dB sensitivity , and a max SPL of 118 dB , the EVID 6.2 delivers surprising bass for its size and superior intelligibility for background/foreground music and voiceovers.

Supplied in pairs , the unit includes the Strong-Arm Mount (SAM™) bracket , which allows for 100° × 90° orientation adjustment for quick and secure installation. Connection is via a 4-pin Phoenix (Euroblock) terminal . Available in a black finish ; “T” versions are available with a transformer for 70/100 V lines (not included with this 8 Ω model).

Main features

• 2-way architecture : 2 × 6" (LF) + 1" (HF in titanium) with waveguide for uniform coverage.
• Nominal coverage : 100° × 80° (−6 dB), designed for BGM/FGM and voice with high clarity.
• Performance : 62–20 kHz (−10 dB) , 94 dB (1 W/1 m) and 118 dB SPL max.
• Admissible power : 150 W continuous / 300 W program / 600 W peak at 8 Ω .
• Reliability : Full bandwidth (LF/HF) protection against overload.
• Environmental resistance : IP34 + Mil-Spec 810 ; magnetically shielded for use near displays.
• Quick installation : SAM™ included ( 100° × 90° ) and 4-pin Phoenix terminal .
• Crossover : 1.6 kHz (passive) optimized for natural transition between tracks.

Product benefits

• Wide coverage with fewer spots thanks to its 100° × 80° directivity and EV waveguide.
• Aesthetic integration : discreet elliptical design and black paintable finish .
• Safe operation at high levels thanks to its full-bandwidth protection and environmental certifications.
• Easy mounting and wiring with SAM™ and protected Phoenix connection.

Use cases

• Restaurants and retail with background/foreground music and intelligibility for advertisements.
• Hotels, fitness, and education with consistent coverage and meticulous aesthetics.
• Protected semi-outdoor areas (under canopies) respecting the IP34 classification.

Frequently Asked Questions

• Is it sold individually? No. The EVID 6.2 is sold in pairs .
• Does this include a 70/100 V transformer? This version is 8 Ω . For constant voltage lines, select EVID 6.2T/TW .
• Can it be used near screens? Yes, it's magnetically shielded .

Description for projects

Electro-Voice EVID 6.2 2-way passive loudspeaker (pair, black); transducers: 2 × 6" LF + 1" HF (titanium) in waveguide; coverage 100° × 80° ; response 62–20 kHz (−10 dB) ; sensitivity 94 dB (1 W/1 m); max. SPL 118 dB ; power 150/300/600 W (cont./prog./peak); 8 Ω ; crossover 1.6 kHz ; 4-pin Phoenix terminal ; paintable ABS enclosure, IP34 and Mil-Spec 810 ; SAM™ mount with 100° × 90° adjustment and Allen key; dimensions 419 × 228 × 298 mm ; weight 5.3 kg (unit).
