Electro-Voice EVID 4.2 - 2-Way Installation Speaker (2 x 4", IP34, 120° x 80° Coverage) — Pair in Black

Electro-Voice EVID 4.2 - 2-Way Installation Speaker (2 x 4", IP34, 120° x 80° Coverage) — Pair in Black

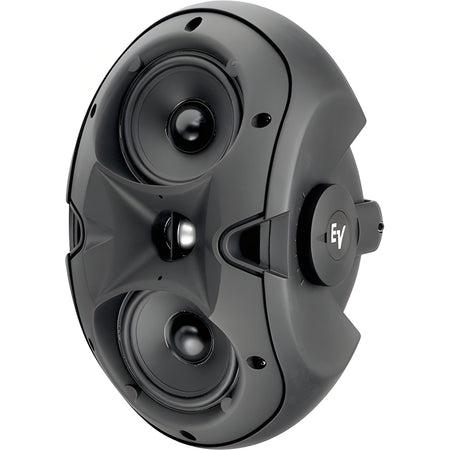

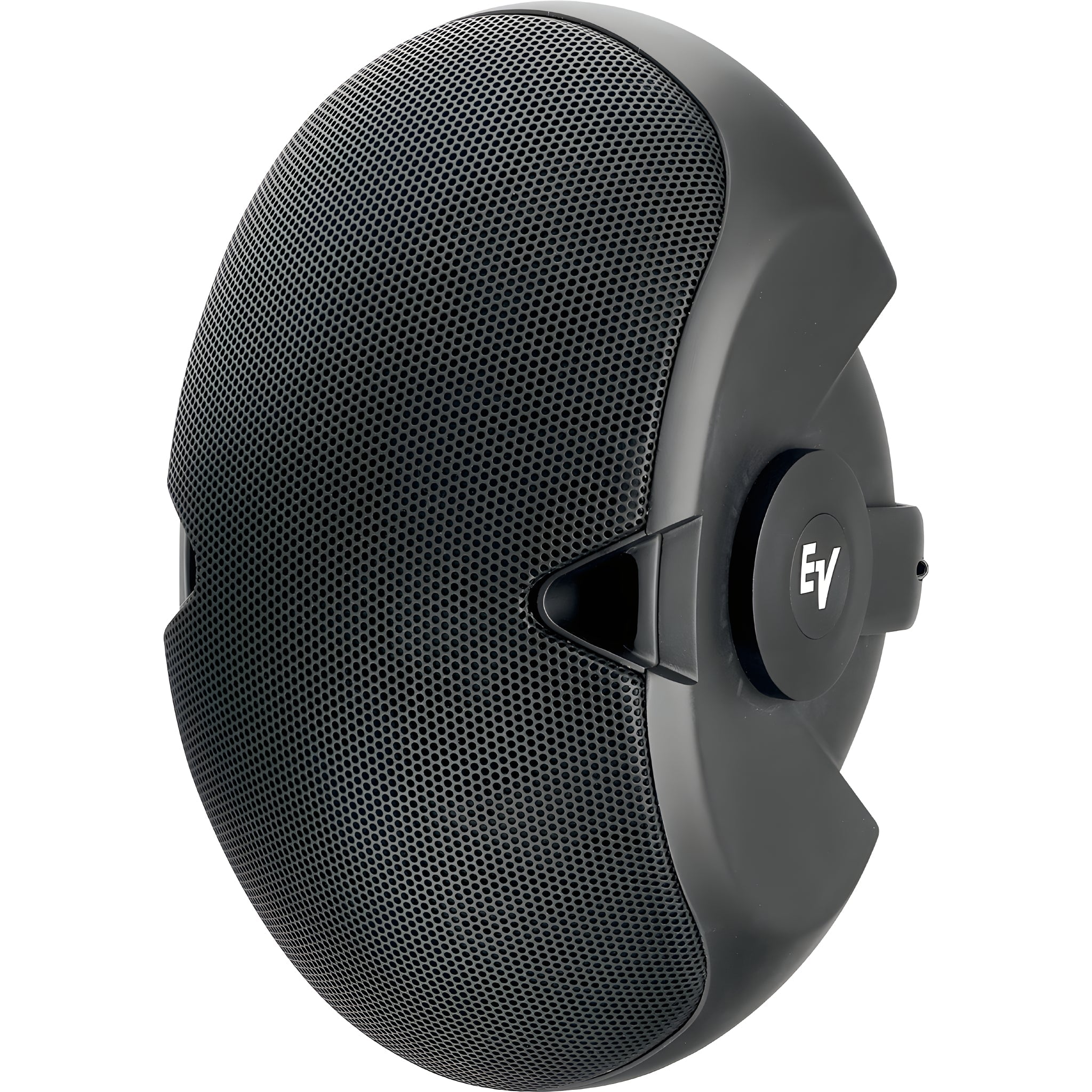

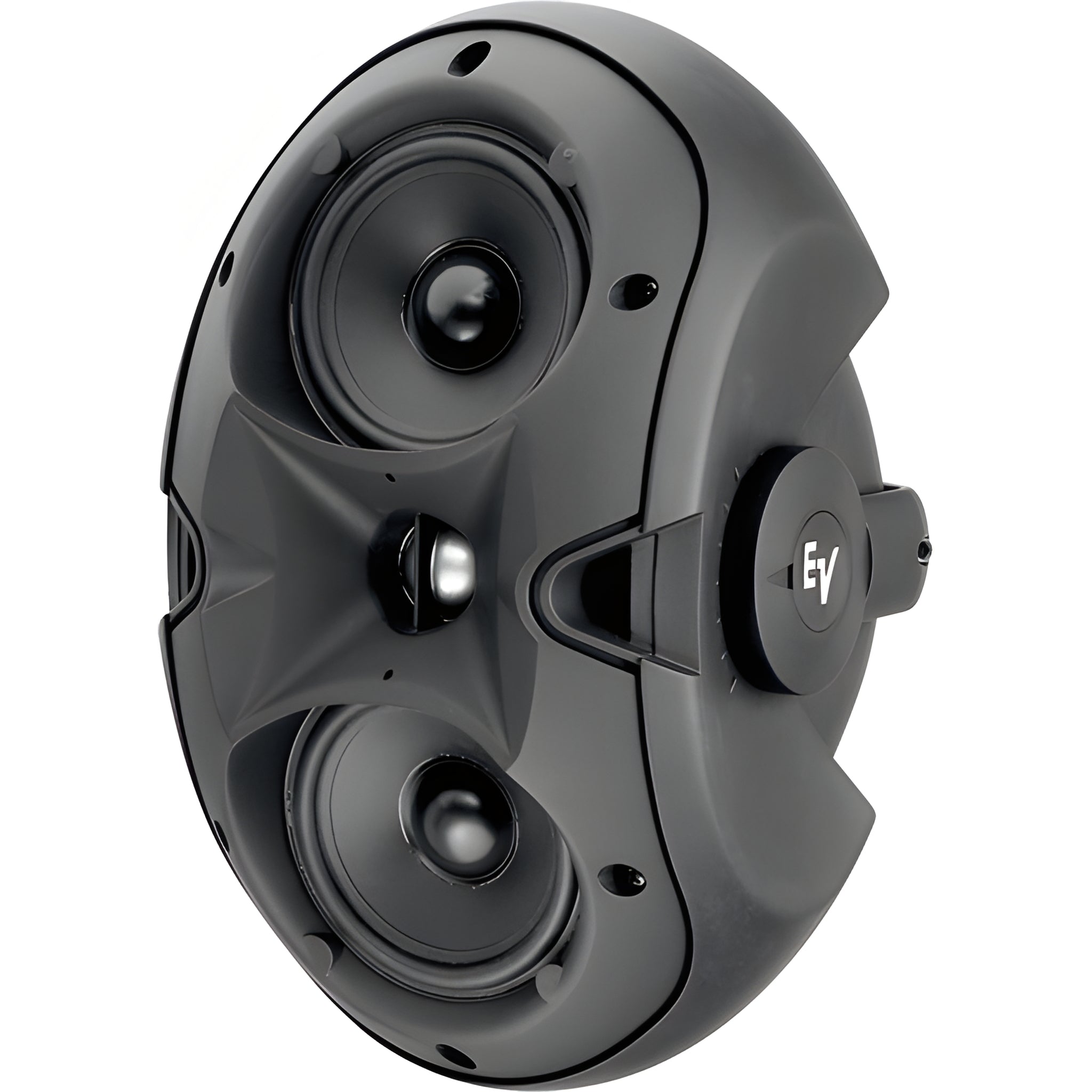

The Electro-Voice EVID 4.2 is a passive, full-range, 2-way surface-mount loudspeaker combining dual 4" tropicalized woofers with a 1" titanium-diaphragm loaded tweeter in a Coherent Coverage waveguide, achieving 120° × 80° uniform coverage and clear voice and music reproduction in commercial environments. Its paintable, elliptical ABS enclosure with vented LF chamber is magnetically shielded and meets Mil-Spec 810 (humidity, salt spray, temperature, UV) and IEC 529 IP34 splashproof rating. It offers a usable response of 65 Hz – 20 kHz (-10 dB) , a sensitivity of 89 dB (1 W/1 m) , and a max SPL of 113 dB , with full bandwidth (LF/HF) overload protection .

The system is supplied in pairs and includes the SAM™ (Strong-Arm Mount) bracket with 100° × 90° adjustment for precise alignment. Connection is via a 4-pin Euroblock (Phoenix) terminal . With 200 W program / 400 W peak at 8 Ω (≈ 100 W continuous ), compact dimensions of 310 × 175 × 216 mm and 3.9 kg per unit, the EVID 4.2 in black finish stands out for its aesthetic integration and reliability in fixed installation.

Main features

• Acoustic architecture : 2 × 4" (LF) + 1" (HF, titanium) with Coherent Coverage waveguide .
• Coverage : 120° × 80° (−6 dB) for wide and homogeneous dispersion.
• Performance : 65–20 kHz (−10 dB) , 89 dB sensitivity, 113 dB SPL max. (calc.).
• Power/impedance : 200 W program / 400 W peak at 8 Ω (≈ 100 W continuous).
• Construction : Paintable ABS enclosure with vented underbody and magnetic shielding .
• Environmental resistance : Mil-Spec 810 + IP34 (splash) for indoor and semi-outdoor protected areas.
• Installation : SAM™ included ( 100° × 90° ), Phoenix 4 pin , Allen key included.
• Crossover : 2.2 kHz (passive) optimized for natural transition between tracks.

Product benefits

• Greater coverage with fewer points thanks to its 120° × 80° pattern and controlled directivity.
• Discreet aesthetics : compact elliptical design and paintable black finish that blends into the architecture.
• Reliability in continuous use thanks to its full-bandwidth protection and environmental certifications.
• Agile implementation with adjustable SAM™ support and clean Euroblock wiring.

Use cases

• Restaurants and retail with background/foreground music and intelligibility for advertisements.
• Hotels, fitness, and education with uniform coverage by area.
• Protected semi-outdoor areas (under canopies), respecting IP34 .

Frequently Asked Questions

• Is it sold individually? No. The EVID 4.2 is sold in pairs .
• Is there a version for 70/100 V lines? Yes, the EVID 4.2T/TW (not included in this 8 Ω version).
• Can it be installed near screens? Yes, it's magnetically shielded .

Description for projects

Electro-Voice EVID 4.2 2-way passive loudspeaker (pair, black); transducers: 2 × 4" (LF) + 1" (HF, titanium) with waveguide; coverage 120° × 80° ; response 65–20 kHz (−10 dB) ; sensitivity 89 dB ; max. SPL 113 dB (calc.); power 200 W prog. / 400 W peak ( 8 Ω ); crossover 2.2 kHz ; full-bandwidth protection ; 4-pin Phoenix terminal; paintable ABS enclosure ( magnetically shielded ), IP34 + Mil-Spec 810 ; SAM™ bracket ( 100° × 90° ) and Allen key; dimensions 310 × 175 × 216 mm ; weight 3.9 kg (unit).
