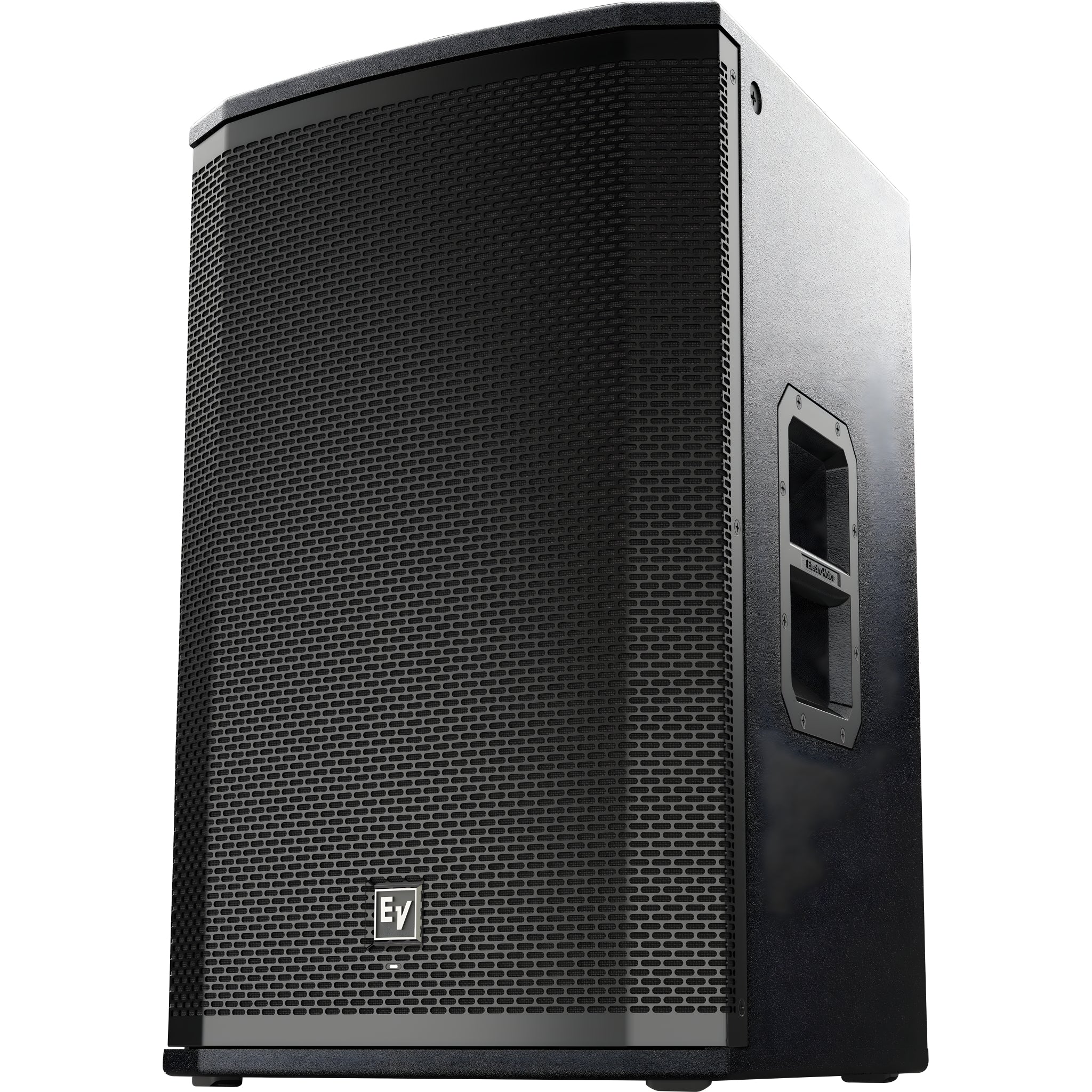

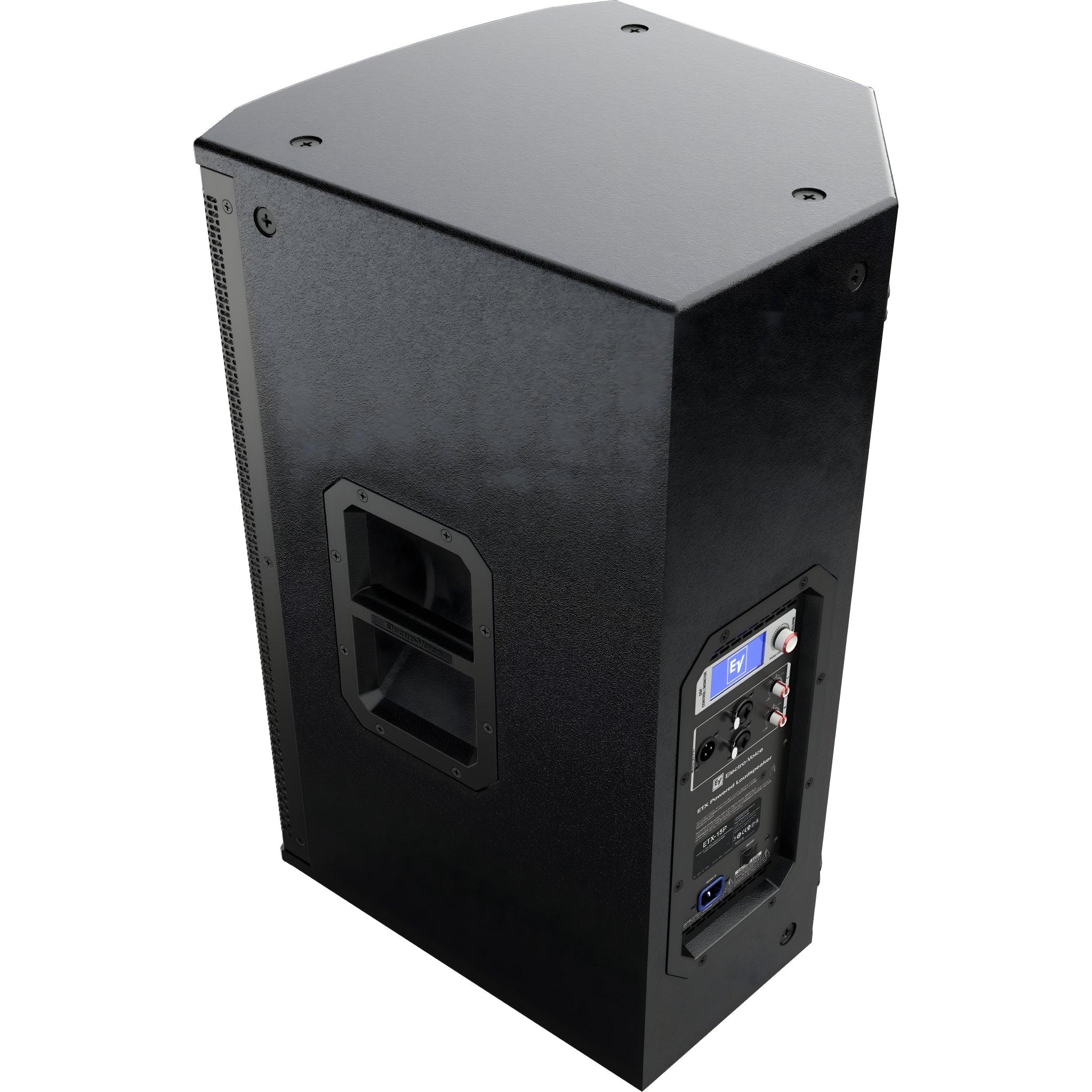

Electro-Voice ETX-15P - 15" 2-Way Active PA Speaker with FIR-Drive DSP, 2,000W, 90° x 60° Coverage

Electro-Voice ETX-15P - 15" 2-Way Active PA Speaker with FIR-Drive DSP, 2,000W, 90° x 60° Coverage

The Electro-Voice ETX-15P is a 2-way full-range system designed for professional sound reinforcement. It integrates a 15" (380 mm) SMX2150 woofer and a 1.25" DH3-B compression driver , powered by a 2,000 W Class D amplifier with FIR-Drive processing, capable of reaching 135 dB SPL (peak) with controlled directivity 90° × 60° . The tour-grade enclosure is constructed of 18 mm birch plywood with EVCoat finish and a 16 AWG steel grille, offering high durability for intensive use in touring, rental and fixed installations. Its DSP panel with LCD screen and single-encoder control makes it easy to configure with application and location presets , 3-band parametric EQ , selectable high-pass filter to work with subwoofers, polarity and wide-range delay .

Main features

• Transducers : LF 15" SMX2150 + HF 1.25" DH3-B (titanium diaphragm) for wide and defined response.
• Power and SPL : Class D amplification 2,000 W with 135 dB SPL peak .
• Coverage : 90° (H) × 60° (V) pattern waveguide for consistent projection.
• Response : 48 Hz – 20 kHz (−3 dB) / 40 Hz – 20 kHz (−10 dB).
• Internal crossing : crossing frequency between tracks at 1,500 Hz .
• DSP with LCD : presets by function/location, 3-band parametric EQ , HPF for use with sub, polarity and delay .

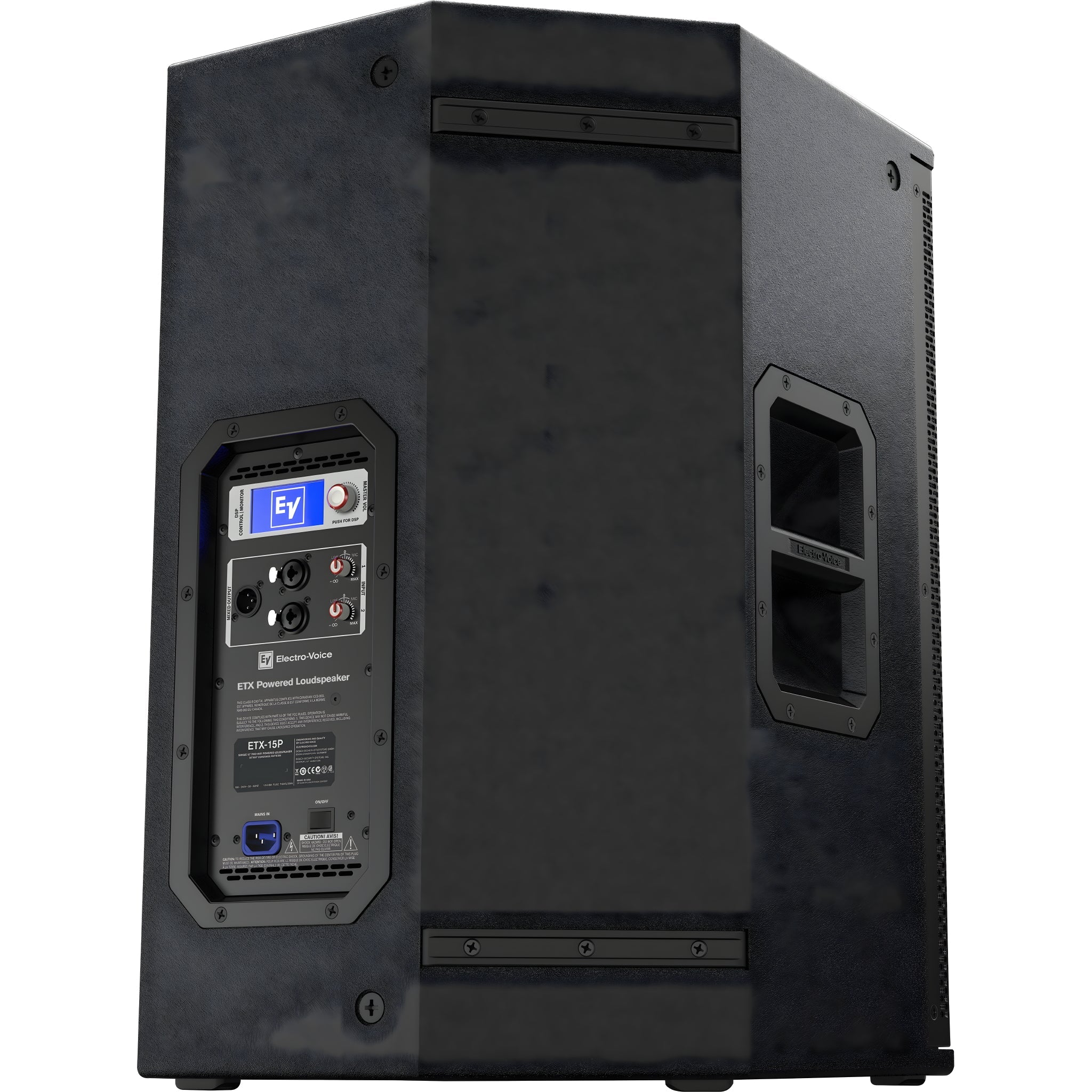

• Connectivity : 2 × XLR/TRS combo inputs with level control + 1 × XLR link output with input mixing.

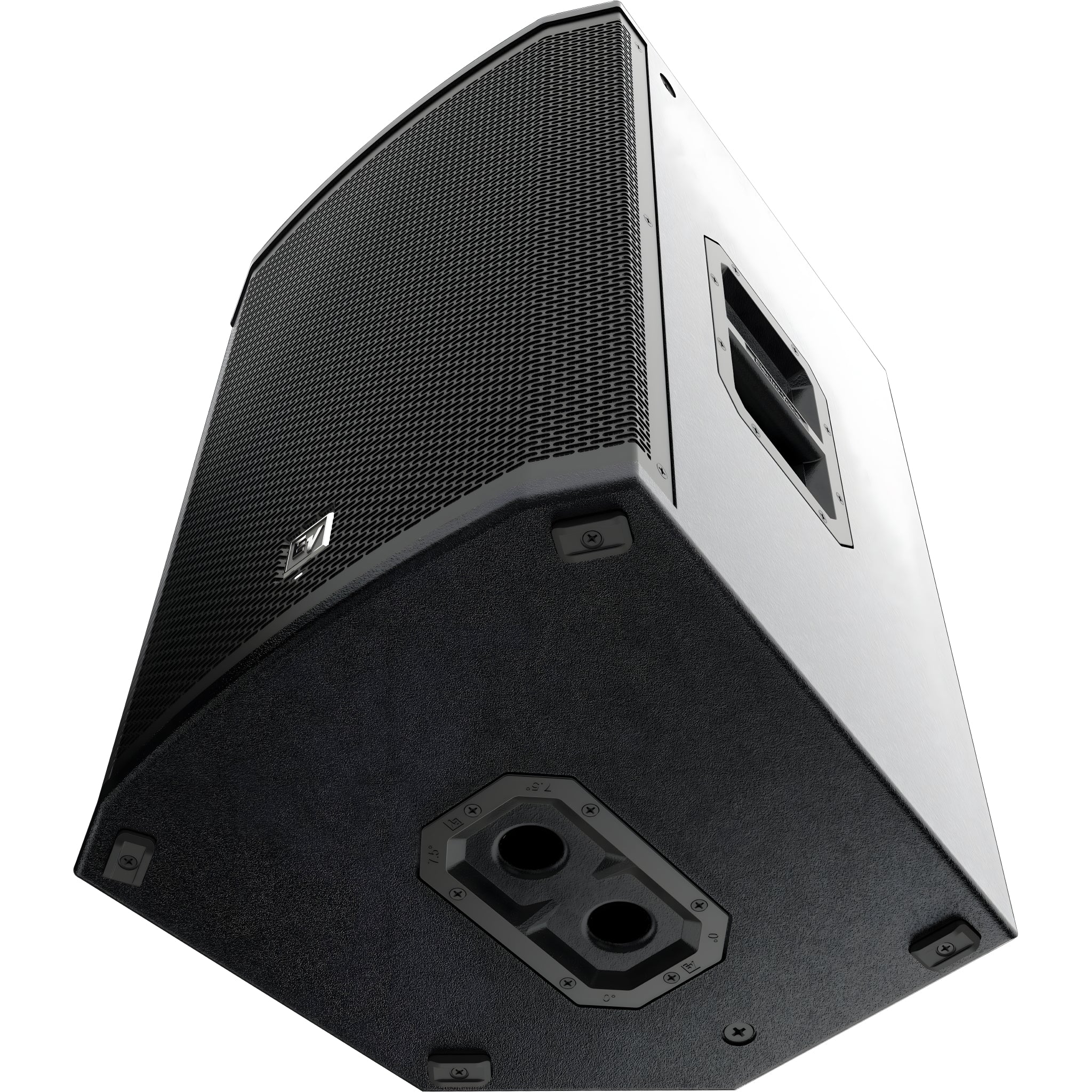

• Mounting and rigging : 35mm mast socket with double angle 0°/7.5° and 8 M10 anchor points for suspension.
• Construction : 18mm birch ply with EVCoat and 16 AWG mesh ; design prepared for portable use or installation.
• Dimensions and weight : 691 × 431 × 447 mm (H × W × D); 27.7 kg .

Product benefits

• Powerful and controlled sound : wide dynamic range with constant directivity to cover the audience evenly.
• Quick Deployment : Built-in presets, HPF, and delay simplify subwoofer integration and system alignment.
• Professional reliability : 18mm birch construction with a durable finish and FIR-Drive protected electronics.
• Mounting versatility : tripod, stacked, suspension via M10 or on a sub with a mast.

Use cases

• Main PA for concerts, mobile DJs, corporate events and rentals.
• Fixed installation in halls, auditoriums and churches that require controlled coverage.
• Sub-stacked systems with high-pass filter and dedicated presets for clean summing.

Frequently Asked Questions

• Can it be used as a floor monitor? Yes. The DSP includes position adjustments, and the cabinet allows horizontal use depending on the stage's needs.
• Does it have a subwoofer-friendly crossover? Yes. It includes selectable HPF and specific options for pairing with ETX series subs.
• What delay range does it allow? The internal delay range reaches up to 343 m in 0.25 m increments, useful for time alignment.

Description for projects

Electro-Voice ETX-15P active loudspeaker, 2-way; LF 15" SMX2150 , HF 1.25" DH3-B ; 2,000 W Class D; 135 dB SPL peak; 90° × 60° coverage; 48 Hz–20 kHz (−3 dB) / 40 Hz–20 kHz (−10 dB) response; 1,500 Hz crossover; DSP with 3-band EQ , HPF , polarity , delay ; I/O: 2× XLR/TRS + 1× XLR link ; 18 mm birch enclosure with EVCoat and 16 AWG grille; 35 mm (0°/7.5°) and 8× M10 mounting; dimensions 691 × 431 × 447 mm ; weight 27.7 kg .
