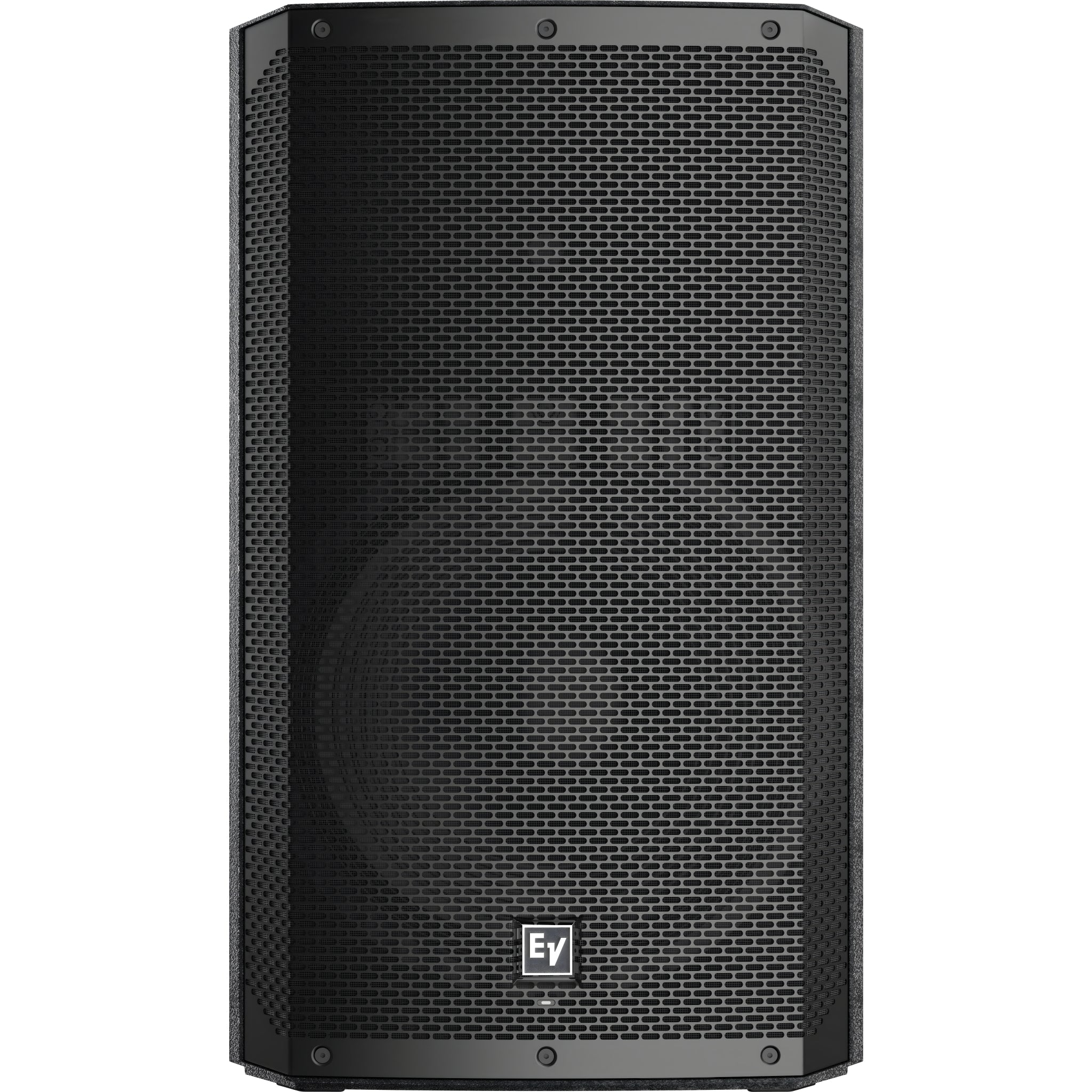

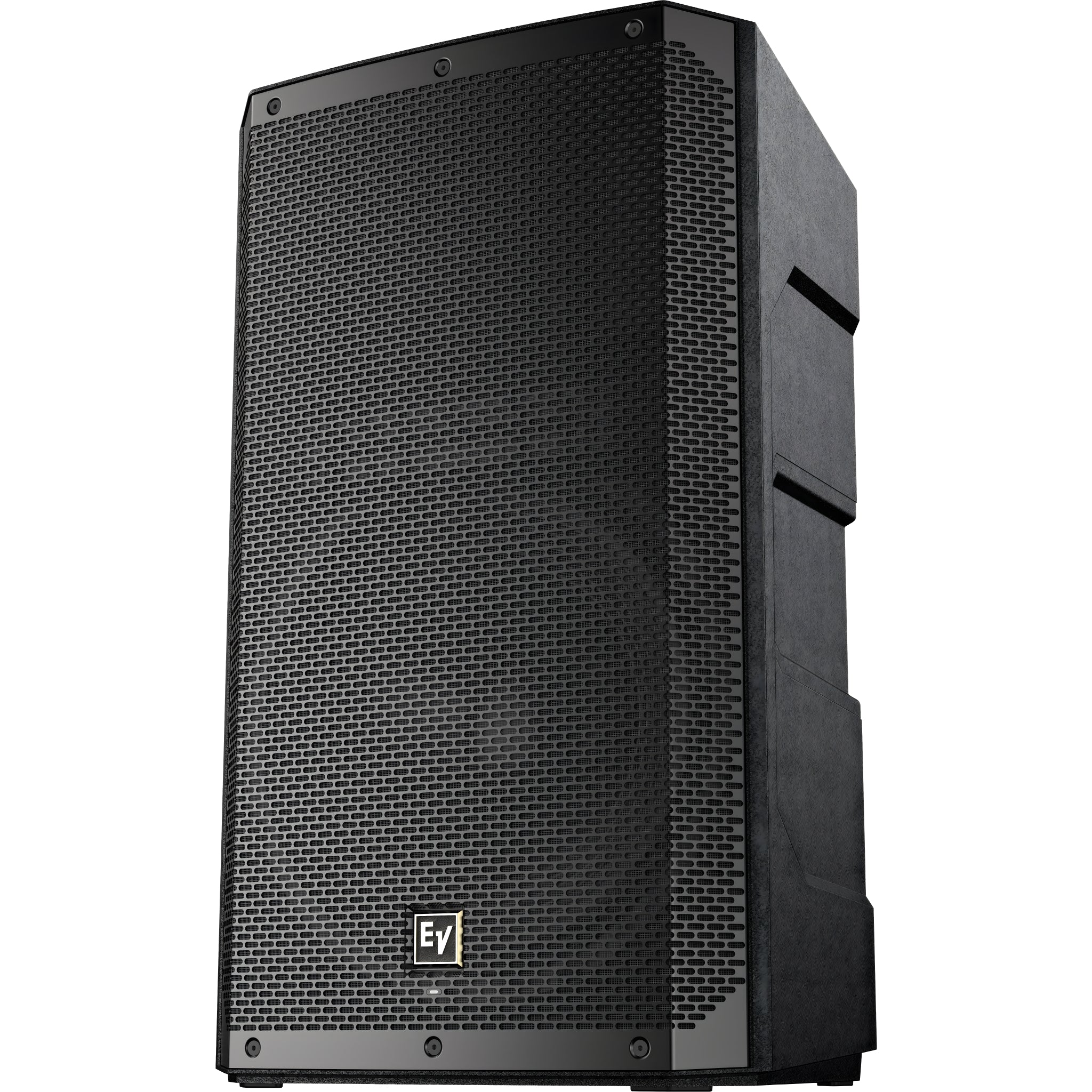

Electro-Voice ELX200-15P - 2-Way Full-Range Active Loudspeaker (15", 1200 W, 90° × 60°)

Electro-Voice ELX200-15P - 2-Way Full-Range Active Loudspeaker (15", 1200 W, 90° × 60°)

The Electro-Voice ELX200-15P is a 2-way powered PA system that combines power, control, and reliability in a lightweight package. It features a 15" EVS-15M woofer and a 1" DH-1L titanium compression driver mounted on an SST (Signal Synchronized Transducers) waveguide, ensuring precise 90° × 60° coverage with low distortion and consistent response throughout the audience. Its 1200 W Class D amplifier with QuickSmart DSP delivers up to 132 dB SPL (peak) over a 48 Hz – 19 kHz (-10 dB) / 55 Hz – 16 kHz (-3 dB) range, optimizing headroom even in demanding applications.

The single-knob interface with LCD display makes setup easy with presets (Music, Live, Speech, Club) , 3-band EQ , sub/top crossovers , and 5 user memories . The EV QuickSmart Mobile app (Bluetooth Low Energy) lets you control and monitor up to 6 EV-series cabinets simultaneously, with status alerts in critical conditions. The polypropylene enclosure features a tripod base , 3 M10 suspension points , and the signature three-handle carrying design . Connectivity includes 2 combo XLR/TRS MIC/LINE inputs , 1 AUX input (stereo RCA) , and 1 XLR output with signal summing, simplifying connectivity with other equipment.

Main features

• Power and sound pressure: 1200 W Class D amplification, 132 dB SPL (peak).
• EV Transducers: EVS-15M (15") + DH-1L (1") on SST guide for 90° × 60° coverage.
• QuickSmart DSP: application presets, 3-band EQ , sub/top crossover and 5 user presets with LCD control.
• Wireless control (BLE): QuickSmart Mobile for up to 6 enclosures with status notifications.

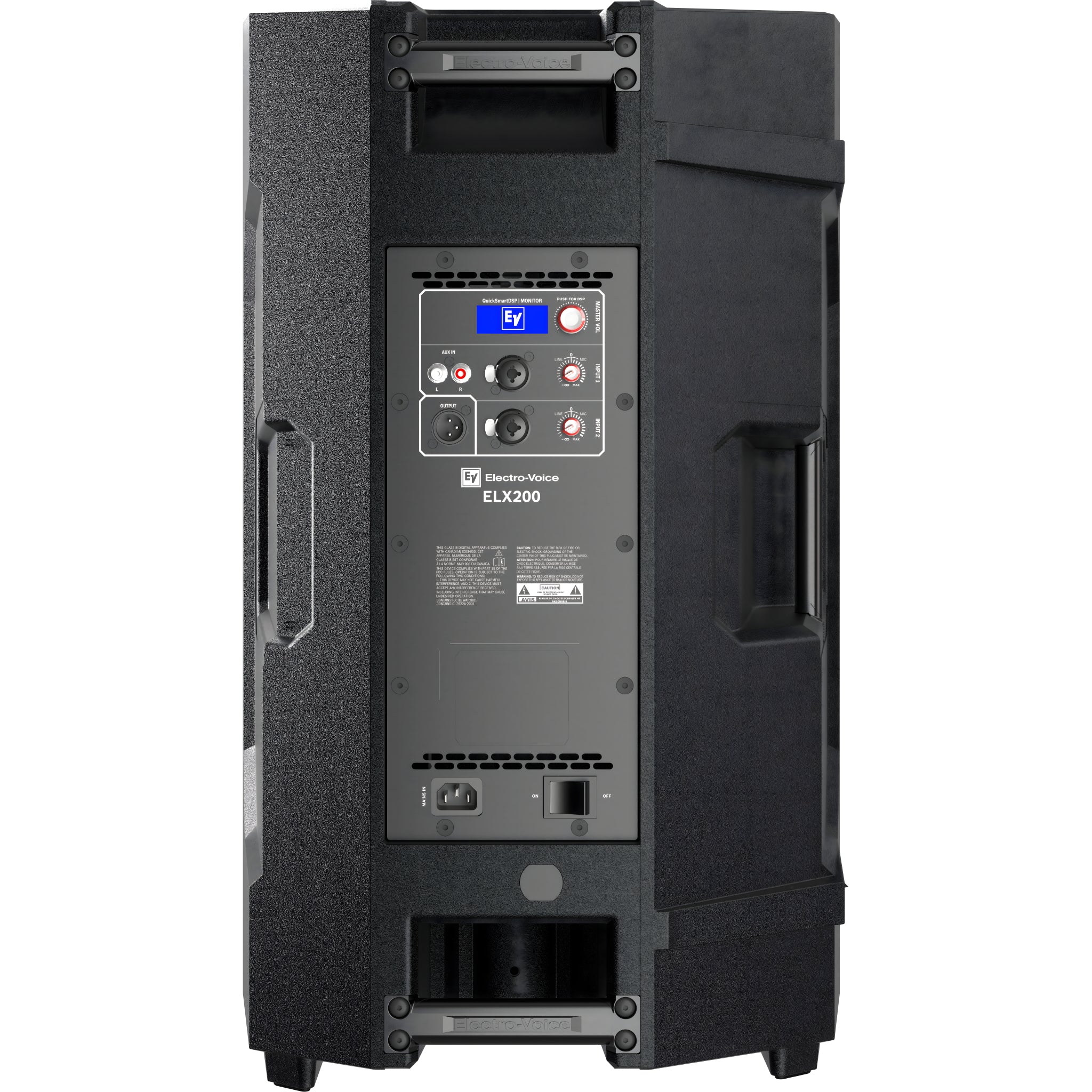

• Full connectivity: 2 × XLR/TRS combo MIC/LINE, 1 × stereo RCA (AUX), 1 × XLR (mix out).
• Robust and lightweight enclosure: Polypropylene with 18 AWG steel grille , 3 × M10 , tripod socket and three handles .
• Real portability: contained weight ( 18.9 kg ) and dimensions 710 × 423 × 384 mm .
• Universal power supply: 100–240 V~, 50–60 Hz ; nominal consumption (1/8 power) 1.2–0.6 A.

Product benefits

• Uniform and clear coverage thanks to the SST guide (90° × 60°), ideal for small and medium-sized spaces.
• Setup in minutes: Built-in presets, EQ, and sub/top crossovers for quick adjustments without external processors.
• Management from the public: monitoring and control with QuickSmart Mobile via BLE (control, not audio).
• Mounting versatility: tripod, 3 × M10 for suspension and XLR output for chain/record.
• Touring Durability: Strong, lightweight construction with three ZLX-style handles.

Use cases

• Portable PA for bands, DJs and rental companies requiring high SPL and rapid deployment.
• Fixed installations (black or white) in venues, auditoriums, schools or places of worship.
• FOH or side reinforcement by combining it with ELX200-12SP/18SP subwoofers using the “sub/top” crossovers.

Frequently Asked Questions

• Does Bluetooth transmit audio? No. BLE is used exclusively for control and monitoring with the app.
• Can I hang the speaker? Yes, it has three M10 mounting points with appropriate hardware.
• What's included with the DSP? Presets (Music/Live/Speech/Club), 3-band EQ , sub/top crossover , and 5 presets .

Description for projects

Electro-Voice ELX200-15P 2-way active loudspeaker; EVS-15M (15") + DH-1L (1") ; 1200 W Class D; 132 dB SPL max.; response 55 Hz – 16 kHz (-3 dB) , range 48 Hz – 19 kHz (-10 dB) ; coverage 90° × 60° ; internal crossover 1.6 kHz ; QuickSmart DSP (presets, 3-band EQ, 5 memories, sub/top crossover) with LCD and QuickSmart Mobile (BLE) control; 2 × XLR/TRS MIC/LINE + 1 × stereo RCA (AUX) + 1 × XLR (mix out); polypropylene enclosure with 18 AWG grille , 3 × M10 , tripod base and 3 handles ; 710 × 423 × 384 mm ; 18.9 kg ; power supply 100–240 V~, 50–60 Hz (rated current at 1/8 power: 1.2–0.6 A ); black or white.
