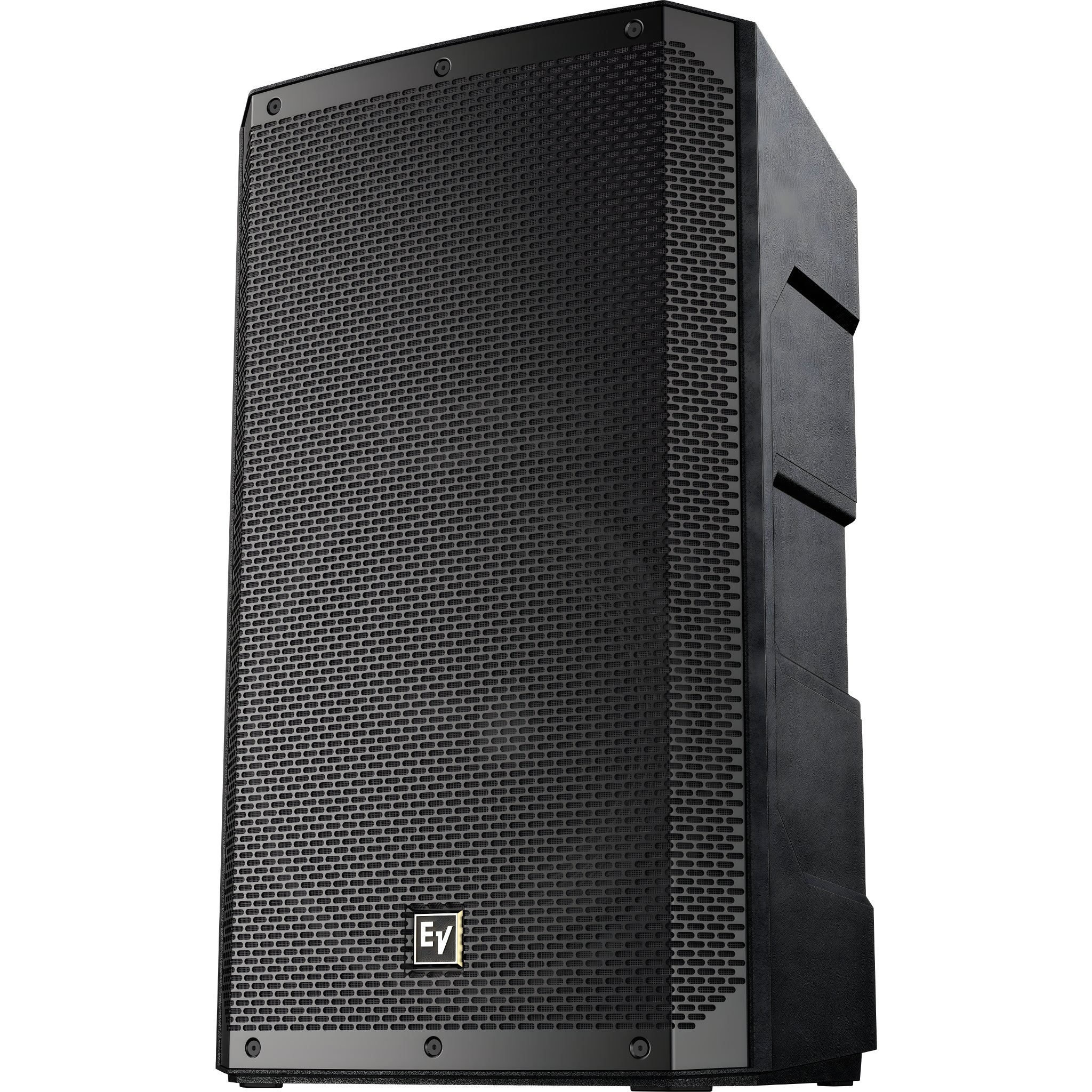

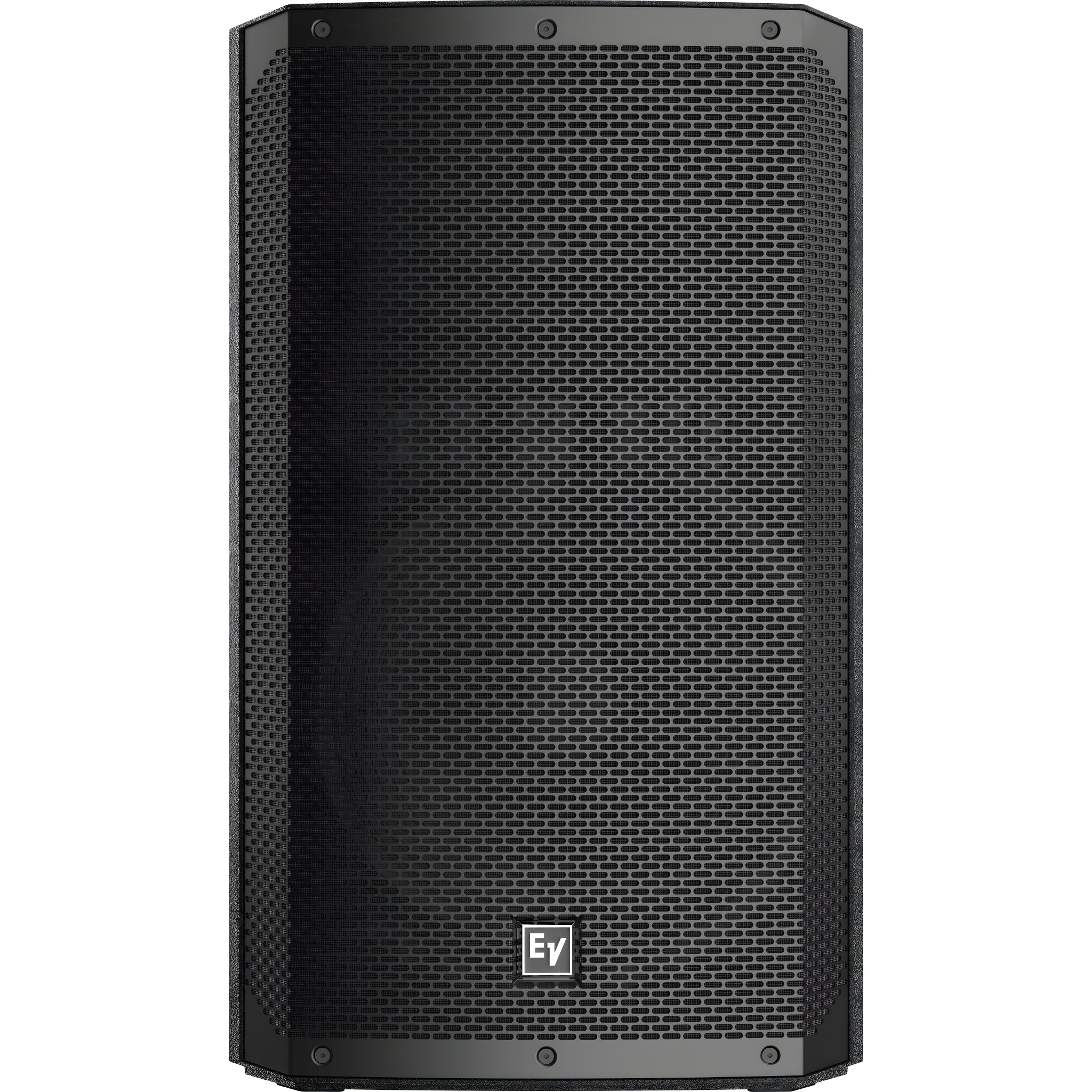

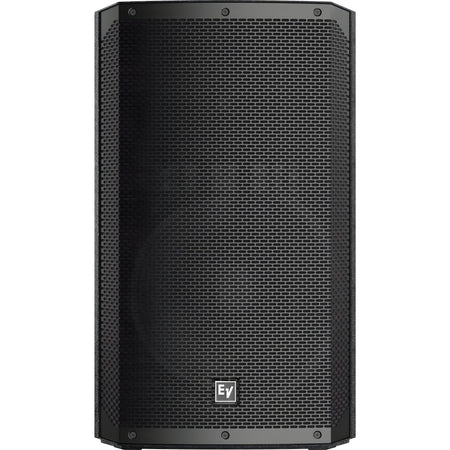

Electro-Voice ELX200-15 - 2-Way Passive Full-Range System (15", 90° × 60°)

Electro-Voice ELX200-15 - 2-Way Passive Full-Range System (15", 90° × 60°)

The Electro-Voice ELX200-15 is a 15" passive loudspeaker from the ELX200 Series, designed for portable PA and fixed installations requiring uniform 90° × 60° coverage , high reliability and easy operation. It combines an EVS-15M woofer with a 1.4" (1" exit) DH-1L titanium compression driver in an SST (Signal Synchronized Transducers) waveguide for accurate and consistent response with minimal distortion . It delivers 300W continuous / 1200W peak , 130dB max SPL and a range of 52Hz – 19kHz (-10dB) / 77Hz – 16kHz (-3dB) , with 95dB sensitivity and 8Ω nominal. Its durable yet lightweight polypropylene composite enclosure integrates a tripod base , three M10 suspension points , three carrying handles and two NL4 connectors. . The recommended high-pass filter is 42 Hz , which simplifies its integration with subwoofers such as the ELX200-12S/18S.

Main features

• 2-way configuration (15" + 1") : EVS-15M woofer and DH-1L titanium motor.
• Controlled 90° × 60° coverage using SST waveguide for homogeneous dispersion.
• Acoustic performance : 300 W continuous / 1200 W peak; 130 dB SPL max.; 95 dB (1 W/1 m).
• Response : 77 Hz – 16 kHz (-3 dB) / 52 Hz – 19 kHz (-10 dB); crossover at 1.6 kHz .
• Construction : Rugged, lightweight polymer enclosure; 18 AWG powder-coated steel grille .
• Professional hardware : 3×M10 eye bolts, integrated tripod base , three handles .
• Connectivity : 2 × NL4 (input/link), 8 Ω nominal (min. 7.0 Ω).
• System Optimization : High-pass recommended at 42 Hz to protect the LF and improve headroom.
• Available finishes : black or white for aesthetic integration in facilities.

Product benefits

• Consistent and predictable coverage in small and medium-sized audiences thanks to the 90° × 60° pattern and SST guidance.
• Proven reliability : Design verified with extensive endurance testing; stable performance at a high level.
• True portability : lightweight chassis with three handles and tripod base for quick setups.
• Mounting flexibility : M10 suspension points and NL4 connectors facilitate wiring and linking.
• Easy integration with ELX200 and other subs thanks to the recommended HPF (42 Hz) and standard impedance.

Use cases

• Portable PA for corporate events, live music and DJs.
• Fixed installations in auditoriums, schools, clubs and places of worship (blank option).
• Front reinforcement or monitoring (stage use) depending on the configuration and angle allowed.

Frequently Asked Questions

• Is it active or passive? Passive ; requires a suitable power amplifier.
• What is the coverage pattern? 90° (H) × 60° (V) nominal.
• Which protection filter should you use? Recommended high-pass filter at 42 Hz (adjust according to the system and the room).
• Does it have hanging points? Yes, it includes three M10 mounting points for suspension with suitable hardware.

Description for projects

Electro-Voice ELX200-15 2-way full-range passive loudspeaker; EVS-15M (15") + DH-1L (1.4" diaphragm/1" exit); 300 W RMS / 1200 W peak ; 8 Ω (min. 7.0 Ω); 95 dB (1 W/1 m); 130 dB SPL max.; response 77 Hz – 16 kHz (-3 dB) , range 52 Hz – 19 kHz (-10 dB) ; crossover 1.6 kHz ; coverage 90° × 60° ; 2 × NL4 ; polypropylene enclosure with 18 AWG steel grille ; 3 × M10 and tripod base; dimensions 710 × 423 × 384 mm ; weight 18.7 kg ; color black or white.
