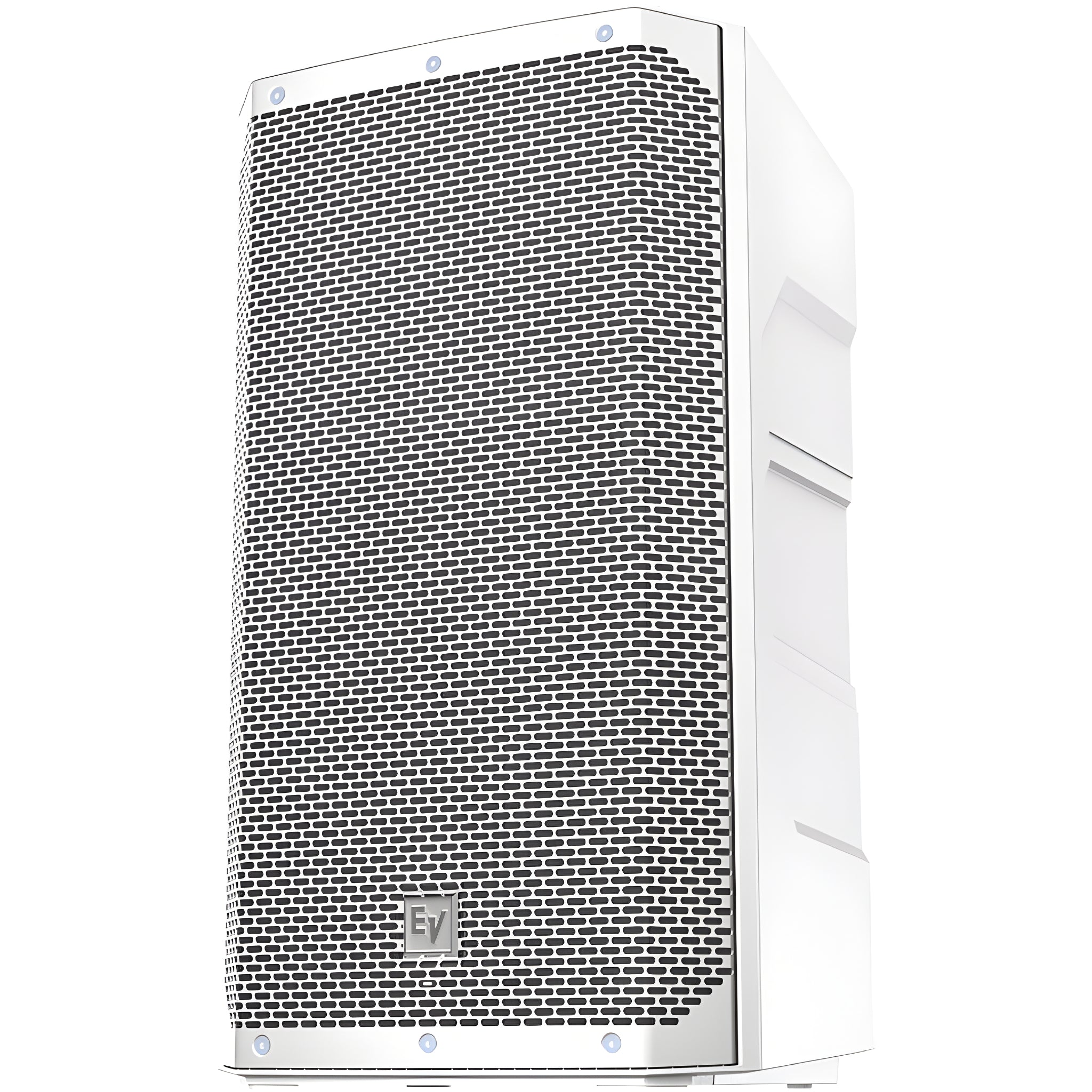

Electro-Voice ELX200-12P-W - 12" Active Loudspeaker with QuickSmart DSP and Bluetooth Control (White)

Electro-Voice ELX200-12P-W - 12" Active Loudspeaker with QuickSmart DSP and Bluetooth Control (White)

The Electro-Voice ELX200-12P-W is a self-powered, 2-way full-range system that combines power, control, and portability in a white polypropylene enclosure. Its up to 1200W Class D amplifier with QuickSmart DSP offers quick adjustments from its LCD screen and classic single-encoder control, with application presets (Music, Live, Speech, Club), 3-band EQ , 5 user memories , limiter display, level control, and high-pass filter for subwoofer operation. EV’s Signal Synchronized Transducers (SST) waveguide architecture ensures consistent 90° × 60° coverage and low distortion, while EV’s custom-designed transducers — the 300 mm EVS-12M woofer and 1” DH-1L titanium tweeter — deliver up to 130 dB SPL with an extended 51 Hz – 20 kHz (-10 dB) response.

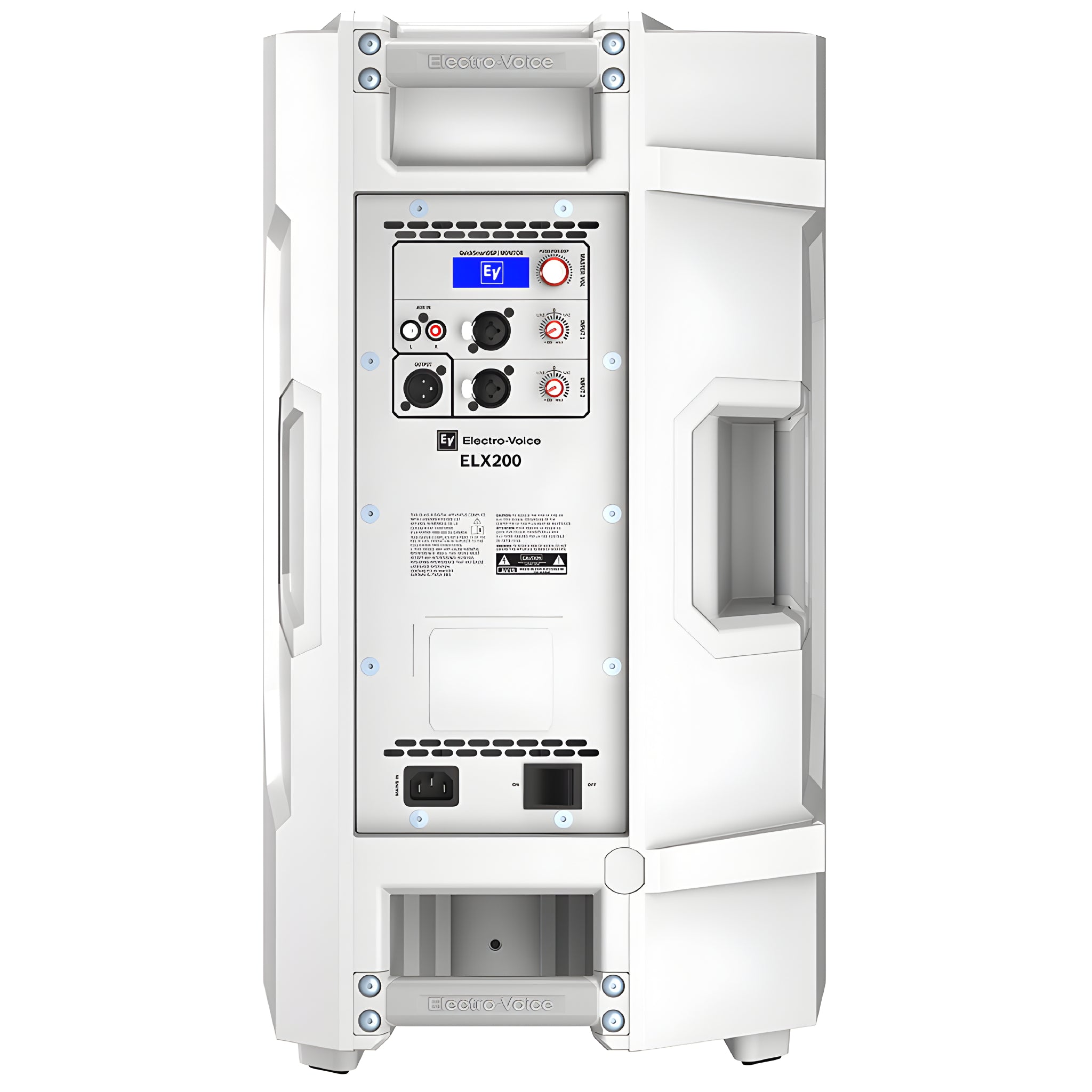

For remote management and monitoring, the system is compatible with the EV QuickSmart Mobile app (iOS/Android) via Bluetooth Low Energy , allowing you to configure and control up to 6 speakers simultaneously and receive immediate notifications of critical conditions. In the hardware section, it includes three (3) carrying handles , a tripod socket , three (3) M10 suspension points , and a powder-coated steel grille for maximum durability.

Main features

• Class D amplification (up to 1200 W) with QuickSmart DSP and LCD/encoder control.
• Wireless control with EV QuickSmart Mobile (BLE): configure and monitor up to 6 units, with status alerts.
• High performance EV transducers : EVS-12M (300 mm) + DH-1L (1” titanium) .
• Constant 90° × 60° coverage thanks to the SST waveguide.
• Application presets (Music, Live, Speech, Club), 5 user presets , 3-band EQ , high-pass filter for use with sub.

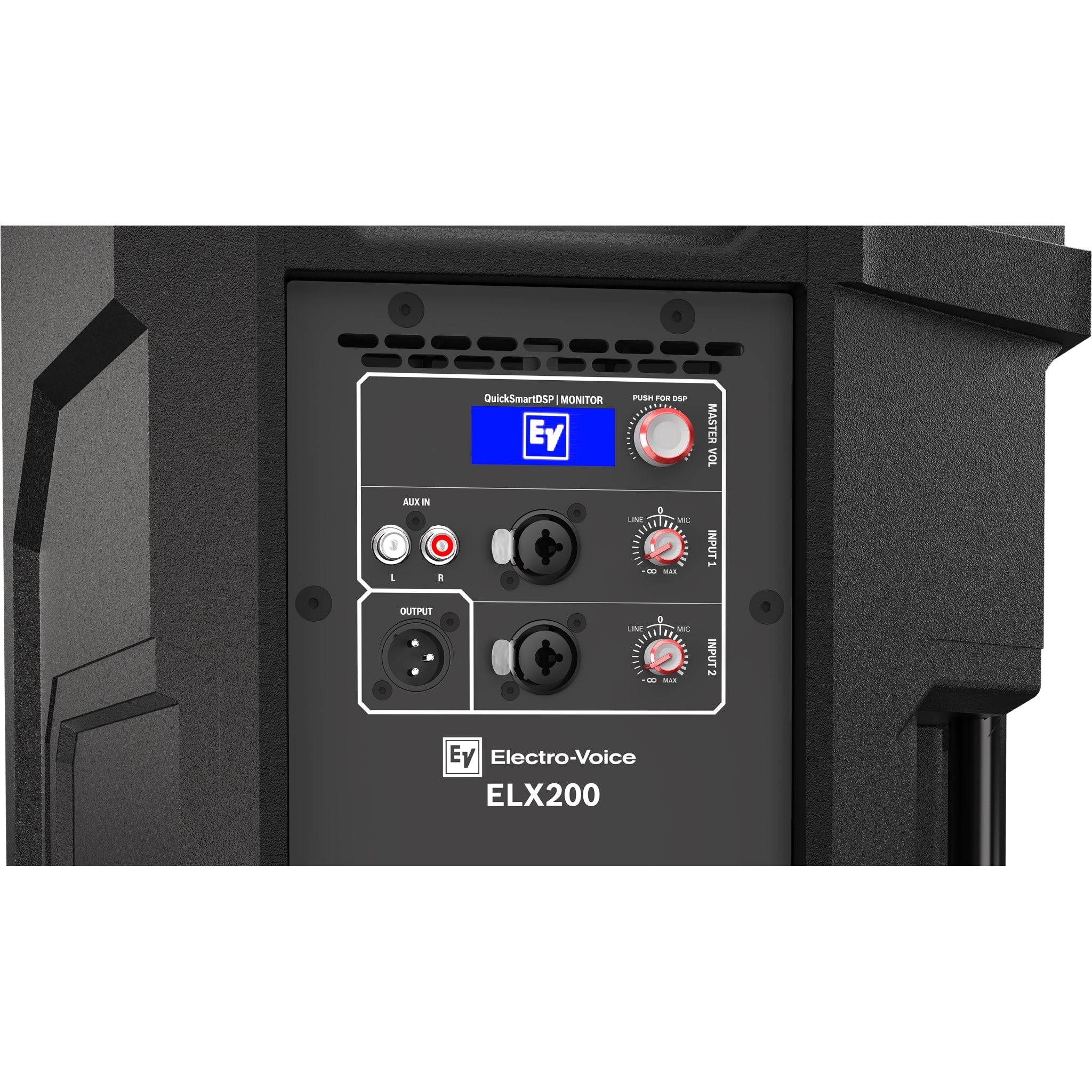

• Inputs/Outputs : 2 × combo XLR/TRS (mic/line), 1 × stereo RCA (AUX) and 1 × XLR mix/output.
• Lightweight and durable polypropylene enclosure , 18 AWG powder-coated steel grille .
• Mounting : 3 × M10 for suspension and tripod socket .
• Dimensions 629 × 363 × 344 mm; weight 15.6 kg.
• Finish : white ( -W ).

Product benefits

• Powerful and controlled sound : up to 130 dB SPL with uniform 90° × 60° coverage and full DSP to optimize any situation.
• Reliable remote management : Adjust and monitor from the audience with QuickSmart Mobile; immediate alerts in case of saturation or critical conditions.
• Quick deployment : ready-made presets, selectable high-pass filter and XLR output for hassle-free chaining of gear.
• Professional construction : triple handle, M10 points and steel grille designed for intensive use on tour or fixed installation.

Use cases

• Sound reinforcement for live performances , DJs and corporate events .
• Fixed installation in halls, churches, auditoriums and multipurpose spaces.
• Portable combo systems with ELX200 series subwoofers.

Frequently Asked Questions

• Does Bluetooth play audio? No. Bluetooth is used exclusively for control/monitoring via the app.
• How many speakers can I control at once? Up to six units from QuickSmart Mobile.
• How many rigging points does it have? Three M10 threaded suspension points.

Description for projects

2-way full-range active loudspeaker in white polypropylene enclosure; Class D amplification power up to 1200 W; EVS-12M (300 mm) and DH-1L (1” titanium) transducers; frequency response (-10 dB) 51 Hz–20 kHz and (-3 dB) 57 Hz–16 kHz; max. SPL 130 dB; 90° × 60° coverage; crossover at 1.7 kHz; 2 × XLR/TRS and 1 × stereo RCA inputs, XLR output; QuickSmart DSP with presets and control via QuickSmart Mobile (BLE); 3 M10 points, tripod socket; dimensions 629 × 363 × 344 mm; weight 15.6 kg; typical consumption (1/8 power) 0.6–1.2 A at 100–240 V~, 50/60 Hz.
