Electro-Voice ELX200-12P - 2-Way Full-Range Active Loudspeaker (12", 1200 W, 90° × 60°)

Electro-Voice ELX200-12P - 2-Way Full-Range Active Loudspeaker (12", 1200 W, 90° × 60°)

The Electro-Voice ELX200-12P is a 12" powered PA loudspeaker that combines power ( 1200W Class D amplification), advanced control with QuickSmart DSP , and a lightweight, durable polypropylene construction. It features an EVS-12M woofer and DH-1L compression driver (1" exit, titanium diaphragm) mounted in an SST waveguide, delivering 90° × 60° coverage , 130 dB SPL (peak) , and a 51 Hz – 20 kHz (-10 dB) / 57 Hz – 16 kHz (-3 dB) range. The single-knob interface with LCD display facilitates application presets (Music/Live/Speech/Club), sub/top crossovers, 3-band EQ, and 5 user memories . With the EV QuickSmart Mobile (BLE) app, you can configure, control, and monitor up to 6 enclosures in the series at once, with notifications in critical conditions (Bluetooth availability subject to country).

Main features

• Power and sound pressure: Class D 1200 W stage with 130 dB SPL (peak) and response 57 Hz – 16 kHz (-3 dB) .
• EV Transducers : EVS-12M (12") + DH-1L (1") on SST guide for accurate and consistent 90° × 60° coverage .
• QuickSmart DSP : presets (Music/Live/Speech/Club), 3-band EQ , sub/top crossovers, meters, limiter status and 5 user presets .
• Wireless control : QuickSmart Mobile via BLE for up to 6 enclosures with immediate notifications.

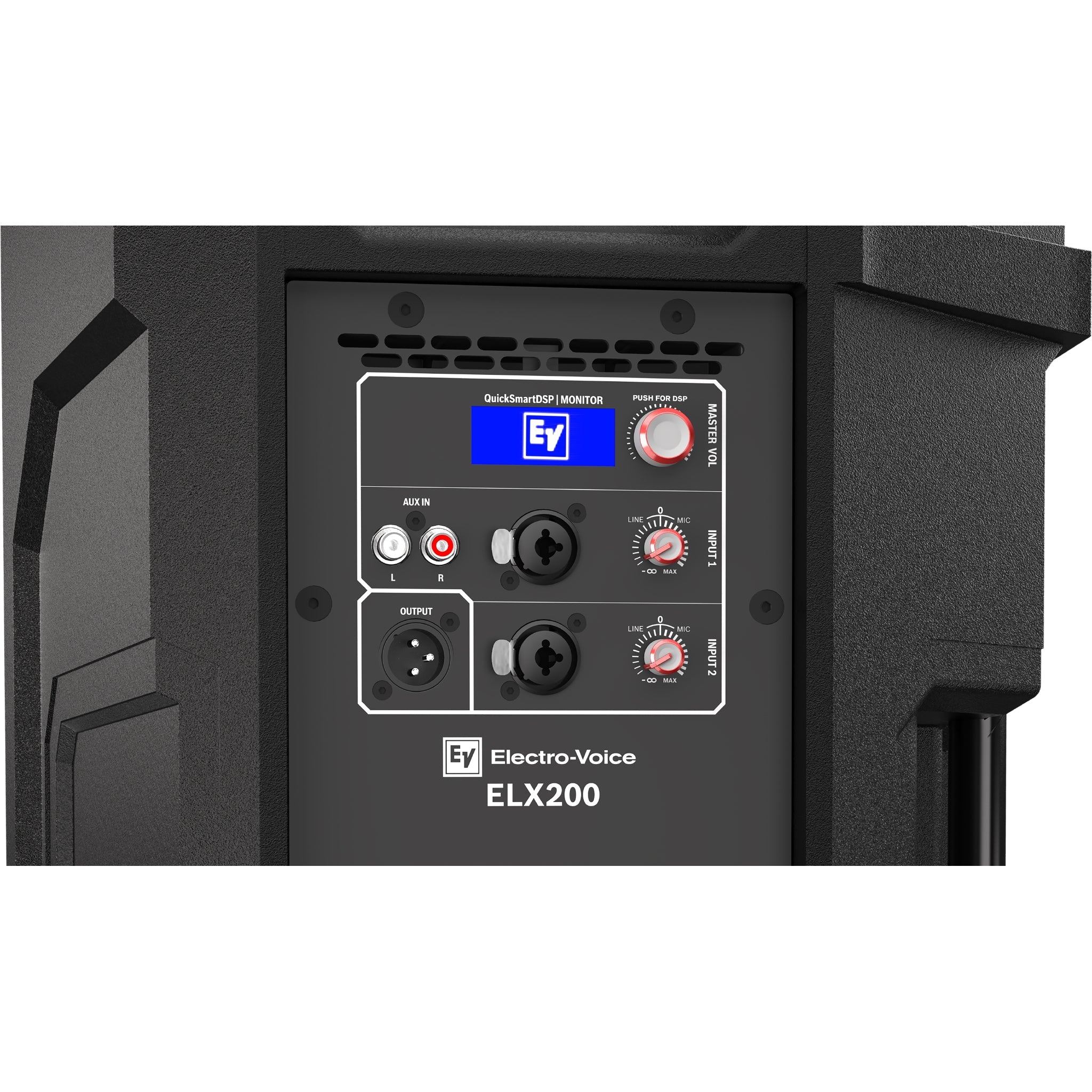

• Full connectivity : 2 × XLR/TRS combo inputs, 1 × stereo RCA input (AUX), 1 × XLR output (mix out).
• Professional Hardware : 3×M10 for suspension, tripod socket and ZLX type three handle design .
• Portable size : 629 × 363 × 344 mm and 15.6 kg ; 18 AWG powder-coated steel frame.
• Universal power supply : 100–240 V~, 50–60 Hz ; rated current (1/8 power) 1.2–0.6 A.

Product benefits

• Powerful, clear sound with low distortion thanks to EV’s proprietary SST driver and transducers.
• Quick Start : Built-in presets, EQ, and crossovers eliminate external processing in most scenarios.
• Floor management : Adjust levels, EQ, and crossovers with the mobile app while listening from the audience.
• Mounting versatility : tripod, 3 × M10 for suspension and mix out output for chaining equipment.
• Durability and portability : lightweight enclosure, three handles and steel grill for heavy-duty use.

Use cases

• Portable PA for bands, DJs and corporate events requiring high SPL and agile deployment.
• Fixed installation in venues, auditoriums, schools and places of worship (available in black or white).
• Modular systems with ELX200-12SP/18SP subwoofers using DSP sub/top crossovers.

Frequently Asked Questions

• Does Bluetooth transmit audio? No. BLE connectivity is only for control and monitoring with the QuickSmart Mobile app.
• Can I hang the speaker? Yes, it has three M10 mounting points with suitable hardware.
• What's included with the DSP? Music/Live/Speech/Club presets, 3-band EQ , sub/top crossovers, meters, and 5 user memories .

Description for projects

Electro-Voice ELX200-12P 2-way active loudspeaker; EVS-12M (12") + DH-1L (1") ; 1200 W Class D; 130 dB SPL max.; response 57 Hz – 16 kHz (-3 dB) , range 51 Hz – 20 kHz (-10 dB) ; coverage 90° × 60° ; crossover 1.7 kHz ; QuickSmart DSP (presets, EQ, sub/top crossovers, 5 memories) with LCD and QuickSmart Mobile (BLE) control; 2 × XLR/TRS MIC/LINE + 1 × stereo RCA (AUX) + 1 × XLR (mix out); polypropylene enclosure with 18 AWG grille , 3 × M10 , tripod socket and three handles; 629 × 363 × 344 mm ; 15.6 kg ; power supply 100–240 V~, 50–60 Hz (current at 1/8 power: 1.2–0.6 A ); color black or white.
