Electro-Voice ELX200-12 - 2-Way Passive Full-Range System (12", 90° × 60°)

Electro-Voice ELX200-12 - 2-Way Passive Full-Range System (12", 90° × 60°)

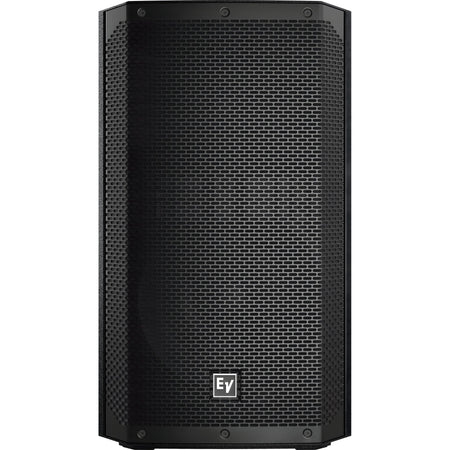

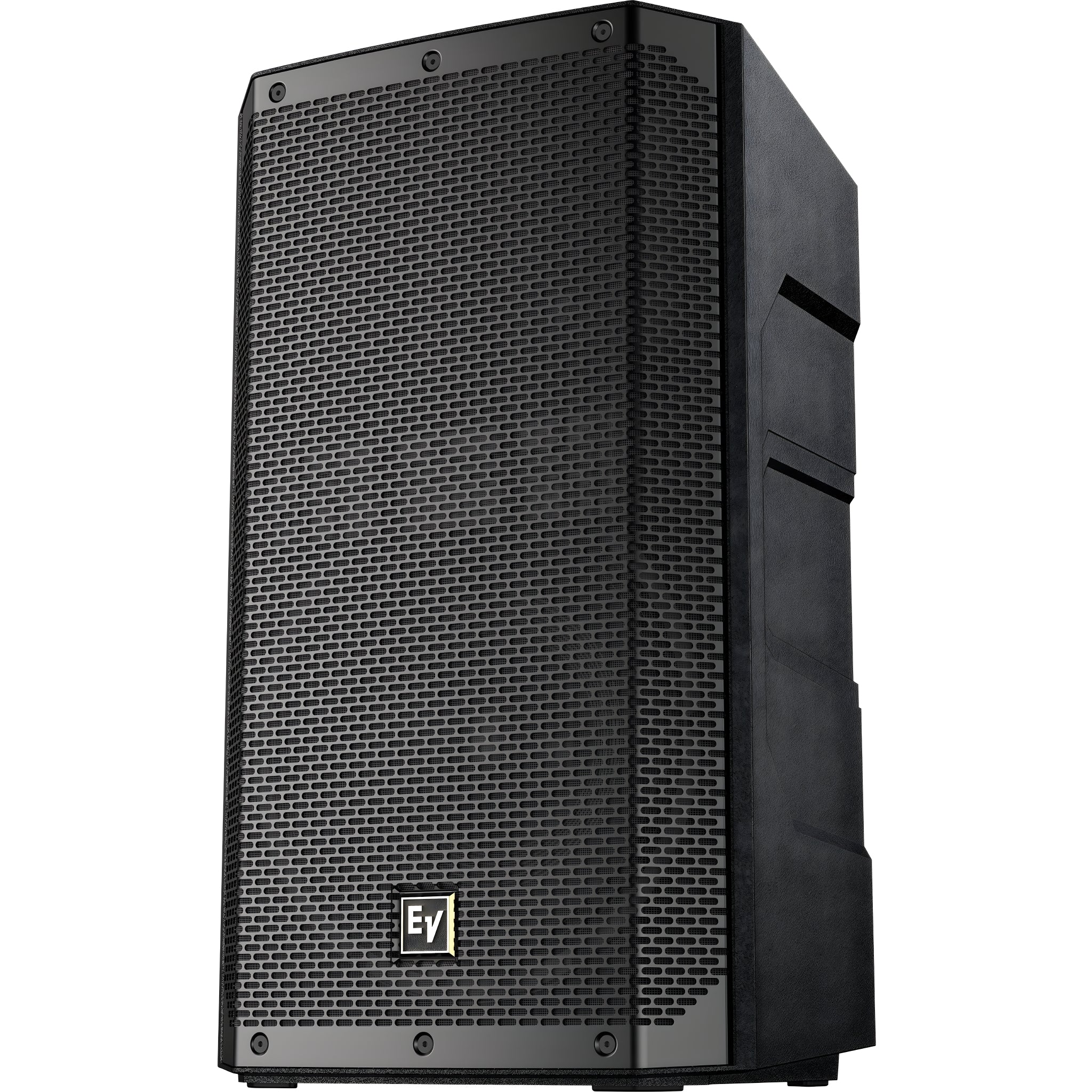

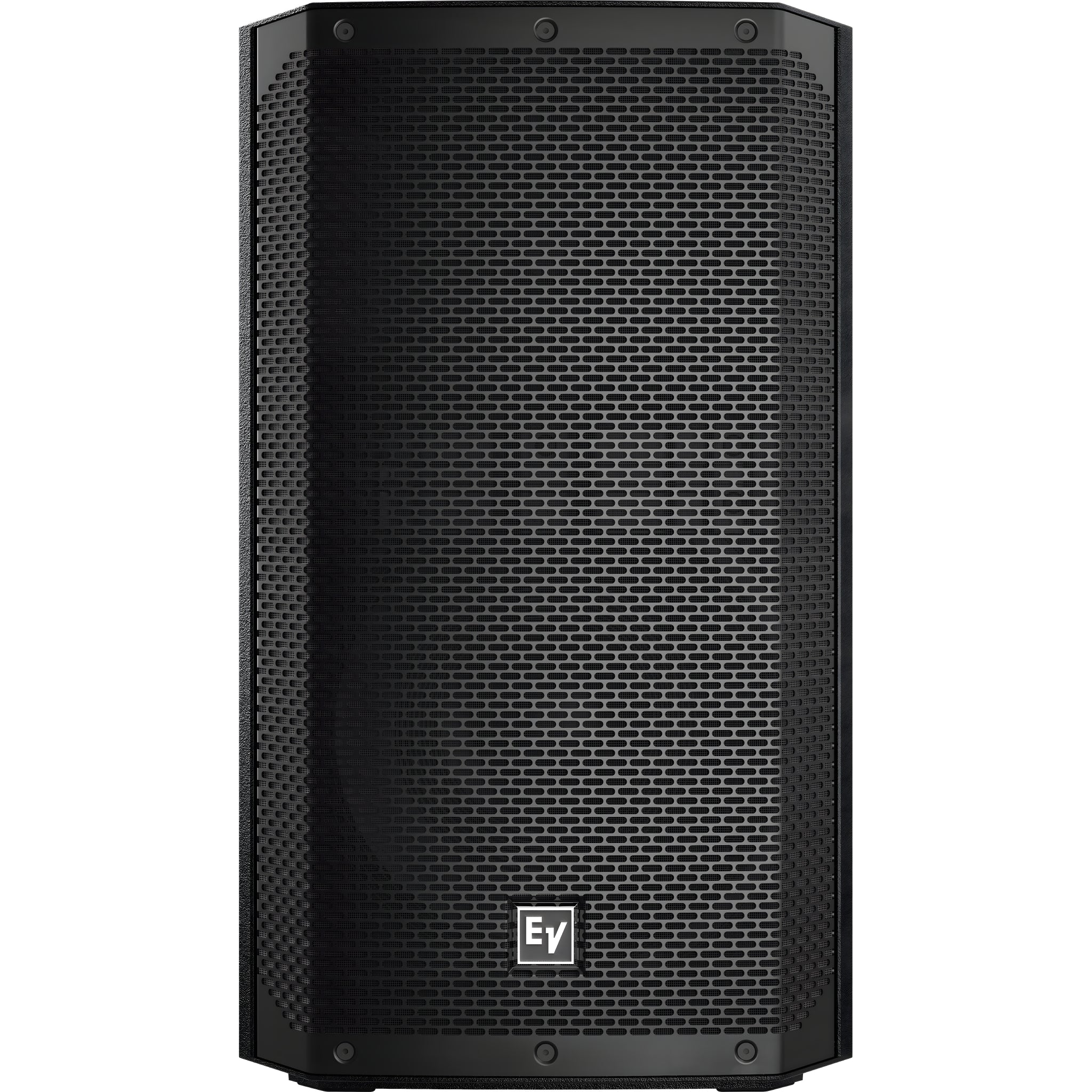

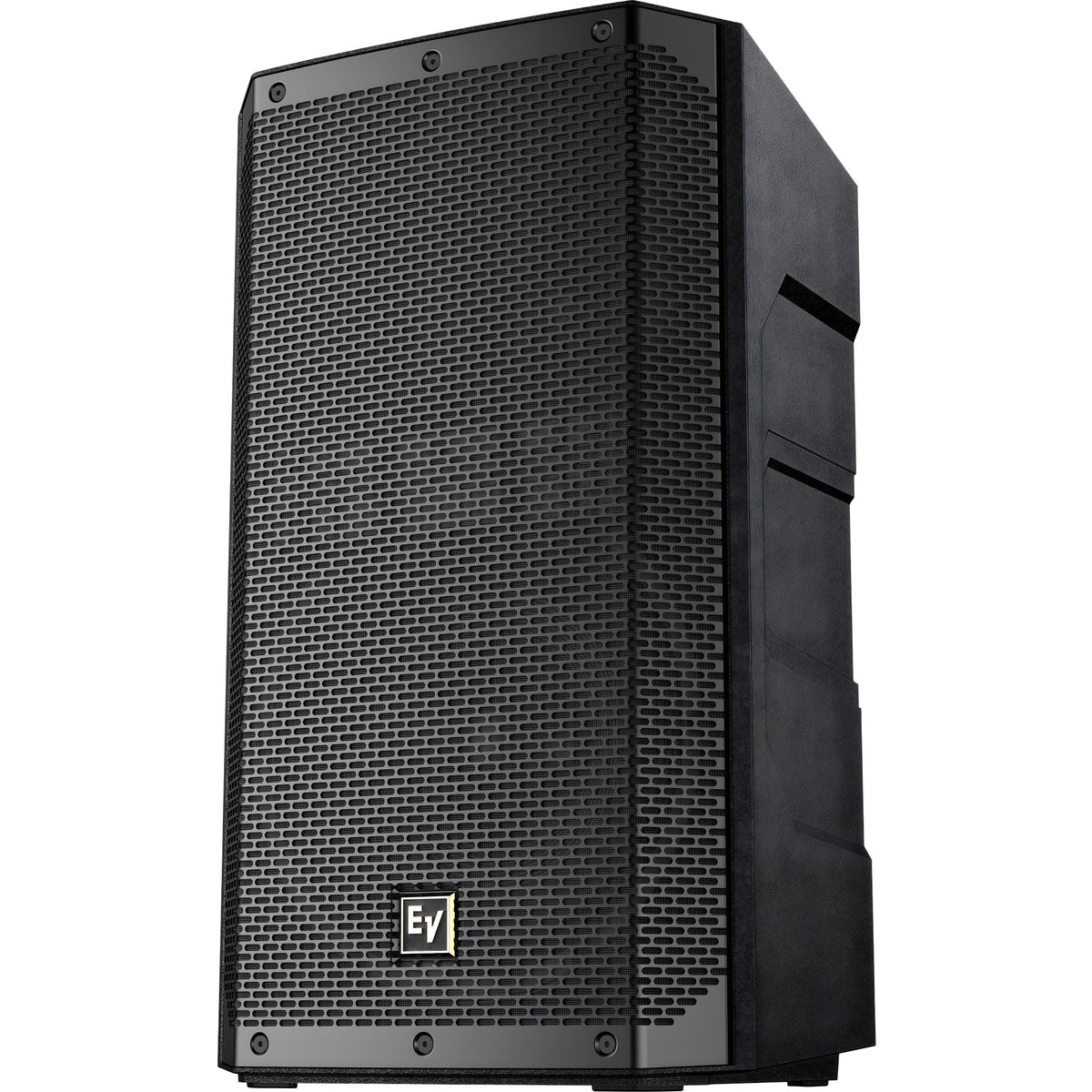

The Electro-Voice ELX200-12 is a 12" passive loudspeaker designed for portable PA and fixed installations where uniform coverage, high reliability and easy operation are required. It combines an EVS-12M woofer with a DH-1L titanium compression driver (1.4" diaphragm, 1" exit) mounted in an SST (Signal Synchronized Transducers) waveguide, ensuring controlled 90° × 60° dispersion , low distortion and optimized acoustic loading. It delivers 300 W continuous / 1200 W peak , 128 dB max SPL and a range of 51 Hz – 20 kHz (-10 dB) / 77 Hz – 17 kHz (-3 dB) , with 93 dB sensitivity and 8 Ω nominal. The robust yet lightweight polypropylene composite enclosure integrates a tripod base , three M10 suspension points , three carrying handles and two NL4 connectors . A 50Hz high-pass filter is recommended to maximize reliability and integration with subwoofers such as the ELX200-12S/18S.

Main features

• 2-way configuration (12" + 1") : EVS-12M woofer and DH-1L titanium motor on SST guide.
• Constant 90° × 60° coverage with accurate and consistent response.
• Acoustic performance : 300 W continuous / 1200 W peak; 128 dB SPL max.; 93 dB (1 W/1 m).
• Response : 77 Hz – 17 kHz (-3 dB) / 51 Hz – 20 kHz (-10 dB); crossover at 1.7 kHz .
• Construction : Heavy-duty polymer enclosure and 18 AWG powder-coated steel grille .
• Professional hardware : 3×M10 for suspension, tripod base and three ZLX type handles .
• Connectivity : 2 × NL4 (input/link), 8 Ω nominal (min. 7.5 Ω ).
• Recommended protection : high-pass at 50 Hz for greater headroom and safety.
• Finishes : available in black or white for aesthetic integration.

Product benefits

• Consistent coverage in small and medium-sized events thanks to the 90° × 60° pattern and SST guidance.
• Professional reliability with EV-specific components and verified specifications for sustained high performance.
• True portability : lightweight chassis with three handles for easy loading/unloading.
• Mounting Flexibility : M10 points for suspension and tripod mounting in mobile configurations.
• Easy integration with ELX200 subwoofers and standard power amps via NL4 and recommended filtering.

Use cases

• Portable PA for live music, DJs and corporate events.
• Fixed installations in auditoriums, educational centers, clubs and places of worship (blank option).
• Front reinforcement in modular systems with ELX200-12S/18S subs.

Frequently Asked Questions

• Is it active or passive? Passive ; it needs a suitable power amplifier.
• What is the coverage pattern? 90° (H) × 60° (V) nominal.
• Which protection filter should you use? Recommended high-pass filter at 50 Hz (adjust according to the system and room).
• Does it have hanging points? Yes, it includes three M10 mounting points for suspension with certified hardware.

Description for projects

Electro-Voice ELX200-12 2-way full-range passive loudspeaker; EVS-12M (12") + DH-1L (1.4" diaphragm, 1" exit); 300 W RMS / 1200 W peak ; 8 Ω (min. 7.5 Ω); 93 dB (1 W/1 m); 128 dB SPL max.; response 77 Hz – 17 kHz (-3 dB) , range 51 Hz – 20 kHz (-10 dB) ; crossover 1.7 kHz ; coverage 90° × 60° ; 2 × NL4 ; polypropylene enclosure with 18 AWG steel grille ; 3 × M10 and tripod base; dimensions 629 × 363 × 344 mm ; weight 15.2 kg ; colors black or white.
