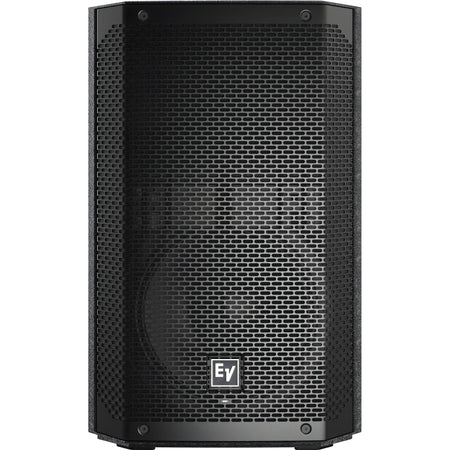

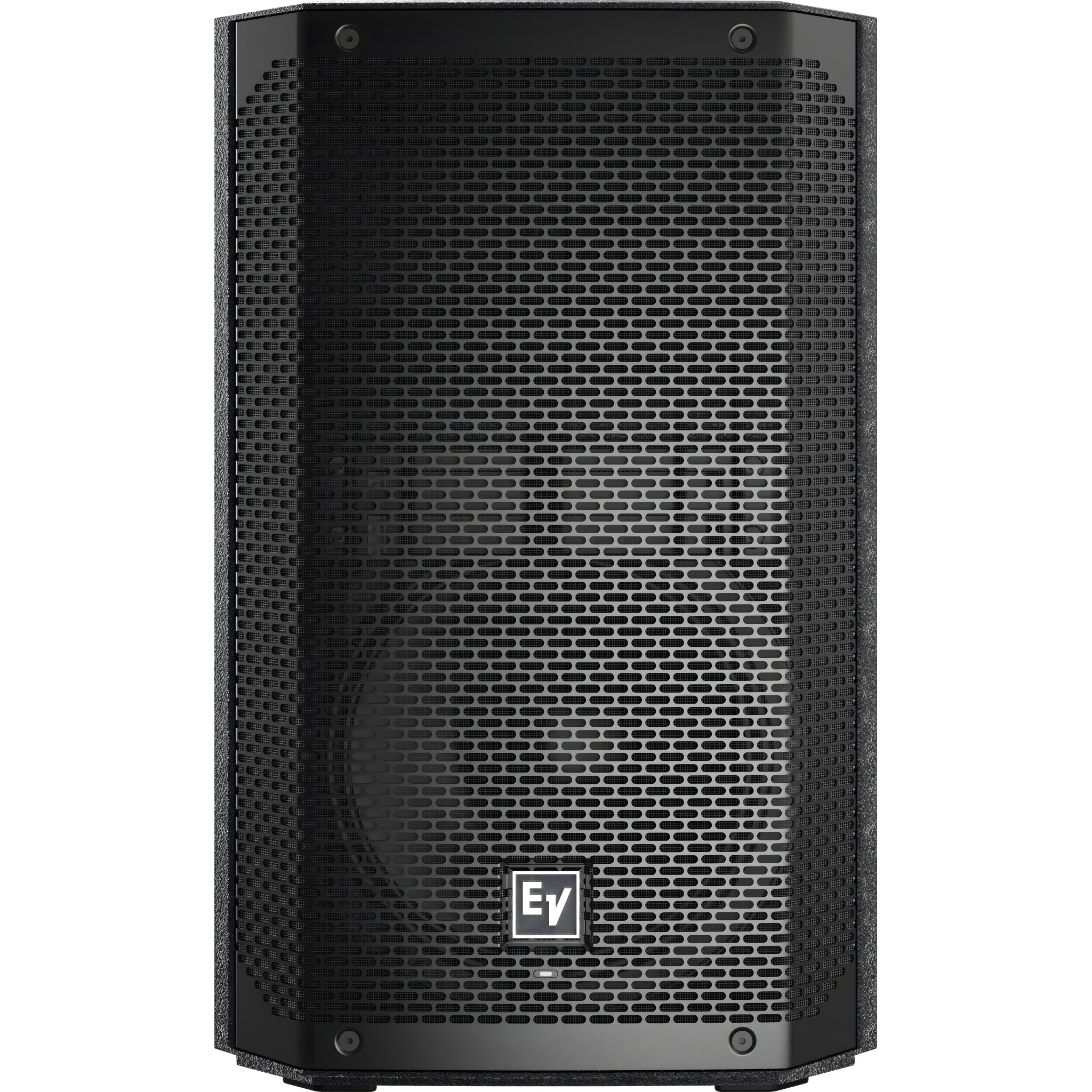

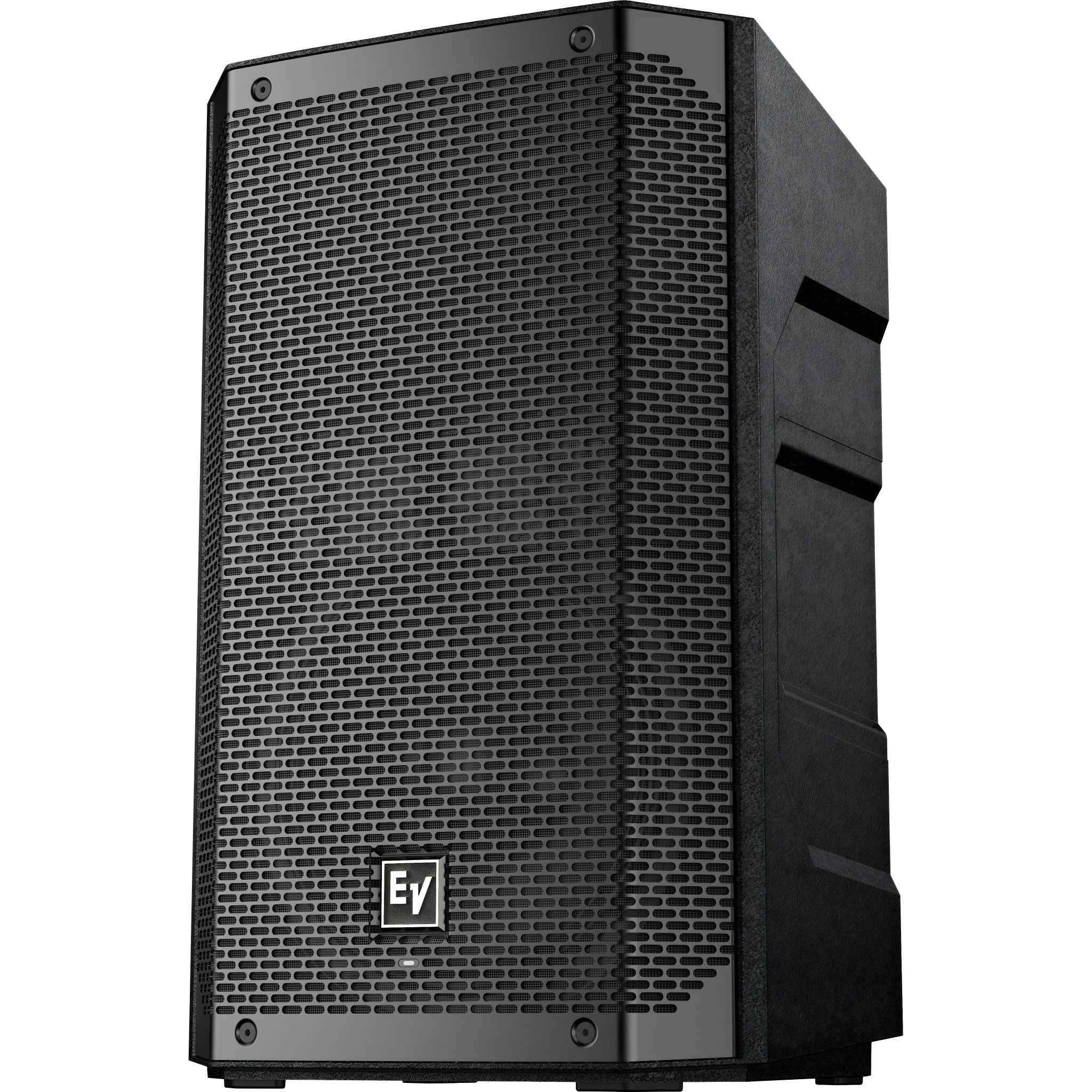

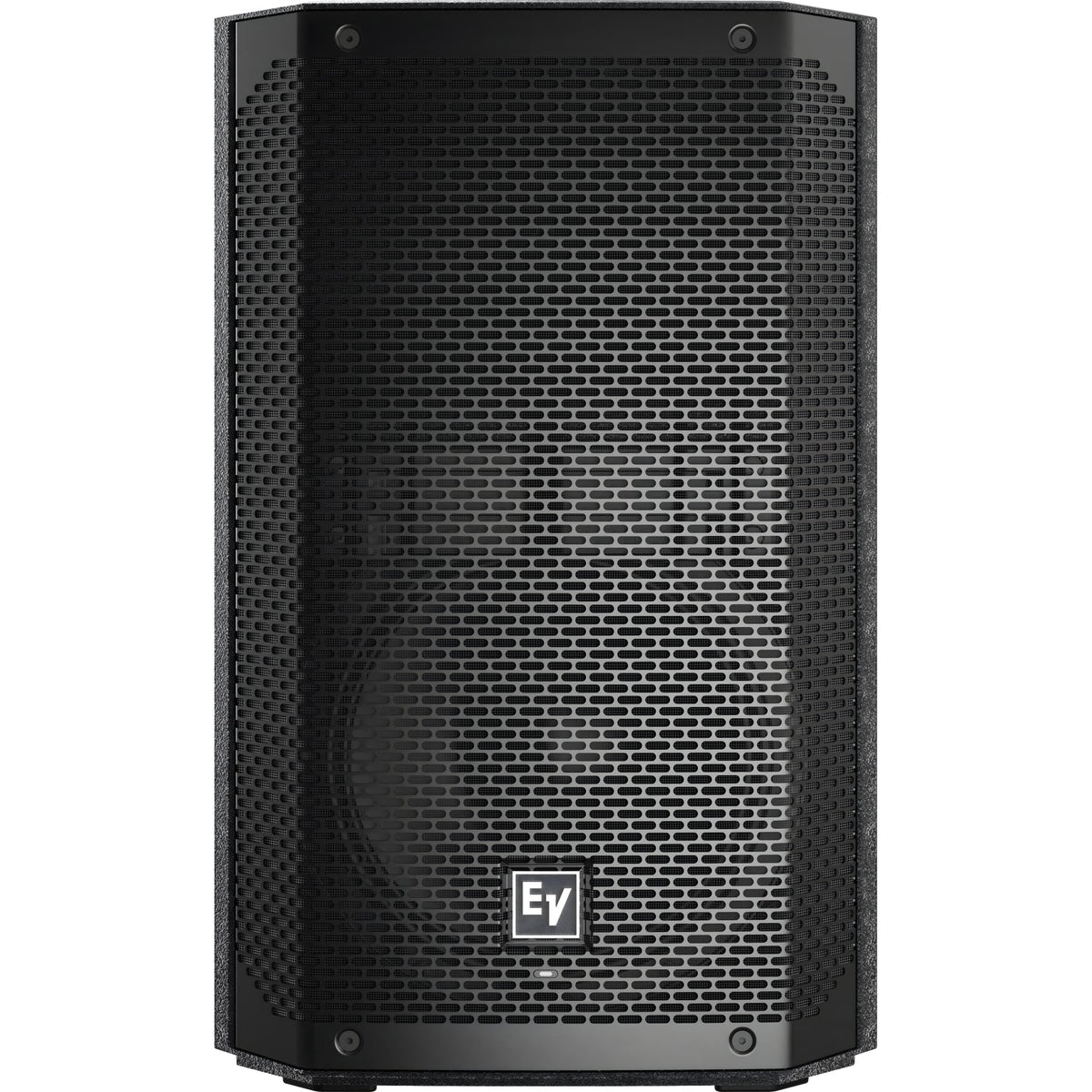

Electro-Voice ELX200-10P - 2-Way Full-Range Active Loudspeaker (10", 1200 W, 90° × 60°)

Electro-Voice ELX200-10P - 2-Way Full-Range Active Loudspeaker (10", 1200 W, 90° × 60°)

The Electro-Voice ELX200-10P is a self-powered PA loudspeaker that combines the portability of a compact enclosure with the power of a 1200W Class D amplifier and the advanced control of QuickSmart DSP . Its acoustic design integrates a 10" EVS-10M woofer and a 1" DH-1L compression driver mounted in the SST waveguide, achieving constant 90° × 60° coverage with minimal distortion. It delivers up to 130 dB SPL (peak) over a range of 53 Hz – 20 kHz (-10 dB) and 59 Hz – 18 kHz (-3 dB) , ideal for portable sound reinforcement and installations that demand clarity and punch throughout the audience.

From its LCD and single knob, the DSP offers presets (Music/Live/Speech/Club), 3-band EQ , sub/top crossovers , and 5 user memories . Plus, with the EV QuickSmart Mobile app, you can configure, control, and monitor up to 6 cabinets simultaneously via Bluetooth Low Energy (control only, not audio) and receive alerts in critical situations. The polypropylene enclosure is lightweight and durable, with a tripod socket , three M10 suspension points , and the proven two-handle design for comfortable transport. Professional connections: 2 XLR/TRS combo inputs , 1 stereo AUX RCA input , and 1 XLR output (mix out) for linking equipment.

Main features

• Power and sound pressure: Class D amplification 1200 W and 130 dB SPL (peak).
• EV Transducers: EVS-10M (10") + DH-1L (1") on SST guide for 90° × 60° coverage.
• Verified response: 59 Hz – 18 kHz (-3 dB) / 53 Hz – 20 kHz (-10 dB) ; internal crossover 1.8 kHz .
• QuickSmart DSP and mobile app: presets, 3-band EQ, 5 memories , sub/top crossovers, and BLE control of up to 6 cabinets.

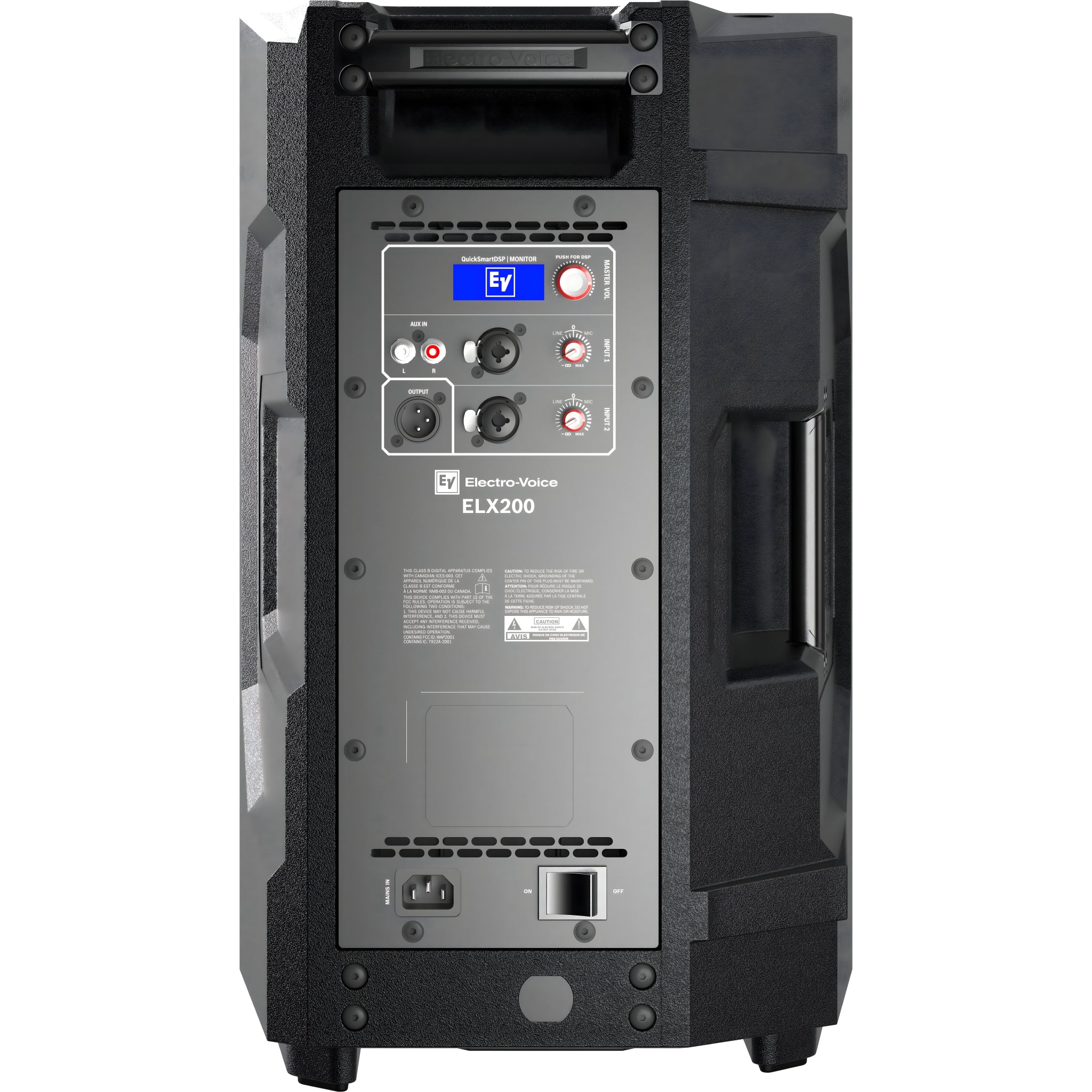

• Full connectivity: 2 × XLR/TRS MIC/LINE , 1 × stereo RCA (AUX), 1 × XLR (mix output).
• Professional Construction: Polypropylene with 18 AWG steel grille , 3×M10 , tripod socket and two handles .
• Portable format: dimensions 531 × 330 × 319 mm and 13.5 kg ; power supply 100–240 V~, 50–60 Hz (1/8 power: 1.2–0.6 A ).
• Finishes: available in black or white for aesthetic integration into facilities.

Product benefits

• Uniform coverage and sharpness in small and medium-sized rooms thanks to the 90° × 60° SST guide.
• Setup in minutes with presets, EQ and sub/top crossovers without external processing.
• Management from the public : control and monitoring with QuickSmart Mobile via BLE (status alerts).
• Portability and robustness : lightweight chassis with two handles and M10 fittings for multiple mounting options.

Use cases

• Portable PA for live music, DJs and corporate events.
• Fixed installation in premises, churches, educational centres and cultural spaces (blank option).
• Modular systems together with ELX200-12SP/18SP subwoofers using the DSP sub/top crossover.

Frequently Asked Questions

• Does Bluetooth transmit audio? No. It's only used for control and monitoring with the QuickSmart Mobile app.
• Can I hang the speaker? Yes, it has three M10 mounting points with suitable hardware.
• What output does the panel offer? Mix out via XLR, summing all inputs for linking devices.

Description for projects

Electro-Voice ELX200-10P 2-way active loudspeaker; EVS-10M (10") + DH-1L (1") ; 1200 W Class D; 130 dB SPL max.; response 59 Hz – 18 kHz (-3 dB) , range 53 Hz – 20 kHz (-10 dB) ; crossover 1.8 kHz ; coverage 90° × 60° ; QuickSmart DSP (presets, 3-band EQ, 5 memories, sub/top crossovers) and QuickSmart Mobile control (BLE, up to 6 cabinets); connectivity 2 × XLR/TRS MIC/LINE + 1 × stereo RCA (AUX) + 1 × XLR (mix out); polypropylene enclosure with 18 AWG grille , 3 × M10 , tripod socket and two handles; 531 × 330 × 319 mm ; 13.5 kg ; power supply 100–240 V~, 50–60 Hz (current at 1/8 power: 1.2–0.6 A ); black or white.
