Electro-Voice ELX200-10 - 2-Way Passive Full-Range System (10", 90° × 60°)

Electro-Voice ELX200-10 - 2-Way Passive Full-Range System (10", 90° × 60°)

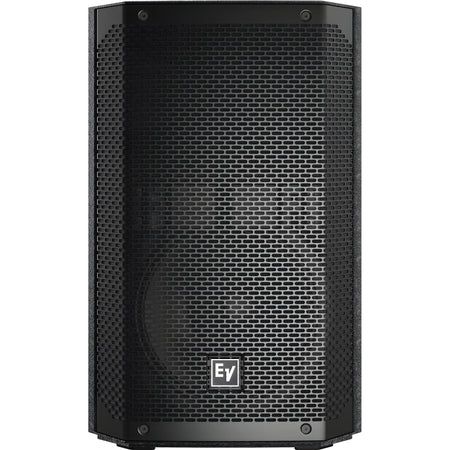

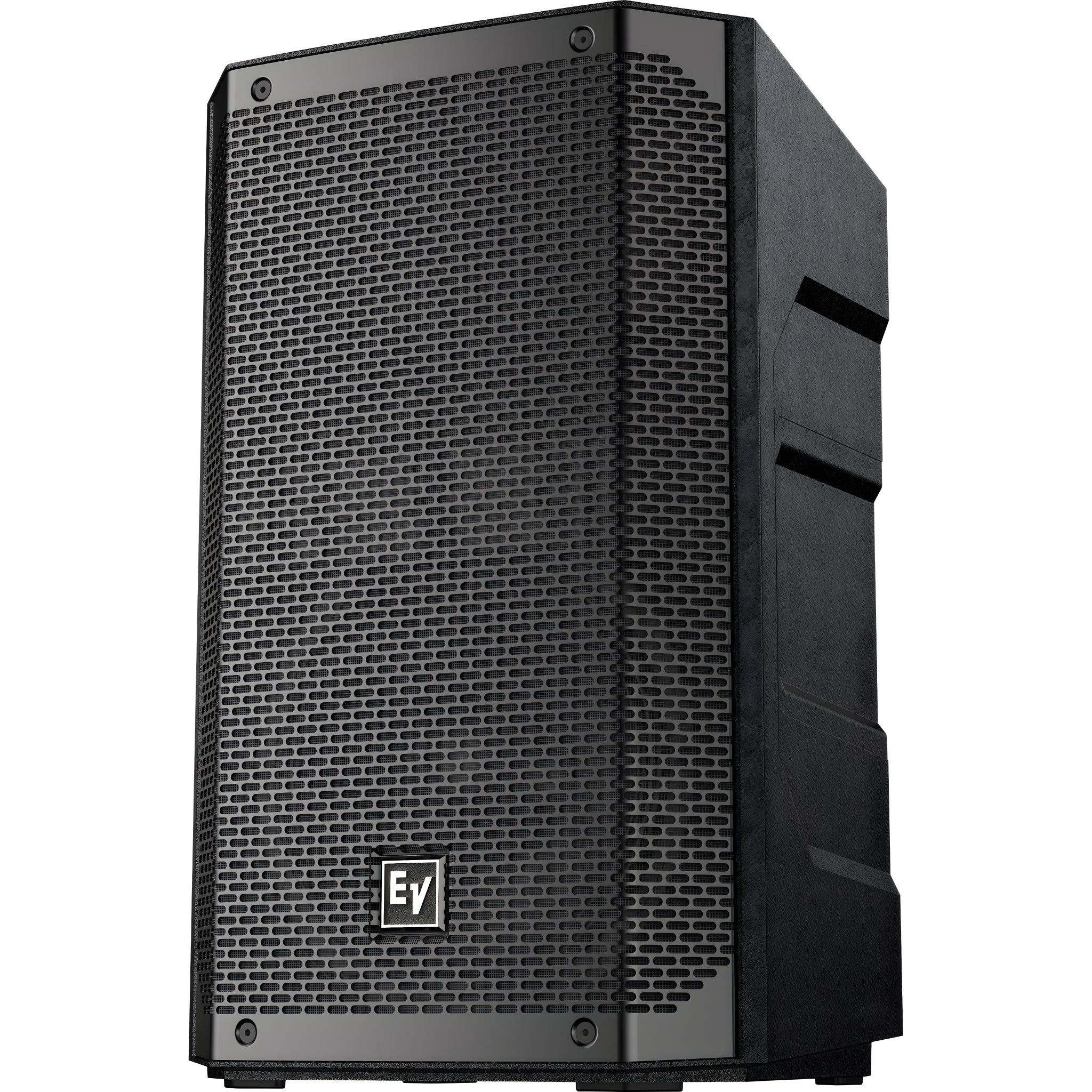

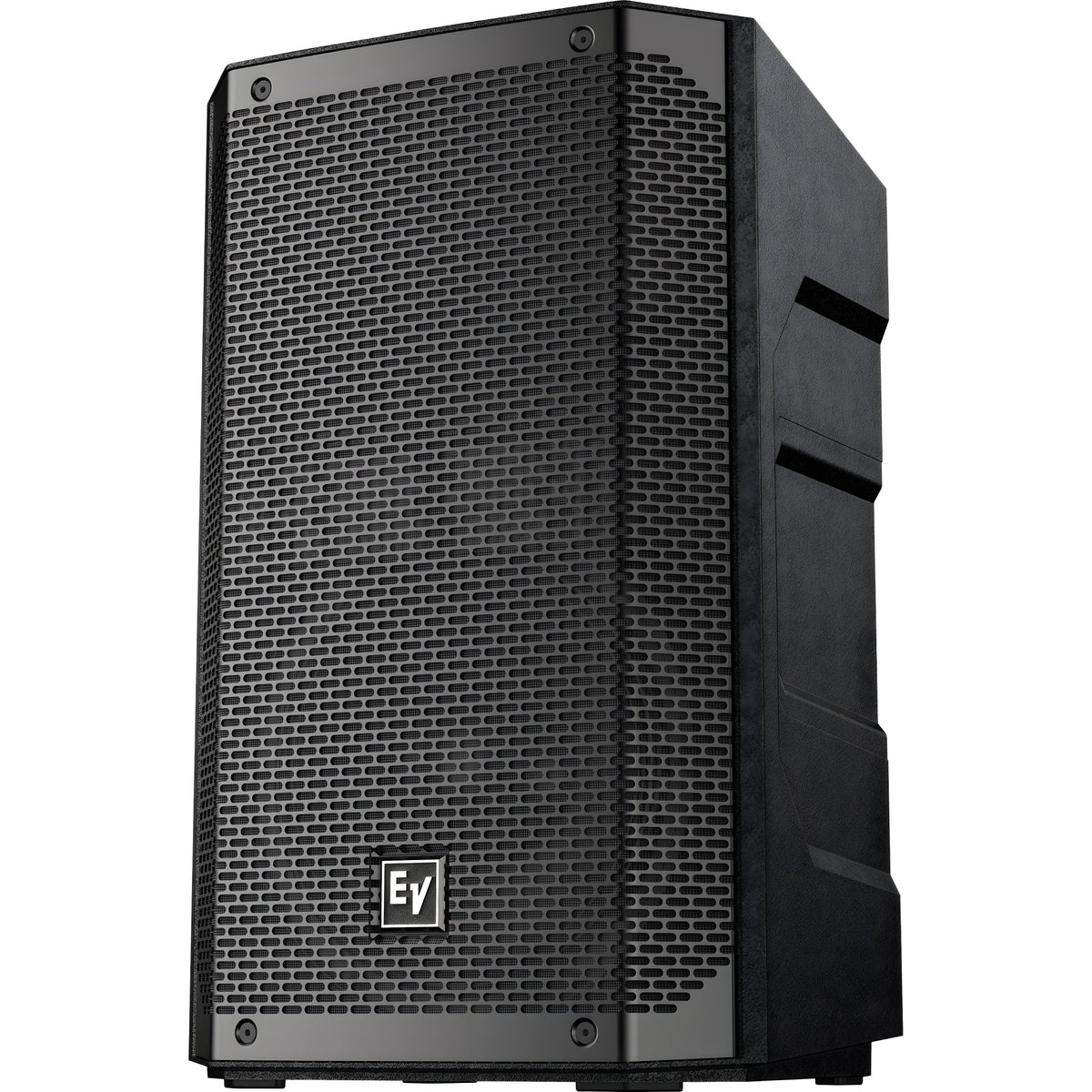

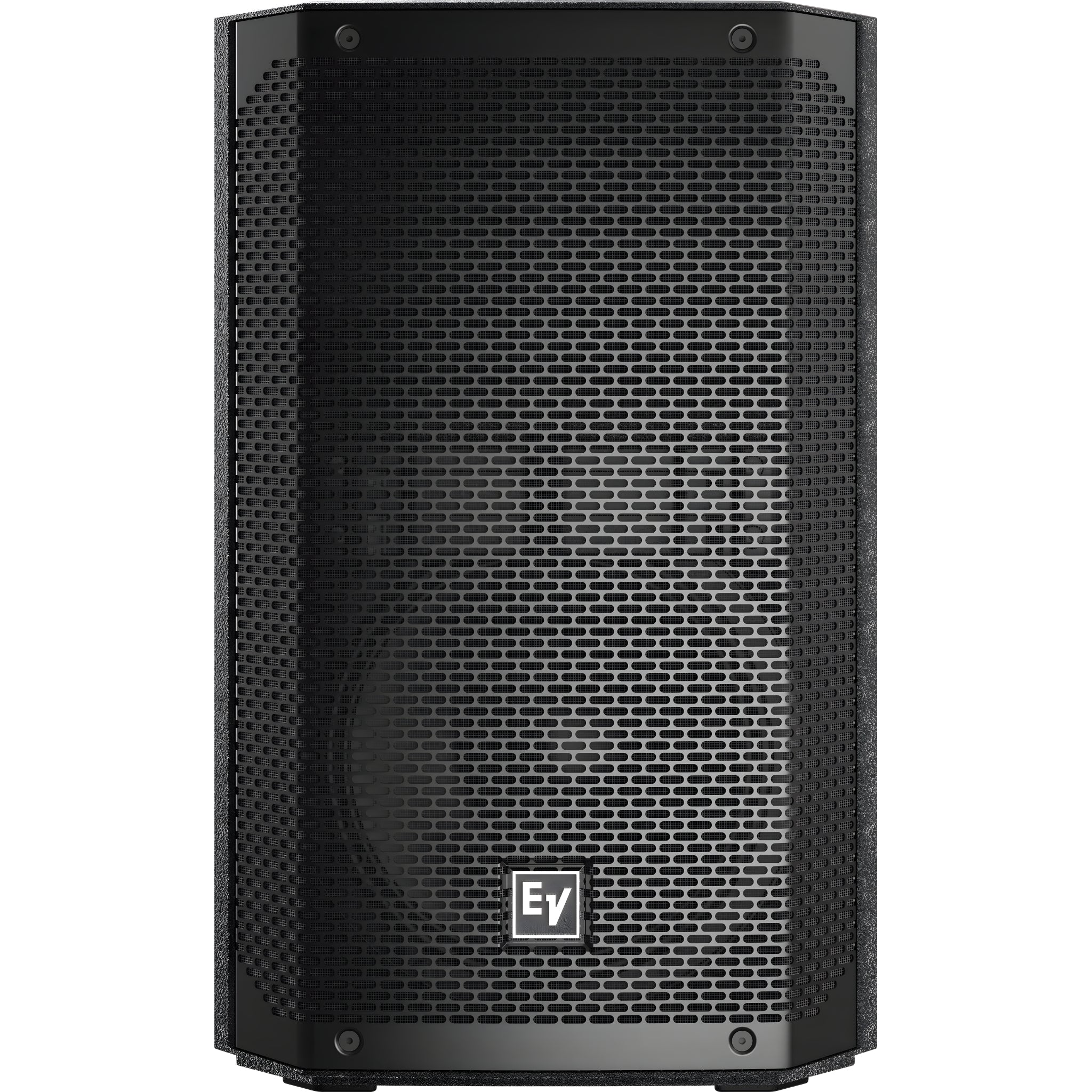

The Electro-Voice ELX200-10 is a 10" passive loudspeaker designed for portable PA and fixed installation that combines reliability, easy handling and uniform 90° × 60° coverage . It features an EVS-10M woofer and DH-1C compression driver (1.4" diaphragm, 1" exit) mounted in the patented SST (Signal Synchronized Transducers) waveguide, achieving accurate response with low distortion. It delivers 300W continuous / 1200W peak , 127 dB max SPL and a 49 Hz – 22 kHz (-10 dB) / 65 Hz – 20 kHz (-3 dB) range, with 90 dB sensitivity and 8 Ω nominal. The composite polypropylene enclosure is lightweight and durable, with a tripod socket , three M10 suspension points , two carrying handles and two NL4 connectors . Recommended high-pass filter at 55 Hz to protect the transducer from low frequencies.

Main features

• 2-way configuration (10" + 1") : EVS-10M woofer and DH-1C titanium compression driver.
• Controlled 90° × 60° coverage using SST waveguide for homogeneous dispersion and minimal distortion.
• Acoustic performance : 300 W continuous / 1200 W peak; 127 dB SPL max.; 90 dB (1 W/1 m).
• Response : 65 Hz – 20 kHz (-3 dB) / 49 Hz – 22 kHz (-10 dB); crossover at 2 kHz .
• Construction : Polypropylene composite enclosure and 18 AWG powder-coated steel grille .
• Professional hardware : 3 × M10 for suspension and integrated tripod socket .
• Connectivity : 2 × NL4 (input/link), 8 Ω nominal (min. 7.2 Ω ).
• Mobility : Lightweight design with two handles for comfortable loading/unloading.
• Finishes : available in black or white .

Product benefits

• Consistent coverage in small and medium-sized events thanks to the 90° × 60° pattern and SST guidance.
• Clear, defined sound with EV's proprietary transducers and verified specifications for sustained high performance.
• True portability : strong, lightweight chassis with well-placed handles.
• Mounting flexibility : M10 points for suspension and tripod base for mobile configurations.
• Easy integration with ELX200 subwoofers using NL4 and the recommended HPF (55 Hz) .

Use cases

• Portable PA for live music, DJs and corporate events.
• Fixed installations in auditoriums, educational centers, clubs and places of worship (blank option).
• Front-of-house or monitor depending on the angle and mounting.

Frequently Asked Questions

• Is it active or passive? Passive ; requires a suitable power amplifier.
• What is the coverage pattern? 90° (H) × 60° (V) nominal.
• Which protection filter should you use? Recommended high-pass filter at 55 Hz (adjust according to the system and room).
• Does it have hanging points? Yes, it includes three M10 mounting points for suspension with certified hardware.

Description for projects

Electro-Voice ELX200-10 2-way full-range passive loudspeaker; EVS-10M (10") + DH-1C (1.4" diaphragm, 1" exit); 300 W RMS / 1200 W peak ; 8 Ω (min. 7.2 Ω); 90 dB (1 W/1 m); 127 dB SPL max.; response 65 Hz – 20 kHz (-3 dB) , range 49 Hz – 22 kHz (-10 dB) ; crossover 2 kHz ; coverage 90° × 60° ; 2 × NL4 ; polypropylene enclosure with 18 AWG steel grille ; 3 × M10 and tripod base; 531 × 330 × 319 mm ; 13.4 kg ; black or white.
