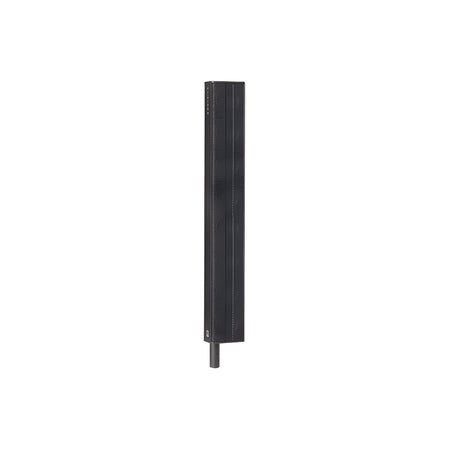

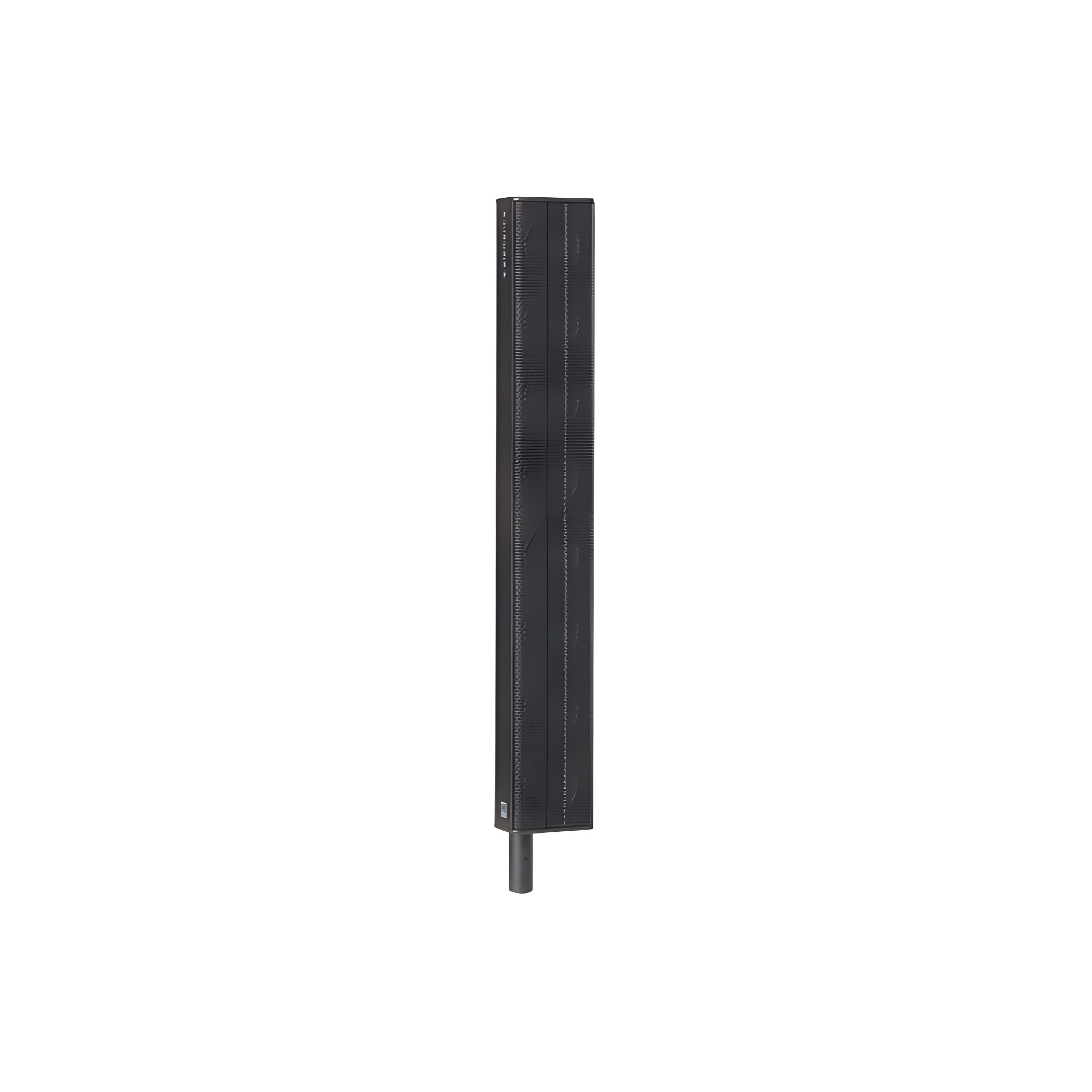

HK Audio E835 (BLACK) - Passive midrange/tweeter module with 8 x 3.5” drivers and E-Connect connection

HK Audio ELEMENTS E835 (Black) – Passive midrange/tweeter module with 8 x 3.5” drivers and E-Connect connection

The HK Audio E835 is a passive mid/high frequency module for the ELEMENTS series, designed to create scalable line arrays with a consistent pattern and great clarity across the entire audience area. Loaded with eight high-performance 3.5” drivers and a rugged aluminum enclosure , it offers a 70° horizontal pattern and a wide response spanning from 140 Hz to 20 kHz (-10 dB) when used with the system’s active filtering. Its E-Connect bus (In/Out) allows vertical stacking of modules and fast, reliable electrical and mechanical interconnection, reducing wiring and assembly times.

With 300 W RMS , 100 dB sensitivity (1 W/1 m) and 8 Ω nominal impedance , the E835 fits into both portable and installation configurations: from pairs over subwoofers to taller columns combined with other elements of the family. The recommended crossover is 140 Hz / 12 dB/oct using the system's active subwoofer or an external processor. Its slim form factor (11 × 74.5 × 12 cm) and 4.5 kg weight facilitates transport and aesthetic integration into stages, halls and corporate spaces.

Main features

• Linear columnar architecture: scalable and combinable for greater reach with a uniform sound image.
• Transducers: 8 × 3.5” wide-range drivers for defined mids/highs and controlled projection.
• Coverage pattern: 70° horizontal; vertical directivity dependent on column height.
• Frequency response (-10 dB): 140 Hz – 20 kHz through active system filtering.
• Recommended filtering: crossover at 140 Hz with a slope of 12 dB/oct .
• Fast connectivity: E-Connect In/Out for mechanical connection and signal transmission without visible cables.
• Lightweight and robust construction: aluminum housing with black finish.

Product benefits

• Uniform Coverage: Very consistent volume, response and soundstage across the listening area.
• True scalability: stack E835 (and E435) to increase range and pressure while maintaining timbre.
• Express setup: The E-Connect system reduces connections and speeds up deployment.
• Clean integration: narrow format, low weight and discreet aesthetics for live and installation.

Use cases

• Modular line array columns for corporate events, churches, and multipurpose rooms.
• Portable reinforcement with one or more E835 subwoofers from the ELEMENTS series.
• Fixed installations where controlled pattern and minimal visual intrusion are required.

Frequently Asked Questions

• Does it need a subwoofer or processing? Yes. It should be crossed at 140 Hz (12 dB/oct) using the system's subwoofer/processor.
• Can I mix E835 with E435? Yes. They share the same design and sound, so they can be combined in the same column.
• How are they connected to each other? Using the E-Connect (In/Out) bus , which connects the modules mechanically and electrically.

Description for projects

Passive mid/high-frequency module for HK Audio ELEMENTS system; 8 × 3.5”; power 300 W RMS ; 8 Ω ; sensitivity 100 dB (1 W/1 m) ; coverage 70° H ; response (-10 dB) 140 Hz – 20 kHz via active filtering; recommended crossover frequency 140 Hz / 12 dB/oct ; E-Connect In/Out connections; aluminum housing; dimensions 11 × 74.5 × 12 cm (without E-Connect coupler); weight 4.5 kg ; color black.
