beamZ Pro DR02 - T-hanger downrigger for P30 truss 100 kg black

beamZ Pro DR02 - T-hanger downrigger for P30 truss 100 kg black

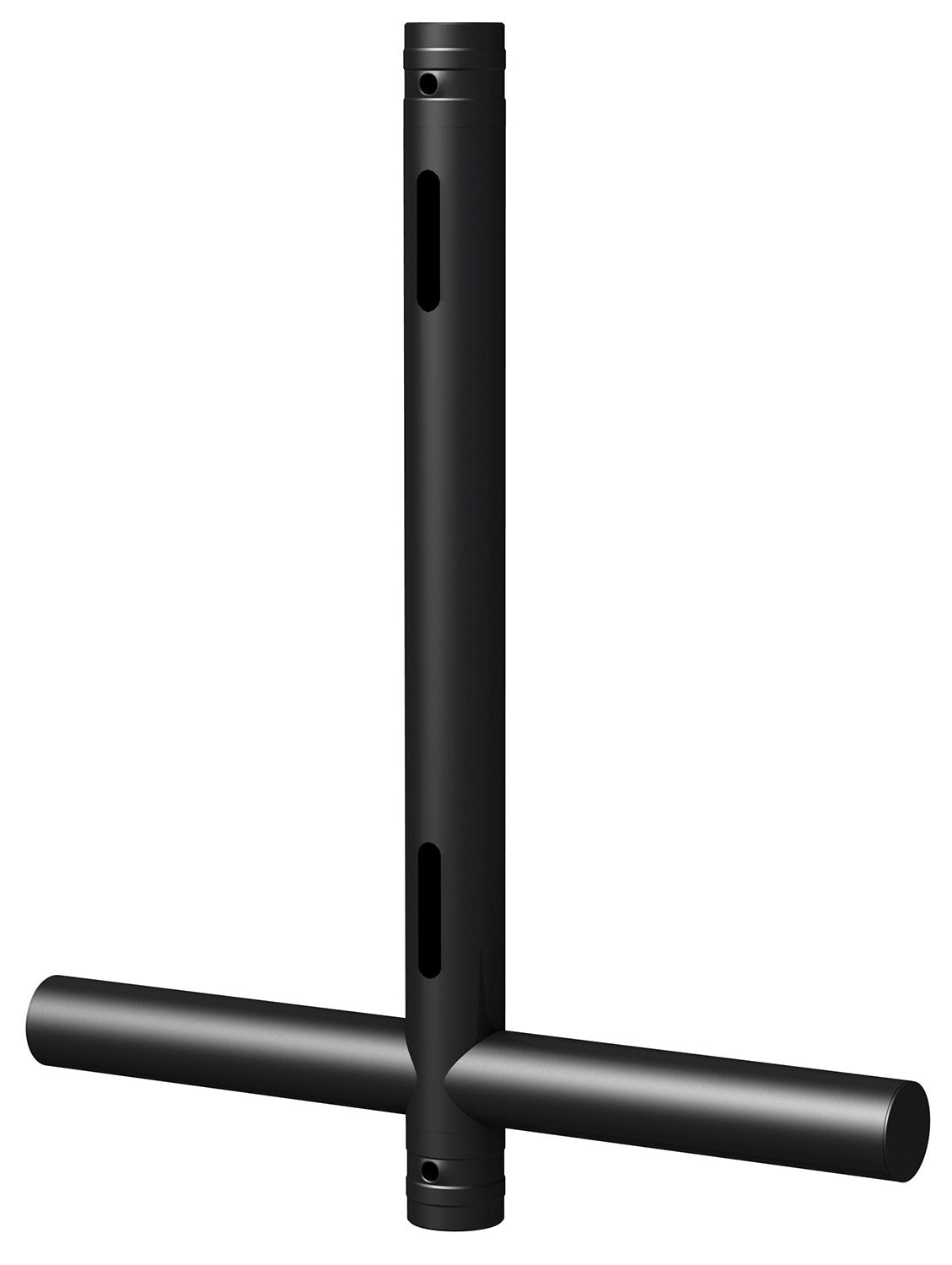

The beamZ Pro DR02 is a T-shaped downrigger for P30 trusses, designed to suspend one or more lights at a lower level within your truss structure. Made of aluminum with a black powder-coated finish , it combines high mechanical strength with a very low weight of only 1.35 kg , making it ideal for rental applications, mobile setups, and intensive live use. It's a robust yet lightweight solution that integrates seamlessly into P30 square truss systems.

This downrigger uses the same philosophy as the rest of the P30 range: a square aluminum truss, quick and easy assembly, a P30 coupling system (not included), and European manufacturing . Its T-shaped design creates an offset anchor point relative to the main truss cable, allowing lights to be placed at a lower level or in a different position without modifying the main structure. With a maximum load capacity of 100 kg per piece , it offers ample space for hanging moving heads, LED bars, effects, and other compatible equipment.

Measuring 500 x 460 x 50 mm (length x width x height) and featuring main tubes approximately 48 mm in diameter , the DR02 is optimized for integration with beamZ Pro P30 truss systems. The T-shaped design attaches to the truss using the P30 coupling system and allows for extending a section downwards or forwards, creating a versatile support for lighting, decorative elements, or lightweight rigging accessories.

Manufactured in Europe , the DR02 meets the requirements of professional environments: precision construction, compatibility with the P30 ecosystem, and a simple assembly process. It is a perfect complement to P30 structures in stages, theaters, clubs, corporate events, and live productions that require maximum flexibility when positioning lighting fixtures.

Main features

• T hanger (T downrigger) for P30 truss , designed to lower one or more light points relative to the main truss.
• Square aluminum truss with main tubes of approx. 48 mm , compatible with the beamZ Pro P30 system.
• Quick and easy assembly using the P30 docking system (connector sets not included).
• Lightweight design , weighing approximately 1.35 kg , intended for mobile use and frequent assembly.
• Maximum load capacity per piece: 100 kg , suitable for professional lighting fixtures and compatible rigging accessories.
• Black powder coating finish that provides extra strength and a discreet appearance.
• Dimensions (L x W x H): 500 x 460 x 50 mm , optimized for P30 truss systems.
• Manufactured in Europe , with high quality standards and tight tolerances.
• Ideal for creating multiple lighting levels within the same structure, by lowering spotlights or LED bars from the main truss.
• Compatible with the beamZ Pro P30 ecosystem : straight sections, corners, base plates and other P30 accessories.

Product benefits

• Greater flexibility in lighting design : allows luminaires to be hung at a lower level or in another position within the same truss, creating layers of light and more interesting effects without the need to add new sections.
• Quick and tidy assembly : the P30 coupling system is designed for quick and easy assembly; the DR02 integrates into the structure without complex tools and with a reduced number of parts.
• Space optimization in rigging : by hanging the spotlights from the truss, anchor points are freed up and space is better utilized both in height and width.
• Lightweight yet robust solution : the use of structural aluminum reduces the total suspended weight, which is key in roofs and structures with limited capacity, while maintaining an allowable load of up to 100 kg per unit.
• Professional and discreet appearance : the black powder-coated finish blends visually with most black trusses and spotlights, reducing visual distraction on stages and at corporate events.
• Long service life : The combination of quality aluminum, simple design and European manufacturing results in a durable accessory, suitable for touring, rental and frequent use in different setups.

Use cases

• Live events and concerts where it is necessary to lower moving heads, LED bars or blinders from the front truss to improve lighting angles on the stage.
• Theaters and auditoriums that require placing spotlights in very specific positions without overloading the grid or main bars, taking advantage of the existing P30 structure.
• Corporate events, trade fairs and presentations where it is desired to illuminate exhibitors, vehicles, products or scenery from an intermediate level in the structure.
• Clubs, halls and permanent venues that use P30 truss as a permanent installation and need to expand their rigging capacity without redesigning the entire structure.
• Lighting and sound rental companies that want to offer additional P30-compatible accessories to give their customers more setup options.

Frequently Asked Questions

What type of truss structure is compatible with the DR02?
The beamZ Pro DR02 hanger is specifically designed for P30 four-point truss systems . Its geometry and tube diameter are designed to integrate with this series.

Does it include the P30 docking system?
No. The commercial text indicates that the P30 coupling system is not included , so the tapered connectors, spigots and pins must be purchased separately or used from kits already available in the truss structure.

What is the maximum load it can support?
The maximum load per piece specified by the manufacturer is 100 kg , provided that the assembly is carried out respecting safe rigging practices and the entire structure (including anchor points and motors) is properly sized.

Can I use the DR02 with trusses from other manufacturers?
The DR02 is optimized for beamZ Pro P30 . It may be compatible with other trusses of similar characteristics (approx. 48–50 mm tubing), but mechanical compatibility should always be verified and the recommendations of each manufacturer followed.

Is it suitable for outdoor use?
The black powder-coated finish and aluminum construction offer good durability, but suitability for continuous outdoor use will depend on environmental conditions and maintenance. For permanent outdoor installations, it is recommended to follow the beamZ Pro guidelines and the project engineers' recommendations.

Does it come assembled or does it require assembly?
The hanger is supplied as a finished piece; it is only necessary to attach it to the P30 truss system using the appropriate connectors and fix the luminaires following the corresponding safety instructions.

Construction and design

The DR02 T Downrigger uses main tubes approximately 48 mm in diameter , compatible with the P30 truss standard, forming a T-shaped structure that anchors to the truss and lowers to the desired level. The structural aluminum construction reduces weight without compromising rigidity, and the black powder-coated finish enhances scratch resistance and aesthetic integration with the rest of the installation.

Its dimensions of 500 x 460 x 50 mm allow for sufficient reach to separate the light source from the main truss cable, creating new angles and lighting levels. All of this, combined with a maximum load capacity of 100 kg and European manufacturing , makes the DR02 a reliable rigging accessory for any P30 square truss setup.

Project description

beamZ Pro DR02 T-shaped downrigger for P30 square truss systems, made of aluminum with a black powder-coated finish. Lightweight rigging structure with a maximum load capacity of 100 kg per piece . Dimensions (L x W x H): 500 x 460 x 50 mm . Main tubes approximately 48 mm in diameter. Weight approximately 1.35 kg . P30 coupling system not included. Made in Europe.
