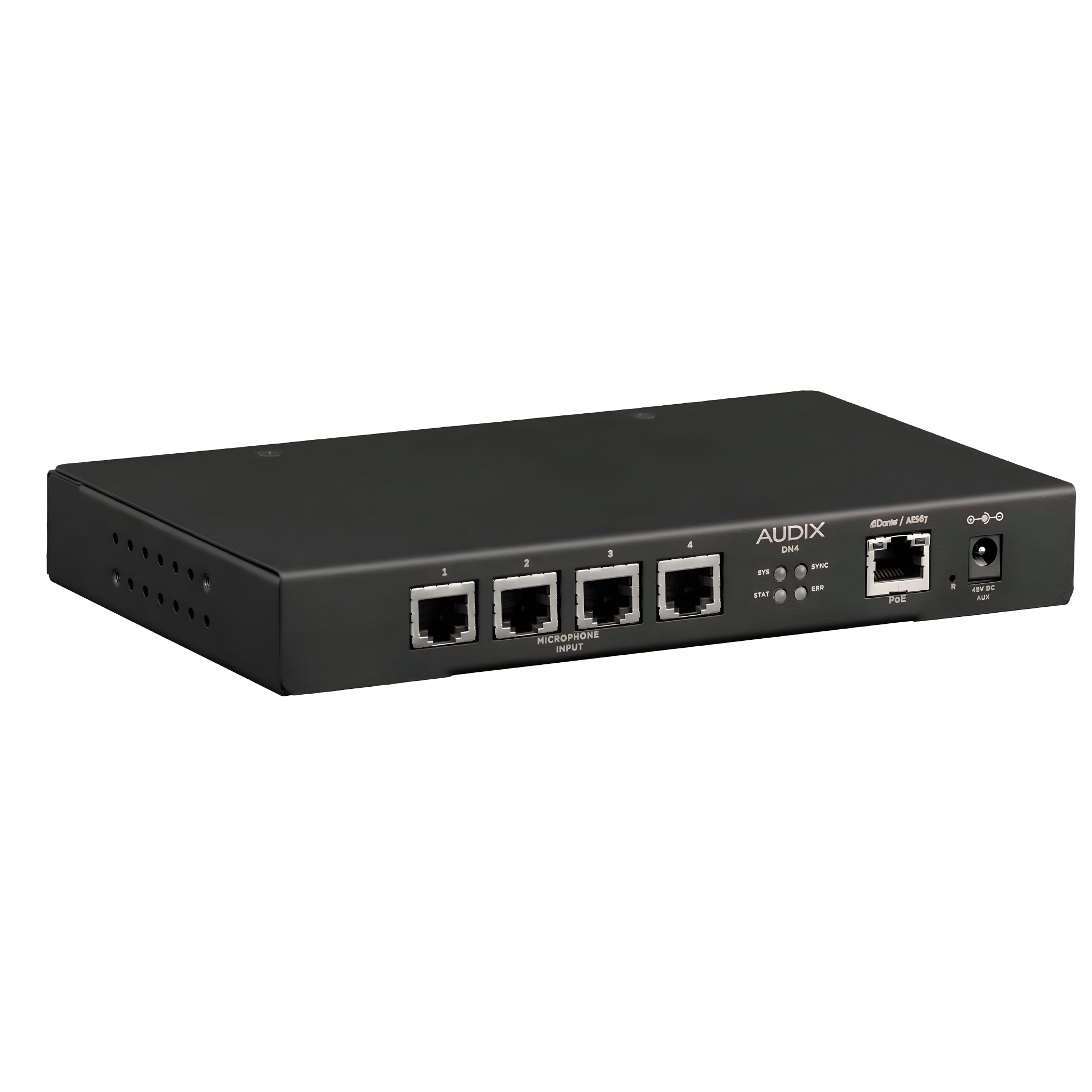

Audix DN4 - Ethernet Audio Interface

ETHERNET AUDIO INTERFACE The DN4 microphone interface is a key part of the Audix Dante integrated AES67 microphone system, the fast and seamless way to transmit Audix audio performance over Ethernet networks. High-quality audio and all microphone functions, including on/off contact closure and LED status indicators, are available over a single CAT5 - CAT7 cable with RJ45 connections at both the interface and the microphone. This simple setup eliminates wiring errors, speeds installation and reduces costs.

The DN4 features four RJ45 inputs for single-element microphones equipped with Audix RJ45 connectors and two 5V logic outputs per port, capable of powering network-connected DSP-controlled LEDs, and one logic input per port for pushbutton switches. Low-pass and high-pass filter settings are available on each audio channel, as are eight selectable gain levels, with all settings configurable via software.

Technical characteristics:

• Compatible with all Audix RJ45 equipped single element analog microphones.
• 24-bit, 48kHz high-fidelity audio.
• Balanced audio inputs with RFI filtering.
• 48V phantom power output
• Each channel has eight selectable preamp gain levels, as well as low- and high-pass filters.
• All channels controlled independently.
• Flash memory prevents loss of settings in the event of a power loss.
• 48V or PoE power supply. Power supplies not included.
