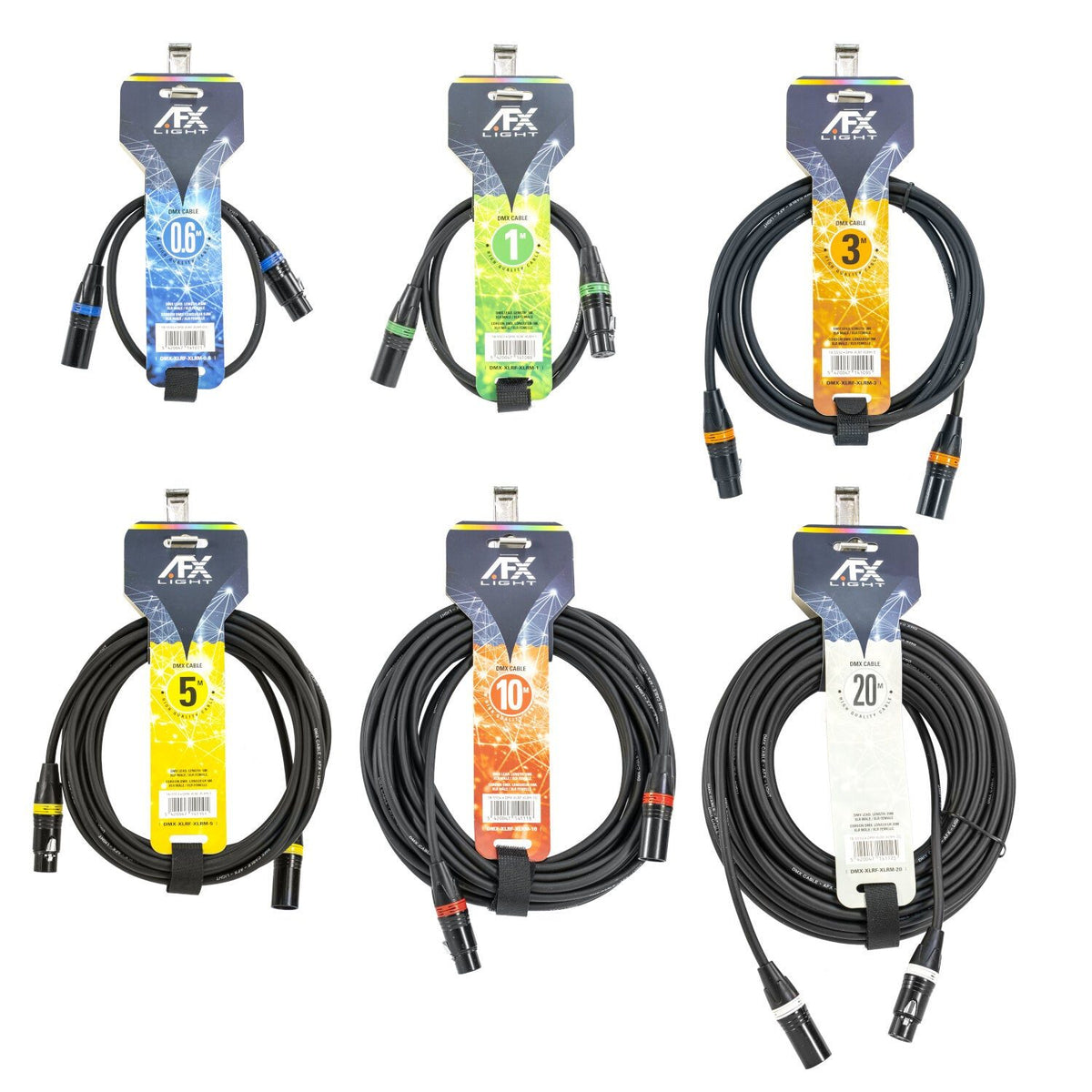

AFX Light DMX-XLRF-XLRM-20 - Male/Female DMX Cable. 20m

AFX Light DMX-XLRF-XLRM-20 - Male/Female DMX Cable 20 m

The AFX Light DMX-XLRF-XLRM-20 is a professional 20 meter DMX cable, ideal for installations and touring applications that require a reliable, interference-free run. It complies with the DMX512-A standard, offering a balanced line with a nominal impedance of 110 Ω to ensure signal integrity. Its 24 AWG (0.22 mm²) stranded conductor core and double shielding (foil + braid) eliminate EMI/RFI noise, while the flexible PVC jacket resists abrasion, oil, and UV rays. It is equipped with high quality 3-pin male and female XLR connectors for secure and quick interlocking.

Main features

• Length: 20 m
• Cable: Balanced twisted pair, 24 AWG (0.22 mm²), impedance 110 Ω ±20 Ω
• Shielding: Aluminum foil + copper braid (coverage ≥ 95%)
• Outer jacket: Flexible PVC resistant to UV, oil and abrasion
• Connectors: 3-pin XLR male/female, robust construction
• Outer diameter: 8.5 mm
• Protocol: DMX512-A compatible with consoles and professional equipment
• Working temperature: –20 °C to +70 °C

Product benefits

• Reliable Transmission: Controlled impedance and double shielding to prevent loss and flicker.
• Professional Durability: Rugged jacket and high-quality XLR connectors for intensive use.
• Quick installation: Securely interlocking connectors speed up assembly and disassembly.
• Cold Flexibility: Remains malleable down to –20°C, avoiding stiffness outdoors.
• Full compatibility: Works with any standard DMX512-A equipment, without additional settings.

Use cases

• Outdoor events: concerts, festivals, and performances.
• Fixed installations in theaters, auditoriums and clubs.
• Touring routes and equipment rentals, where durability and speed of connection are key.
• Architectural lighting and signage on facades or urban spaces.

Frequently Asked Questions

• Can I splice it to other DMX cables? Yes; use DMX512-A compatible connectors and cables to maintain impedance and avoid reflections.
• How do I clean the connectors? Clean the contact surfaces with compressed air and a dry cloth to maintain a good fit.
• Is it suitable for rain or wet areas? The jacket is resistant to ambient humidity, but avoid direct immersion and use protective gear if necessary.
• What does double shielding prevent? It protects against electromagnetic and radio frequency interference, ensuring stable control.

Description for projects

20m DMX512-A cable with 24 AWG stranded copper conductors, 110 Ω impedance, double shielding, UV/oil PVC jacket, 3-pin male/female XLR connectors, 8.5mm diameter, temperature range –20°C to +70°C.
