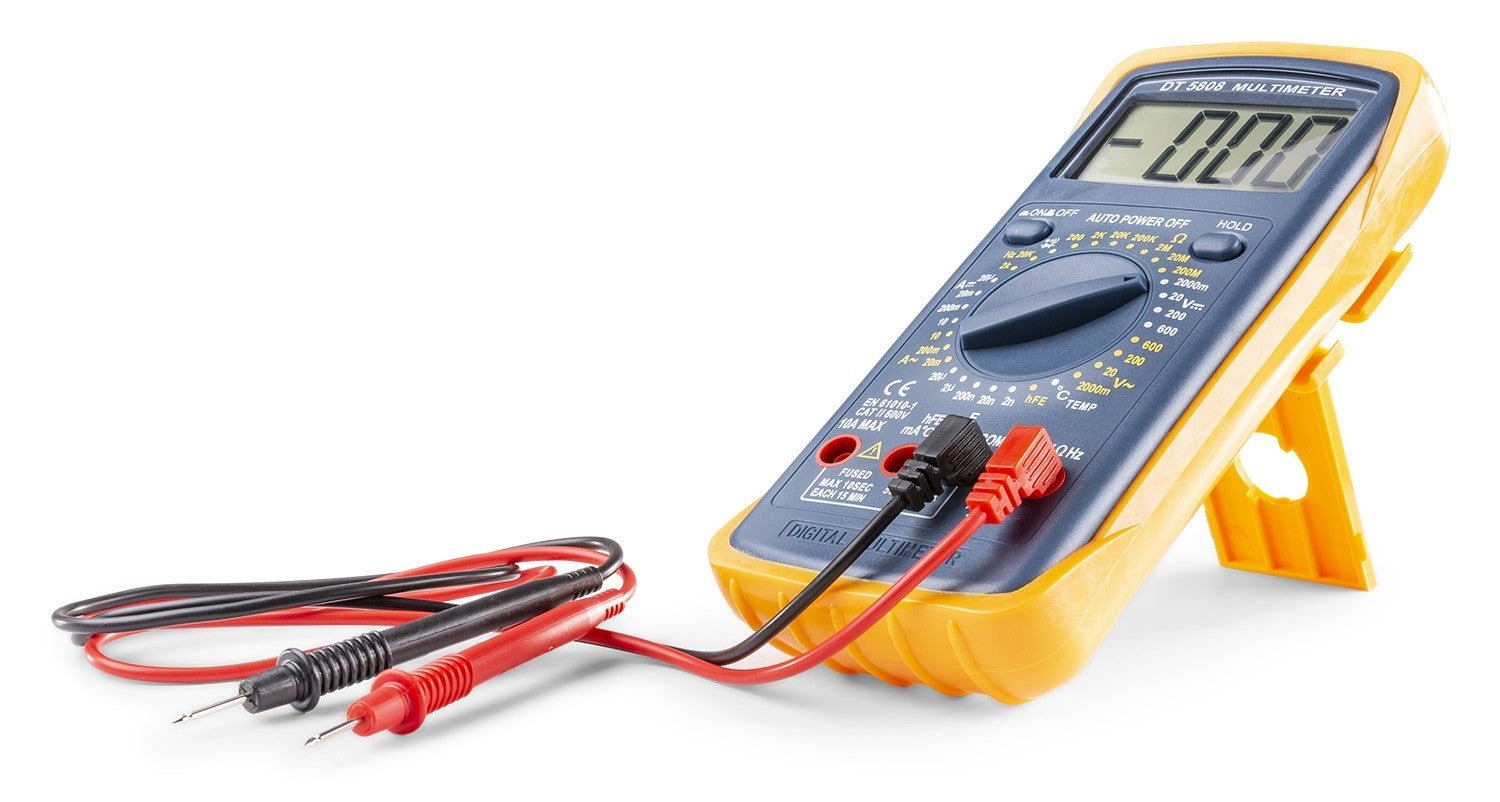

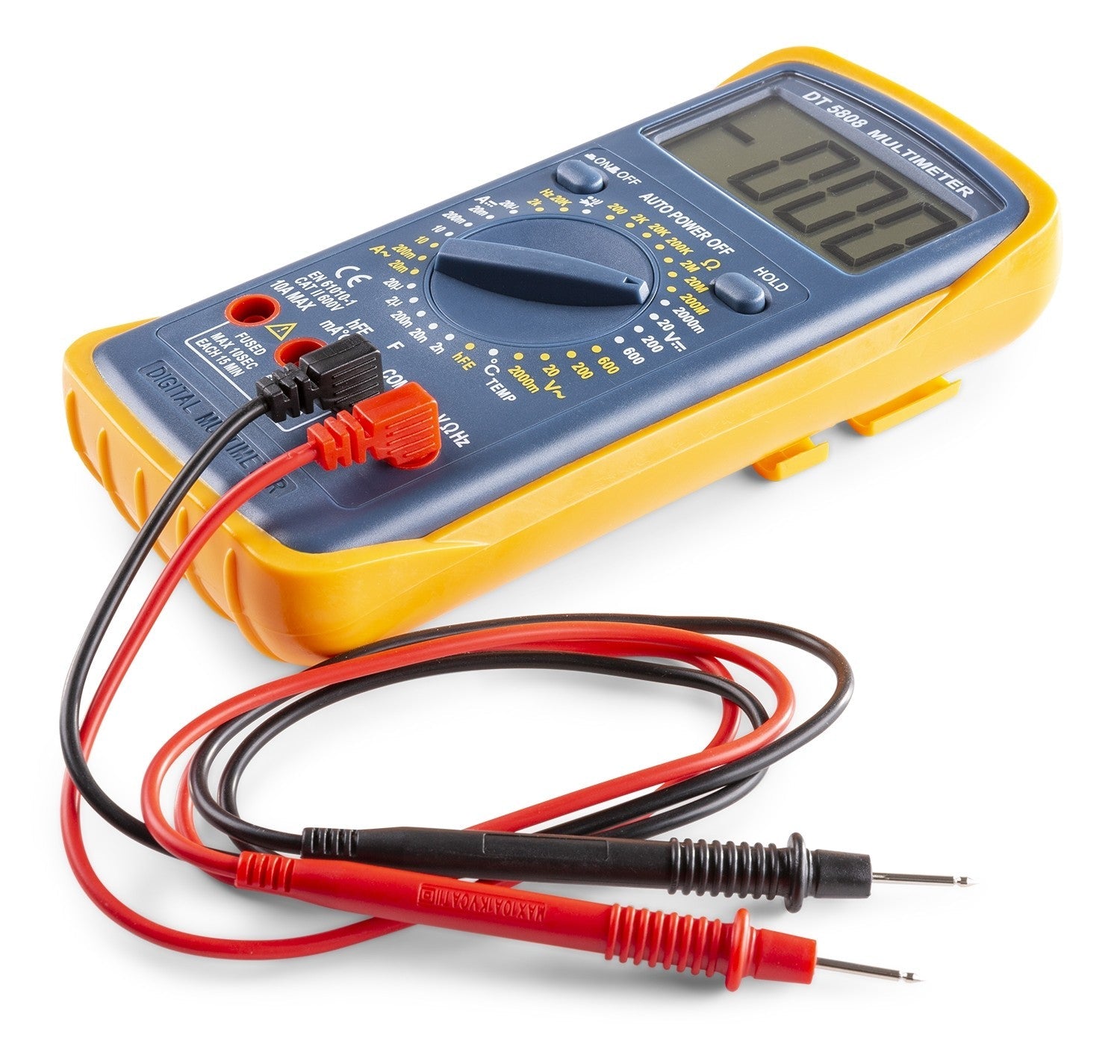

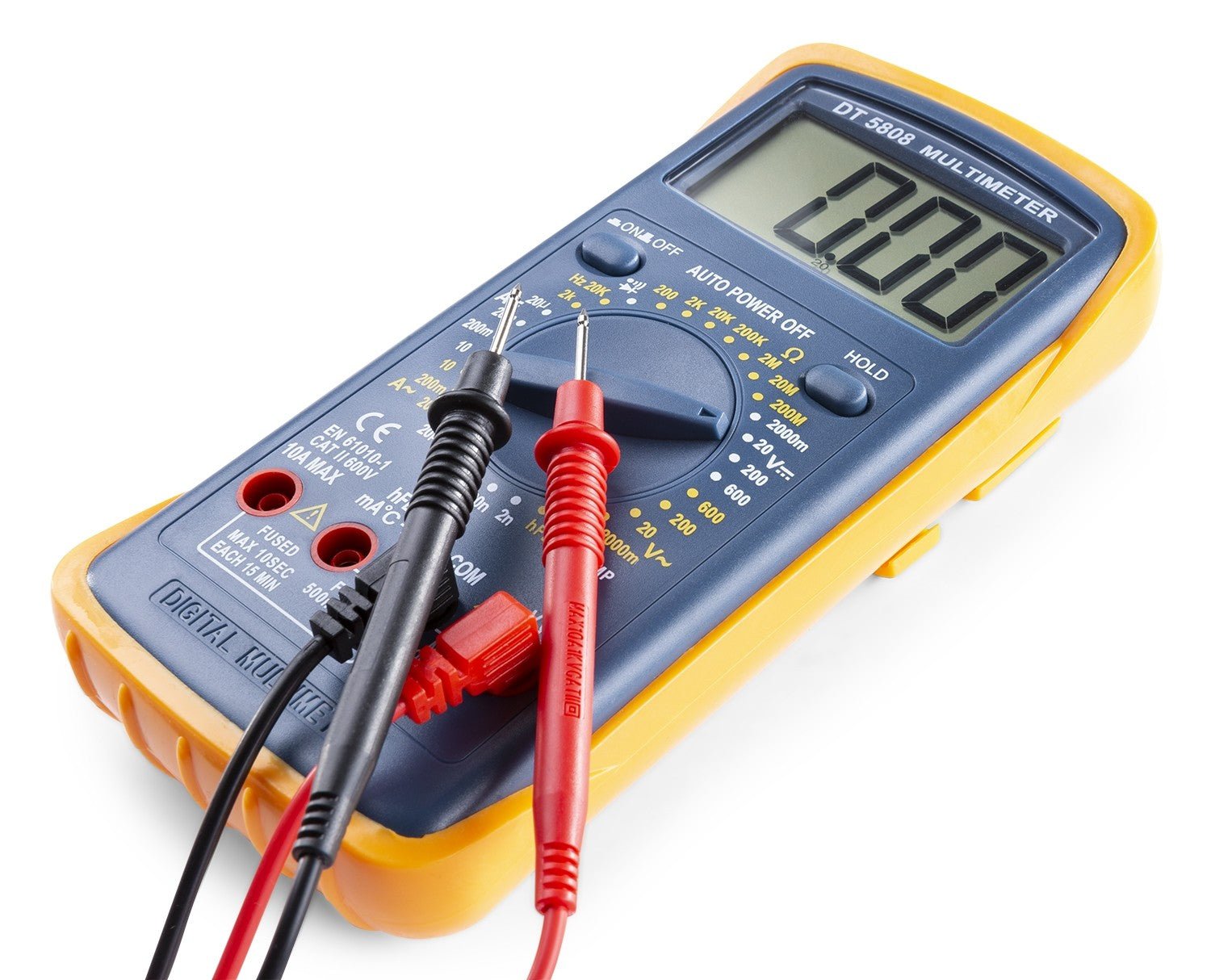

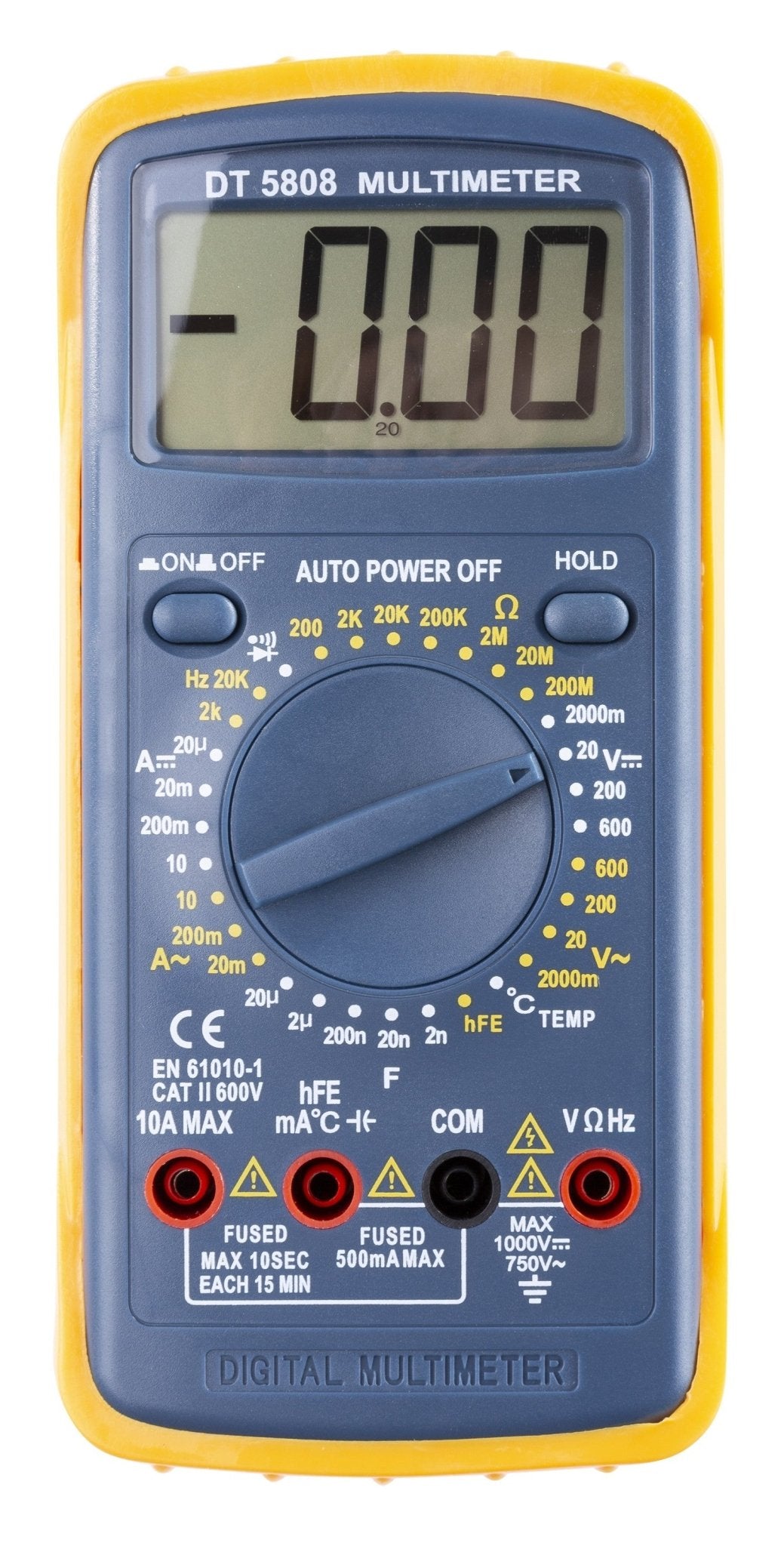

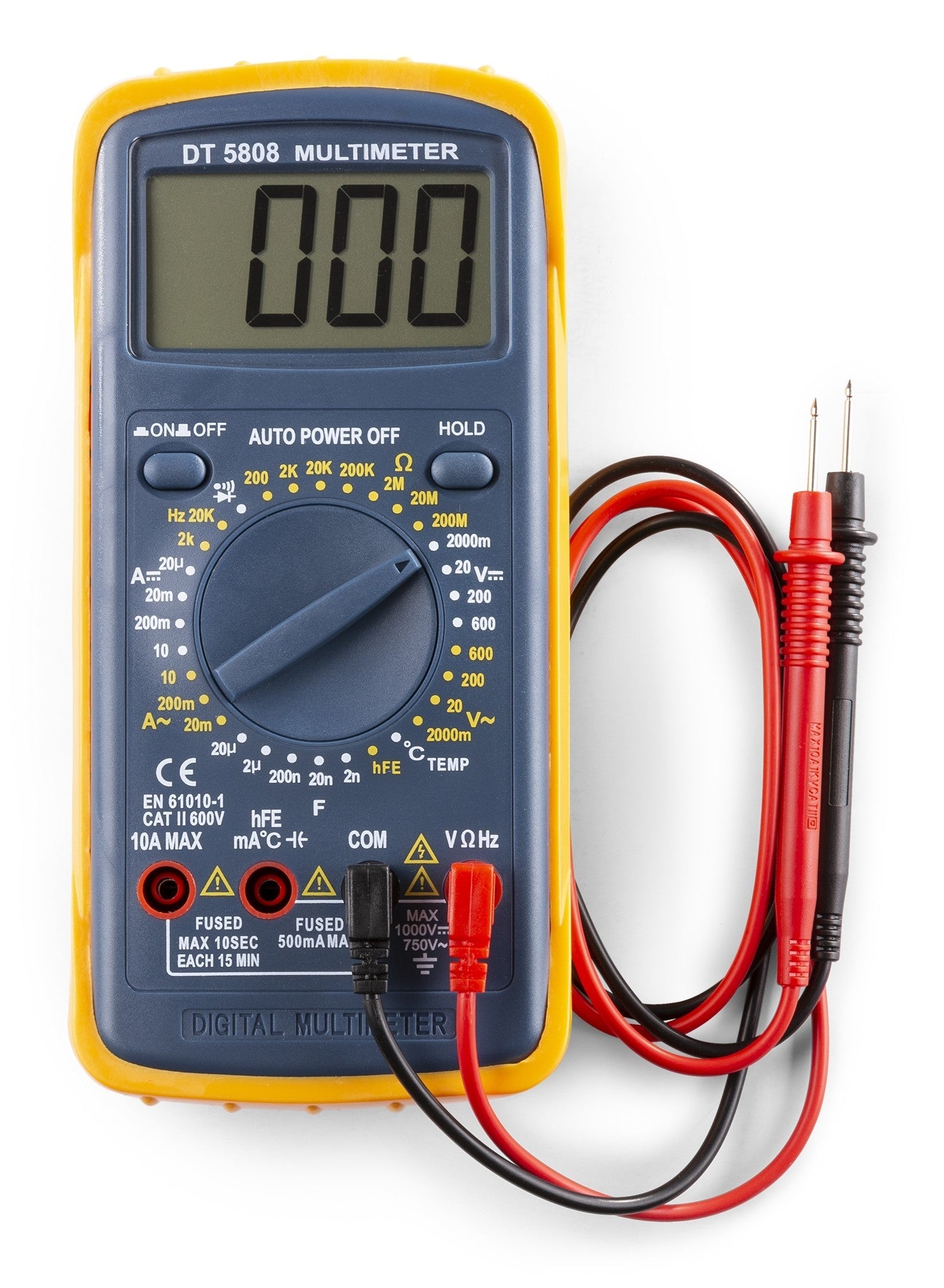

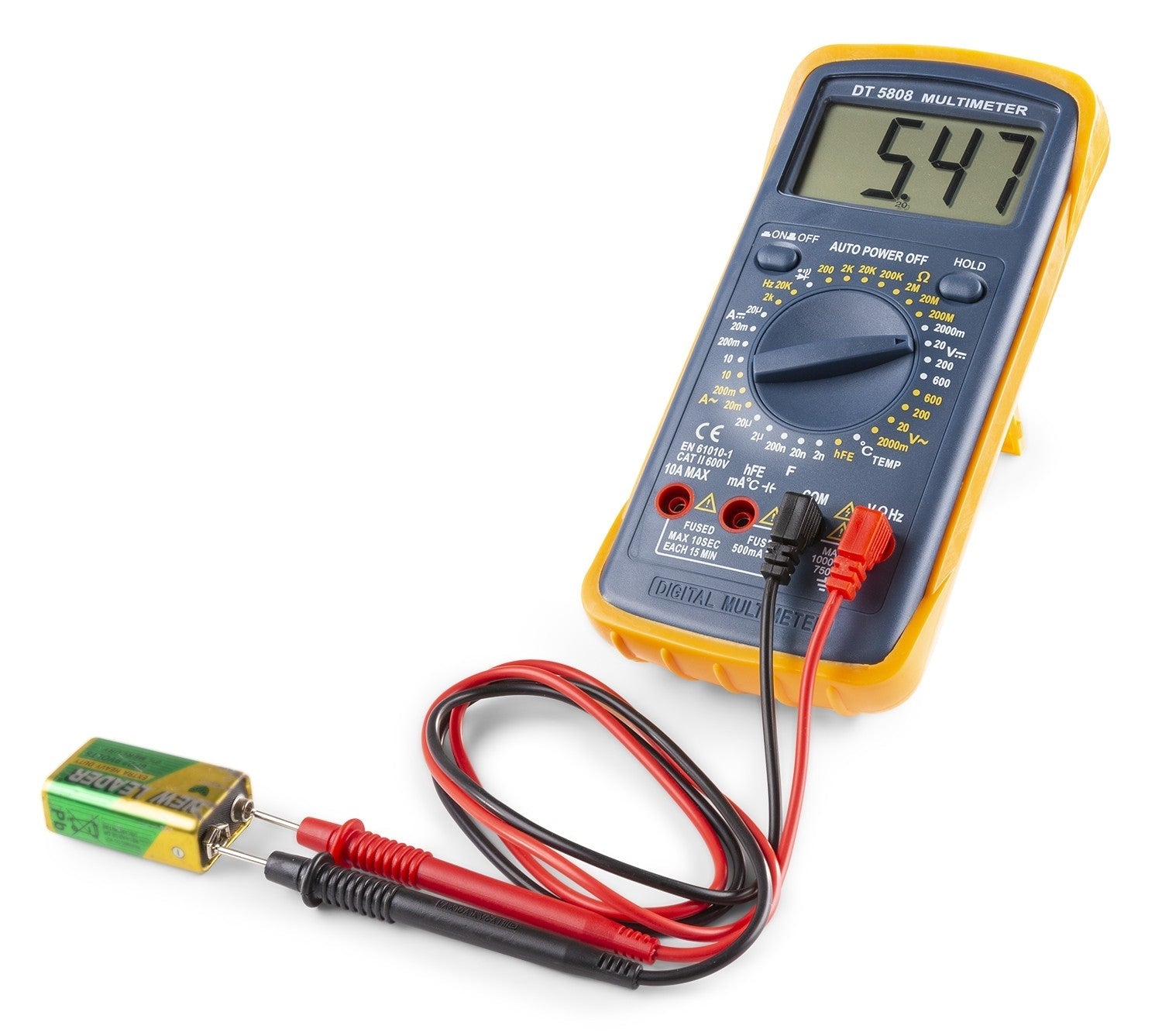

The Skytronic DMM10 is a 1999 count (3½ digit) handheld digital multimeter with a large display and backlight , designed to cover the most common measurements in electricity and electronics: DC/AC voltage , DC/AC current , resistance , capacitance , frequency , temperature and diode/continuity test . It includes a protective holster for field work, auto-off for power saving and a buzzer for speedy continuity testing. Its balanced and stable design, together with the dimensions 95 × 202 × 44 mm and weight of 0.6 kg , make it ideal for maintenance, repairs and educational use.

Main features

• Display: 1999 counts (3½ digits) LCD with backlight and clear reading.
• Measurement functions: DC/AC V, DC/AC A, Ω, diode test, continuity with buzzer, capacitance , frequency and temperature .
• Stability and Low Power Consumption: Stable performance and auto-off to extend battery life.

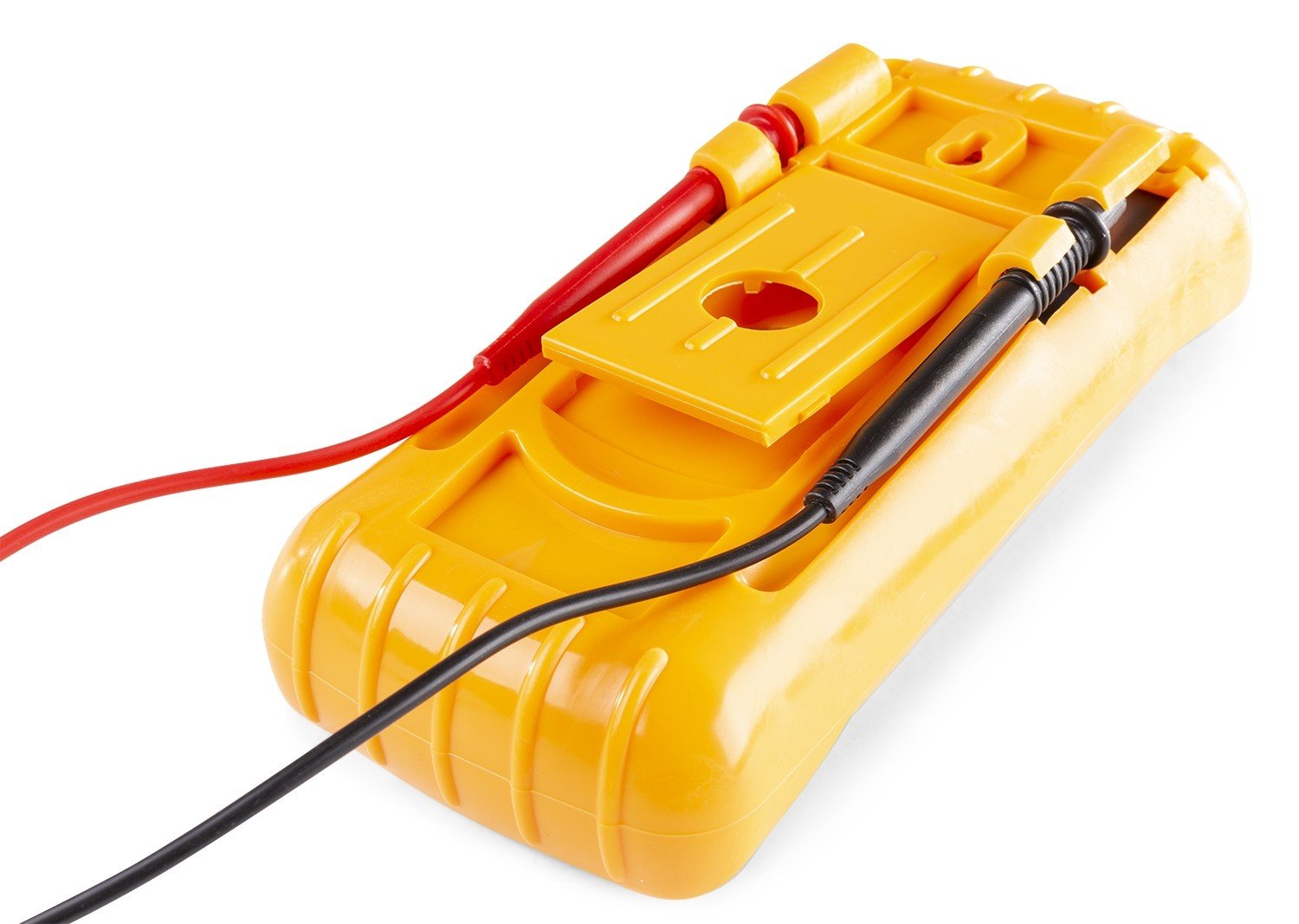

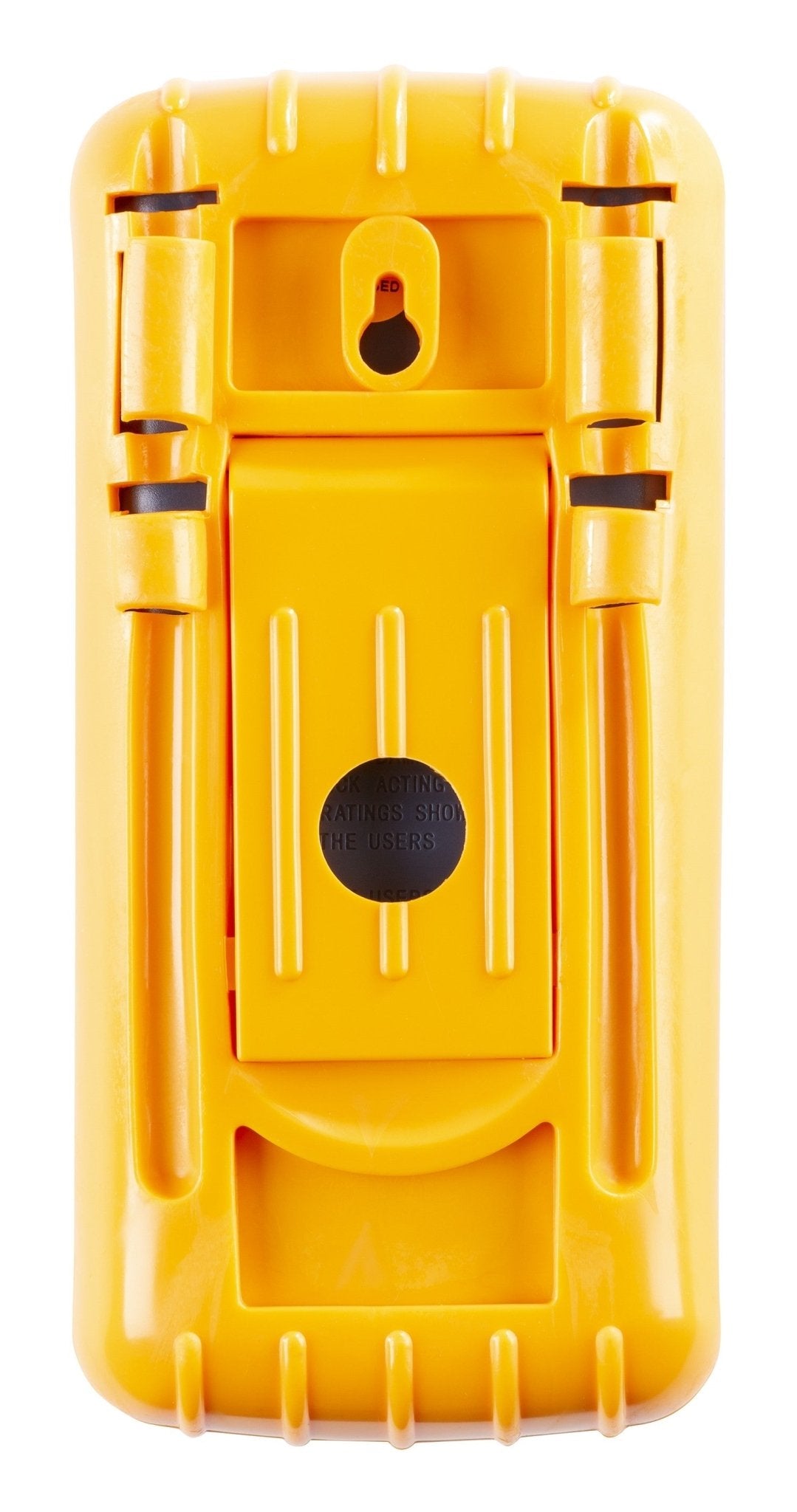

• Protective case: case with holster for greater strength and grip.
• Electrical safety: design according to EN61010-1, overvoltage category CAT II 600 V.
• Dimensions and weight: 95 × 202 × 44 mm; 0.6 kg.

Measurement ranges and accuracies

• DC voltage: 2–600 V ±0.8%
• AC voltage: 2–600 V ±1 %
• DC current: 20 µA–10 A ±1.8%
• AC current: 200 µA–10 A ±2%
• Resistance: 200 Ω–200 MΩ ±1%
• Frequency: 2–20 kHz ±3 %
• Temperature: 0–750°C ±1%
• Capacitance: 2 nF–20 µF ±4%

User benefits

• Fast, clear readings: Large backlit display for use in electrical panels, technical rooms, or inside dimly lit equipment.
• A single tool for multiple tasks: measures voltage, current, resistance, frequency, capacitance and temperature, reducing instrument changes.
• Streamlined work: acoustic continuity testing and easy reading retention.
• Portability and durability: protective holster that absorbs minor impacts and improves grip.

Use cases

• Maintenance and repair: checking power supplies, adapters, wiring, connectors, and basic components.
• Domestic and office electrical installations: voltage testing of sockets, power strips, and light fixtures (within the specified range).
• Electronics and training: resistance measurement, track continuity, diode and passive component testing.

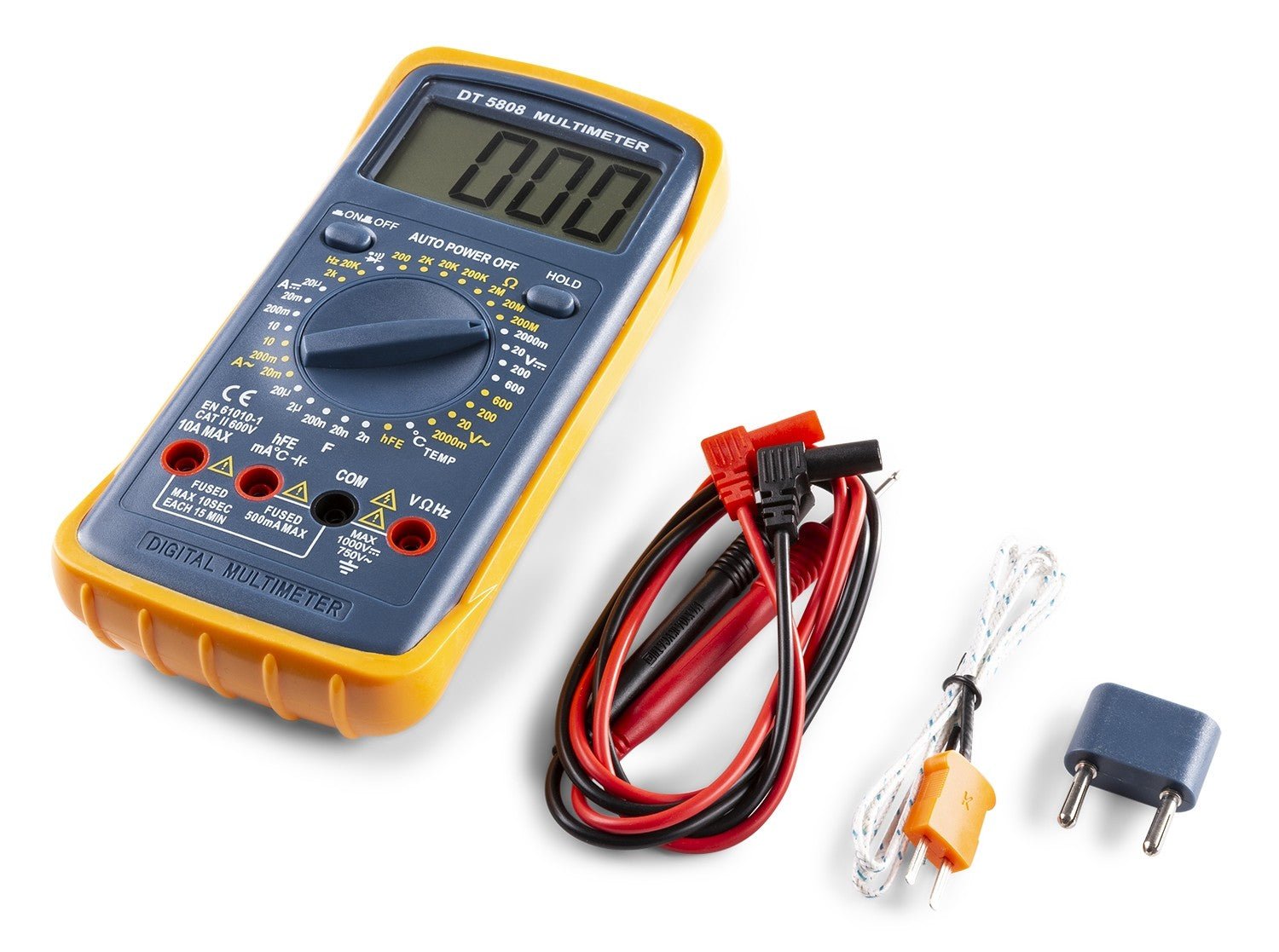

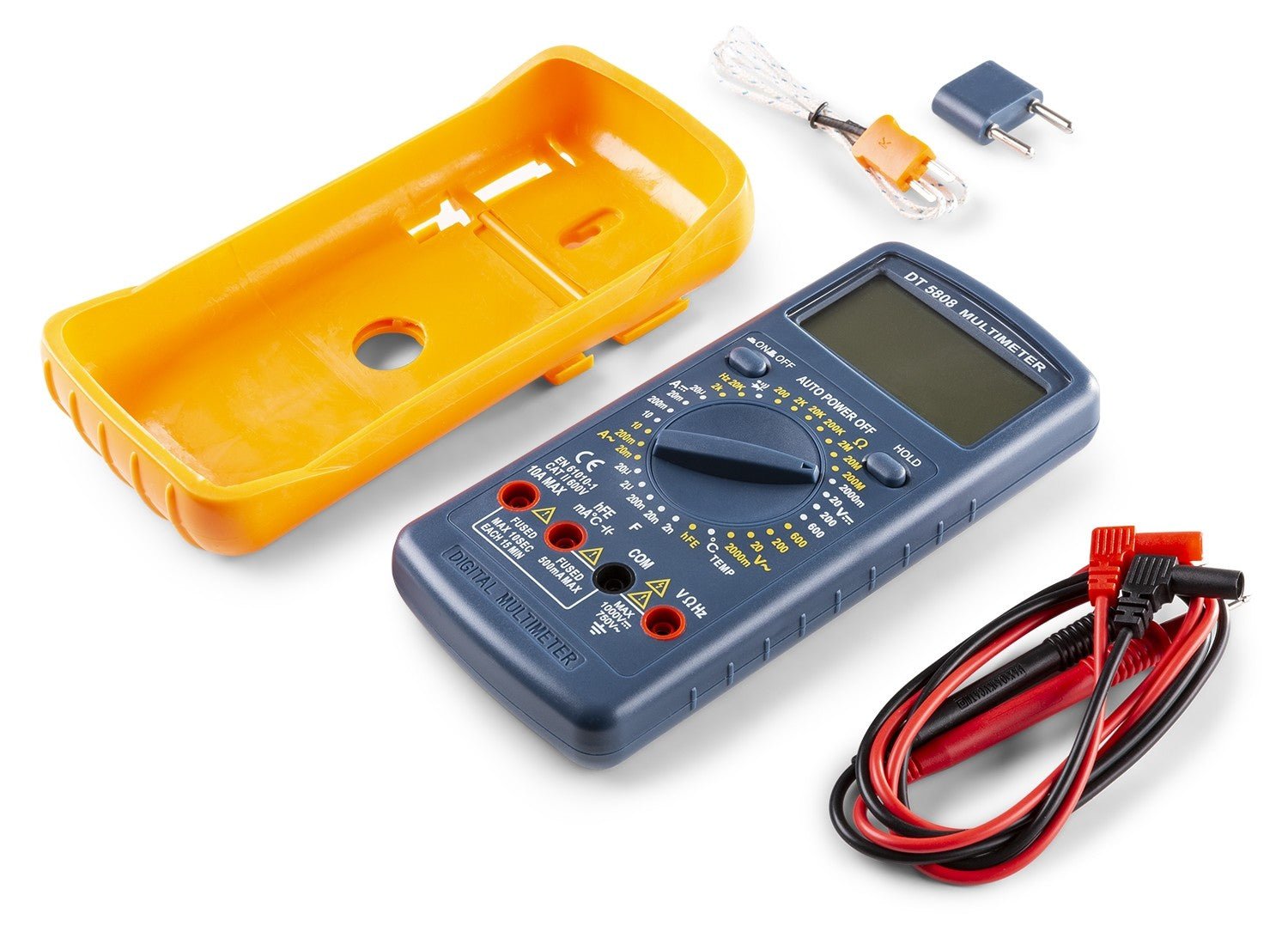

Package contents

• DMM10 Digital Multimeter
• 2 test leads (red and black)
• Temperature probe
• Multifunctional plug
• 9V battery
• User Manual

Recommendations for use and safety

• Read the manual before use and select the appropriate range for each measurement.
• Do not exceed the indicated limits (max. 600 V) and always use test leads in good condition .
• Disconnect power and discharge capacitors before measuring resistance, continuity, or diodes.
• Use indoors and avoid extreme temperatures or high humidity.

Description for projects

3½-digit (1999 count) handheld digital multimeter with backlight; measurements: DC/AC 2–600 V; DC A 20 µA–10 A; AC A 200 µA–10 A; resistance 200 Ω–200 MΩ; frequency 2–20 kHz; temperature 0–750 °C; capacitance 2 nF–20 µF; diode and continuity test; CAT II 600 V; power supply 9 V; dimensions 95 × 202 × 44 mm; weight 0.6 kg; includes holster, test leads, temperature probe, multifunction adapter, battery and manual.
