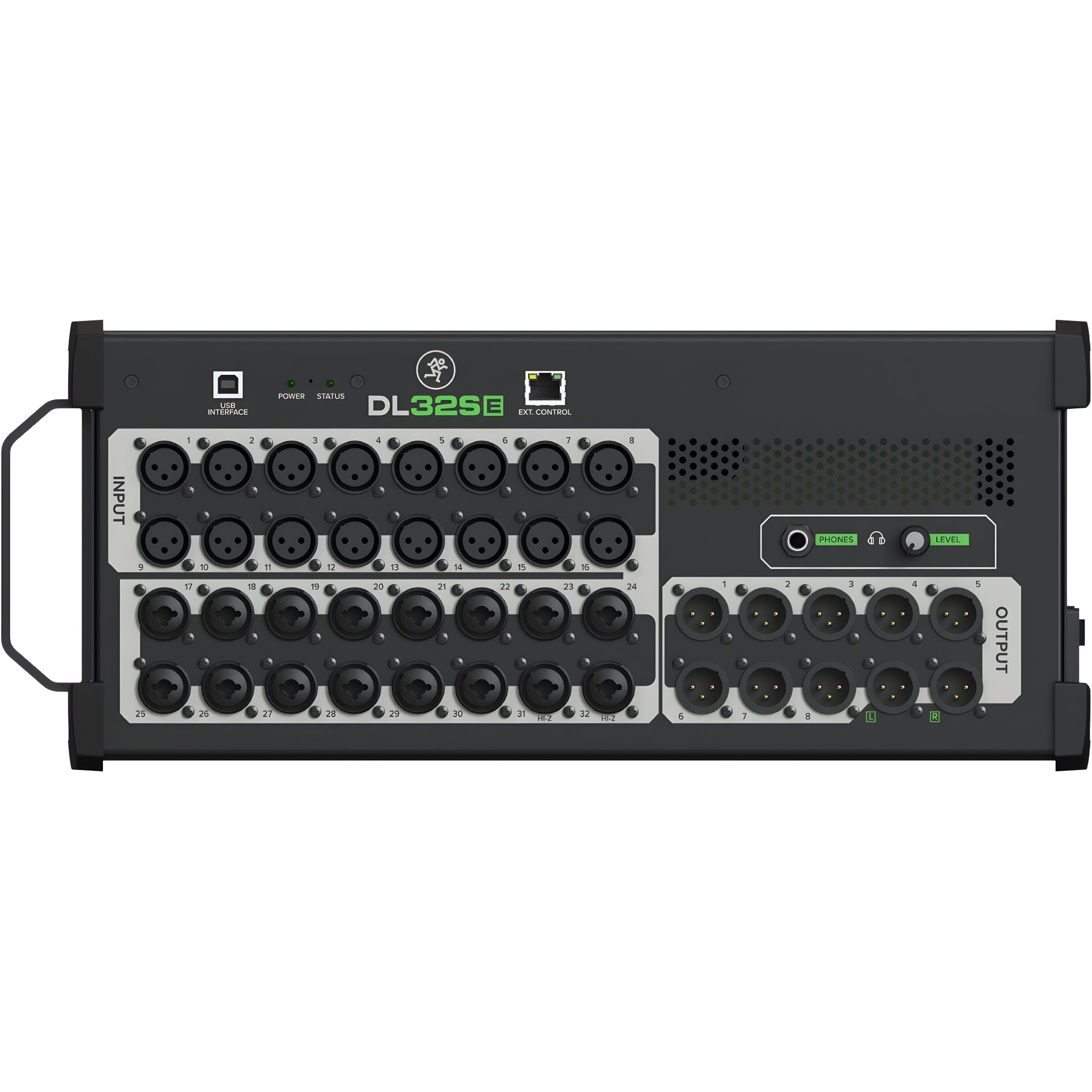

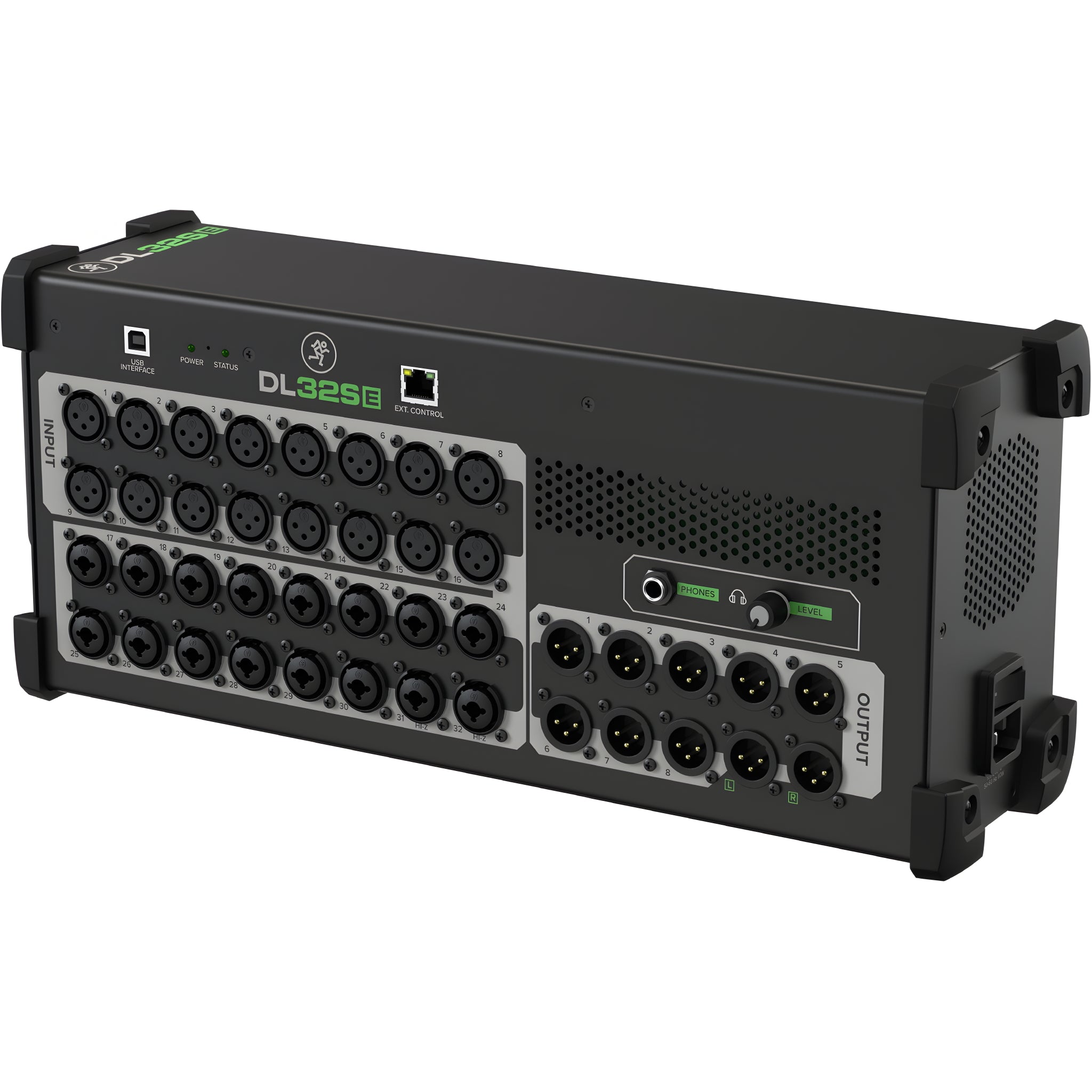

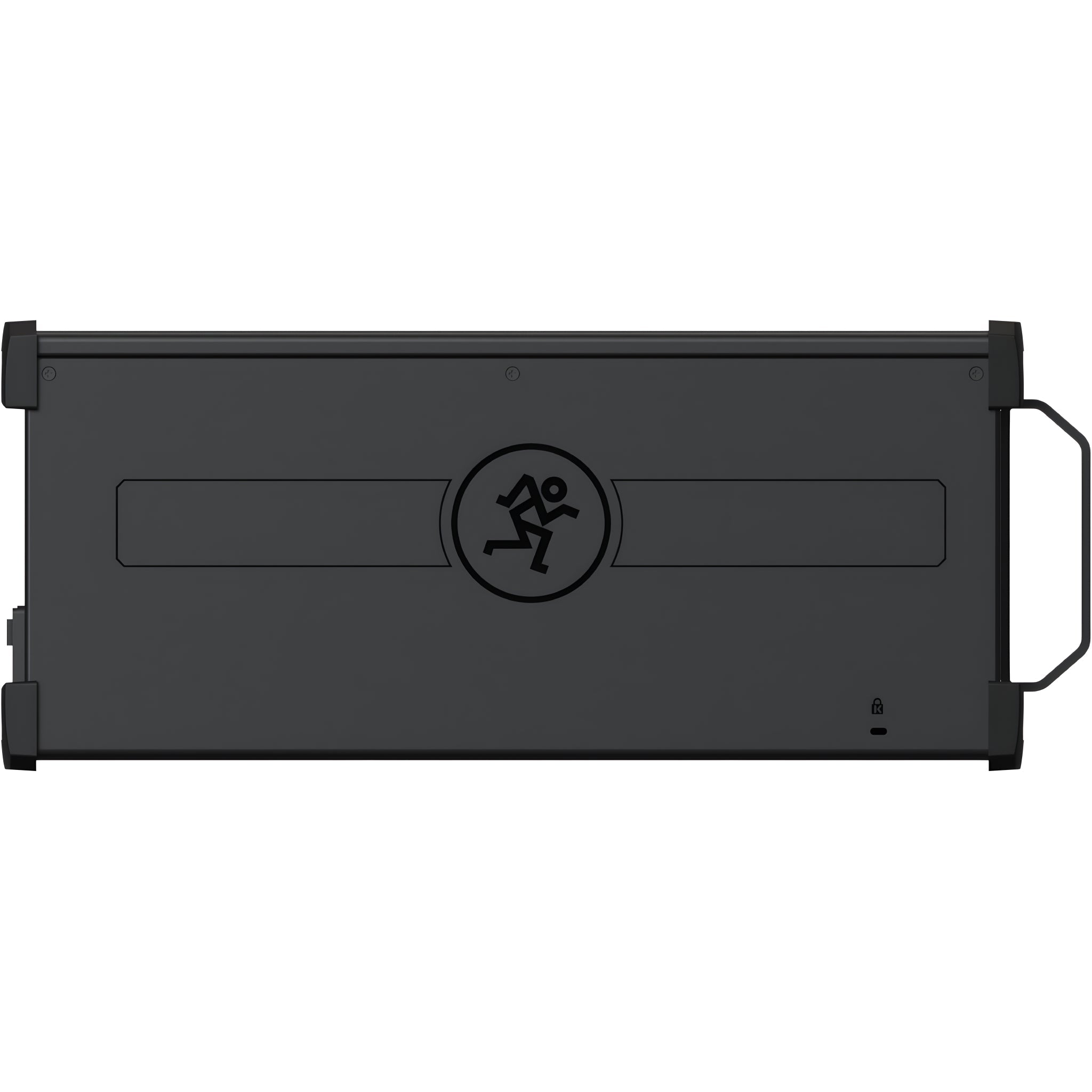

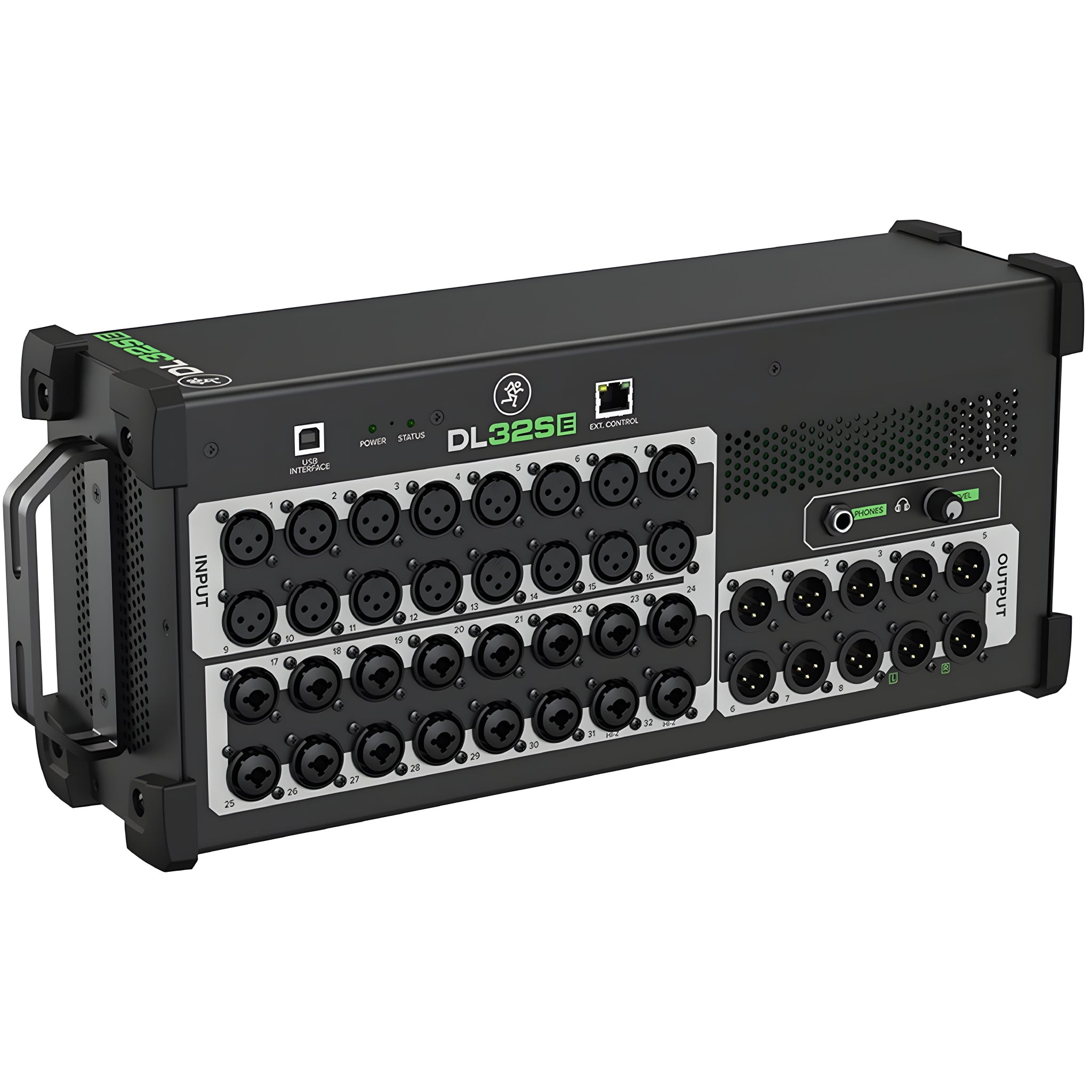

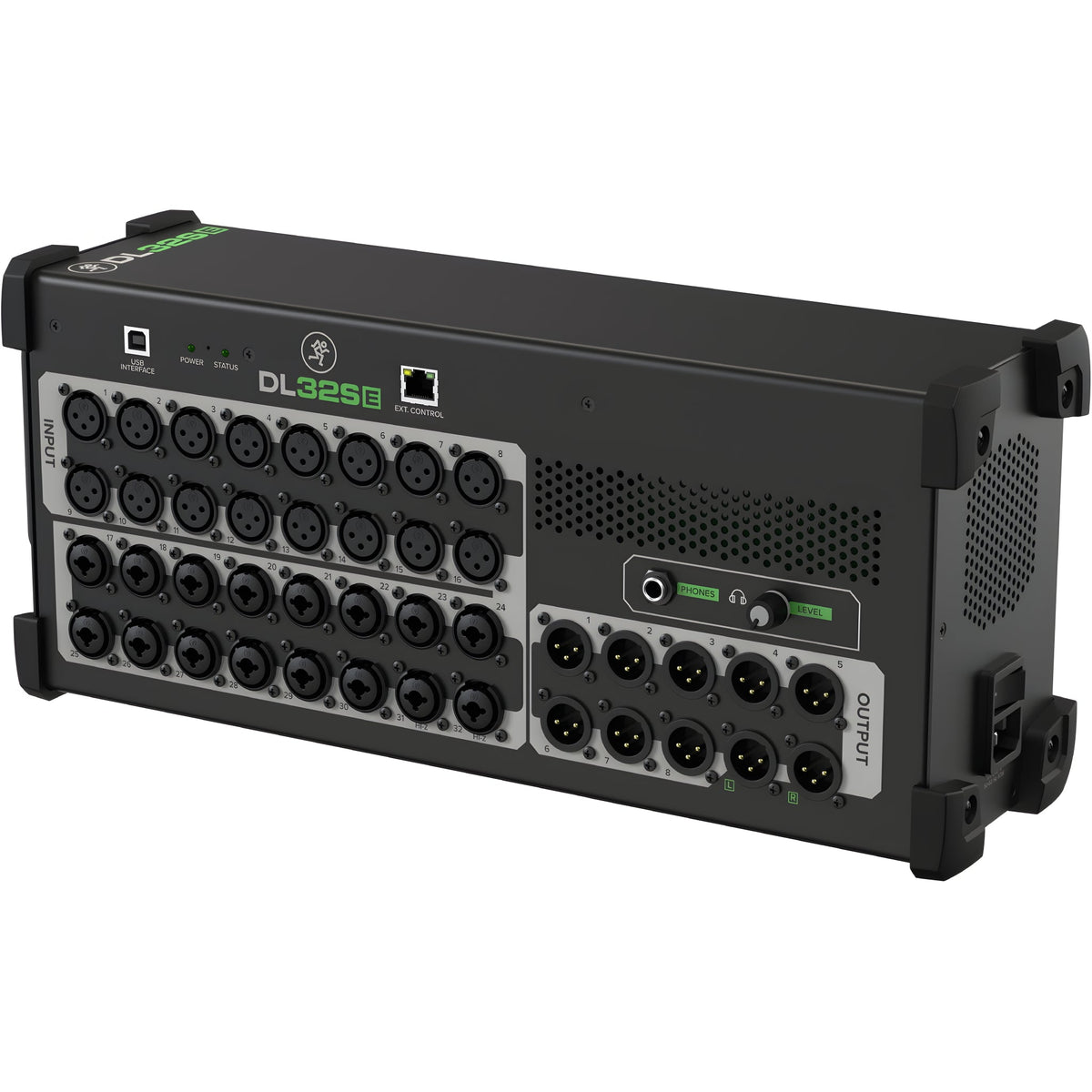

MACKIE DL32SE - 32-Channel Wireless Digital Mixer

MACKIE DL32SE – 32-Channel Wireless Digital Mixer

The Mackie DL32SE combines the power of a professional mixer with the flexibility of wireless control, delivering a 32-channel digital mixing system in a compact rack or stagebox format. Equipped with 32 recallable Onyx+™ preamps, 10 fully assignable XLR outputs, and a 32x32 USB audio interface, it delivers uncompromising reference-quality sound. Dedicated DSP on every channel and bus—with 4-band parametric EQ, filters, compression, gate, and RTA—along with four studio-grade stereo effects processors (reverbs, delays, chorus, flanger, and more) allows for precise audio sculpting. Control your mix from anywhere in the room via Ethernet with the multi-platform Master Fader SE app (iOS, Android, macOS, Windows) and mix on up to 20 devices simultaneously, with limited access for artists working in their own monitors. Its “Built-Like-A-Tank” construction, integrated handle, and included rack ears make it easy to transport and set up, while the Waveform™ OEM and DAW Essentials™ software bundle adds professional production tools and plug-ins for recording and post-production.

Main features

• 32 input channels with recallable Onyx+™ preamps (16 XLR + 16 XLR/TRS combo with 2 Hi-Z)
• 10 fully assignable XLR outputs and headphone output
• 32x32 multi-track USB 2.0 audio interface for recording and playback
• 4 stereo effects buses with reverbs, delays, chorus, flanger and sweepable filter
• Dedicated DSP on each channel and bus: 4-band parametric EQ + HPF/LPF, compression, gate and RTA/spectrograph
• 8 stereo aux sends, 6 stereo subgroups, main L/R bus, 6 VCAs and 6 mute groups
• Assignable oscillator with pink/white noise and sine wave
• Wireless control via Ethernet router and Master Fader SE app (up to 20 simultaneous devices)
• Limited access for artists to control their monitor mix
• Stagebox/rack design with integrated handle and rack ears included
• Waveform™ OEM Software and DAW Essentials™ Bundle with 16 professional plug-ins

User benefits

• Wireless mixing : mix from anywhere on the stage or in the room without being tied to the FOH.
• Total control : Adjust levels, EQ, and effects with pinpoint precision thanks to the dedicated DSP and app interface.
• Flexibility and scalability : Up to 20 engineers or musicians can connect simultaneously, with customized permissions.
• Professional quality : Onyx+™ preamps and high-fidelity audio processing for live and studio use.
• Integrated recording : 32×32 USB multitrack for recording performances or performing virtual soundchecks.
• Easy transport and assembly : Rugged construction, integrated handle and rack lugs for touring and rental.

Use cases

• Sound system for live concerts and festivals
• Audio installations in theaters, auditoriums and multipurpose venues
• Live multitrack recording and virtual soundchecks
• Broadcasting and podcasting in professional environments
• Monitor mixes for bands and artists in real time

Frequently Asked Questions

• Which router do I need? Any standard Ethernet router; no specific models or PoE required.
• Can I mix without a computer? Yes: control is handled entirely from mobile or desktop devices using the Master Fader SE app.
• How do I record the mix? Connect the DL32SE via USB 2.0 to your Mac or PC to record and play back 32x32 multitracks.

Description for projects

Mackie DL32SE digital rack mixer with 32 recallable Onyx+™ preamps, 10 XLR outputs, 32x32 USB 2.0 interface, DSP per channel and bus (4-band EQ, HPF/LPF, compression, gate, RTA), 4 stereo FX buses, 8 aux sends, 6 subgroups, 6 VCAs, 6 mute groups, built-in oscillator, wireless control via router and Master Fader SE app (iOS/Android/macOS/Windows), Waveform OEM and DAW Essentials™ software included.
