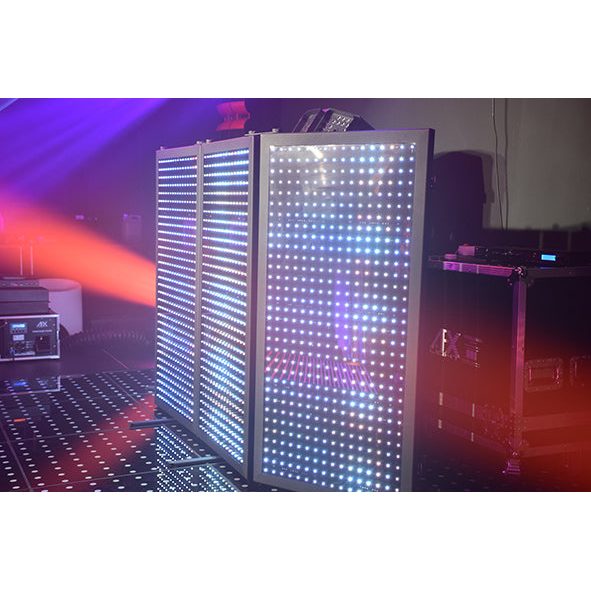

AFX Light DJ-LEDPANEL - LED DJ Video Facade (2.32 × 1.14 m)
The AFX Light DJ-LEDPANEL LED video wall is designed for professional DJs looking to transform their DJ booth into a true visual spectacle. Measuring 2.32 x 1.14 m and with an ultra-slim profile of just 4 cm, it offers an immersive surface without taking up stage space. Its four customizable panels allow for text, dynamic animations, and even videos, all controlled from the built-in controller. Its intuitive remote control facilitates real-time changes without interrupting the performance.
Main features
-
Overall dimensions: 2,320 × 40 × 1,140 mm (each panel: 580 × 40 × 1,140 mm)
-
Thickness: 4 cm
-
Panels: 4 customizable units
-
Consumption: 400 W
-
Power supply: 5 V DC / 2 A via included adapter
-
Total weight: 32 kg (empty carrying case: 40 kg)
-
Control: Multifunction remote control
-
Streaming content: Text, animations, and videos from the controller
-
Case: Flightcase with wheels for easy transport
Product benefits
- Total audience immersion with a large viewing area
- Creative flexibility: pitch, branding, and music videos instantly
- Plug & play operation that saves time on assembly and disassembly
- Easy transport thanks to the integrated flight case with wheels
- Ultra-slim design optimizes space on the DJ table
Use cases
- Concerts and outdoor events where the image accompanies the music
- Clubs and discos that require striking visual ambiance
- Fairs, exhibitions and corporate presentations
- Festivals and traveling tours
- Fixed installations in hotels, auditoriums and multipurpose spaces
Frequently Asked Questions
-
What resolution does each panel have? Each segment integrates high-density LEDs with an internal driver; the total resolution is 4,096 × 1,008 pixels distributed across the four panels.
-
Can I loop videos? Yes, the controller allows you to load and loop video clips directly from USB.
-
How are the four panels connected? They are factory-assembled using guides and quick-release fasteners; no tools are required.
-
Is the case airworthy? The flight case, reinforced with foam interior, protects your equipment during flights and demanding travel.
Description for projects
LED facade 2.32 × 1.14 m, four panels 580 × 40 × 1.14 m, consumption 400 W, power supply 5 V DC/2 A, flight case with wheels.
