beamZ DerbyStrobe LED with DMX - 2-in-1 Derby + Strobe Effect with 6 DMX Channels and IR

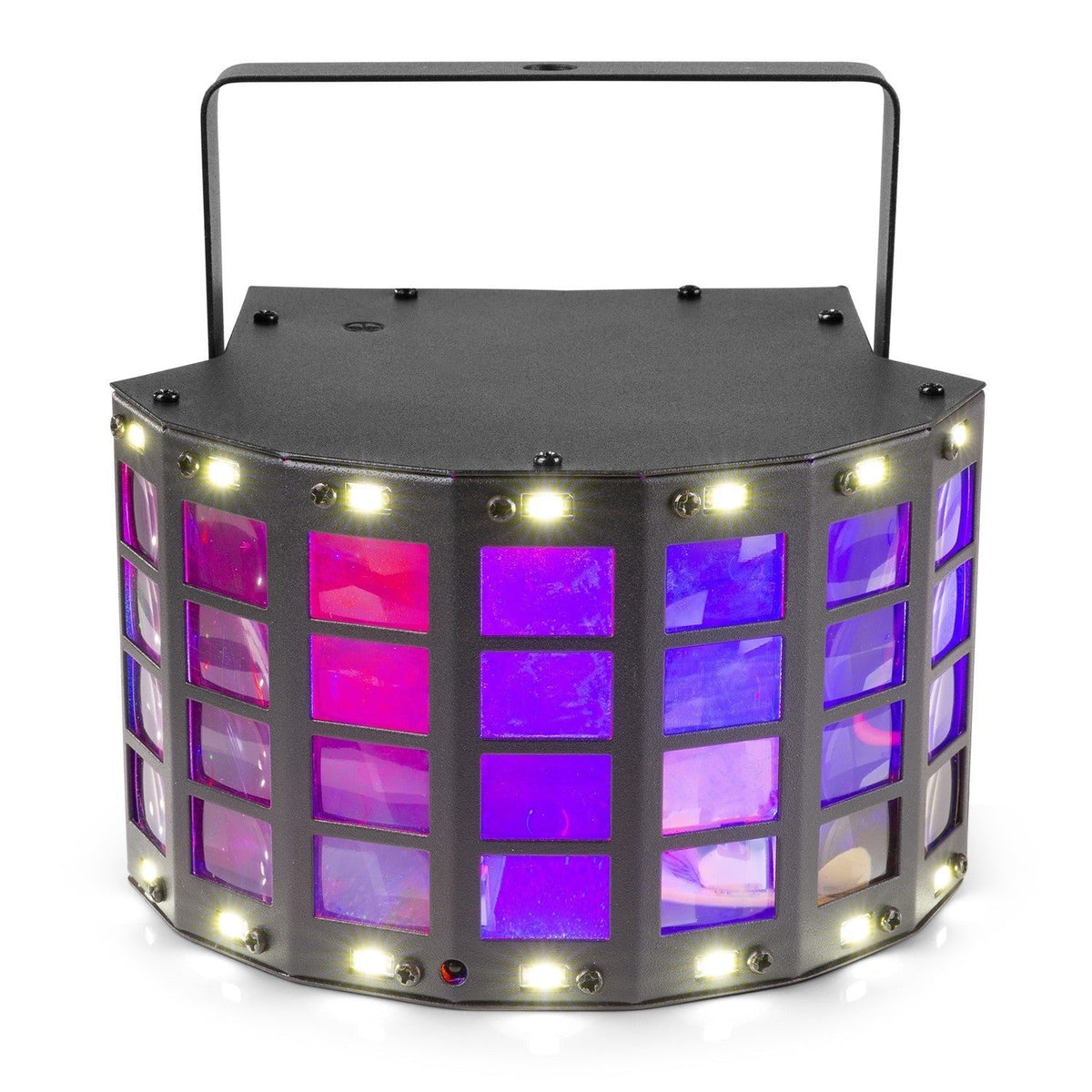

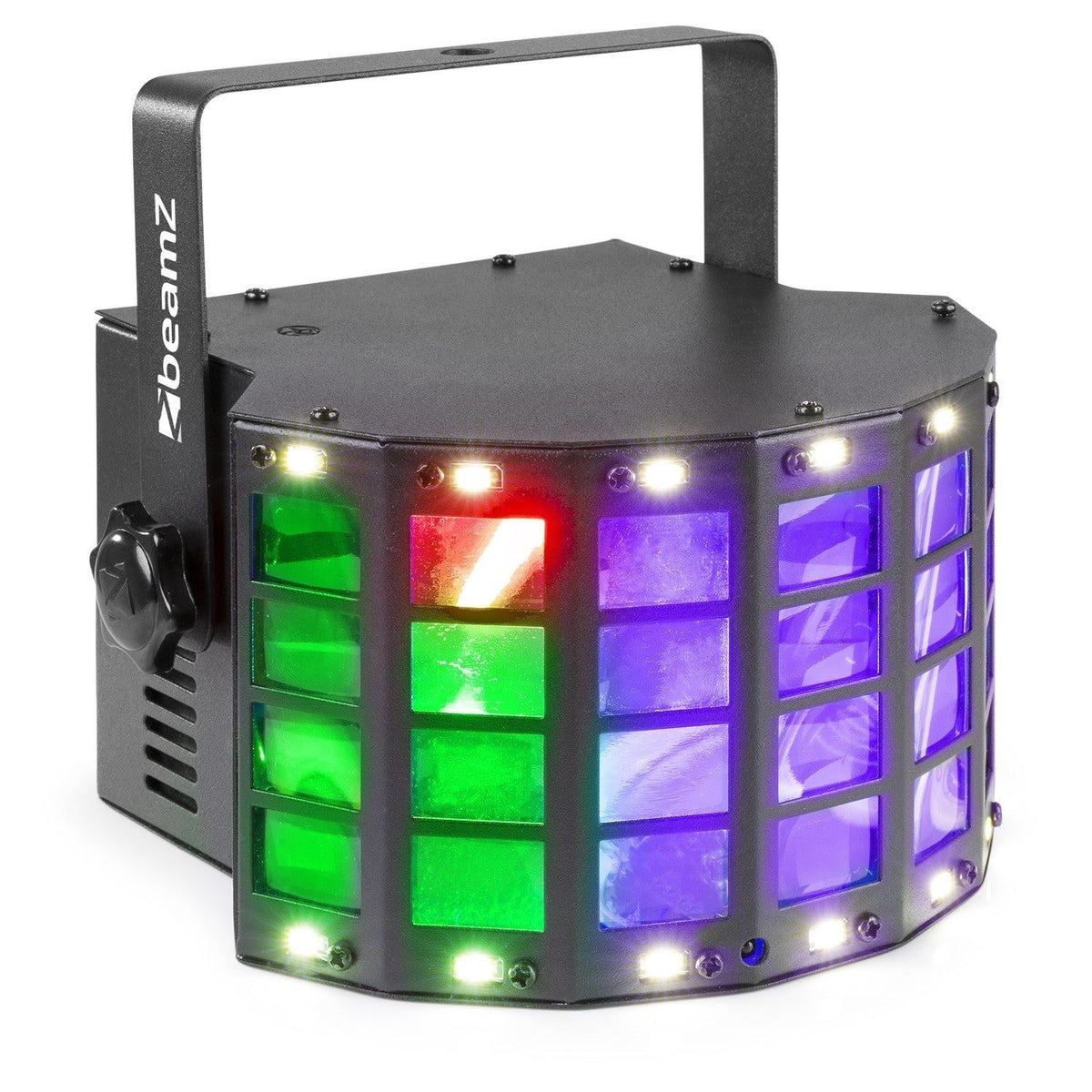

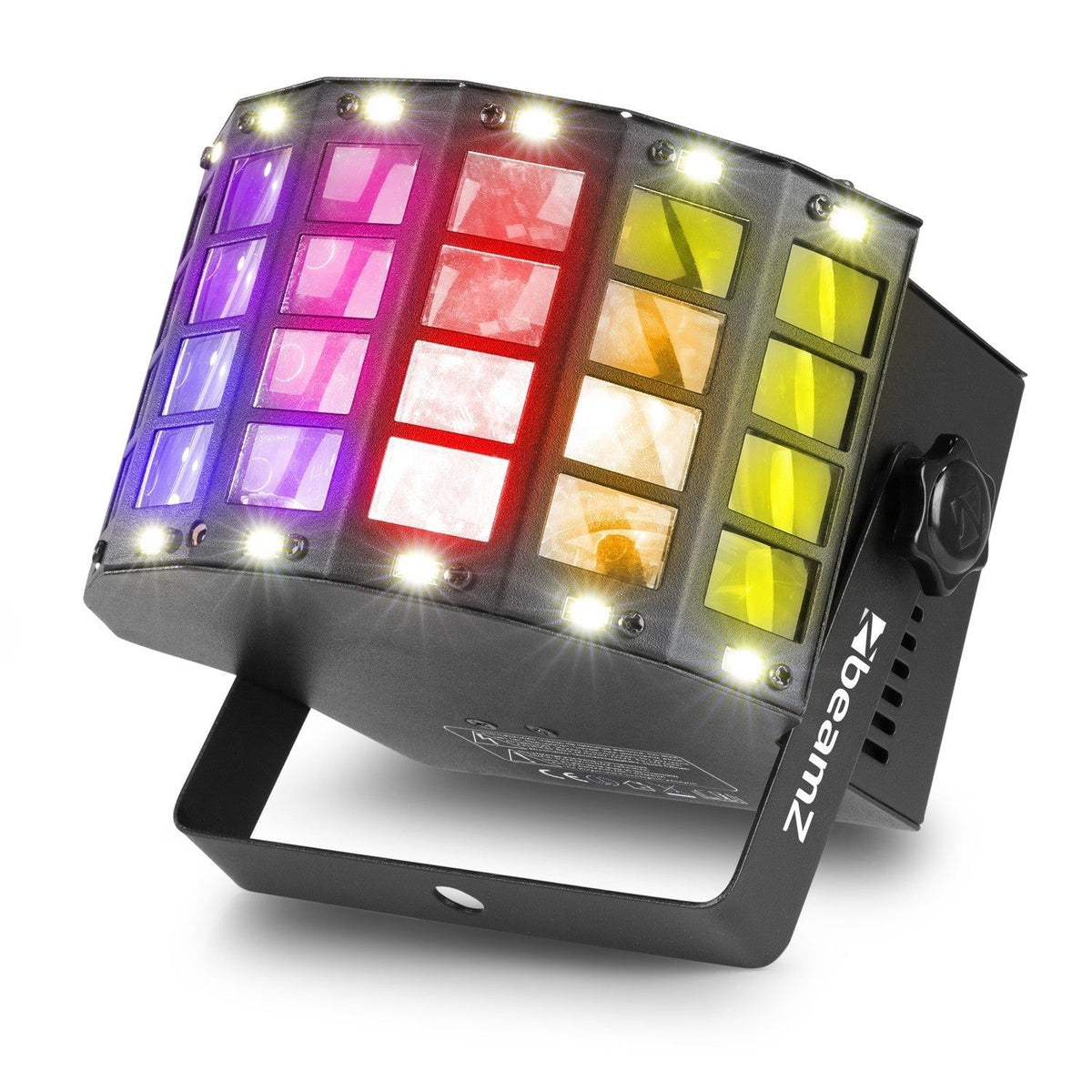

The beamZ DerbyStrobe LED with DMX combines two spectacular effects in a single unit: an RGBW Derby and an SMD strobe . Its Derby module integrates four 3W LEDs in red, green, blue, and white to generate 28 beams per pass and up to 112 beams in total, while the strobe incorporates 14 white SMD LEDs for crisp bursts of light and dynamic chases. Thanks to its automatic programs , sound-activated mode with adjustable sensitivity, and 6-channel DMX control , it's a versatile solution for both mobile DJs and fixed installations in small to medium-sized venues.
The unit is operated via its LED display panel , the included IR remote control , or DMX , with individual control of each effect to integrate the Derby and strobe into more complex shows. It features Master/Slave functionality, 3-pin XLR DMX input/output , and IEC power input/output connectors for daisy-chaining multiple units. All of this is housed in a compact and lightweight format ( 170 x 210 x 100 mm , 1.05 kg ) designed for plug-and-play indoor use.
Main features
-
2-in-1 effect : Derby RGBW + white SMD strobe.
-
Derby : 4 x 3W LEDs (RGBW) that produce 28 beams per pass, up to 112 in total.
-
Strobe : 14 x white SMD LEDs , adjustable frequency 0–20 Hz .
-
Modes : Automatic, Sound to Light (adjustable sensitivity), Master/Slave and DMX 6 channels .
-

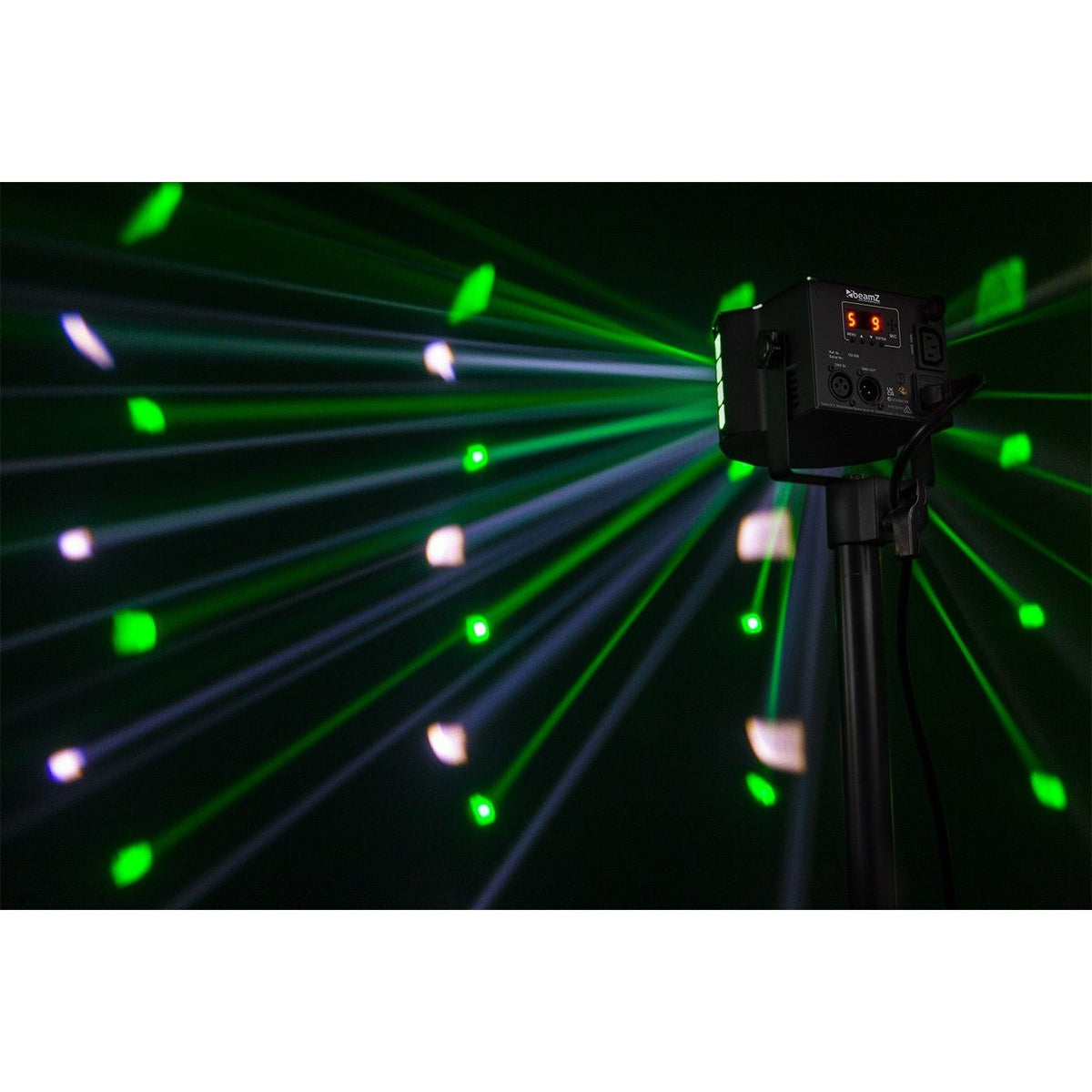

Immediate control : IR remote control included and panel with LED display .
-
Connectivity : DMX in/out via 3-pin XLR ; IEC power in/out .
-
Power supply : 100–240 V~ 50/60 Hz.
-
Compact chassis : 170 x 210 x 100 mm; weight 1.05 kg ; color black.
Product benefits
-
Great visual impact with a single unit : replaces two separate effects and saves space and wiring.
-
Control flexibility : from plug & play with Auto/Sound to DMX integration.
-
Wide and dynamic coverage : Derby beams + strobe bursts to fill small and medium-sized rooms.
-
Scalable : Synchronize multiple units in Master/Slave and daisy-chain them via IEC and DMX .
Use cases
-
Mobile DJs and entertainers : weddings, birthdays, schools and corporate events.
-
Leisure venues : bars, clubs and pubs seeking effective entertainment without technical complexity.
-
Fixed facilities : multipurpose rooms, youth centers and social clubs.
Frequently Asked Questions
-
How many DMX channels does it have? 6 channels , with separate control of the Derby and the strobe.
-
Does it include a remote control? Yes, IR remote control for selecting programs, color, and speed.
-
Can more than one unit be synchronized? Yes, via Master/Slave and IEC / DMX daisy-chaining.
-
What is the strobe speed? Adjustable from 0 to 20 Hz .
-
Does it work outdoors? Designed for indoor use .
Control and modes (summary)
-
Automatic : 3 pre-programmed shows with speed adjustment.
-
Sound to light : reaction to ambient audio with adjustable sensitivity .
-
DMX 6 ch : control of intensity and effects of the Derby and strobe to integrate into your console or software.
Installation and safety tips
-
Location : Mount the elevated unit and orient the Derby towards the ceiling/wall to maximize beam dispersion.
-
DMX signal : Use quality XLR cables and a 120 Ω terminator at the end of the line.
-
Maintenance : Clean lenses and grilles periodically to maintain brightness and ventilation.
Project description
2-in-1 LED effect for indoor use, reference 153.685: Derby RGBW with 4 x 3W LEDs (28 beams per pass, up to 112); strobe with 14 white SMD LEDs (0–20 Hz); Auto, Sound, Master/Slave and DMX modes; 6 DMX channels; DMX in/out XLR 3-pin; IEC in/out connectors; control by IR remote and panel with LED display; power supply 100–240 V~ 50/60 Hz; dimensions 170 x 210 x 100 mm; weight 1.05 kg; color black.
