PD-Connex CX187 - Splitter RJ45 to 4x XLR 3-pin Female
The PD-Connex CX187 is a professional splitter adapter designed to simplify and optimize cable management in any professional environment. Ideal for stages, recording studios, live productions, and lighting setups, this device allows you to transmit four channels of audio or data over a single, cost-effective network cable (CAT5/CAT6/CAT7) at distances of up to 100 meters. Its robust design and plug-and-play functionality make it an indispensable tool for sound engineers, lighting technicians, and installation professionals.

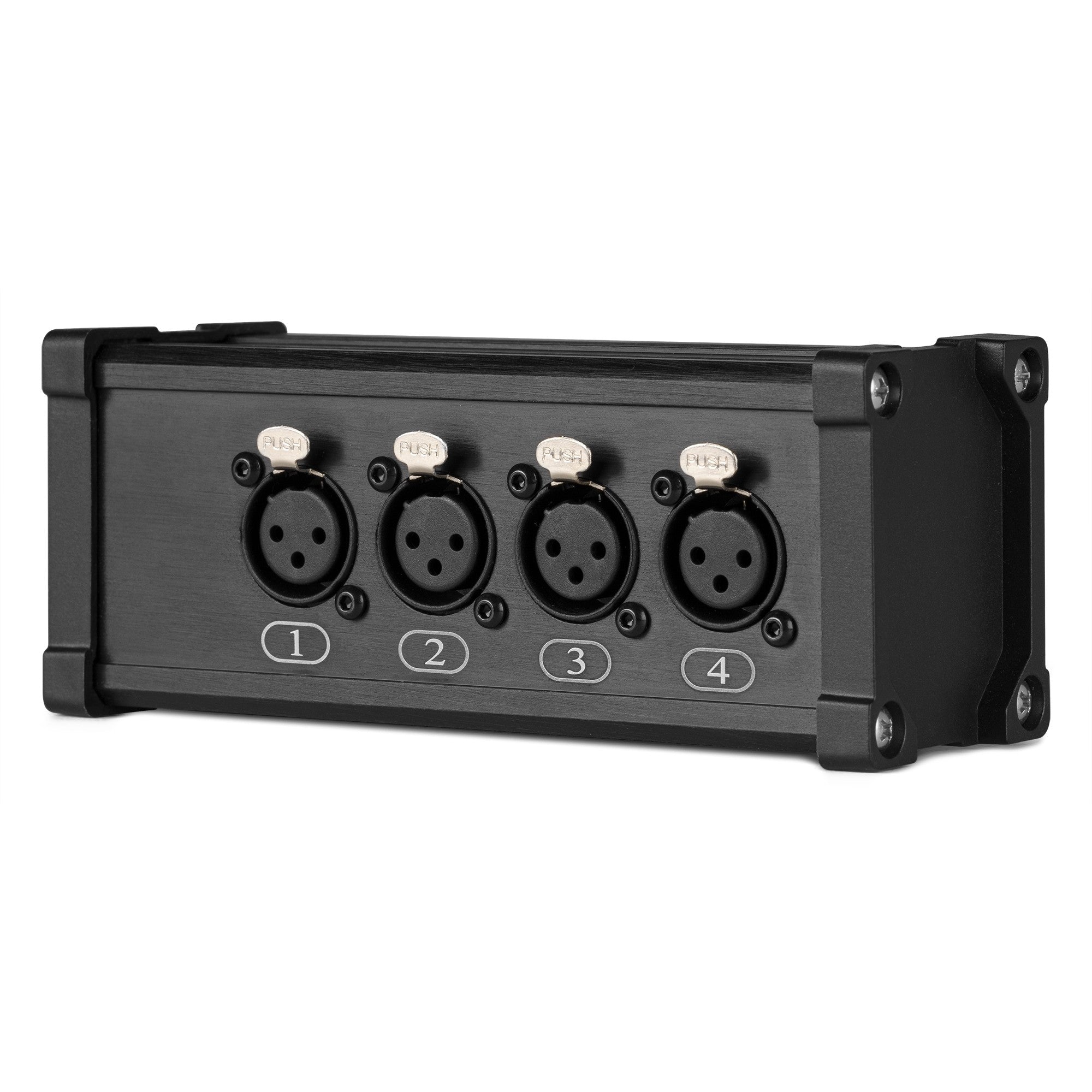

Built in a robust aluminum housing, the CX187 is designed to withstand the rigors of daily use on tours and at events. Forget heavy, bulky, and expensive multicore cables; with this adapter, you can use a standard, lightweight, and readily available network cable to reliably transmit analog audio, digital audio (AES/EBU), or lighting control data (DMX) without any loss of quality. Simply connect your devices to the four 3-pin female XLR ports, and use the RJ45 port to consolidate the transmission onto a single cable.
Main features
-
Efficient Multicore Solution: Replaces traditional multicore cables with a single network cable, reducing weight, cost, and installation time.
-

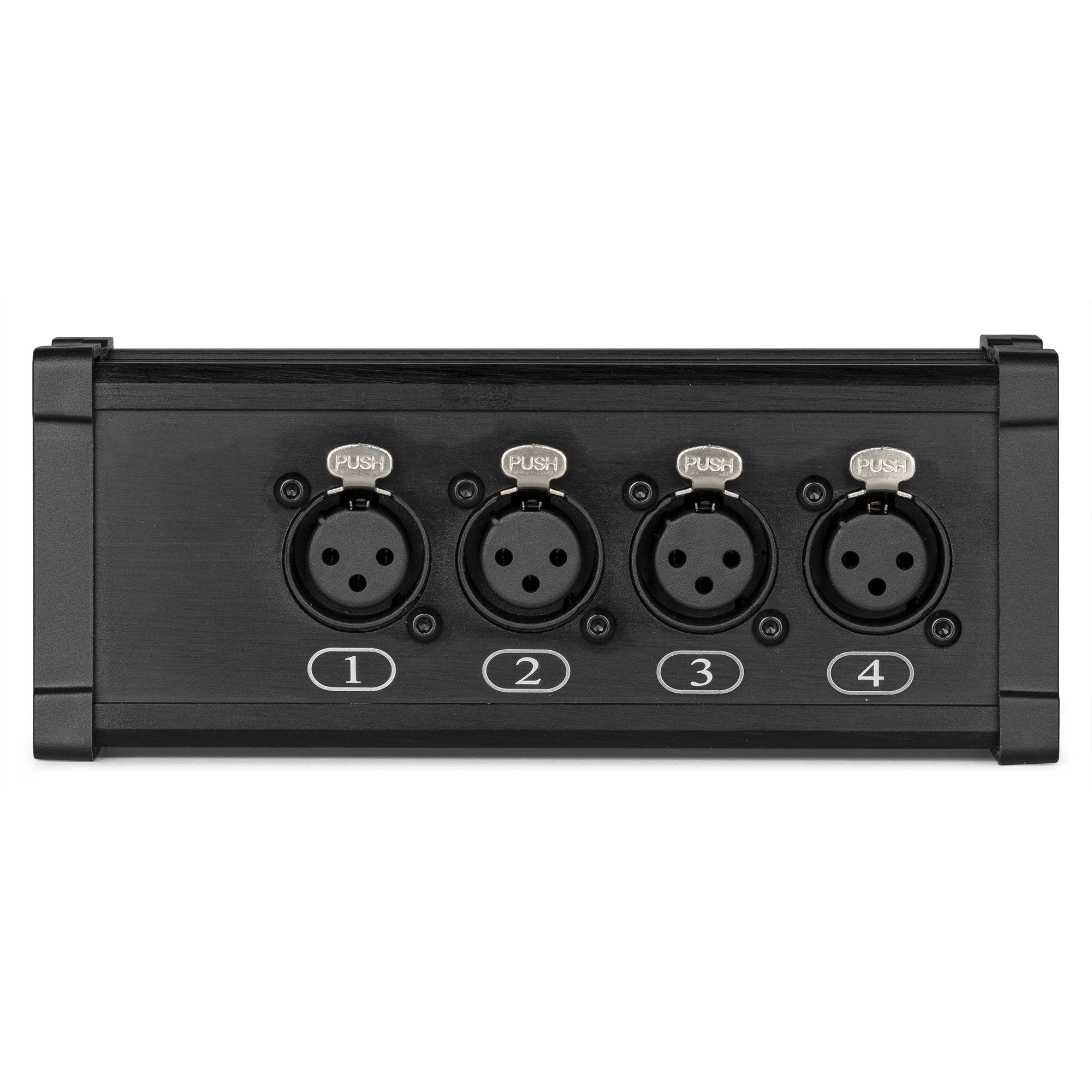

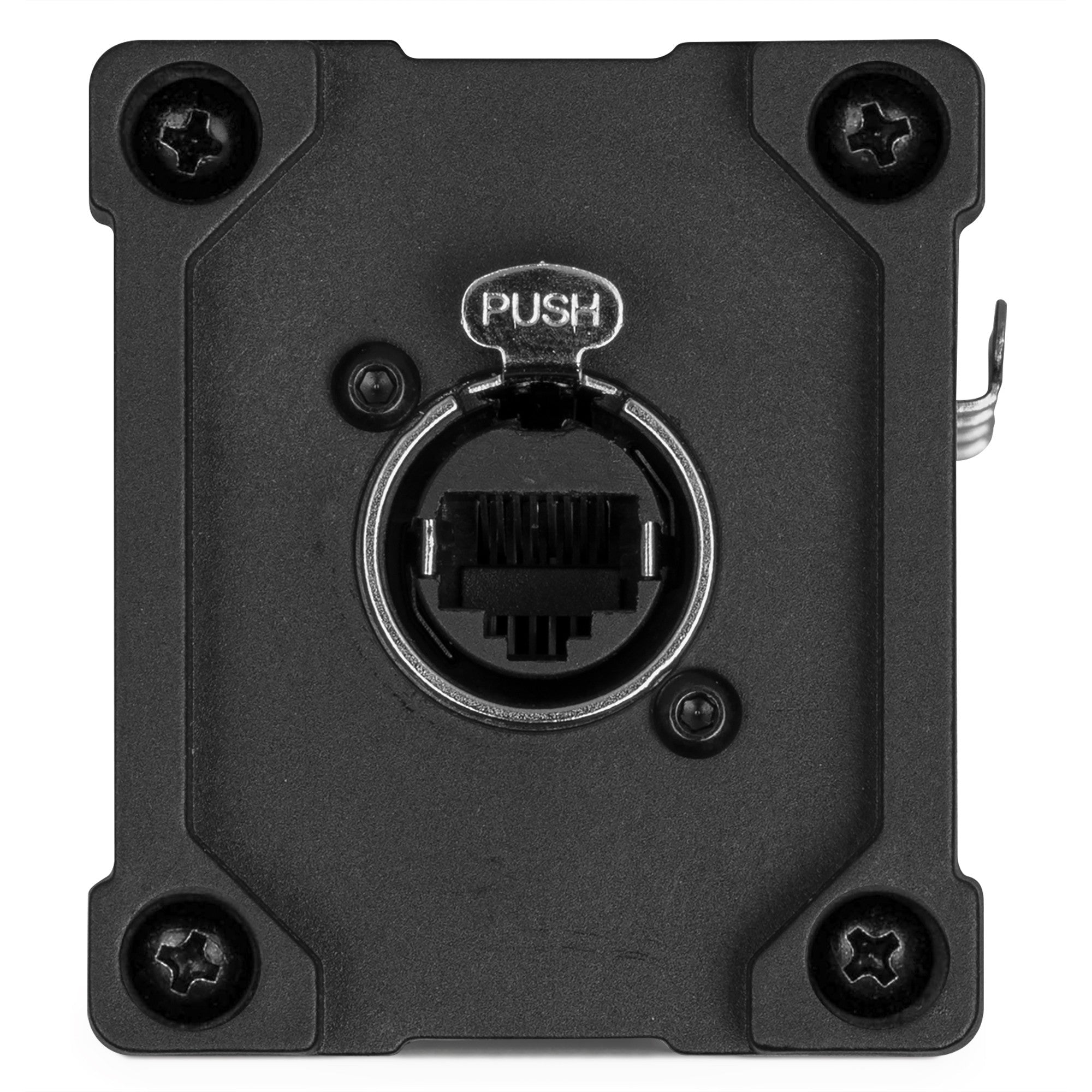

Versatile Connectivity: It has one RJ45 input and four outputs with 3-pin female XLR connectors, clearly numbered for quick and error-free identification.
-
Long Distance Transmission: Capable of reliably sending signals through network cables up to 100 meters in length.
-
Wide Signal Compatibility: Perfect for transmitting analog audio signals, digital audio (AES/EBU) and DMX lighting control.
-
Robust Construction: Its high-strength aluminum casing ensures durability and protection in the most demanding environments.
-
Professional Mounting: Equipped with an M10 threaded hole inside, allowing secure attachment to trusses, supports or any standard structure.
-
Use with Phantom Power: It is fully compatible with +48V Phantom Power, provided that a shielded network cable (FTP/STP) is used.
-
Plug-and-Play Operation: No software, drivers, or external power required. It's a passive solution ready to use instantly.
Product benefits
The CX187 adapter is designed to maximize the efficiency and professionalism of any setup. For sound and lighting technicians, it means faster setup and teardown, a cleaner and safer stage, and a significant reduction in the weight and volume of equipment to be transported. In recording studios, it facilitates the routing of multiple channels between different rooms using the existing network infrastructure. For permanent installations in theaters, churches, or conference halls, it offers a discreet and permanent solution that greatly simplifies the connection of remote equipment.
Use cases
-
Live Sound: Connect a full miked drum kit or multiple vocal microphones from the stage to the mixing console using a single Ethernet cable.
-
Lighting Control: Send up to four DMX signal universes from one console to different sections of a truss or to multiple lighting fixtures.
-
Recording Studios: Link the preamps in a recording room to the audio interface in the control room in a clean and organized manner.
-
Audiovisual Installations: Distribute audio signals to different areas or speakers at corporate events, trade fairs or convention centers.
Frequently Asked Questions
Do I need two units for the system to work?
Yes. This is a passive system that requires two identical adapters. One unit is used to combine the four XLR signals on the network cable (RJ45), and the other unit at the opposite end splits them back into four XLR outputs.
Can I use it with phantom power for condenser microphones?
Yes, the CX187 is compatible with +48V phantom power. However, it is essential to use a shielded network cable (e.g., CAT5e STP, CAT6 FTP) to ensure proper grounding and avoid noise or interference.
What type of network cable should I use and what is the maximum length?
For optimal performance, it is recommended to use high-quality CAT5, CAT6, or CAT7 network cables. The maximum effective length is up to 100 meters. For use with phantom power, the cable must be shielded.
Does this adapter convert the audio signal to a network protocol like Dante?
No. The PD-Connex CX187 is a passive device. It does not perform any signal conversion or use Audio over IP (AoIP) protocols such as Dante or AVB. It simply uses the internal wire pairs of the network cable to carry the original XLR signals (whether analog or digital, such as DMX/AES) from one point to another.
Project description

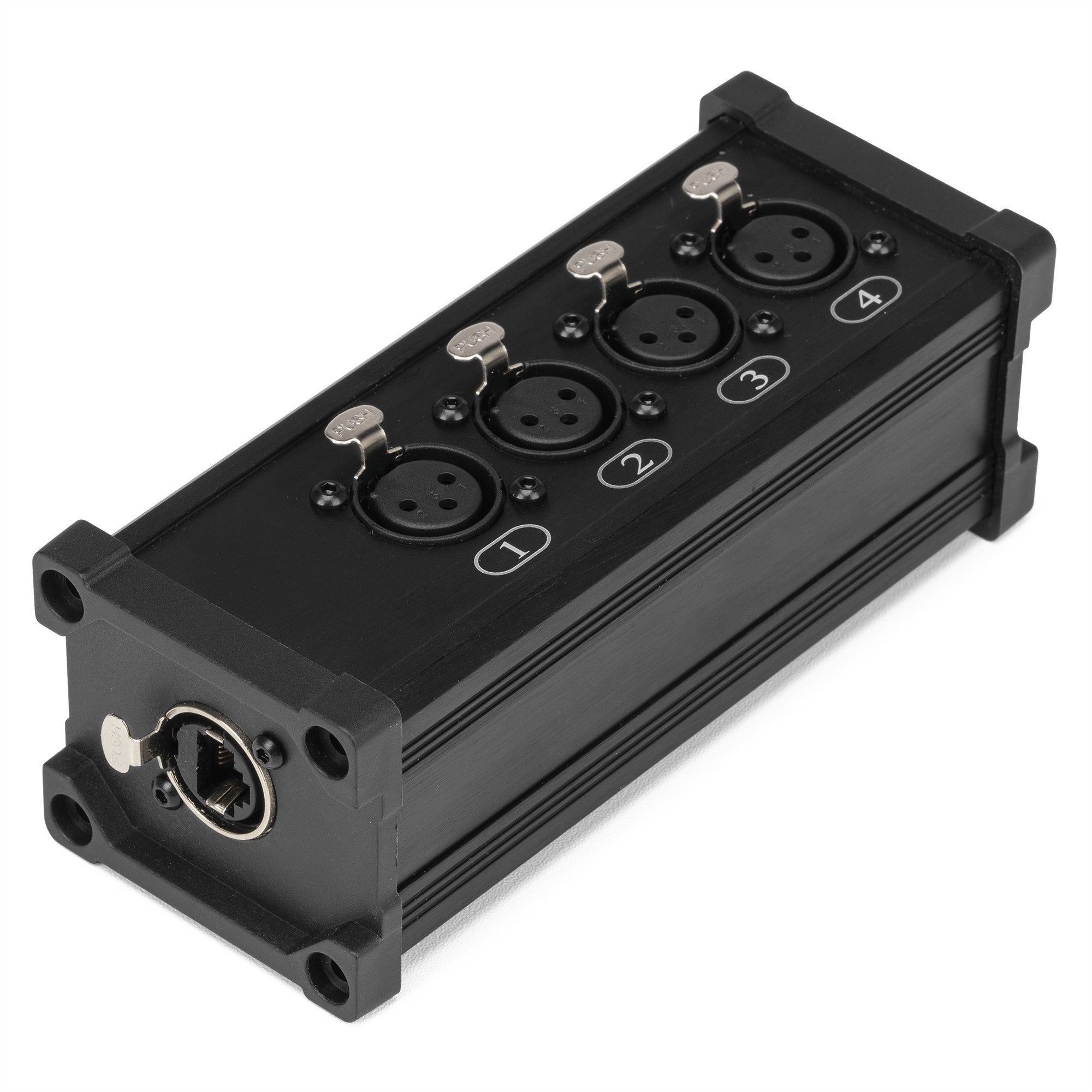

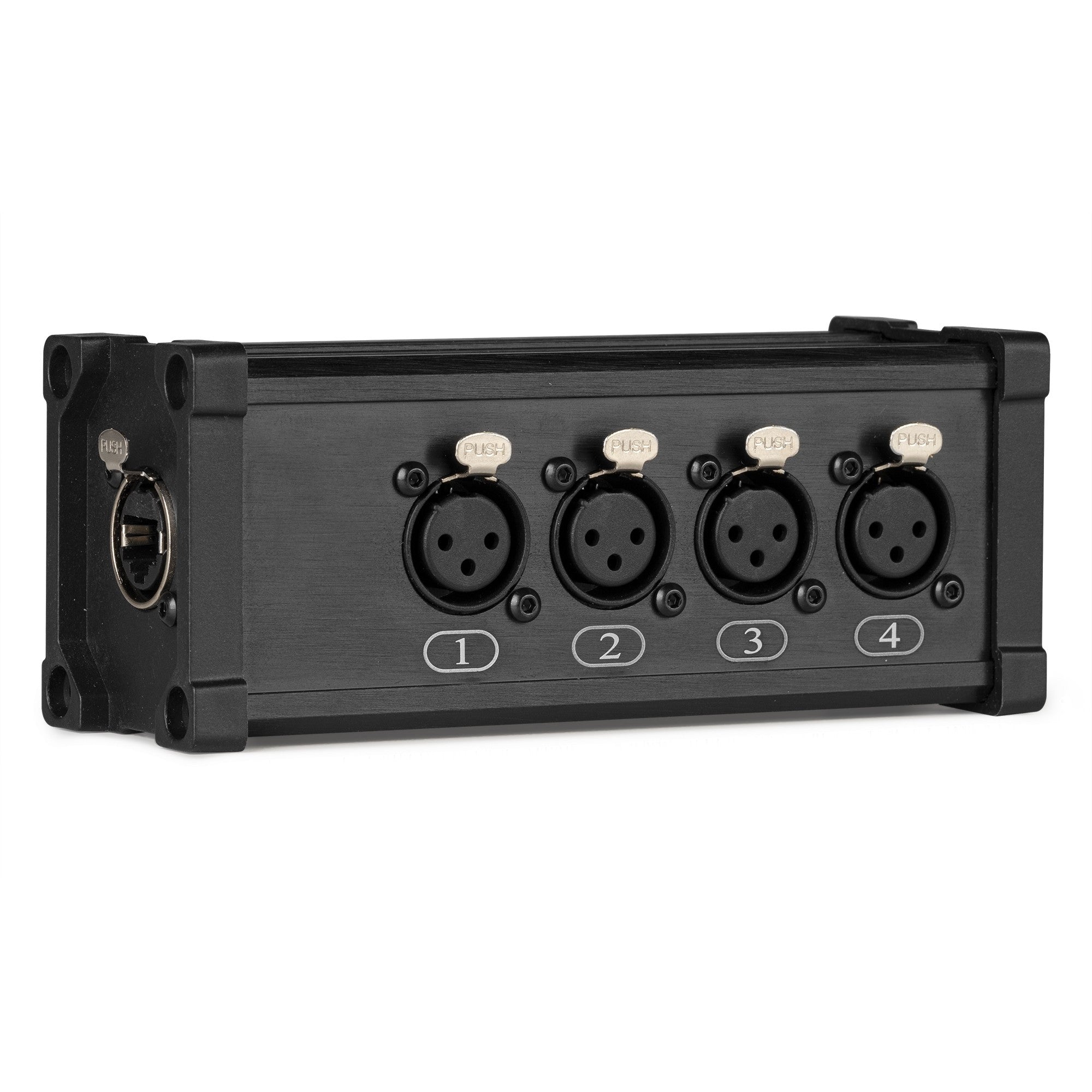

Passive splitter/adapter with an aluminum housing. It features one RJ45 input port and four individually numbered 3-pin female XLR output ports. It supports the transmission of analog audio signals, AES/EBU digital audio, and DMX lighting control. For use with phantom power, it requires a shielded network cable (CAT5/CAT6/CAT7). It includes an M10 threaded hole for mounting on trusses or other structures. Device weight: 0.232 kg. Color: Black.
