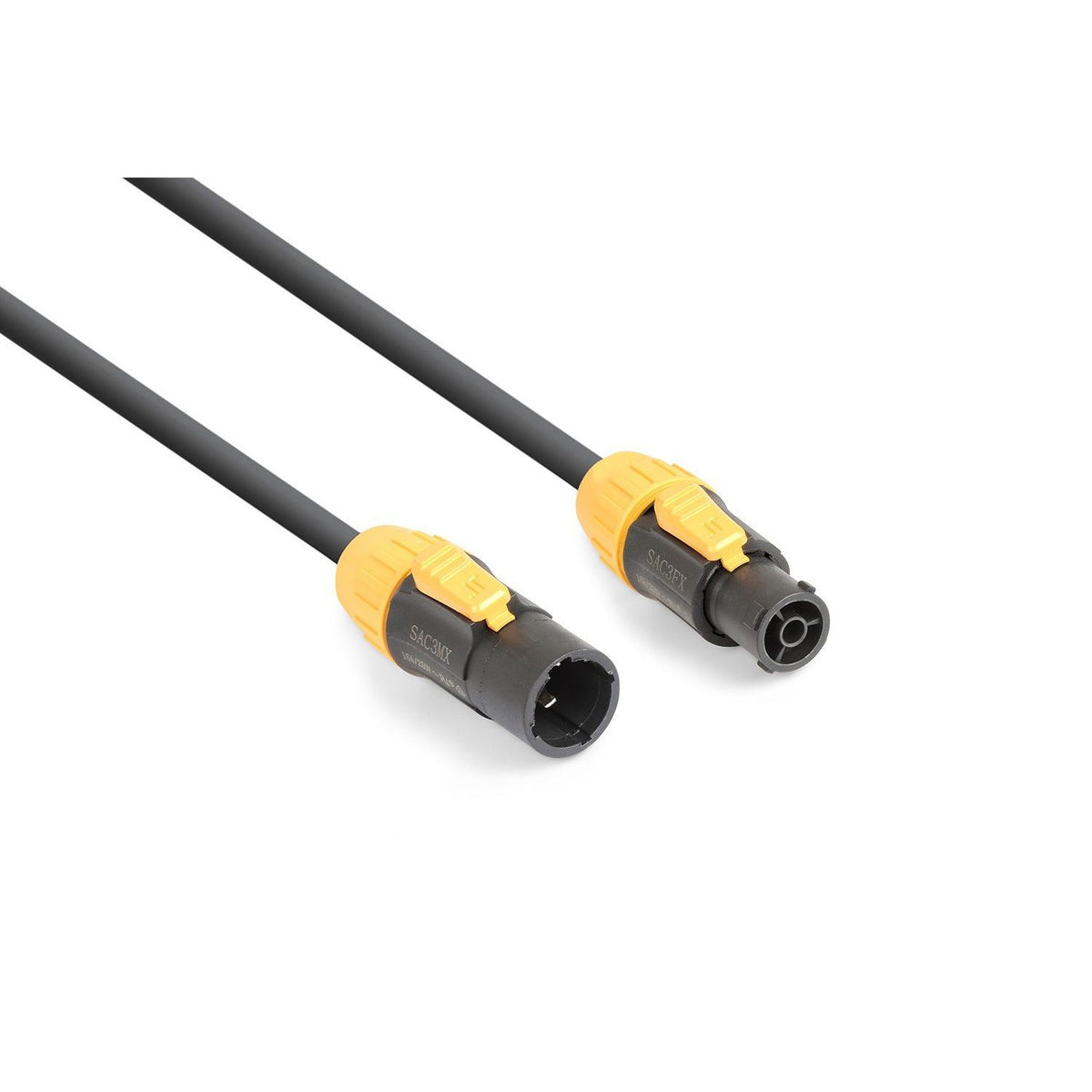

PD-Connex CX16-1 - 1.5m Powerconnector TR IP65 Extension Cable
The PD-Connex CX16-1 is a professional power extension cable designed to provide a safe and reliable electrical connection in the most demanding environments. Measuring 1.5 meters in length, this flexible cable is equipped with IP65-rated Powerconnector TR (True) connectors, ensuring complete protection against dust and water jets from any direction. Its robust construction, featuring a 3x1.5 mm² conductor, makes it the ideal solution for powering lighting, sound, and video equipment in professional indoor and outdoor applications.
Main Features
-
Professional Connectivity: Equipped with Powerconnector TR (A) input and Powerconnector TR (B) output connectors, compatible with industry standards for safe and efficient interconnection.
-
High Resistance and Durability: Its IP65 rating makes it suitable for outdoor use, resisting adverse conditions such as rain, dust and humidity without compromising performance.
-
Guaranteed Safety: It incorporates a quick and easy locking system that prevents accidental disconnections due to pulling or vibration, ensuring a continuous power supply. It is also protected against short circuits.
-
High Load Capacity: Supports a current of up to 16 amps, allowing high consumption equipment to be powered without overheating or voltage drops.
-
Quality Construction: The cable has a 3-core inner conductor of 1.5 mm² and an outer diameter of 9 mm, giving it great flexibility and mechanical strength.
Benefits for Entertainment and Event Professionals
For sound engineers, lighting technicians, and event organizers, reliable power is crucial. The PD-Connex CX16-1 cable offers the peace of mind of a robust and secure connection that won't fail in critical moments. Its IP65-rated design eliminates concerns about weather conditions at festivals, outdoor concerts, or any outdoor installation. The quick-lock system speeds up setup and teardown, saving time and ensuring connections remain secure throughout the event.
Use Cases
This extension cable is the perfect tool for a wide range of professional applications, including:
- Connecting active speaker systems and stage monitors.
- Power supply for moving heads, LED spotlights, and other professional lighting equipment.
- Power supply to LED video screens and projection equipment.
- Fixed or temporary installations in theaters, television studios, and convention centers.
- Use on tours, festivals and outdoor corporate events where protection from the elements is essential.
Frequently Asked Questions
What does the IP65 rating mean?
The IP (Ingress Protection) rating indicates the level of protection a device offers against the ingress of solids and liquids. A "6" means the connector is completely dustproof, and a "5" indicates it is protected against low-pressure water jets from any angle. This makes it safe for outdoor use in the rain.
Are these connectors compatible with Neutrik powerCON TRUE1?
Yes, the Powerconnector TR (True) connectors used in this cable are designed to be fully compatible with the Neutrik powerCON TRUE1 system, allowing for seamless integration with existing equipment that uses this industry standard.
Can multiple cables be connected in series to extend the length?
Yes, thanks to its input (A) and output (B) connectors, it is possible to chain several PD-Connex CX16-1 cables together to achieve the desired length, as long as the maximum load capacity of the source circuit is not exceeded.
Project description
Professional 1.5-meter power extension cable. Equipped with Powerconnector TR (A) input and (B) output connectors. IP65 rated for dust and water resistance. The inner conductor is 3 x 1.5 mm² and the outer cable diameter is 9 mm. Designed to handle a maximum load capacity of 16 A and 250 VAC. Features a quick-lock system for secure connection.
