PD-Connex CX10-20 - Combined Schuko Power and DMX/Audio Signal Cable 20m
The PD-Connex CX10-20 is a professional and efficient solution designed to simplify the setup of lighting and sound systems. This 20-meter combo cable integrates a power cable and a balanced signal cable into a single robust sleeve, eliminating the need to run two separate cables. This feature significantly reduces clutter, speeds up setup and teardown times, and provides a much cleaner and more organized appearance on any stage, in any studio, or in any permanent installation.
Built to withstand the demands of professional use, the CX10-20 combines a 3x1.5mm² power cable, capable of handling up to 16A, with a high-quality, perfectly shielded signal cable to ensure interference-free DMX or audio signal transmission. Its industry-standard connectors guarantee maximum compatibility with a wide range of equipment, from LED effects and moving heads to powered speakers and mixing consoles.
Main Features
-
2-in-1 design: Integrates a power cable and a balanced signal cable (DMX/Audio) into a single protective cover, optimizing cable management.
-

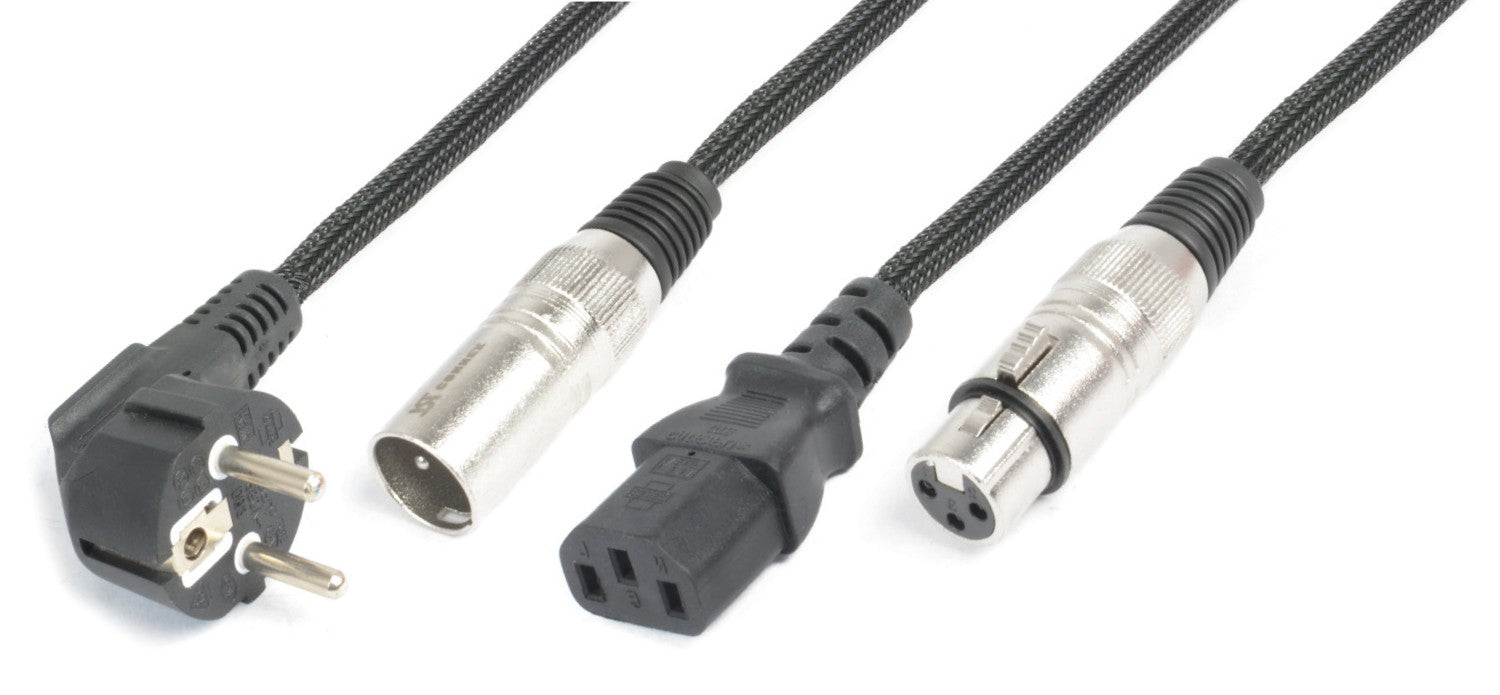

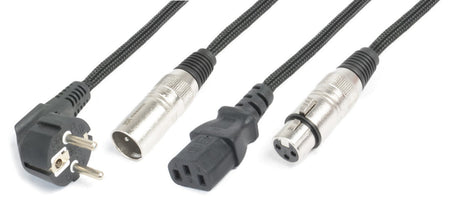

Professional Connectors: One end features a male Schuko connector and a 3-pin male XLR connector. The other end features a female IEC connector and a 3-pin female XLR connector.
-
Robust Power Cable: Made with a 3 x 1.50 mm² section, it allows safe power supply for equipment with a consumption of up to 16 Amps.
-
Reliable Signal Transmission: The signal cable features effective shielding to protect against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring clean DMX data or audio transmission.
-
Generous Length: Its 20 meters in length make it ideal for medium to large-sized stages, studios, theaters, or any application that requires a considerable distance between equipment.
-
Durable Construction: With an outer diameter of 10.8 mm, the cable is sturdy yet flexible enough for convenient handling and storage.
Benefits for the Professional
The use of the PD-Connex CX10-20 combined cable results in multiple practical advantages:
-
Efficiency and Time Savings: Cuts in half the time spent laying and collecting cables, a crucial factor in events and tours with tight schedules.
-
Cleaner and Safer Installations: Minimizes the risk of tripping and improves the overall aesthetics of the assembly by reducing the amount of visible cables.
-
Maximum Versatility: It is the perfect solution for connecting lighting equipment such as moving heads, LED PAR lights and color bars, as well as for powering and sending audio signals to active speakers.
-
Guaranteed Reliability: The quality of its components ensures a stable and long-lasting connection, minimizing the possibility of technical failures during an event.
Use Cases
This cable is an indispensable tool for a wide variety of professional applications, including:
- Installation of lighting equipment on stages for concerts and festivals.
- Fixed installations in theaters, auditoriums, conference rooms and nightclubs.
- Audiovisual equipment rental companies seeking robust and efficient solutions.
- Connecting sound systems with self-powered speakers that require power and an audio signal.
- Recording or broadcast studios where the organization of cabling is fundamental.
Frequently Asked Questions
Is this cable compatible with any lighting equipment?
Yes, it is compatible with the vast majority of professional lighting equipment that uses an IEC power input and DMX control via 3-pin XLR connectors.
Can I use this cable to send an audio signal instead of DMX?
Absolutely. The signal cable is balanced and shielded, making it perfectly suitable for transmitting line-level or microphone-level audio signals without loss of quality or interference.
What is the maximum current that the power line can handle?
The power cable has a cross-section of 3x1.5mm², allowing it to safely withstand a maximum current of 16 Amps.
Is this cable suitable for intensive use on tours?
Yes, its robust and flexible design has been conceived to withstand the conditions of live use, facilitating repeated rolling and unrolling without deterioration.
Project description
This 20-meter combined cable features a single-sleeved design integrating a power line and a signal line. The power line uses 3 x 1.5 mm² conductors, Schuko male to IEC female connectors, and supports a maximum current of 16 A. The signal line is a DMX/balanced audio type, equipped with 3-pin male XLR to 3-pin female XLR connectors, an 8 x 0.2 mm² conductor, and 64 x 0.08 mm² shielding. The cable's overall outer diameter is 10.8 mm.
