PD-Connex CX10-15 - 15m Hybrid Power and DMX Signal Cable
The PD-Connex CX10-15 is a professional and efficient cabling solution designed to simplify the connection of lighting and effects equipment. This combination cable, also known as a hybrid cable, integrates both power and DMX control signals into a single robust cable. At 15 meters long, it offers great flexibility for installations on stages, trusses, or in studios, eliminating clutter and cutting setup and teardown time in half. Forget about running two separate cables for each piece of equipment; the CX10-15 provides a clean, secure, and reliable connection in a single product.

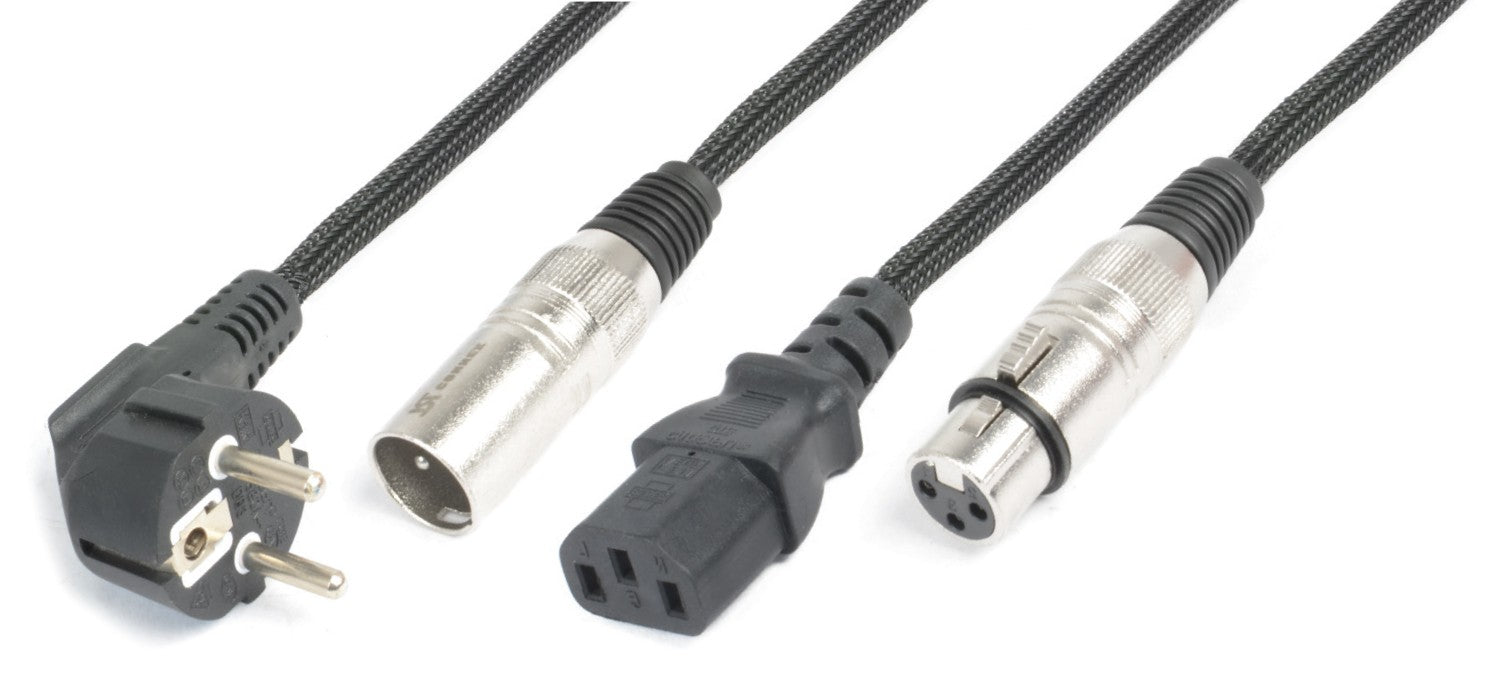

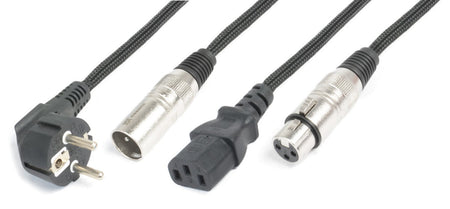

At one end, the cable is equipped with a male Schuko connector for power and a male 3-pin XLR connector for the DMX signal. At the opposite end, it has a female IEC connector for powering the equipment and a female 3-pin XLR connector for the DMX signal output or continuation. This configuration is ideal for professionally connecting moving heads, LED PAR lights, color bars, and other lighting effects, and also allows for quick and easy daisy-chaining of multiple devices.
Main features
-
2-in-1 solution: Combines a power cable and a DMX signal cable into a single protective cover.
-
Generous Length: Its 15 meters in length are perfect for covering distances on stages and large setups.
-
Professional Connectors: Equipped with Schuko (M) and XLR (M) connectors on one end, and IEC (F) and XLR (F) connectors on the other.
-
Safe Power Supply: The power line has a section of 3x 1.50mm², capable of supporting a maximum current of 16A, guaranteeing a stable supply for high consumption equipment.
-
Reliable DMX Transmission: The signal cable is properly shielded to protect DMX data transmission from electromagnetic interference, ensuring precise and error-free control.
-
Durable Construction: Its flexible yet tough outer shell is designed to withstand the demands of professional use on tours and events.
Benefits for the professional
The use of the PD-Connex CX10-15 cable translates into multiple advantages for technicians, installers and equipment rental companies.
-
Efficient Installations: Drastically reduces the time required to wire a lighting system, allowing for greater productivity.
-
Clean and Professional Appearance: Minimizes cable clutter, offering a safer, tidier, and aesthetically pleasing installation.
-
Guaranteed Reliability: The quality of its components ensures stable electrical and data connections, minimizing the risk of failures during an event.
-
Simplified Logistics: Managing, transporting, and storing only one type of cable instead of two simplifies logistics and reduces the space required.
Use cases
This combination cable is the perfect tool for a wide variety of applications in the world of entertainment and events:
- Connecting lighting equipment to truss bridges for concerts, theaters and festivals.
- Fixed installations in nightclubs, event venues and television studios.
- Mobile lighting systems for DJs, orchestras and corporate events.
- Audiovisual rental companies seeking to optimize their processes and offer robust solutions to their clients.
Frequently Asked Questions
Is this cable compatible with any lighting equipment?
Yes, it is compatible with the vast majority of professional lighting equipment that uses 3-pin XLR connectors for the DMX signal and standard Schuko power connectors for the mains input and IEC connectors for the appliance input.
Can I use the XLR line to carry an audio signal instead of DMX?
Although the connectors are physically identical, it's not ideal. DMX cables are designed with a specific impedance of 110 ohms for digital data transmission. Microphone cables have a different impedance. For short runs, it might work, but for professional audio applications, it's recommended to use a dedicated audio cable to avoid quality loss or potential noise.
Is the cable suitable for outdoor use?
This cable is designed primarily for indoor or covered outdoor use. Its standard PVC jacket offers durability, but it does not have a specific IP rating for water resistance. For outdoor events, it should be protected from rain and excessive moisture.
Project description
Combined DMX power and signal cable with a total length of 15 meters. The power section consists of three 1.50mm² conductors (maximum capacity of 16A) terminated with Schuko male to IEC female connectors. The signal section is a balanced DMX cable with 8x0.2mm conductors and 64x0.08mm shielding, terminated with 3-pin XLR male to XLR female connectors. The overall outer diameter of the cable is 10.8mm.
