Power Dynamics CSF6 - 6.5" Professional Ceiling Speaker with Metal Enclosure 100V

Power Dynamics CSF6 - 6.5" Professional Ceiling Speaker with Metal Enclosure 100V

The Power Dynamics CSF6 is a full-range ceiling loudspeaker designed to provide a robust and versatile professional audio solution for commercial and industrial installations. Equipped with a 6.5-inch woofer, this loudspeaker ensures clear and crisp sound reproduction, optimized for both background music and public address announcements. Its intelligent design and durable construction make it the preferred choice for system integrators and sound professionals.

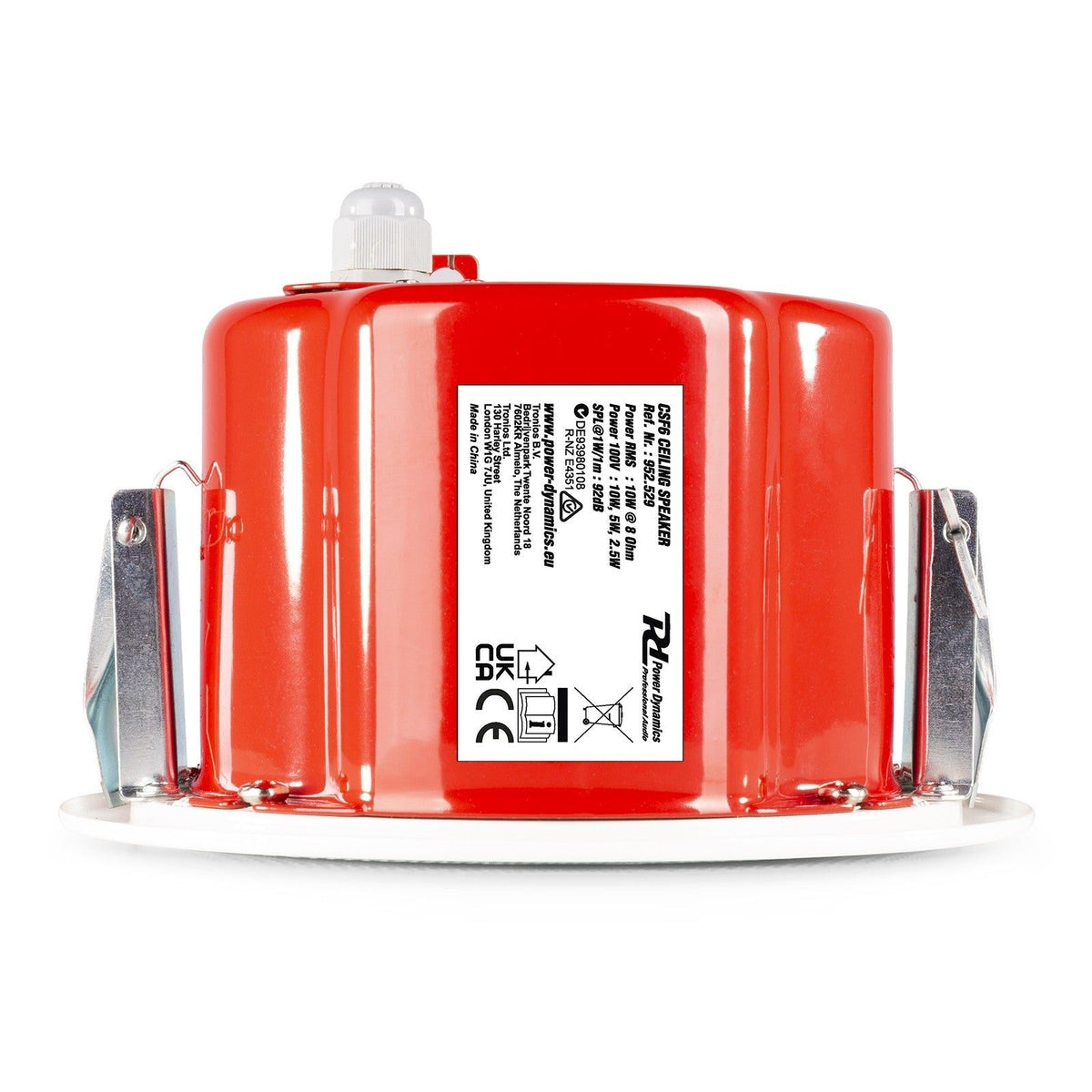

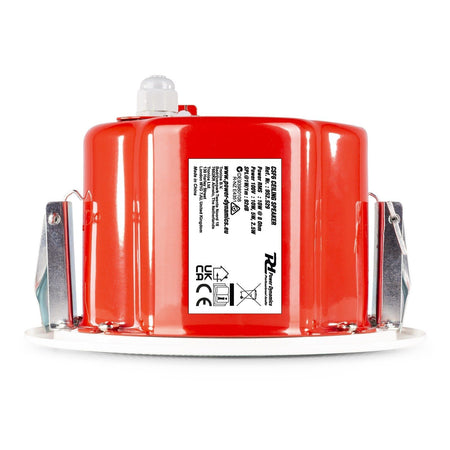

One of its most outstanding features is its protective steel rear cover. This multifunctional component not only protects the wiring and internal components but also acts as a resonance chamber, improving sound quality and consistency. Furthermore, it functions as an effective acoustic barrier, preventing sound from escaping through ceiling cavities and disturbing adjacent rooms or upper floors. The grille and mounting ring, also made of steel, ensure exceptional durability in any environment.

Flexibility is key to the CSF6's design. It incorporates a 70V/100V line transformer and also offers a low-impedance 8-ohm option. This duality allows its use in a wide range of projects, from distributed audio systems with long cable runs (100V) to more traditional setups connected to a standard amplifier (8 ohms). Selecting between the different modes and power outputs (2.5W, 5W, 10W at 100V) is simple via a rotary switch on the back, facilitating perfect volume balance in multi-zone installations.

Main Features

• Hybrid System 100V / 8 Ohms: Offers maximum compatibility, allowing its integration into both 100V line systems for large areas and conventional low impedance systems.
• Protective Steel Cover: Improves the speaker's frequency response, protects the connections, and acts as a sound insulator, ensuring clean and contained sound in the desired area.
• Robust and Durable Construction: Made with steel grating, ring, and back cover, it is designed to withstand the demands of continuous commercial use.
• Quick and Easy Installation: Thanks to the spring-loaded mounting clips, the speaker is securely and easily attached to the false ceiling, while the screw terminals ensure a reliable electrical connection.

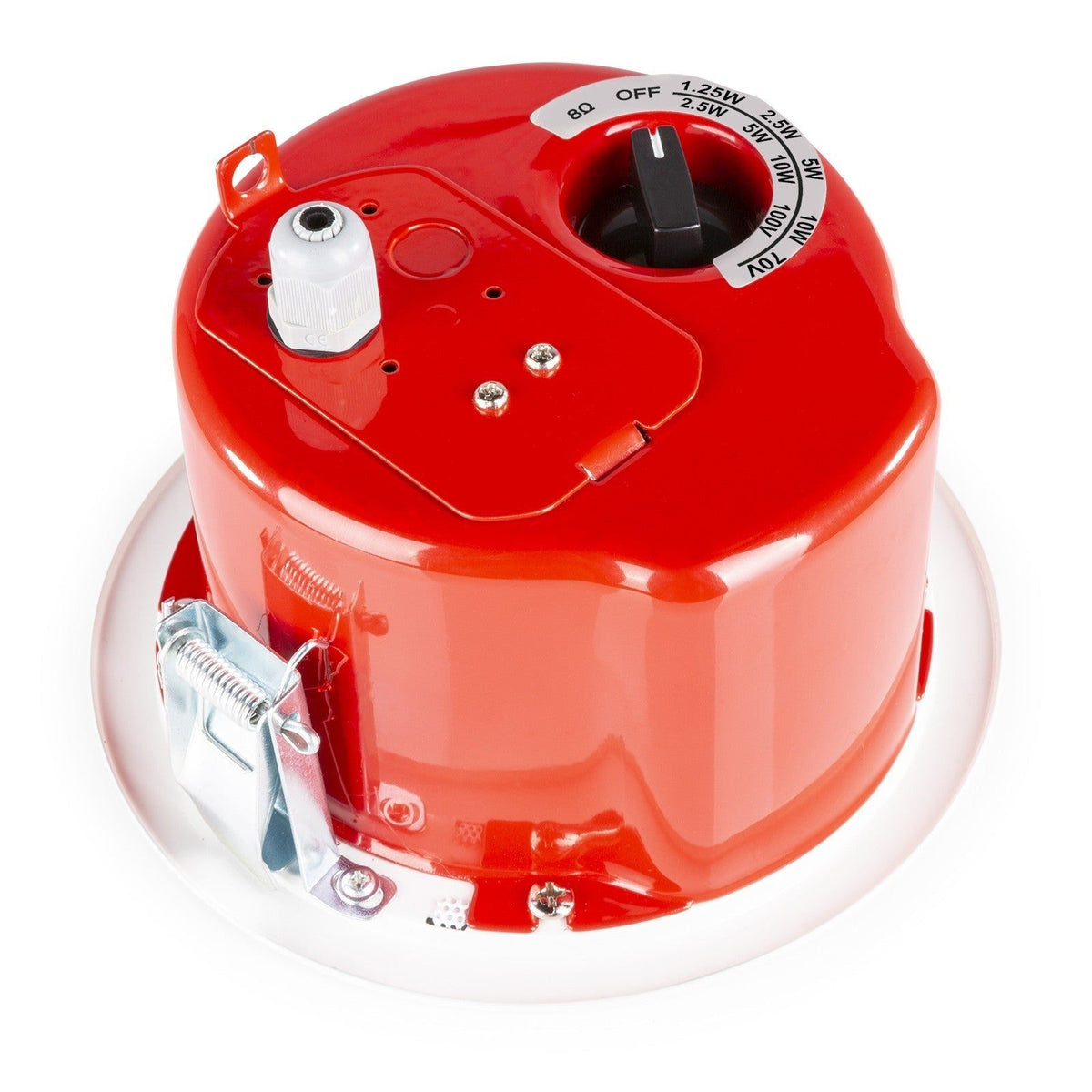

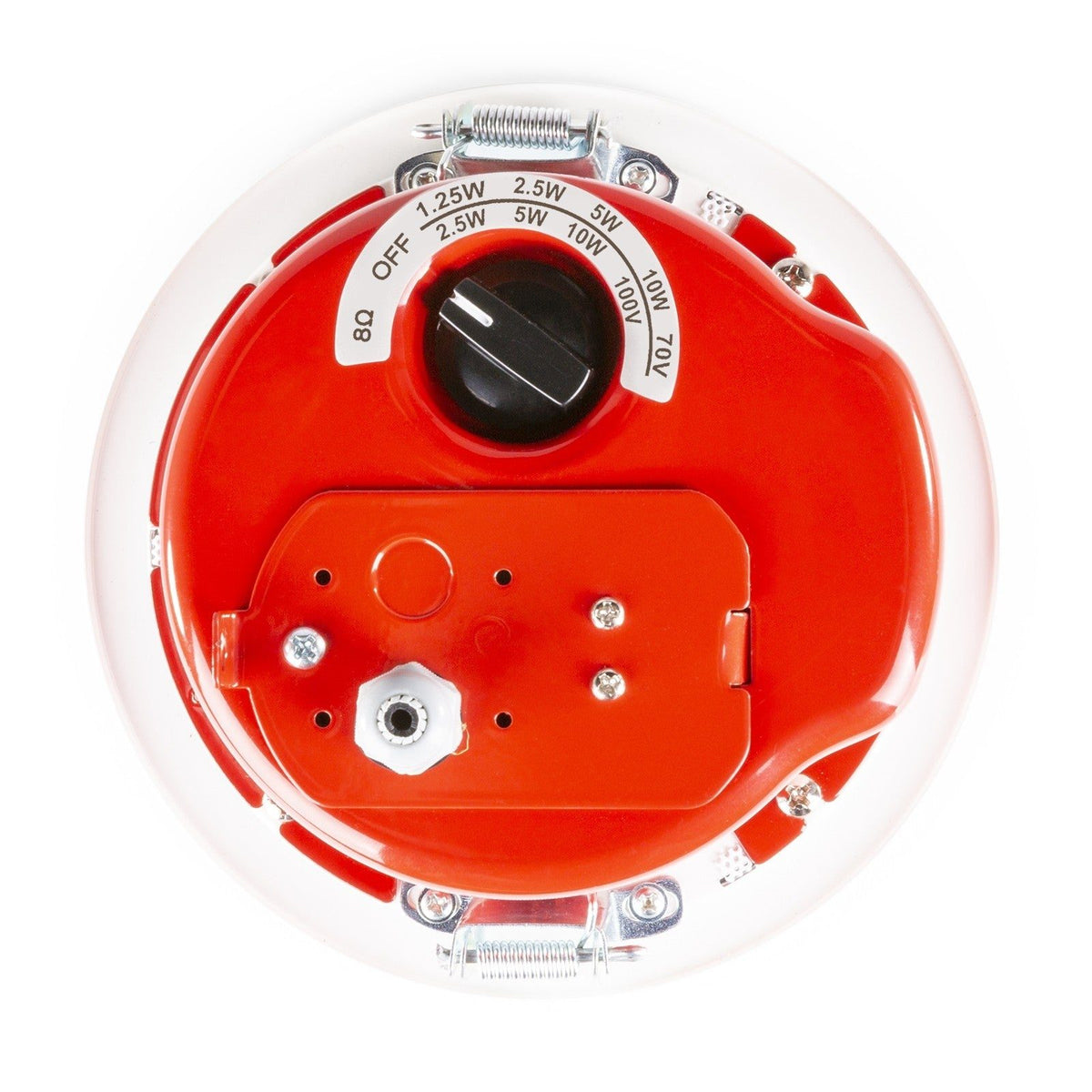

• Integrated Power Selector: A convenient rotary switch allows you to easily choose the appropriate power outlet for the 100V system (2.5W, 5W, 10W) ​​or 8 ohm mode.
• 6.5" Full Range Driver": Provides balanced audio reproduction, with excellent clarity in mid and high frequencies, ideal for voice and background music.

Benefits for the Installer and the User

The Power Dynamics CSF6 is designed to simplify the installer's job and maximize end-user satisfaction. Its versatility reduces the need to specify different speaker models for the same project. Installation is efficient, saving time and labor costs. For the user, the result is a reliable sound system with consistent audio quality and a discreet aesthetic that blends seamlessly into any décor thanks to its white finish.

Use Cases

This speaker is the ideal choice for sound reinforcement in a wide variety of commercial, educational, and public settings where background music and voice announcements are essential. Its performance and durability make it perfect for:

• Hotels, restaurants and cafes
• Shops, shopping centers and supermarkets
• Offices, waiting rooms and hallways
• Schools, colleges and universities
• Factories and warehouses

Frequently Asked Questions

Does this speaker need an amplifier to work?

Yes, the CSF6 is a passive speaker and requires to be connected to a compatible amplifier, either a 100V line amplifier or a conventional one with an 8 ohm output.

What is a "100V line" system?

It's a type of audio system that allows multiple speakers to be connected in parallel over long distances using a thinner gauge cable, without significant signal loss. It's the standard in most commercial installations.

Is it difficult to install?

No, its design with spring-loaded mounting clips makes installation in suspended ceilings much easier. However, for 100V systems, installation by qualified personnel is recommended.

Does the back cover offer fire protection?

The rear cover is made of steel and offers robust protection for the wiring and components, as well as acting as a sound barrier. However, it does not have a specific fire resistance certification (such as EN 54-24).

Project description

Passive full-range ceiling speaker with a 6.5-inch diameter. Designed for operation on 70V/100V line systems and low impedance at 8 ohms. RMS power is 10W, with selectable 100V power taps of 2.5W, 5W, and 10W. It features a frequency response of 150Hz to 15,000Hz and a sensitivity of 92dB (1W/1m). Includes a protective steel rear cover, metal grille, and quick-mount clips. Overall dimensions are Ø210 x 98mm, with a required mounting diameter of 170mm and a depth of 91mm.
