Power Dynamics CSBA3L - Compact Ceiling Speaker 3" 8 Ohms

Power Dynamics CSBA3L - Compact Ceiling Speaker 3" 8 Ohms

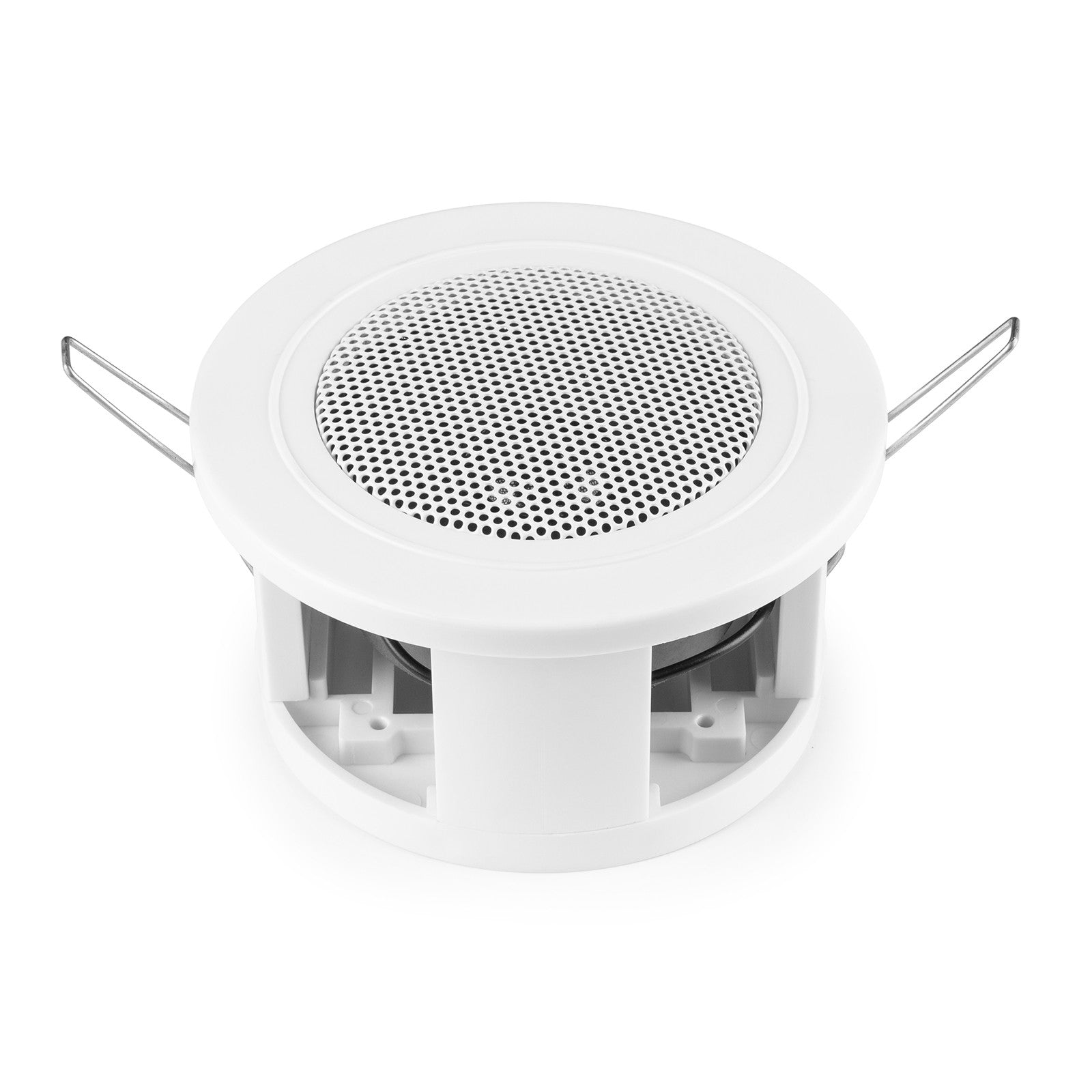

The Power Dynamics CSBA3L is a passive ceiling loudspeaker designed to deliver a high-quality audio solution in spaces where discretion and performance are essential. Thanks to its ultra-compact design, this loudspeaker blends seamlessly into any environment, requiring minimal installation space. Its neutral white finish allows it to blend in with most ceilings, preserving the room's aesthetic. Despite its small size, the CSBA3L provides clear, well-defined sound, ideal for background music, public address systems, or as part of a distributed audio installation.

Installation is one of its strongest points. With a quick-release system using spring-loaded clips, mounting is simple and secure in minutes. It only requires an 85 mm diameter mounting hole, making it a versatile option even for ceilings with limited space in the suspended ceiling. Its 120-degree conical coverage pattern ensures wide and even sound dispersion, guaranteeing that the audio reaches every corner of the room with the same clarity.

Main Features

• Ultra-compact design: With a 3-inch woofer, this speaker is perfect for discreet installations without sacrificing sound quality.
• Adequate Power: Capable of handling a maximum power of 30W, it offers sufficient volume for most background music and announcement applications.
• Clear Sound: Its frequency response of 150Hz to 15,000Hz is optimized for clear reproduction of voice and a wide range of musical genres.

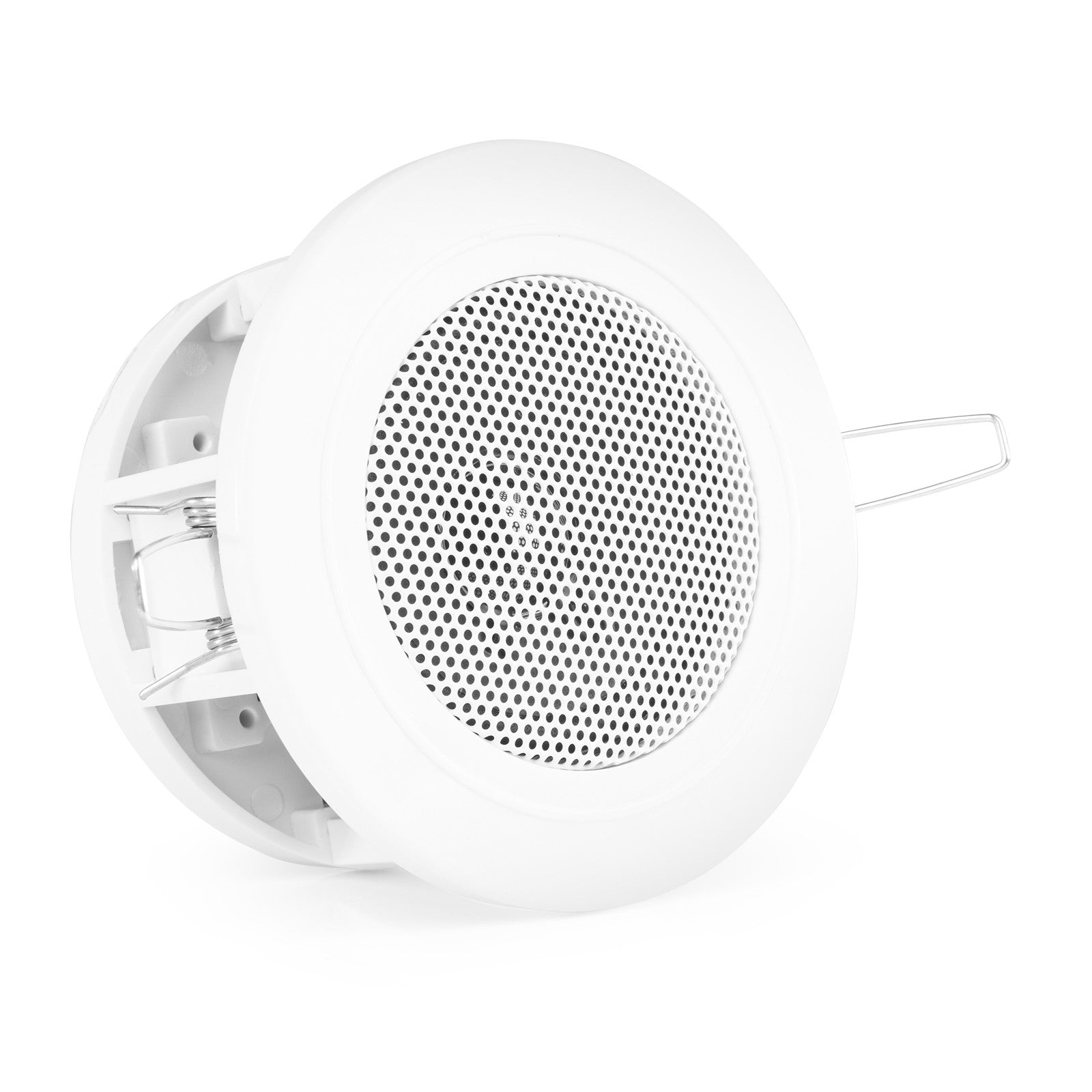

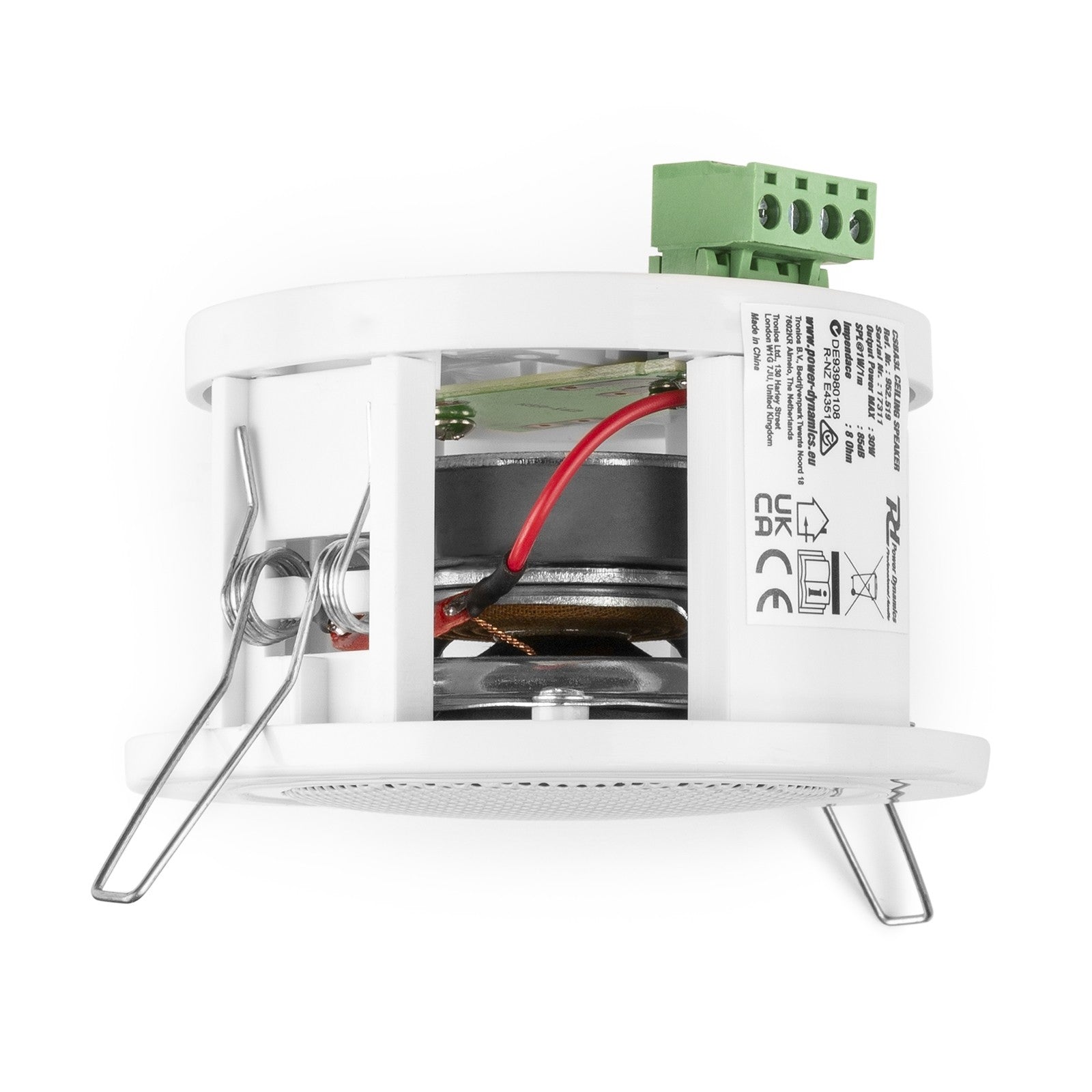

• Quick and Easy Installation: The spring clip mounting system allows for secure attachment to the ceiling with minimal effort and no complex tools required.
• Wide Sound Coverage: The 120° conical dispersion angle distributes sound evenly, reducing the number of speakers needed to cover a given area.
• Universal Compatibility: Operating at a standard 8 ohm impedance, it is compatible with the vast majority of commercial and home audio amplifiers.

Product Benefits

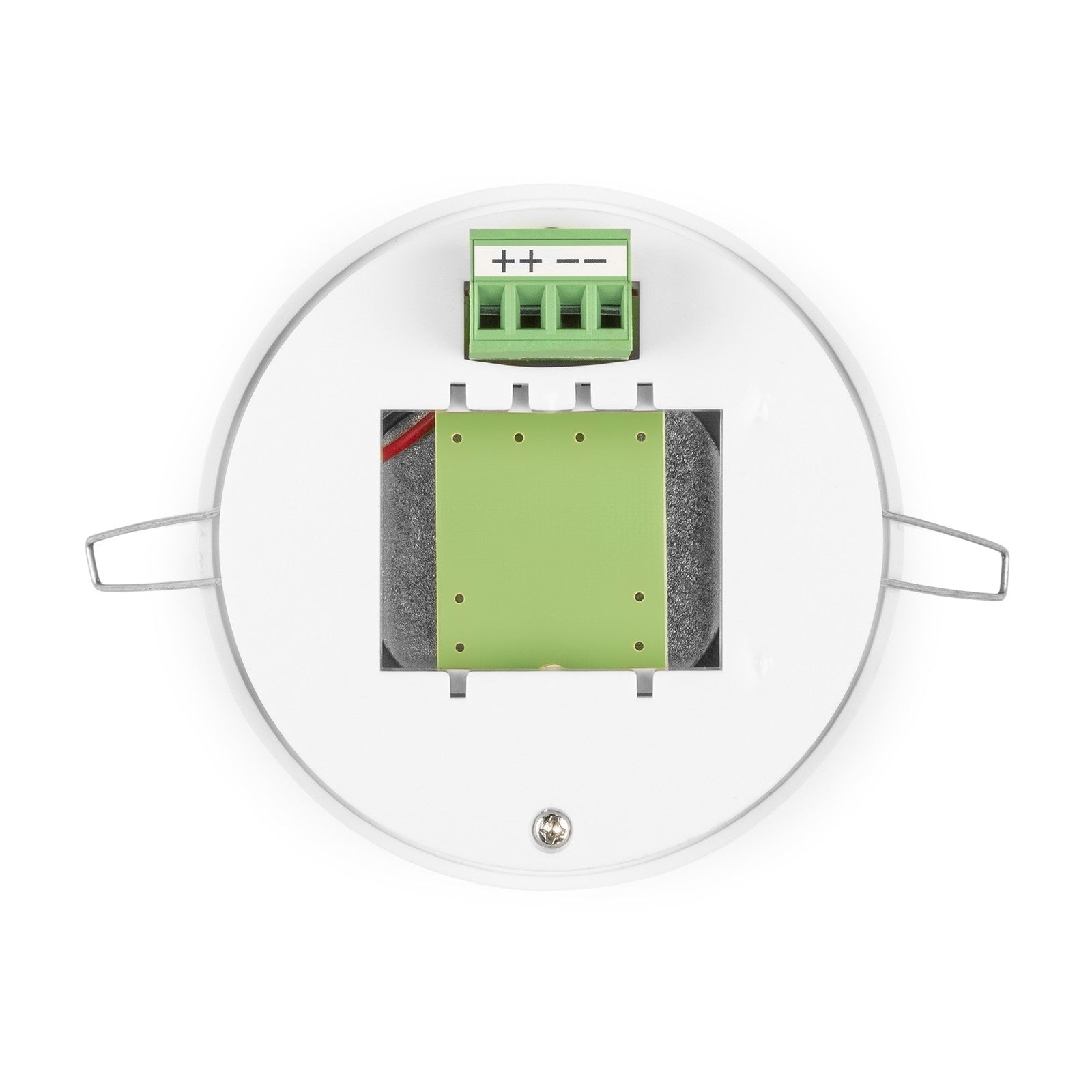

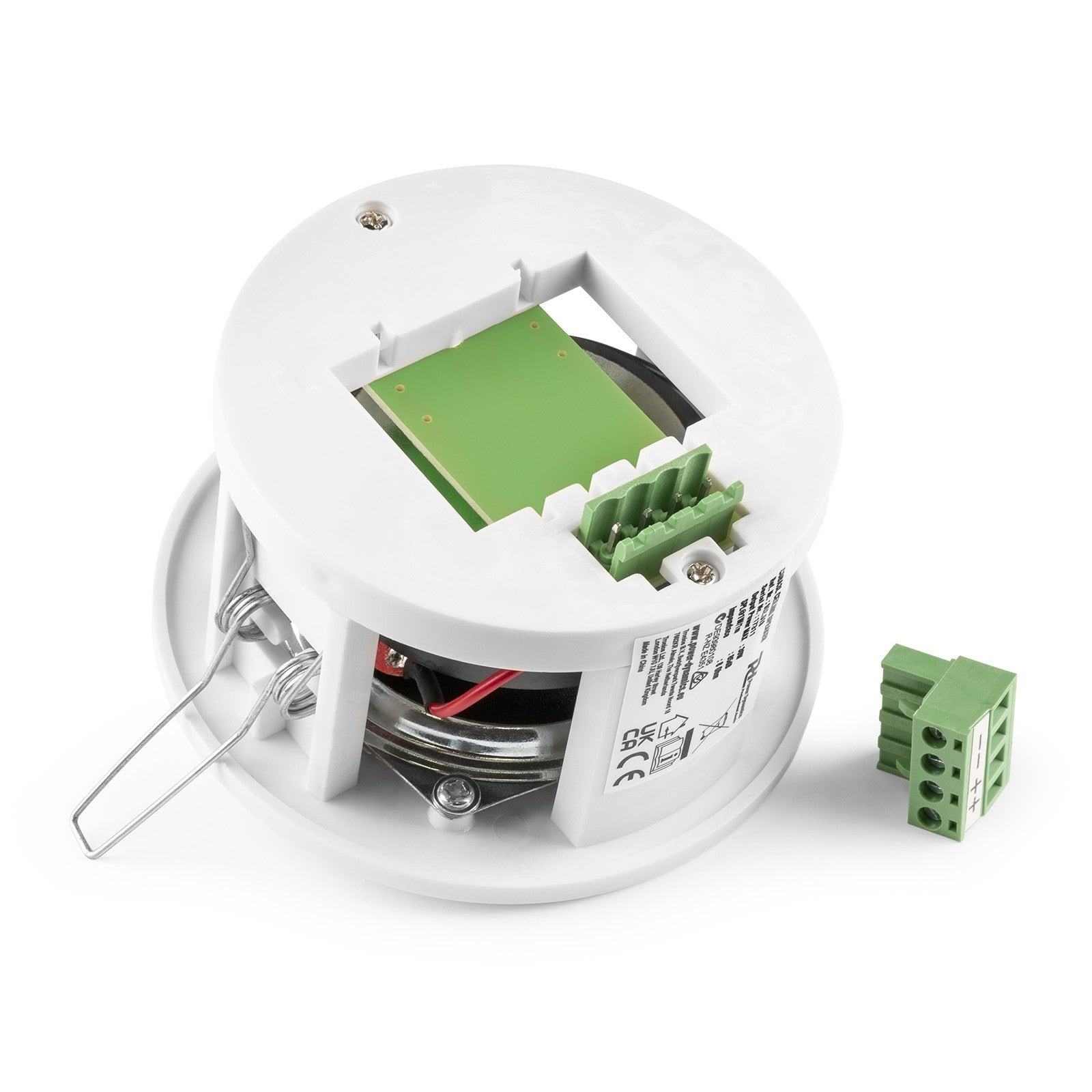

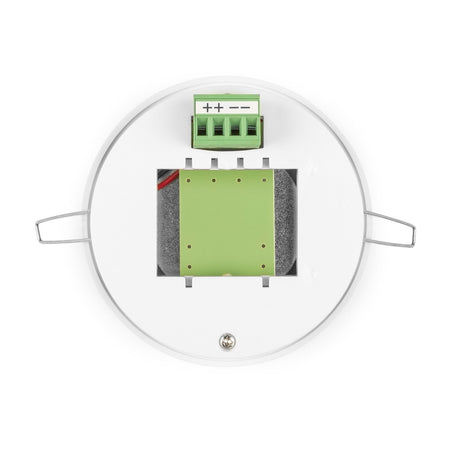

The CSBA3L loudspeaker is designed for those seeking a functional, discreet, and easy-to-integrate audio solution. Its main benefit is its ability to provide a pleasant sound environment without being visually intrusive. It's the perfect choice for architects, interior designers, and installers who need a reliable loudspeaker that integrates seamlessly into any project, from residential to commercial. Its simple screw terminal connection and lightweight design facilitate safe and durable installation by any professional or DIY enthusiast.

Use Cases

The versatility of the Power Dynamics CSBA3L makes it ideal for a multitude of applications:

• Background Music Systems: Perfect for creating a sound environment in shops, restaurants, offices, waiting rooms or consulting rooms.
• Home Distributed Audio: Ideal for discreetly bringing sound to rooms such as kitchens, hallways, bathrooms or bedrooms.
• Public Address and Notice Systems: Its clarity in voice reproduction makes it very suitable for use in hotel corridors, small warehouses, or educational centers.
• Sound Reinforcement: Can be used as a support speaker in conference rooms or as part of a surround sound system in home theater installations.

Frequently Asked Questions

Do I need an amplifier for this speaker to work?
Yes, the CSBA3L is a passive speaker, which means it requires to be connected to an external amplifier with an 8-ohm output to function properly.

Can the grate be painted to match the color of my ceiling?

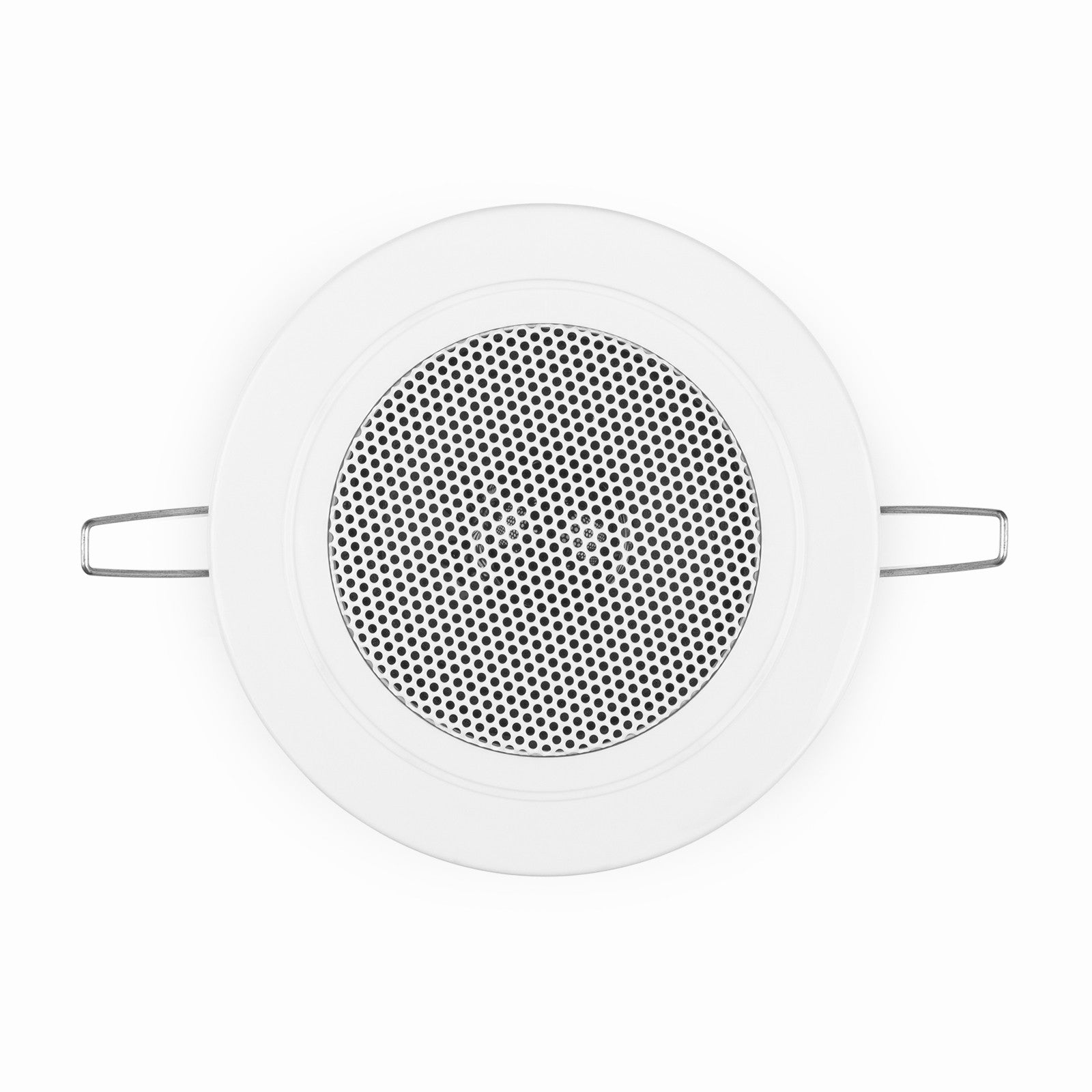

Yes, the metal grille can be carefully painted using spray paint to perfectly match your decor. It's recommended to remove the grille before painting to avoid damaging the speaker cone.

Is it suitable for installation in a bathroom?
This model does not have a specific moisture resistance rating (IP). While it might work in a well-ventilated bathroom, it is not recommended for installation in areas with high humidity or where it may be exposed to direct water splashes, such as inside a shower.

How many speakers do I need to cover a room?
The number of speakers you need depends on the room size, ceiling height, and desired volume level. As a general rule, for background music in a medium-sized room (15-20 m²) with standard ceiling height, a pair of speakers is usually sufficient for balanced coverage.

Project description

Passive in-ceiling loudspeaker with a 3-inch woofer and a nominal impedance of 8 ohms. It offers a maximum power of 30W and a frequency response from 150Hz to 15,000Hz. Its sensitivity is 85dB SPL at 1W/1m and it features a 120° conical coverage pattern. It requires a mounting diameter of 85mm and a minimum depth of 73mm. The overall dimensions are 99mm in diameter by 80mm deep, with a weight of 0.4kg. Connection is made via a screw terminal. Finished in white.
