Power Dynamics CSBA3 - 3" Compact Ceiling Speaker for 100V Line

Power Dynamics CSBA3 - 3" Compact Ceiling Speaker for 100V Line

The Power Dynamics CSBA3 is a ceiling speaker specifically designed to provide a discreet and efficient audio solution for commercial and residential installations. Its ultra-compact design makes it ideal for small spaces or projects where aesthetics are paramount, seamlessly integrating into any environment without being visually disruptive. Despite its small size, it delivers clear and crisp sound, optimized for background music and voice announcements.

This speaker operates on 100V line systems, a technology that allows multiple speakers to be connected in series to a single amplifier over long distances with minimal loss of quality. This greatly simplifies wiring in large spaces such as offices, shops, restaurants, or hallways. It also features a power selector (1.5W, 3W, and 6W inputs) that allows you to adjust the volume of each speaker individually to balance the sound in different areas according to the specific needs of the space.

Installing the CSBA3 is exceptionally simple and quick. Thanks to its spring-clip mounting mechanism, only an 85 mm hole needs to be drilled in the suspended ceiling. Once inserted, the clips hold firmly, ensuring a secure and stable connection. Wiring is connected via a screw terminal, guaranteeing a reliable and long-lasting connection.

Main features

• Ultra-compact design: With a 3-inch driver, it is ideal for installations where space is limited.
• 100V Line System: Perfect for public address and distributed audio systems, facilitating the connection of multiple units.
• Power Selector: Includes 1.5W, 3W and 6W sockets for flexible volume control in different zones.
• Wide Sound Coverage: Its 120° conical dispersion pattern ensures a uniform and homogeneous sound distribution.
• Quick and Easy Installation: Equipped with automatic spring clips for hassle-free flush mounting.
• Reliable Connection: Screw connection terminal that guarantees a secure and professional connection.

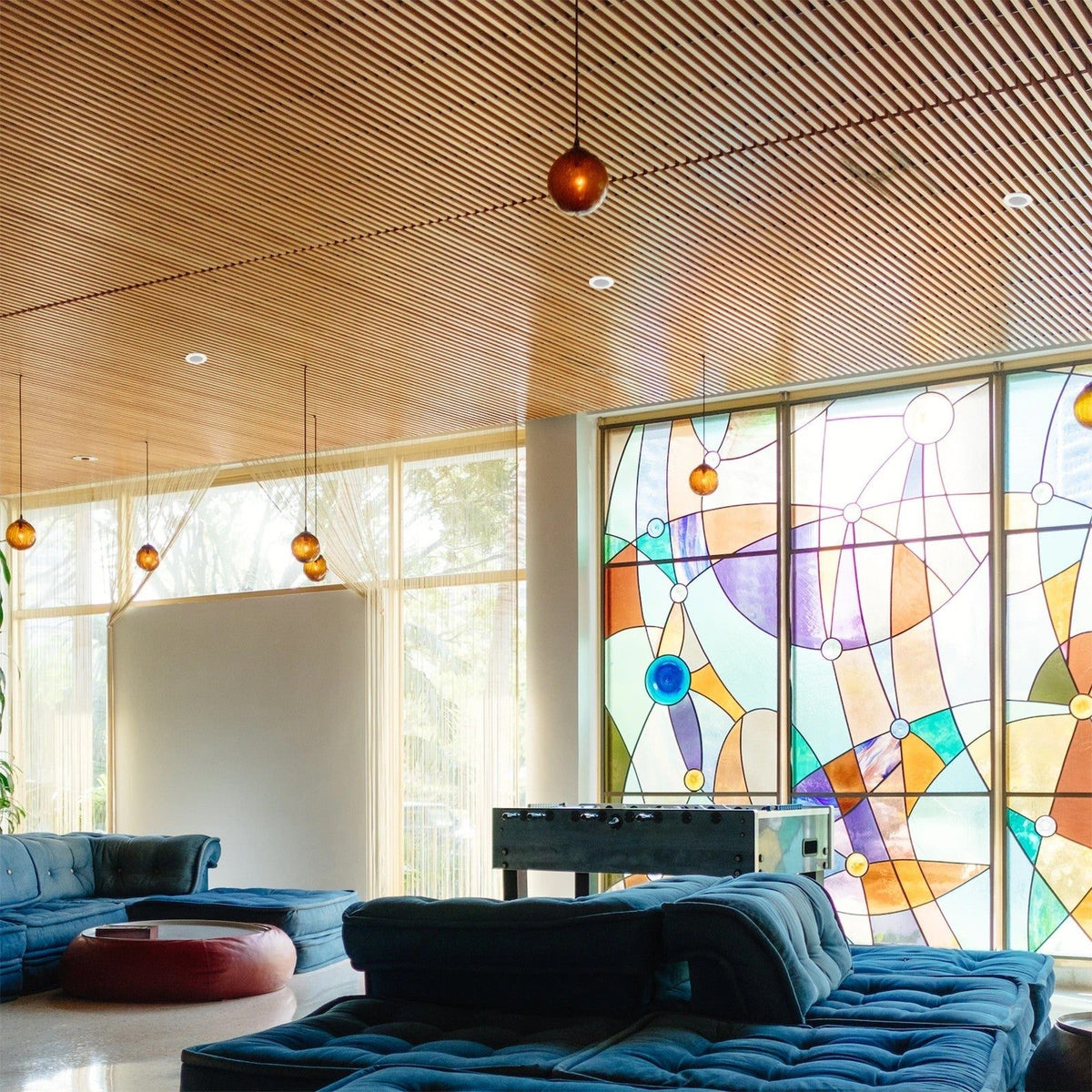

• Neutral Finish: Its white color and minimalist design allow it to blend effortlessly into most ceilings and decors.

Product benefits

The Power Dynamics CSBA3 loudspeaker offers an unbeatable combination of discretion, ease of installation, and sonic performance. Its small size doesn't compromise audio quality, providing excellent speech intelligibility and clear background music reproduction. For installers, the spring-clip system and simple wiring dramatically reduce the time and effort required for assembly. For the end user, the result is a nearly invisible, highly functional, integrated sound system that can adapt to the needs of any commercial or residential space.

Use cases

• Ambient music: Ideal for creating a pleasant atmosphere in shops, cafes, restaurants, waiting rooms and hotel receptions.
• Public address systems: Perfect for broadcasting announcements and notices in offices, hallways, educational centers and clinics.
• Sound reinforcement: Suitable for small meeting rooms, offices or as a supplementary audio system in the home (kitchens, bathrooms, hallways).
• Distributed audio projects: Its 100V line compatibility makes it perfect for large-scale installations requiring numerous sound points.

Frequently Asked Questions

What type of amplifier do I need for these speakers?

You will need an amplifier compatible with 100V line outputs. The total power of the amplifier must be greater than the sum of the power ratings of all connected speakers.

Can I paint the speaker grille?

Yes, the metal grille can be spray-painted to match the exact color of your ceiling. It's recommended to carefully remove it before painting to avoid damaging the speaker cone.

Are they suitable for installation in a bathroom?

This model does not have a specific IP rating for moisture resistance. It is not recommended for installation in areas with high concentrations of steam or where it may be exposed to direct water splashes.

What does it mean that it has 1.5W, 3W and 6W sockets?

These "taps" allow you to select how much amplifier power the speaker will use. This results in different volume levels. Using a lower power tap (e.g., 1.5W) will result in a lower volume, ideal for quiet areas or for installing more speakers in the same line without overloading the amplifier.

Project description

Passive ceiling speaker for recessed installation in 100V line systems. It incorporates a 3-inch driver and a transformer with selectable power taps of 1.5W, 3W, and 6W. It offers a frequency response of 150Hz to 15,000Hz, a sensitivity of 85dB (1W/1m), and a 120° conical coverage angle. It requires a mounting diameter of 85mm and a depth of 73mm. The overall dimensions are 99 x 80mm, and it weighs 0.5kg. Connection is made via screw terminals.
