Power Dynamics CSAG6T - 6.5" 100V Ceiling Speaker with Aluminum Grille

Power Dynamics CSAG6T - 6.5" 100V Ceiling Speaker with Aluminum Grille

The Power Dynamics CSAG6T is a two-way ceiling loudspeaker designed to deliver superior sound quality in 100V line installations. This loudspeaker combines exceptional acoustic performance with a robust construction, making it the perfect choice for a wide range of commercial and residential applications. Its discreet and elegant white design allows for seamless integration into any ceiling, whether in offices, restaurants, shops, or warehouses.

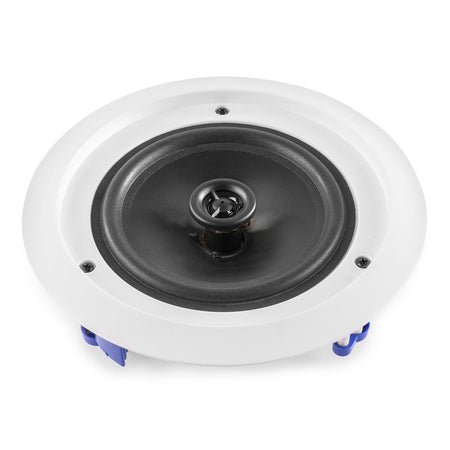

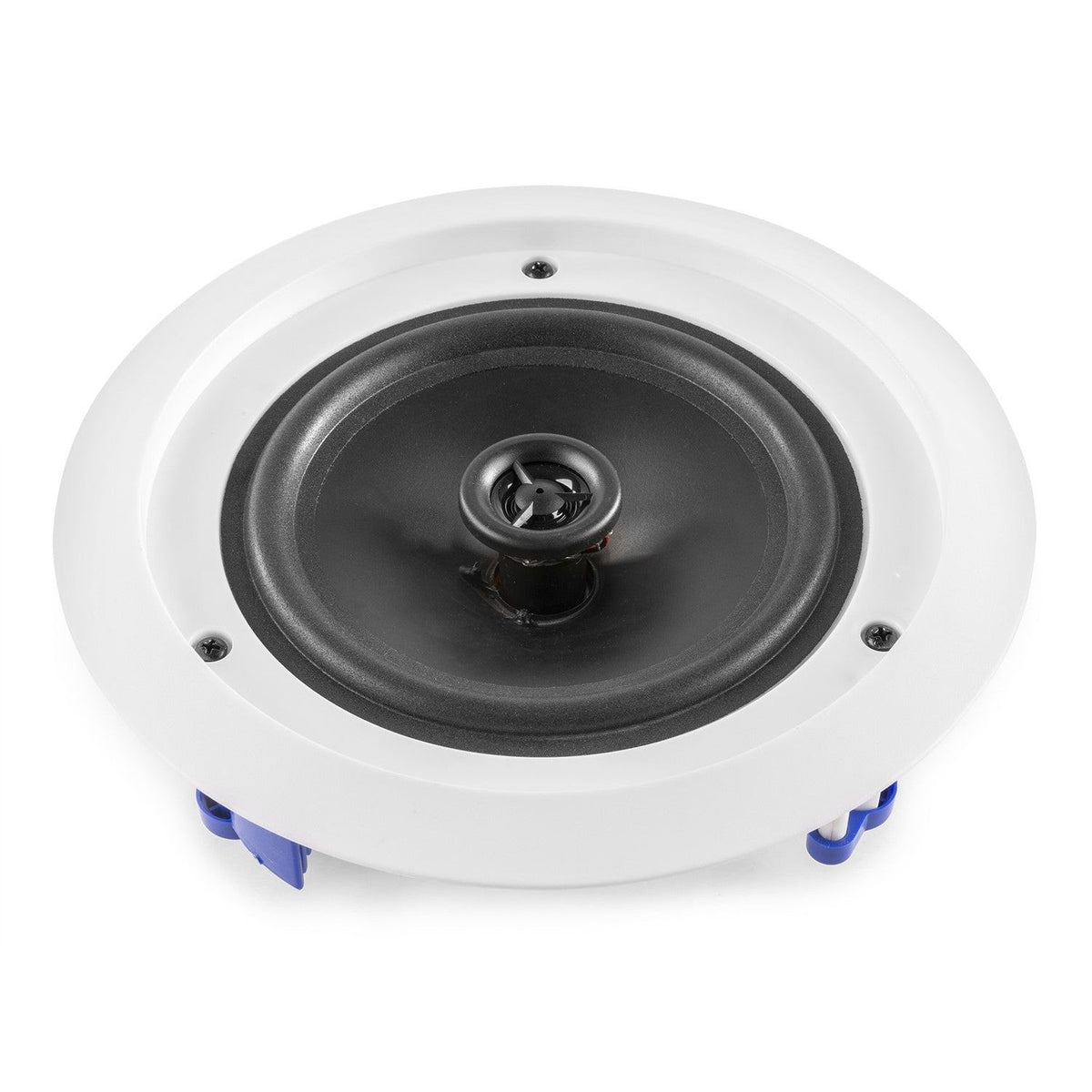

Equipped with a coaxial system, the CSAG6T distributes sound efficiently and evenly. It features a 6.5-inch woofer made of polypropylene, a material that not only guarantees clear and accurate bass and midrange reproduction but is also moisture-resistant. This is complemented by a 3/4-inch dome tweeter that reproduces high frequencies with great clarity. This combination ensures complete and detailed sound coverage, ideal for both background music and public address announcements.

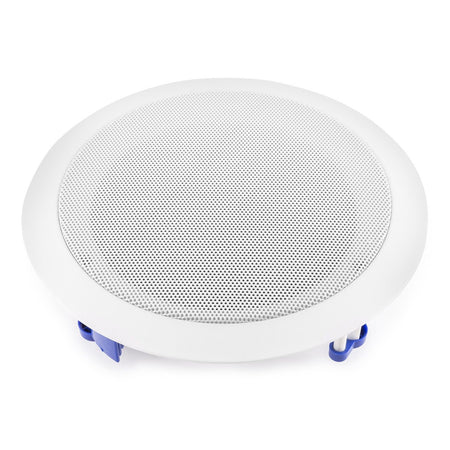

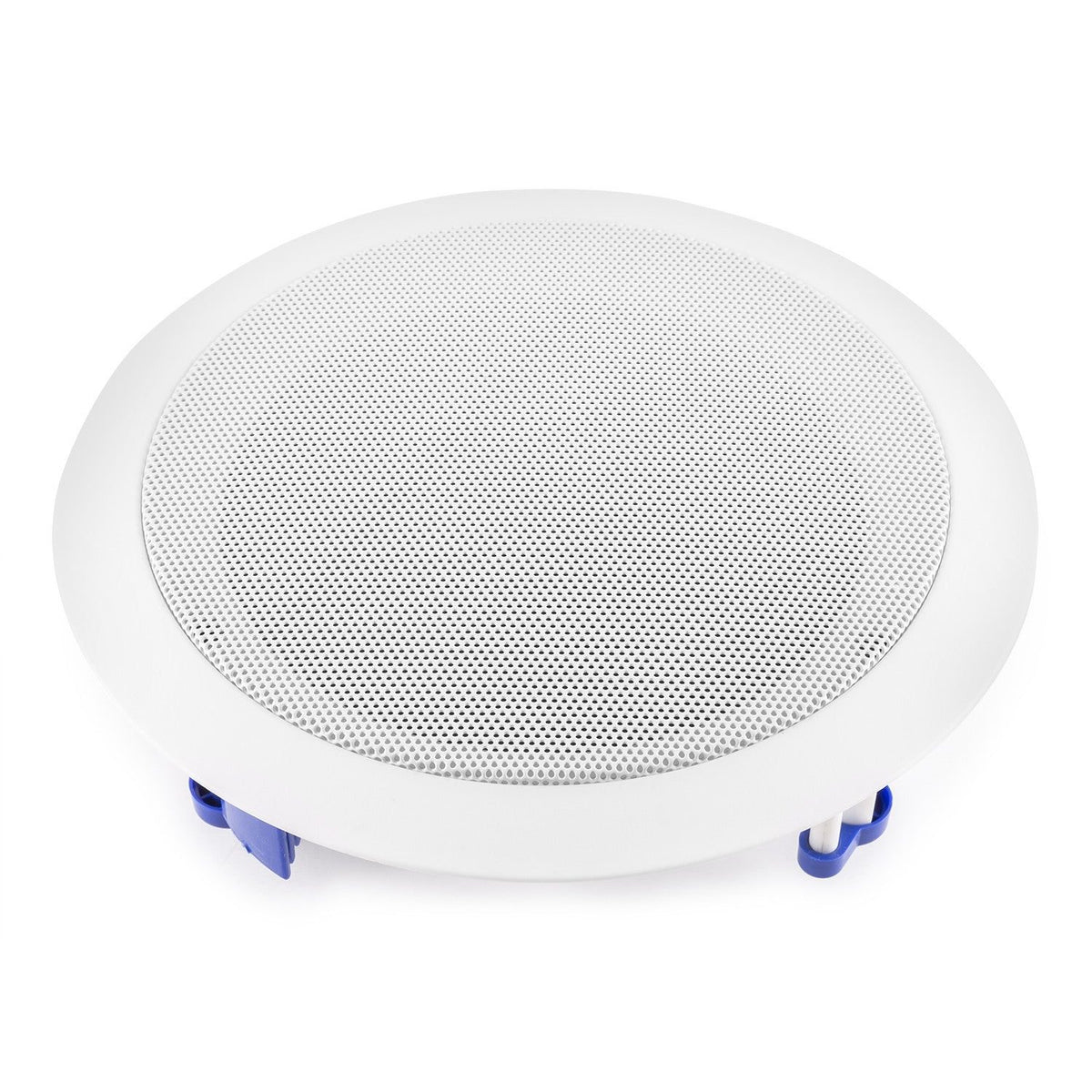

One of its most outstanding features is its durability. The protective grille is made of aluminum, which prevents oxidation and deterioration in humid or saline environments, such as coastal areas, bathrooms, or kitchens. Thanks to its integrated passive crossover filter, the frequency separation between the woofer and tweeter is optimal, resulting in a cleaner sound with less distortion.

Main Features

• 2-Way Sound System: Coaxial design with a 6.5" woofer and a 3/4" dome tweeter that provides rich, detailed, and wide-spectrum audio.

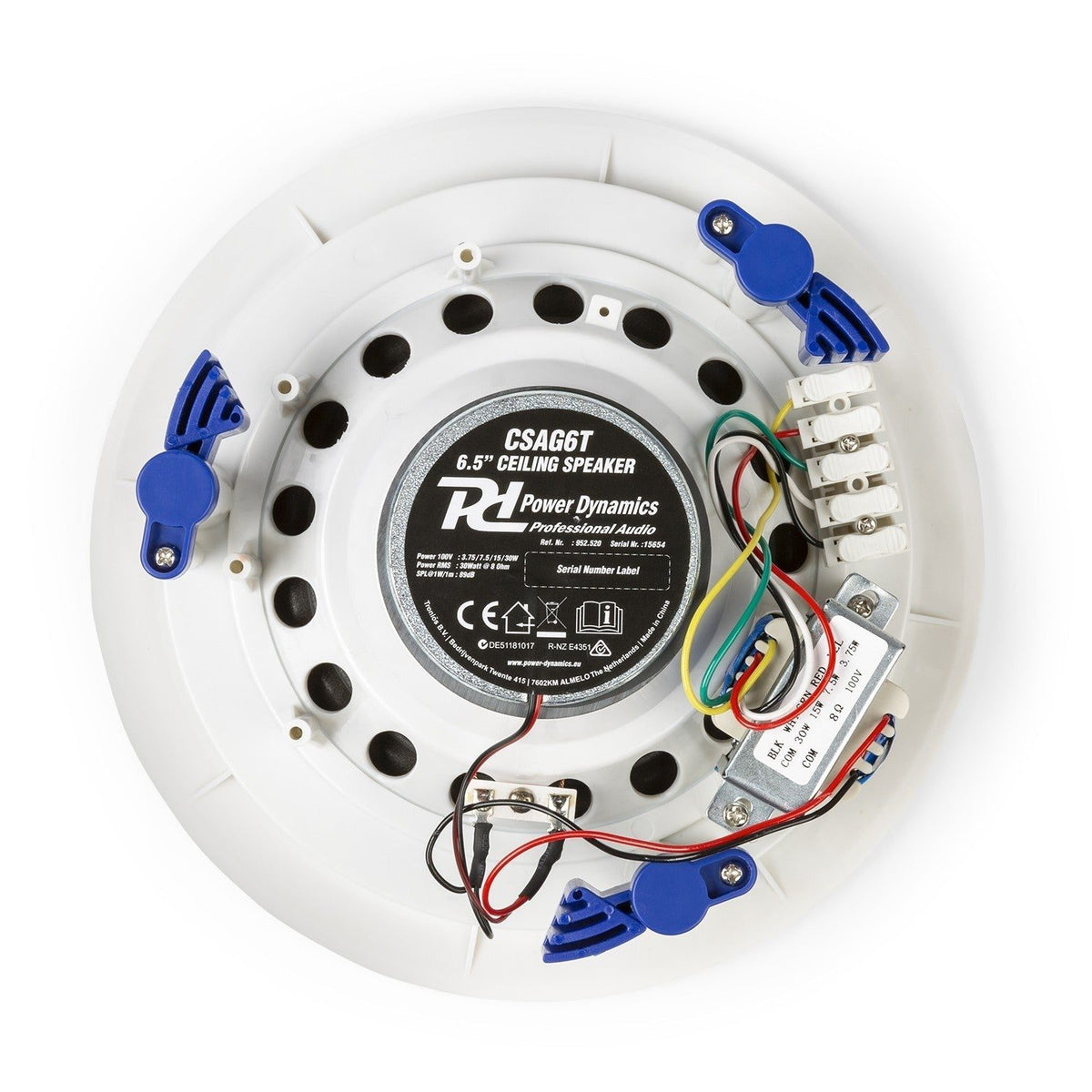

• 100V Line Operation: Incorporates a 100V transformer with multiple power outlets (3.75W, 7.5W, 15W, 30W), allowing easy setup in distributed sound systems and zone-based volume adjustment.
• Moisture-Resistant Construction: The polypropylene cone woofer and aluminum grille make it suitable for installation in environments with a higher degree of humidity, such as bathrooms, kitchens, or covered terraces.
• Superior Audio Quality: Offers a frequency response of 45 Hz to 20,000 Hz, covering the entire audible spectrum for faithful reproduction of music and voice.
• Simple and Secure Installation: Designed for quick and easy mounting on suspended ceilings. Its rotating clamp fixing system ensures a firm and stable hold.

Product Benefits

• Exceptional Versatility: Perfect for any sound project, from background music in a restaurant to a public address system in an educational center or warehouse.
• Clear and Immersive Sound: The two-way architecture ensures that both music and voice announcements are heard with maximum clarity and definition throughout the coverage area.
• Long-Term Durability: High-quality materials withstand the test of time and adverse environmental conditions, ensuring reliable performance for years.
• Aesthetic Integration: Its minimalist design and white finish allow it to blend discreetly into the decor of any space, going virtually unnoticed.

Use Cases

The Power Dynamics CSAG6T loudspeaker is the ideal solution for a wide variety of installations, including:

• Background music systems in shops, restaurants, hotels, bars and showrooms.
• Public address and announcement systems for offices, shopping centers, hospitals and schools.
• Soundproofing of spaces with controlled humidity such as gyms, changing rooms, bathrooms or kitchens.
• Audio systems in porches, covered terraces and other protected areas in coastal zones.

Frequently Asked Questions

Does this speaker need an amplifier to work?

Yes, being a passive speaker, it requires to be connected to a 100V line compatible amplifier for operation.

Can the grille be painted to match the roof color?

Yes, the aluminum grille can be painted with suitable spray paint. It is recommended to do so carefully to avoid clogging the perforations and affecting sound quality.

Is it water resistant?

This speaker is moisture-resistant, meaning it can operate in humid environments such as bathrooms or kitchens. However, it is not waterproof and should not be exposed to direct water, such as in showers or outdoors.

How do I select the speaker power?

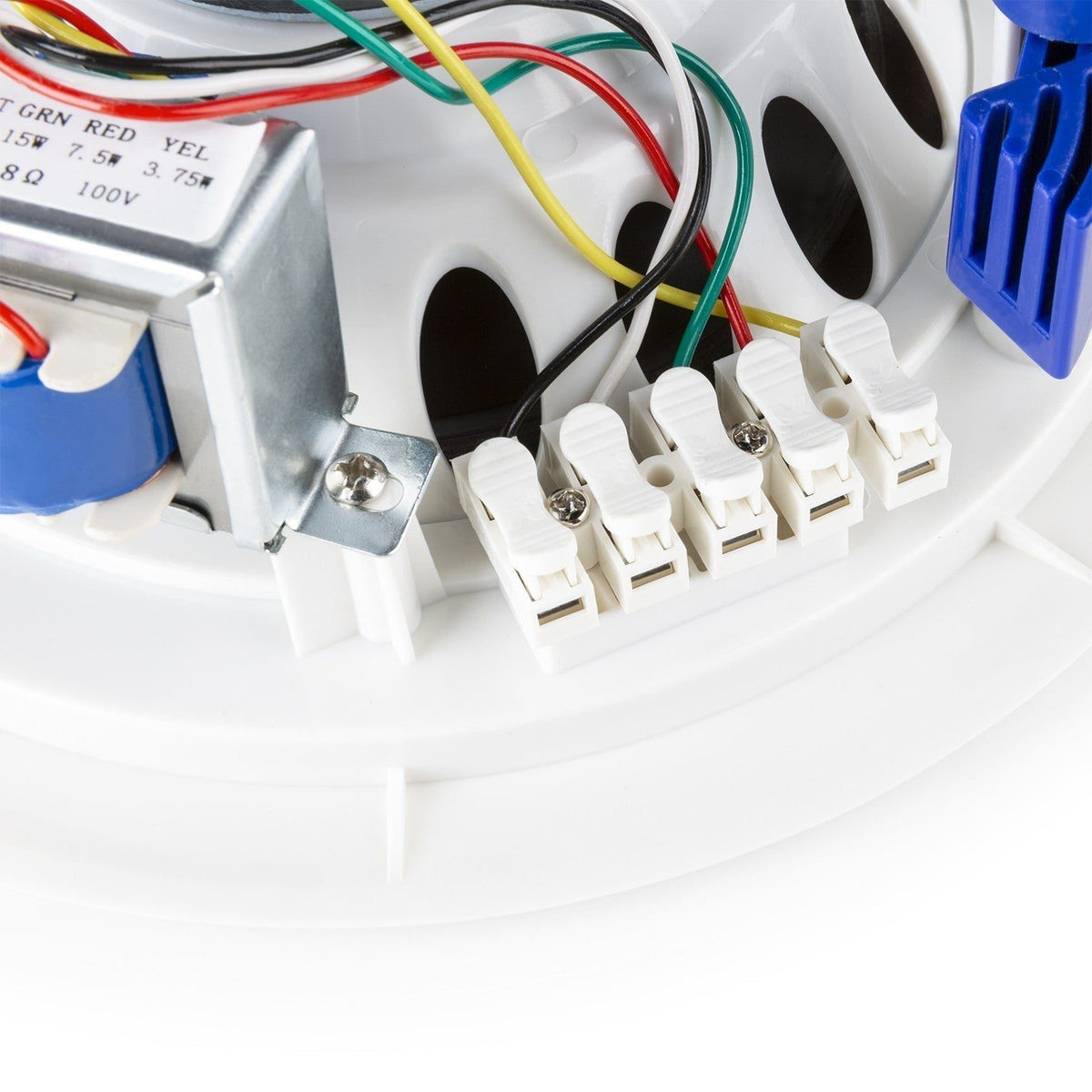

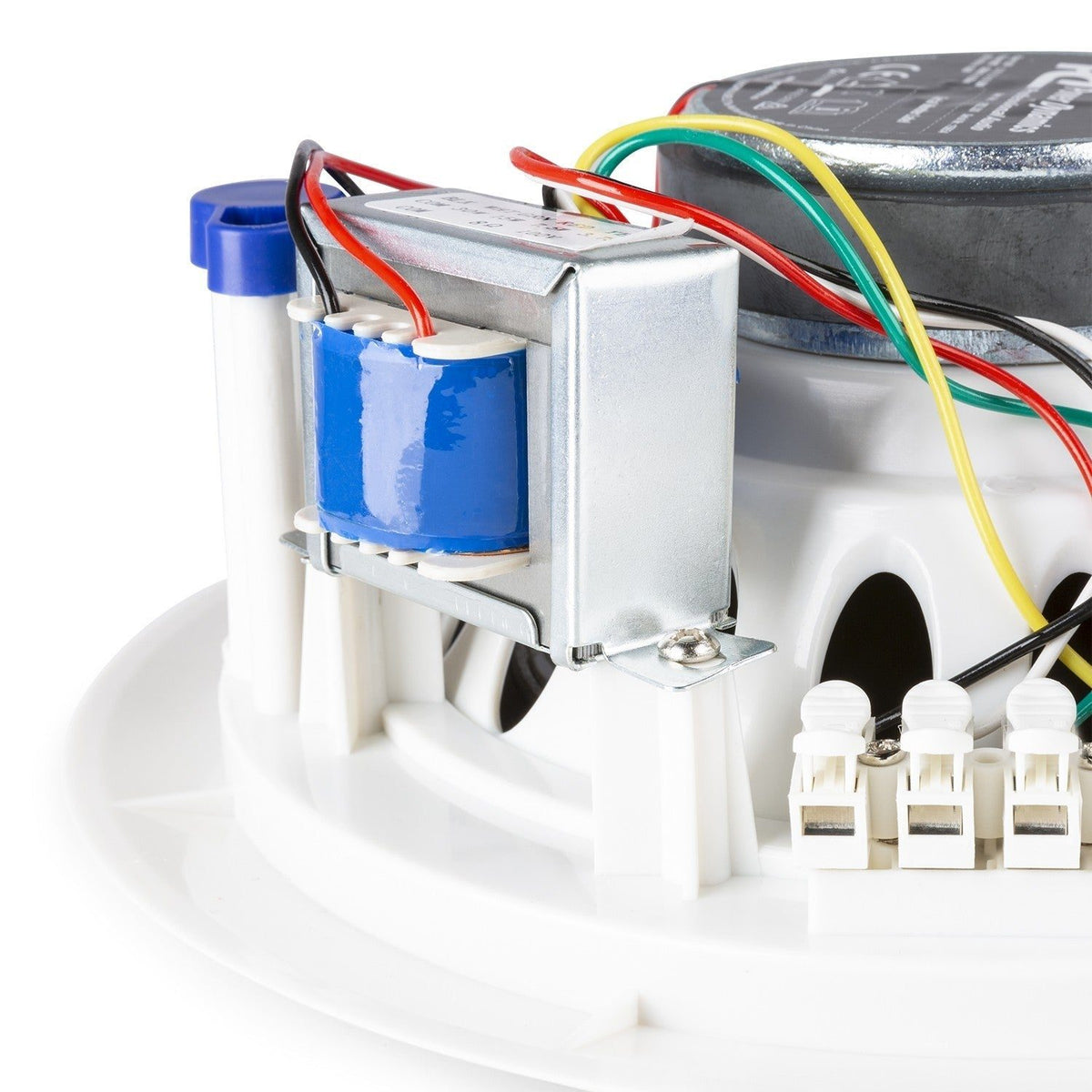

The speaker features a power tap selector on its transformer. Before installation, you can choose between 3.75W, 7.5W, 15W, or 30W depending on your sound system's requirements and your amplifier's total power.

Project description

Passive 2-way ceiling speaker for 100V line systems. Equipped with a 6.5-inch polypropylene cone woofer and a 0.75-inch coaxial dome tweeter. It delivers 30W RMS power with selectable power inputs of 3.75W, 7.5W, 15W, and 30W. Its frequency response is 45Hz to 20,000Hz, with a sensitivity of 89dB SPL (1W/1m). It features a white aluminum protective grille. A 200mm mounting diameter and a minimum depth of 80mm are required for installation.
