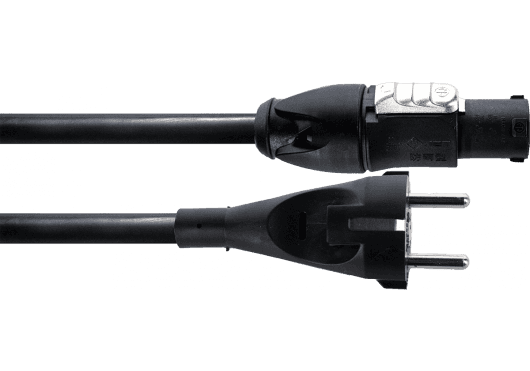

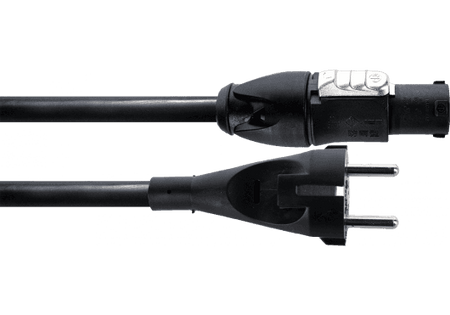

Cordial ELCCFCA5S-TRUE1-PVC - 5m PowerCON TRUE1 to Schuko Power Cable
The Cordial ELCCFCA5S-TRUE1-PVC is a 5-meter professional power cable designed to meet the highest demands of event environments, audiovisual productions, and stage performances. This highly reliable cable ensures a safe and stable electrical connection for lighting, sound, and video equipment, combining the robustness of top-quality components with a functional and secure design.
Manufactured in Germany, this cable features a 3 x 1.5 mm² conductor and uses H05VV-F type cable, known for its flexibility and durability in mobile applications. The PVC outer jacket provides effective protection for indoor use, maintaining cable integrity even with frequent handling.
One of its key components is the Neutrik powerCON TRUE1 (NAC3FX-W-TOP) female connector, the industry standard for lockable network connections. This connector not only prevents accidental disconnections thanks to its twist-lock system, but also features Breaking Capacity (CBC), allowing for safe connection or disconnection under electrical load. Its IP65 rating ensures complete protection against dust and water jets, making it suitable for demanding applications. The other end is equipped with a standard CEE 7/7 Schuko connector, guaranteeing compatibility with conventional power outlets across much of Europe.
Main features
-
High-end connectors: Equipped with a Neutrik powerCON TRUE1 female connector and a Schuko (CEE 7/7) male connector, ensuring safe and compatible connections.
-
Certified safety: The powerCON TRUE1 connector allows connection and disconnection under load (CBC) and features a robust locking system to prevent accidental disconnections.
-
Robust construction: It uses an H05VV-F type cable with three conductors of 1.5 mm² each, offering excellent conductivity and flexibility.
-
Versatile length: Its 5-meter length provides adequate reach for most applications in stages and events, without generating unnecessary excess cable.
-
Professional reliability: Designed by Cordial, a leading brand in cabling solutions for the professional sector, ensuring consistent performance and a long service life.
Benefits for the audiovisual professional
For lighting, sound, and video technicians, reliable power is crucial. The Cordial ELCCFCA5S-TRUE1-PVC offers the peace of mind of a connection that won't fail in critical moments. The Neutrik connector's locking system prevents voltage drops caused by pulling or vibration, a common problem on stages and in high-traffic areas. Its live-plug capability simplifies equipment setup and teardown, optimizing workflow. Its durable construction ensures the cable will withstand the rigors of heavy use on tours and at events, representing a sound long-term investment.
Use cases
This power cable is the ideal solution for a wide range of professional applications, including:
- Power supply for LED lighting systems, moving heads and spotlights on stages and television studios.
- Connection of active speakers, mixing consoles and other professional sound equipment.
- Power supply for video screens, projectors and control equipment at corporate events.
- Use in equipment racks where a secure and lockable connection is essential.
- Applications in audiovisual equipment rental companies that require robust and reliable components.
Frequently Asked Questions (FAQ)
What does it mean that the powerCON TRUE1 connector has "Breaking Capacity" (CBC)?
This means that the connector is designed to be safely plugged in or unplugged while the equipment is in operation (under electrical load), without risk of electrical arcing or damage to the equipment or the connector.
Is the cable suitable for outdoor use?
The Neutrik powerCON TRUE1 connector is IP65 rated, protecting it from dust and water. However, the H05VV-F cable with PVC jacket is primarily recommended for indoor or dry, covered outdoor use. For continuous exposure to the elements, a cable with a rubber (neoprene) jacket is recommended.
Can I connect any device with this cable?
This cable is designed for professional equipment that uses a powerCON TRUE1 input. It is important to verify that the equipment's power consumption does not exceed the cable and connectors' capacity, which is 16 Amps at 250 Volts.
Project description
5-meter power cable consisting of a flexible H05VV-F type cable with 3 conductors, each 1.5 mm² in cross-section, and a PVC jacket. One end is equipped with a Neutrik powerCON TRUE1 (NAC3FX-W-TOP) locking female connector with load breaking capability (LBC) and IP65 protection, while the other end has a Schuko CEE 7/7 male connector. Rated voltage: 250V; rated current: 16A.
