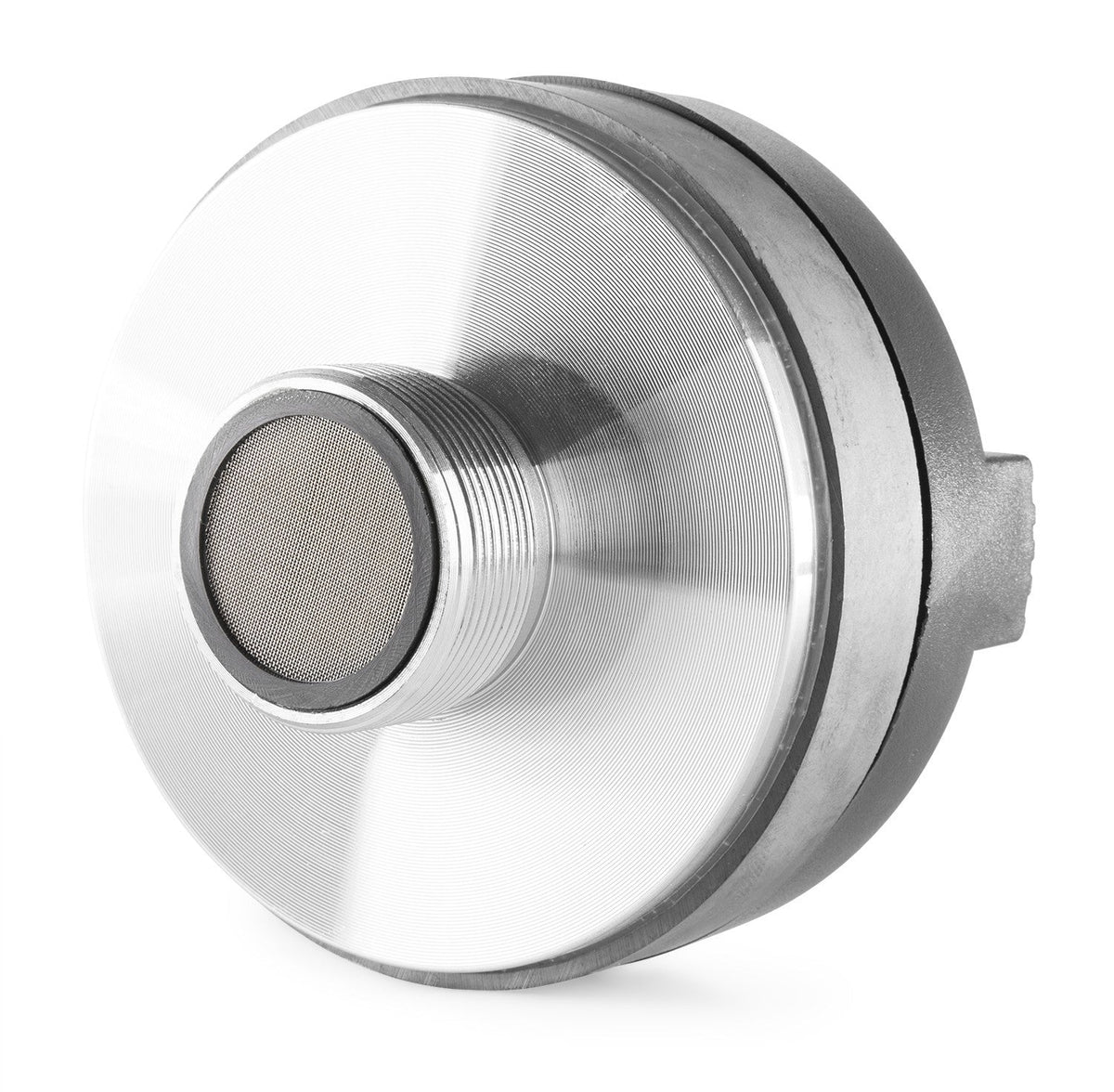

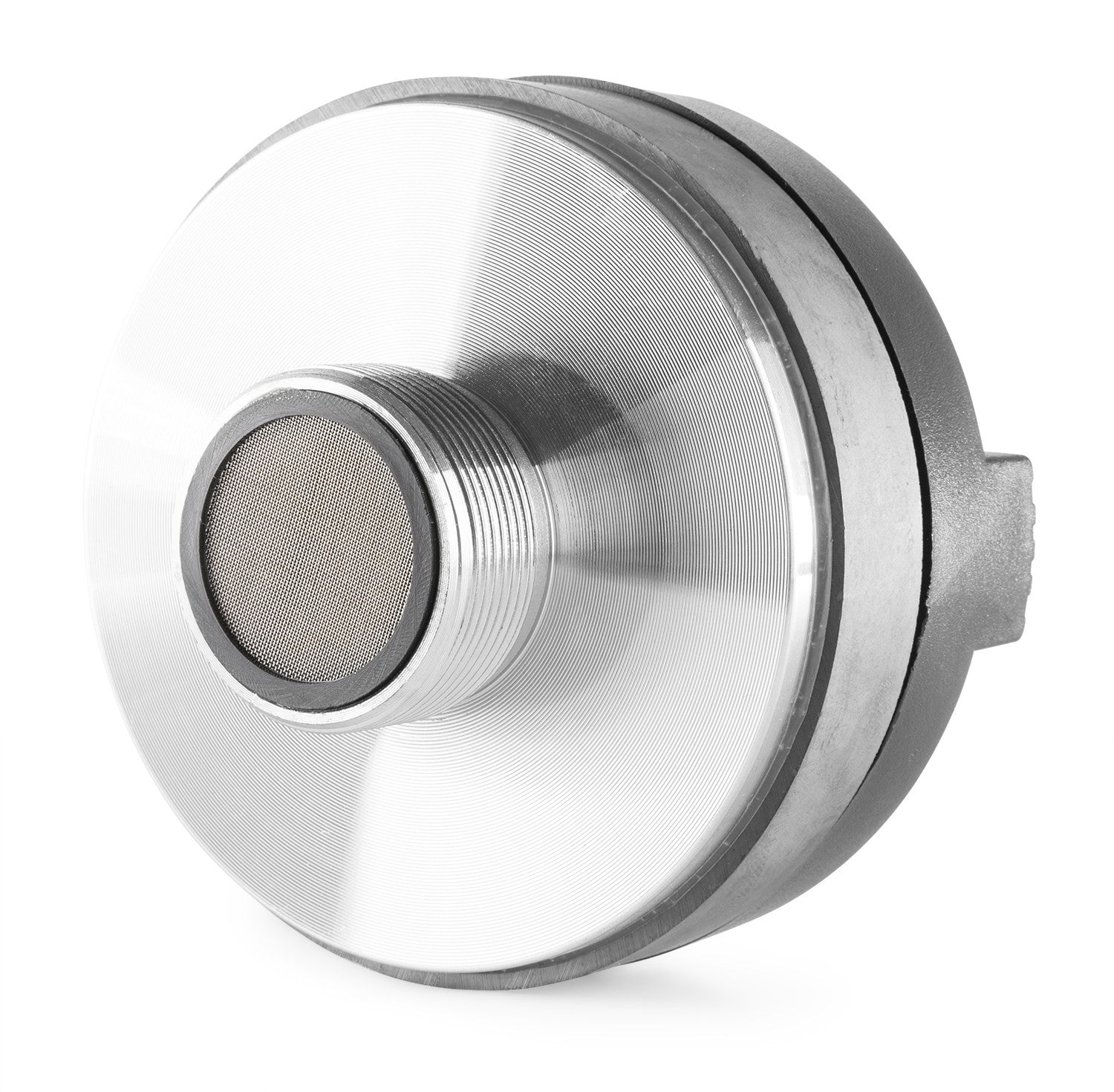

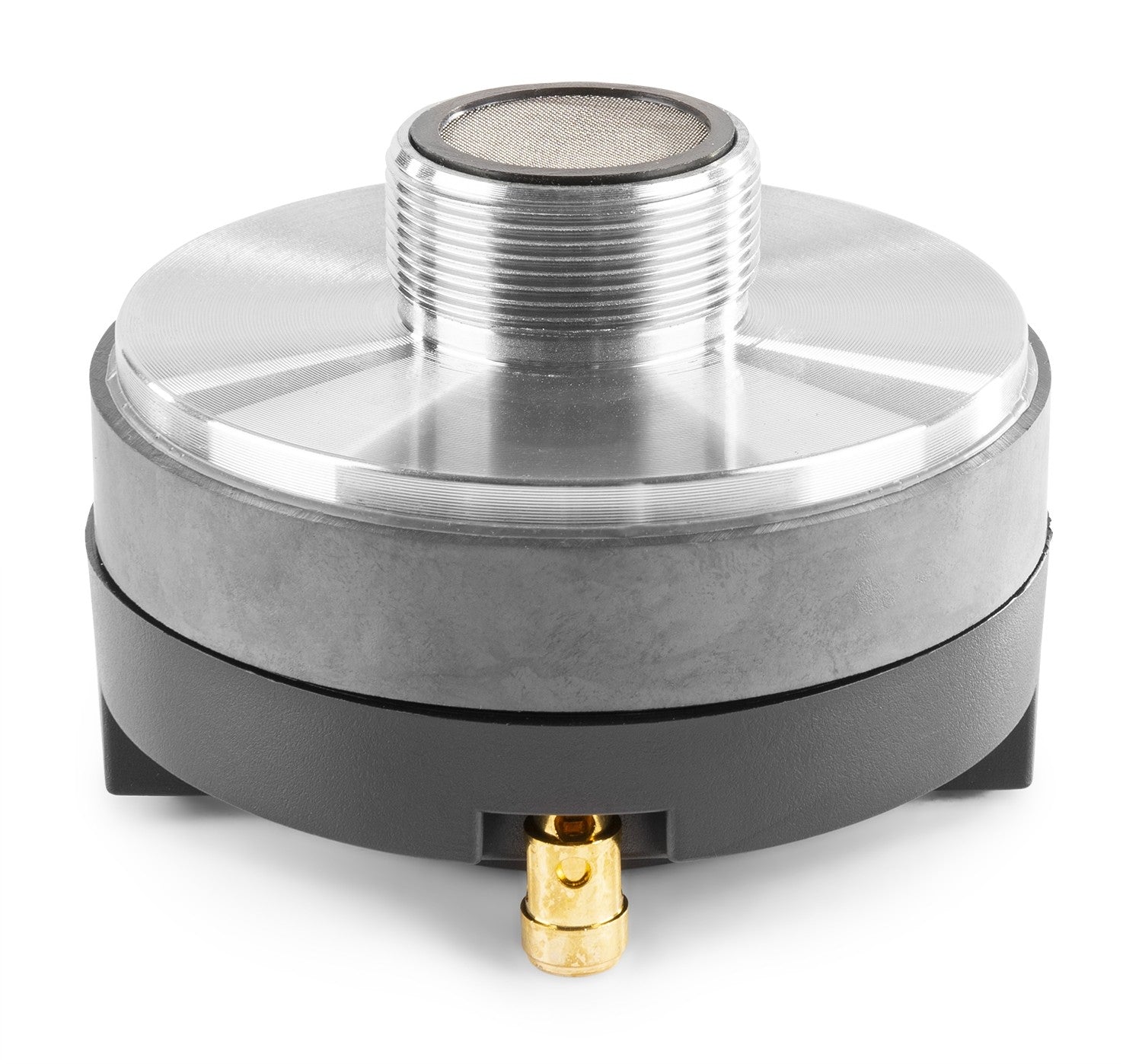

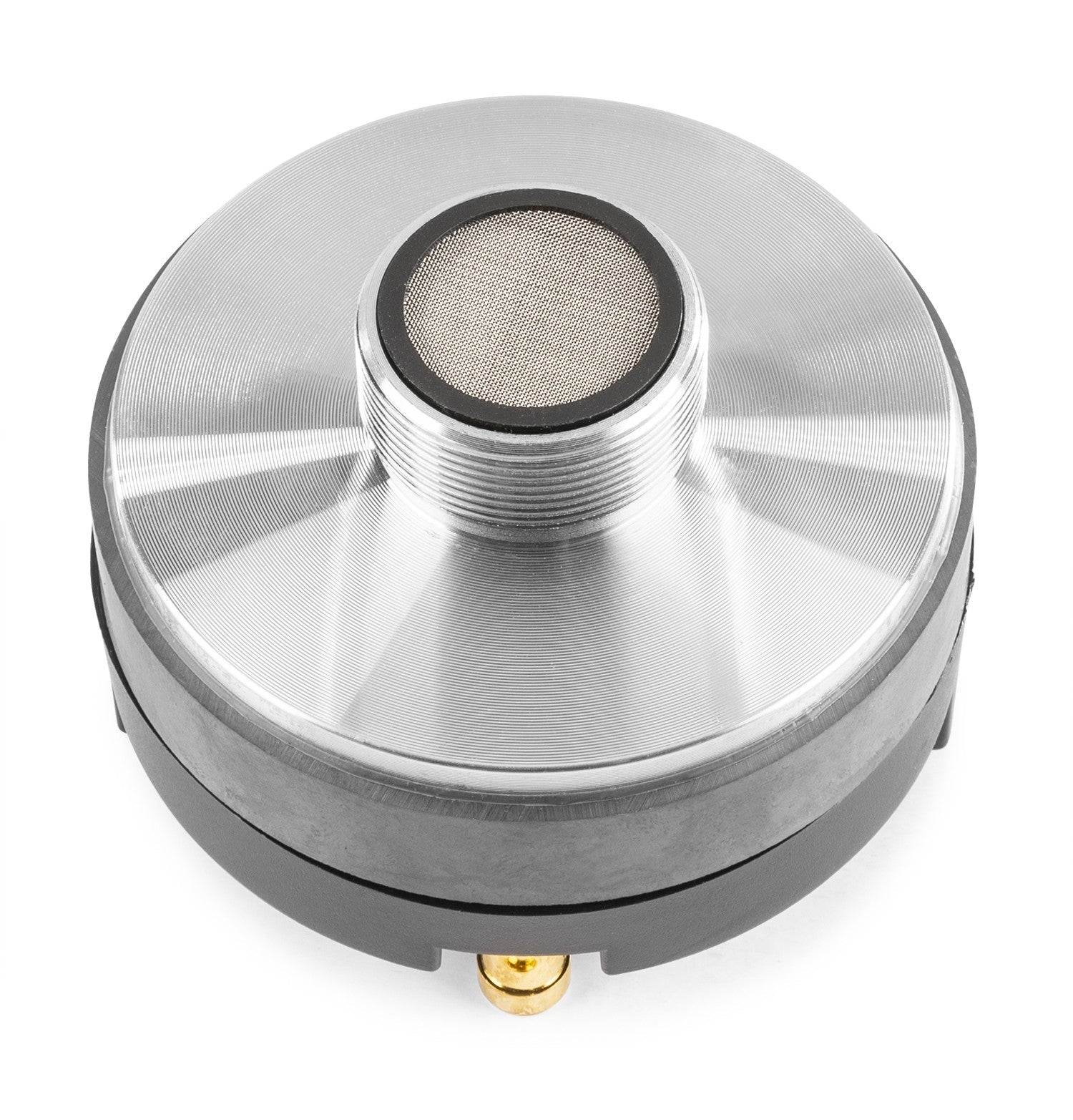

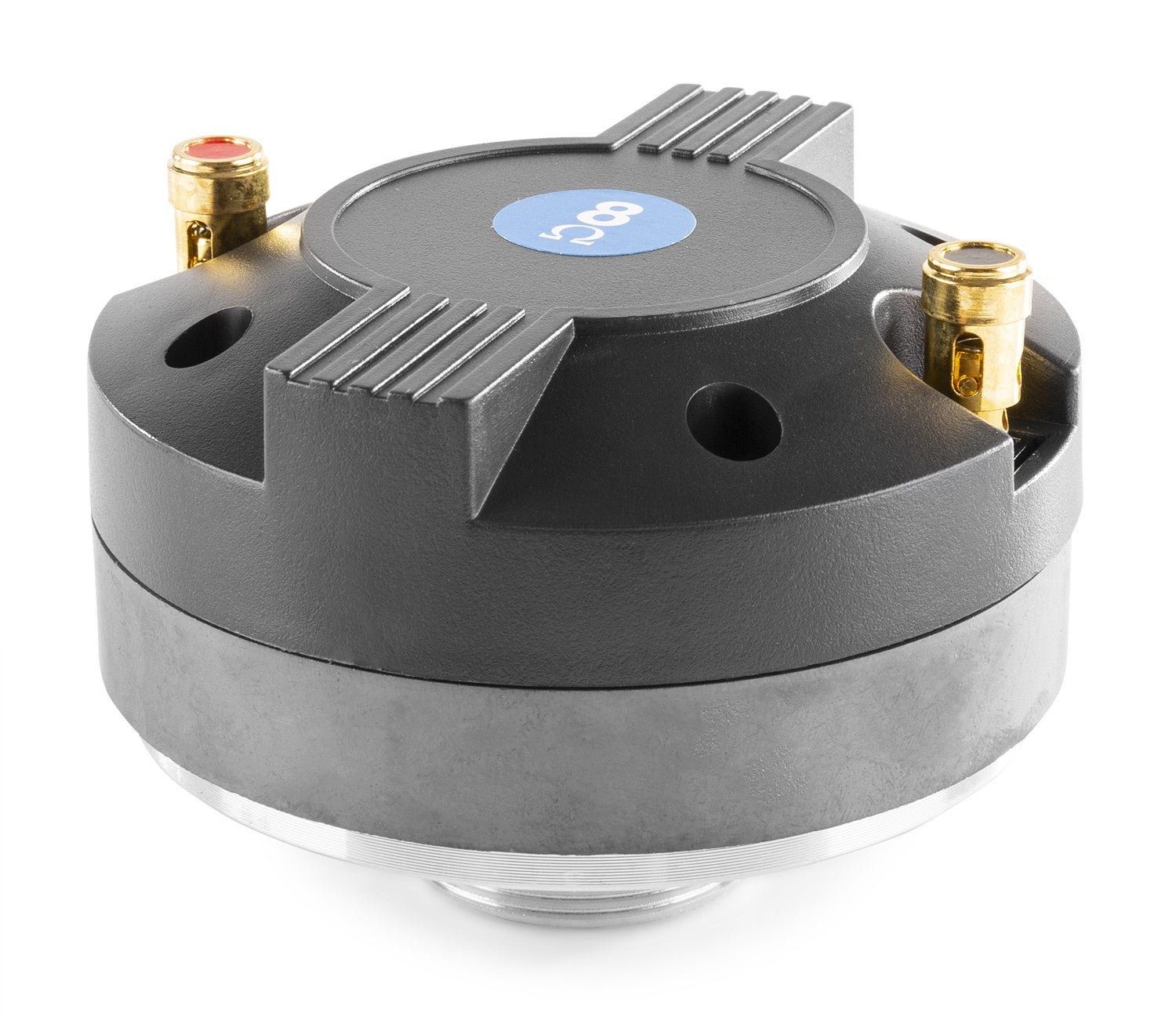

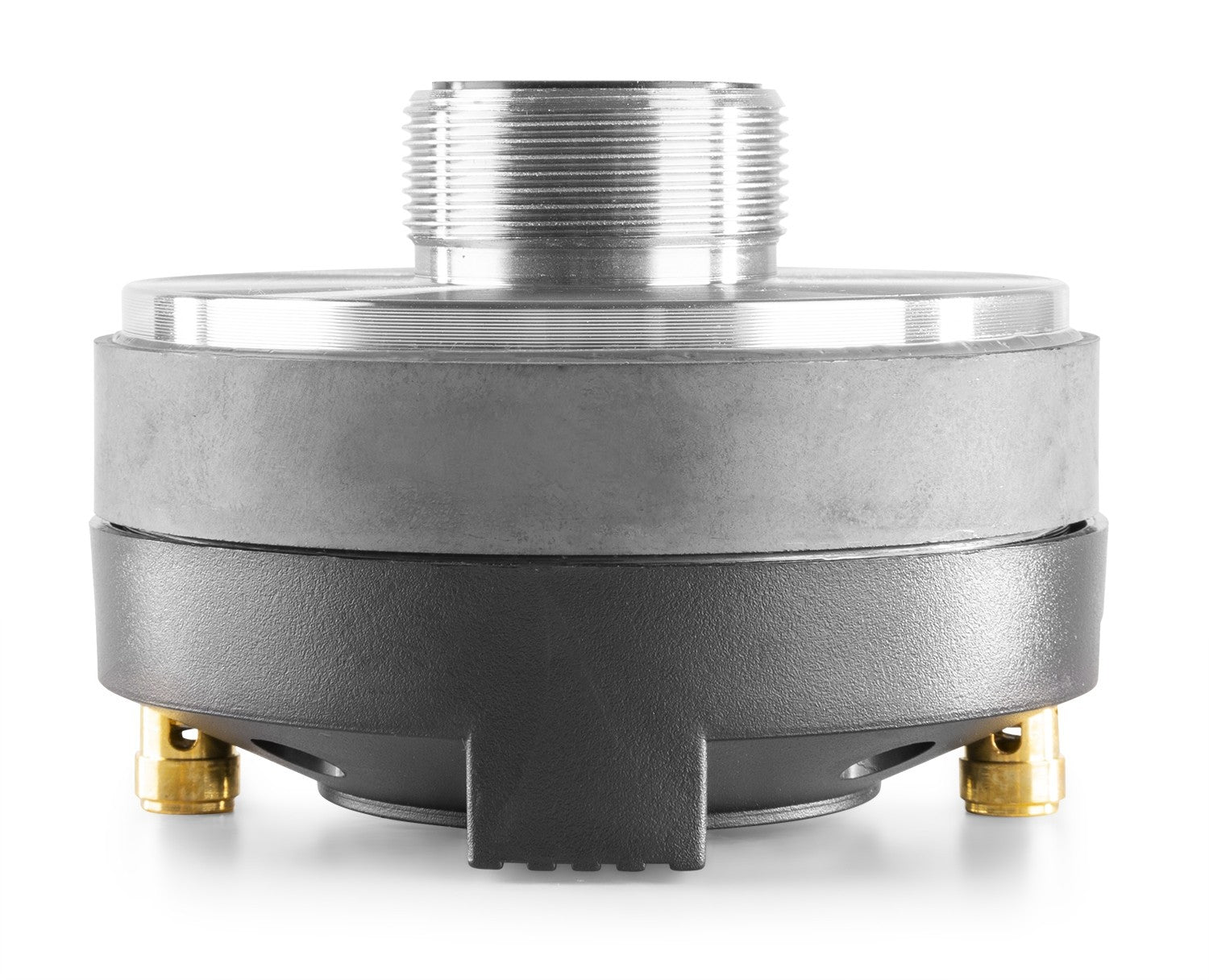

Skytec Compression Driver 60 W - 1” titanium compression tweeter (34 mm thread) 8 Ω

Skytec Titanium Compression Driver 60W - 1” Threaded Tweeter (8 Ω, 34 mm Thread)

Skytec’s 60W titanium compression driver is designed for clear and accurate high frequency reproduction in PA systems, fixed installations and DIY projects. It features a titanium diaphragm and a 34mm (1.3”) voice coil , delivering a high sensitivity of 105dB (1W/1m) for high SPL with low power output. The 1” output fits standard 1 3/8” (34mm) threaded horns, and the 1.6–20kHz frequency response makes it easy to use as a tweeter in two-way systems. With 8Ω impedance , a weight of 0.9kg and compact dimensions ( Ø 90mm × 61mm ), it is a reliable and easy-to-integrate replacement.

Main features

• Titanium diaphragm : fast attack and long-lasting, defined treble.
• 34mm (1.3”) coil : thermal stability and control in continuous use.
• High efficiency : 105 dB (1W/1m) for higher SPL with fewer watts.

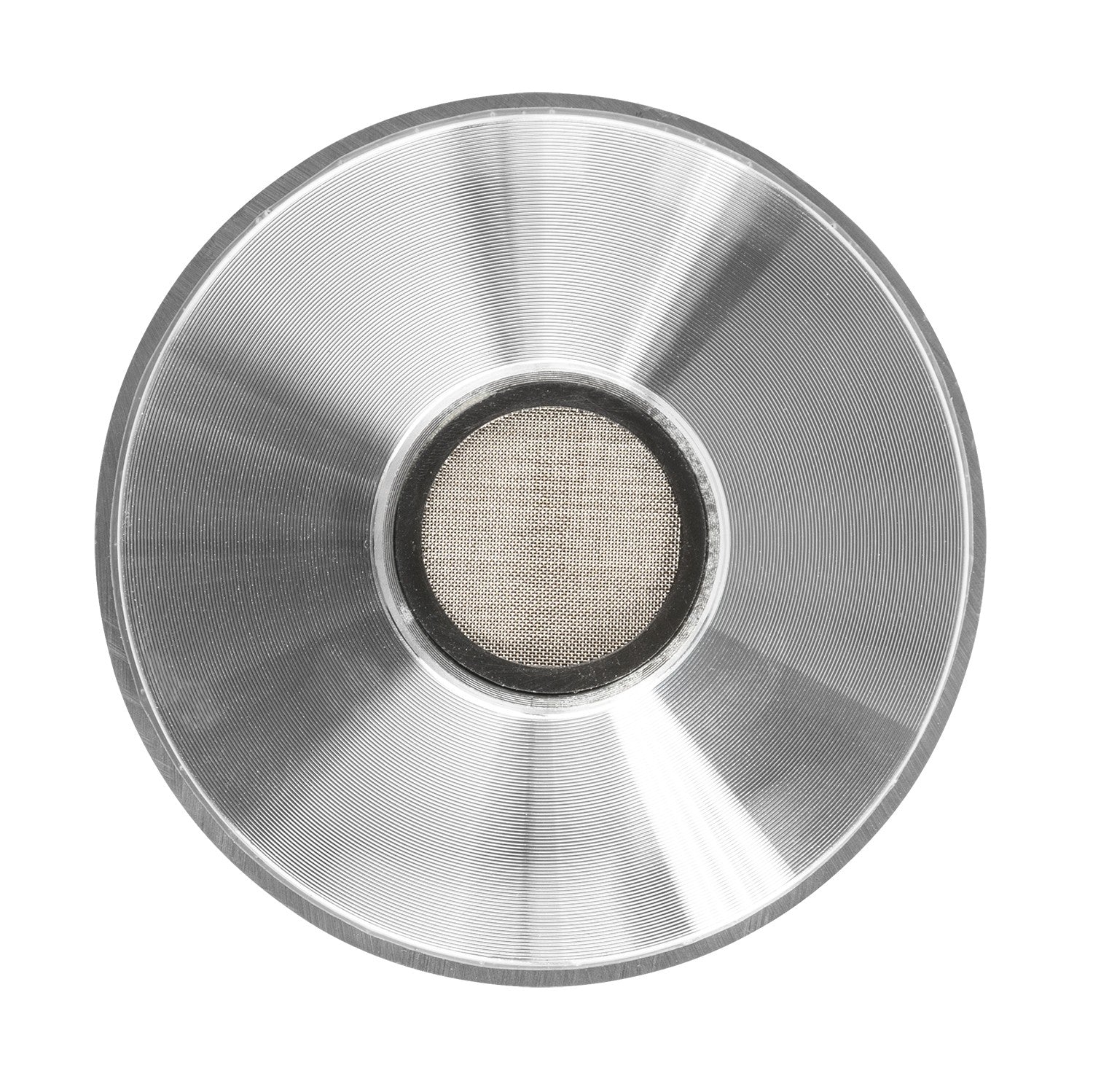

• 1” output with 1 3/8” (34 mm) thread : compatibility with standard threaded horns/trumpets.

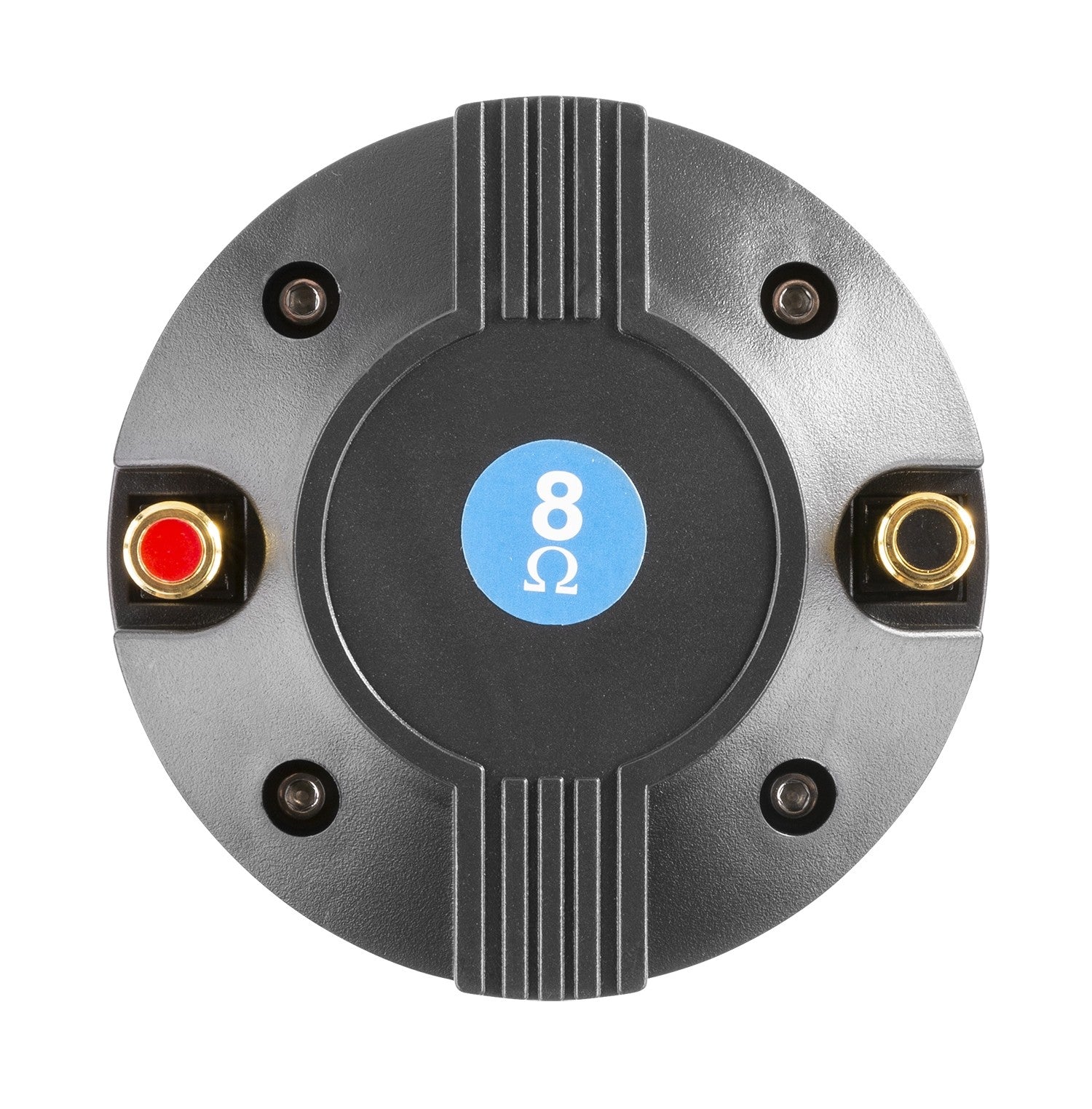

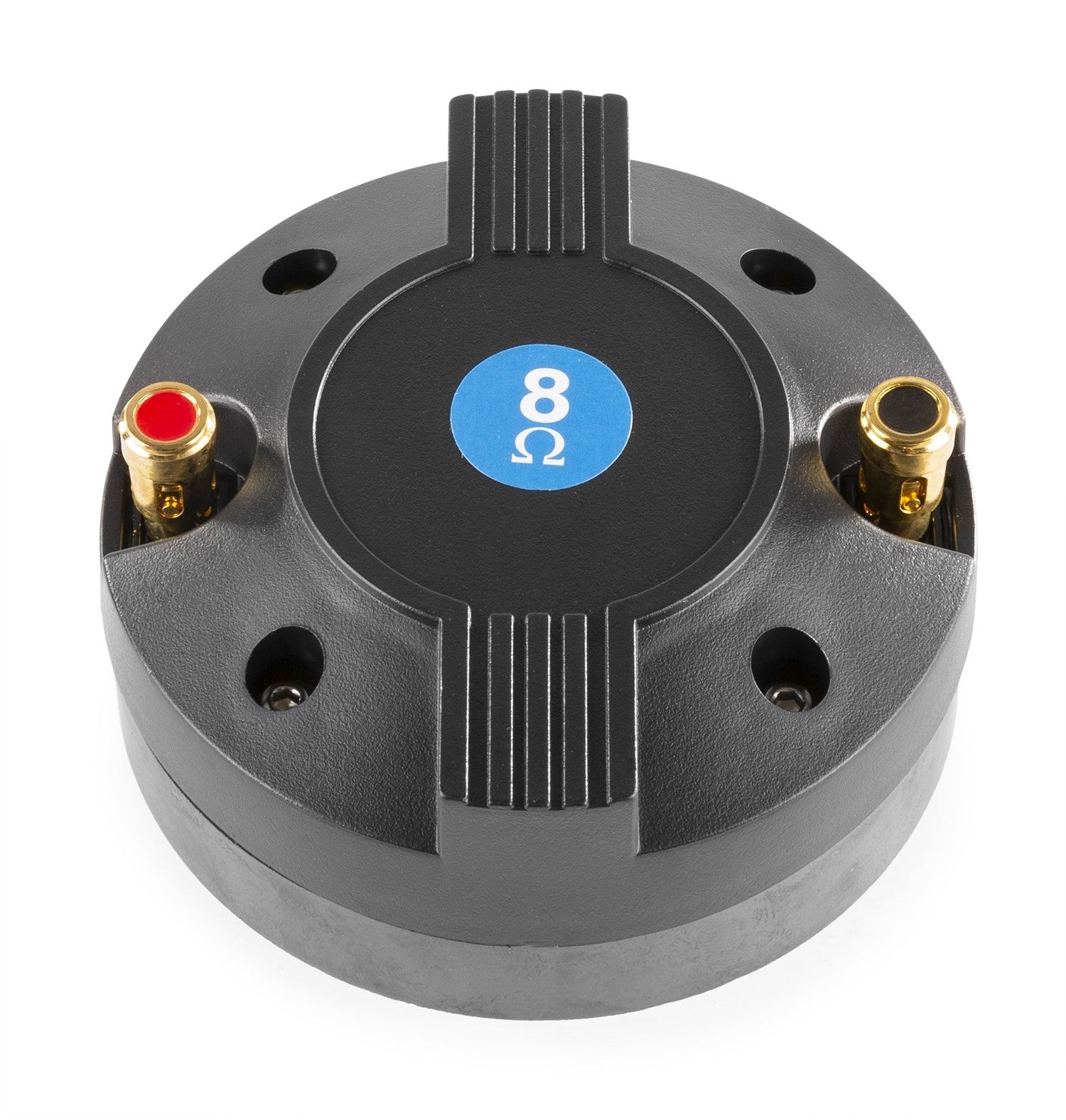

• Power 60 W and impedance 8 Ω : easy integration with common passive filters.
• Range 1.6–20 kHz : operation within the high frequency band.
• Magnet ~369 g ( 13 oz ) and total weight 0.9 kg : robustness without compromising mounting.

Product benefits

• More pressure with less power thanks to its high sensitivity.
• Clear and consistent highs from the titanium diaphragm and large diameter coil.
• Quick mounting with universal 34 mm (1 3/8”) thread and compact dimensions.
• Direct replacement for active/passive speakers using 1” 8 Ω HF drivers.

Use cases

• Repair or replacement of the tweeter motor in 2-way PA boxes.
• Installations in educational, religious or corporate venues with a need for high intelligibility.
• DIY projects combining it with an 8”–15” woofer and a suitable crossover within its working range.

Compatibility and installation

Use 1 3/8” (34 mm) threaded horns/reflectors . Observe the operating range of 1.6–20 kHz and the filter design of the system; avoid operating below the limit indicated by the manufacturer. Connect respecting polarity and, if necessary, attenuate with an L-pad to balance levels with the woofer.

Frequently Asked Questions

• Is the trumpet included? No, only the driver is sold. The compatible trumpet must be purchased separately.
• What type of thread does it use? Standard 1 3/8” (34 mm) thread for 1” outlet.
• Is it compatible with 4 Ω? This model is 8 Ω . Check the filter impedance and stage before replacing.

Description for projects

1” 8 Ω HF compression driver; 60 W ; 105 dB (1W/1m) ; 1.6–20 kHz ; 34 mm voice coil ; 1 3/8” (34 mm) thread ; magnet ≈369 g (13 oz) ; dimensions Ø 90 mm × 61 mm ; weight 0.9 kg ; silver colour.
