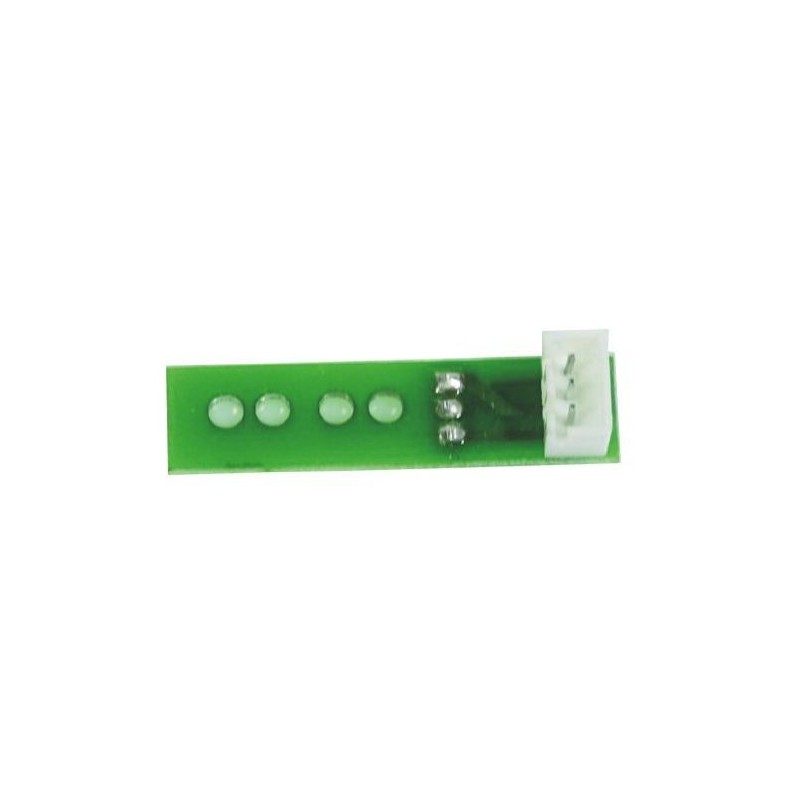

Triton Blue CM05B - ​​Original Magnetic Sensor for Moving Heads

Triton Blue CM05B - ​​Original Magnetic Sensor for Moving Heads

The Triton Blue CM-05B is a magnetic sensor, also known as a positioning photocell, specifically designed as an original replacement part for professional lighting equipment, particularly Triton Blue moving heads. This component is essential for the proper functioning of the equipment's calibration and positioning system, ensuring that pan and tilt movements, as well as effects such as gobo and color wheels, are executed with maximum precision.

Manufactured to Triton Blue's exacting quality standards, the CM-05B ensures perfect compatibility and reliable performance. When a moving head has trouble homing or exhibits erratic movement, a faulty sensor is often the cause. Replacing it with this genuine part restores factory functionality, prevents premature wear of motors and other mechanical components, and ensures the longevity of the lighting fixture.

Main Features

• Original Replacement Part: Being a genuine Triton Blue part, it ensures a perfect fit and error-free electronic communication with the moving head motherboard.
• Magnetic Technology: Uses a highly sensitive magnetic detection system to accurately determine the reference position of the equipment's moving components.
• "Homing" function: This is the key component responsible for the reset or "return to home" function, allowing the moving head to calibrate correctly when switched on.
• Durable Construction: Designed to withstand the demands of continuous professional use on tours, at events, nightclubs, and theaters.
• Specific Model: Identified as CM-05B for easy identification and replacement, avoiding confusion with other components.

Product Benefits

• Restores Operational Accuracy: Fixes common faults such as moving head misorientation, incorrect gobo alignment, or imprecision in programmed movements.
• Maximize Reliability: Using an original replacement part minimizes the risk of future failures and ensures that the equipment operates according to the manufacturer's specifications.
• Protect Your Investment: Replacing a damaged sensor in time can prevent more costly repairs to motors, belts, and other mechanical components of the system.
• Direct Installation: Designed for easy replacement by qualified technical personnel, without the need for adaptations or modifications.

Use Cases

This sensor is the ideal solution for maintenance technicians and lighting equipment rental companies that need to repair Triton Blue moving heads. It is essential for troubleshooting issues such as:

• The moving head does not complete its start-up sequence or keeps spinning continuously.
• The gobo or color wheels do not stop in the correct position.
• Pan or Tilt movements that do not respond to their zero position.
• Corrective and preventive maintenance for fleets of professional lighting equipment.

Frequently Asked Questions

What symptoms indicate that this sensor may be failing?
The most common symptoms include the moving head not calibrating when switched on, erratic or imprecise movements, or the effects wheels (gobos, colors) not aligning correctly with the light beam.

Is it compatible with any moving head?
No, the CM-05B is a specific model designed for certain Triton Blue brand equipment. It is crucial to verify compatibility with your moving head's technical manual before purchasing.

Is this part difficult to install?
Installation must be performed by a technician experienced in repairing professional lighting equipment. It involves disassembling the equipment casings and handling delicate electronic components.

Why is it important to use an original replacement part?
Using an original Triton Blue replacement part guarantees full electronic and mechanical compatibility, quality of materials and performance identical to the factory part, ensuring the reliability and safety of the equipment.

Project description

Magnetic positioning sensor, model CM-05B. Original replacement component from Triton Blue, designed for calibration and precise positioning (homing) of internal mechanisms (Pan, Tilt, effects wheels) in compatible lighting moving heads.
