AFX Light CLUB-2810-IP - 28 x 10W RGBW LED PAR Projector + 12°-60° Zoom with Zone Control – IP65

AFX Light CLUB-2810-IP - 28 x 10W RGBW LED PAR Projector with 12°–60° Electronic Zoom and Zone Control – IP65

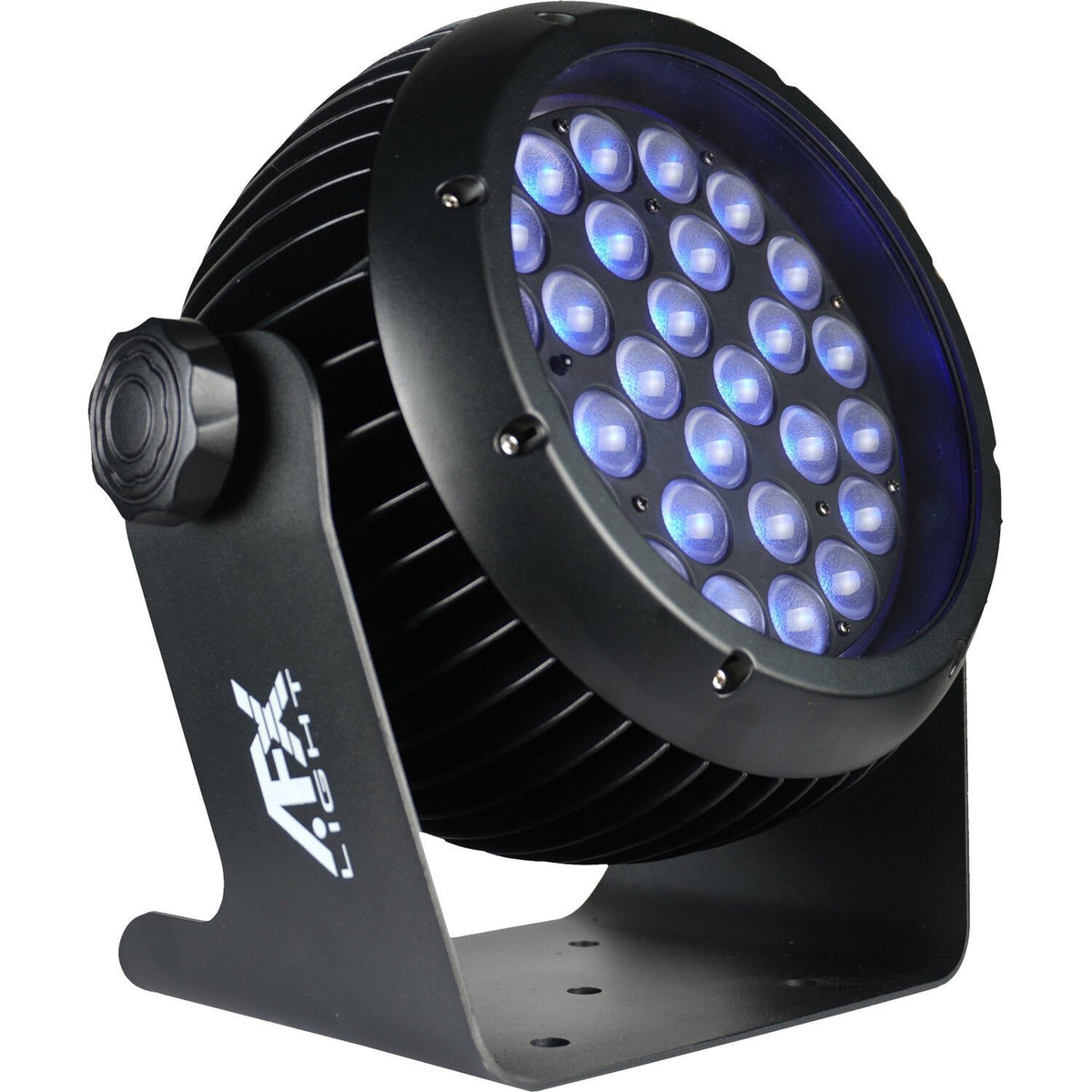

The AFX Light CLUB-2810-IP is a professional LED PAR projector designed to deliver exceptional lighting performance in any environment. Featuring 28 10W RGBW LEDs and a linear electronic zoom ranging from 12° to 60°, it provides powerful and even lighting. Its IP65 rating guarantees total resistance to dust and water, making it the ideal solution for outdoor events, concerts, shows, and productions in demanding conditions. It features zone control technology (Pixel Group Control) that allows the beam to be segmented into different groups of LEDs, as well as linear color temperature adjustments (CTB & CTO) from 2,800K to 8,000K to suit any environment.

Main features

• Light source: 28 RGBW LEDs of 10 W.
• Linear electronic zoom: adjustable angle from 12° to 60°.
• Pixel Group Control for custom effects.
• 13/29 DMX channels for professional integration into lighting consoles.
• CTB & CTO linear adjustment from 2,800 K to 8,000 K.
• Strobe effect and high speed strobe pulse.
• Operating modes: automatic, DMX, master-slave, music control and IR remote.
• PowerCON and DMX in/out inputs and outputs.
• Universal power supply 90–240 V AC, 50/60 Hz; consumption 285 W.
• Dimensions: 318 × 196 × 263 mm; weight: 7.2 kg.

Product benefits

• Total versatility: Its wide zoom range and color temperature allow it to adapt to small and large-format scenarios without having to change equipment.
• Professional Durability: With IP65 protection rating, it works reliably in rain, dust and humidity.
• Advanced Control: Pixel Group Control mode and multiple DMX channels facilitate spectacular, synchronized lighting creations.
• Easy Setup: Robust PowerCON and DMX connectors, plus included IR remote, speed up setup and configuration on the track.
• Energy saving: High-efficiency, low-consumption LEDs (285 W) that reduce electricity and maintenance costs.

Use cases

• Outdoor concerts and festivals.
• Corporate events and product presentations.
• Lighting of theater stages and auditoriums.
• Nightclubs and dance halls.
• Permanent installations on architectural facades.

Frequently Asked Questions

• Can it be used indoors? Yes; although it's designed for outdoor use, its power and precise control make it perfect for indoor use.
• How do I clean and maintain the projector? Clean the lens with a soft, dry cloth; check the DMX and PowerCON connections regularly.
• How many units can I sync? There's no limit: you can coordinate dozens of units in a single show using DMX or master-slave.

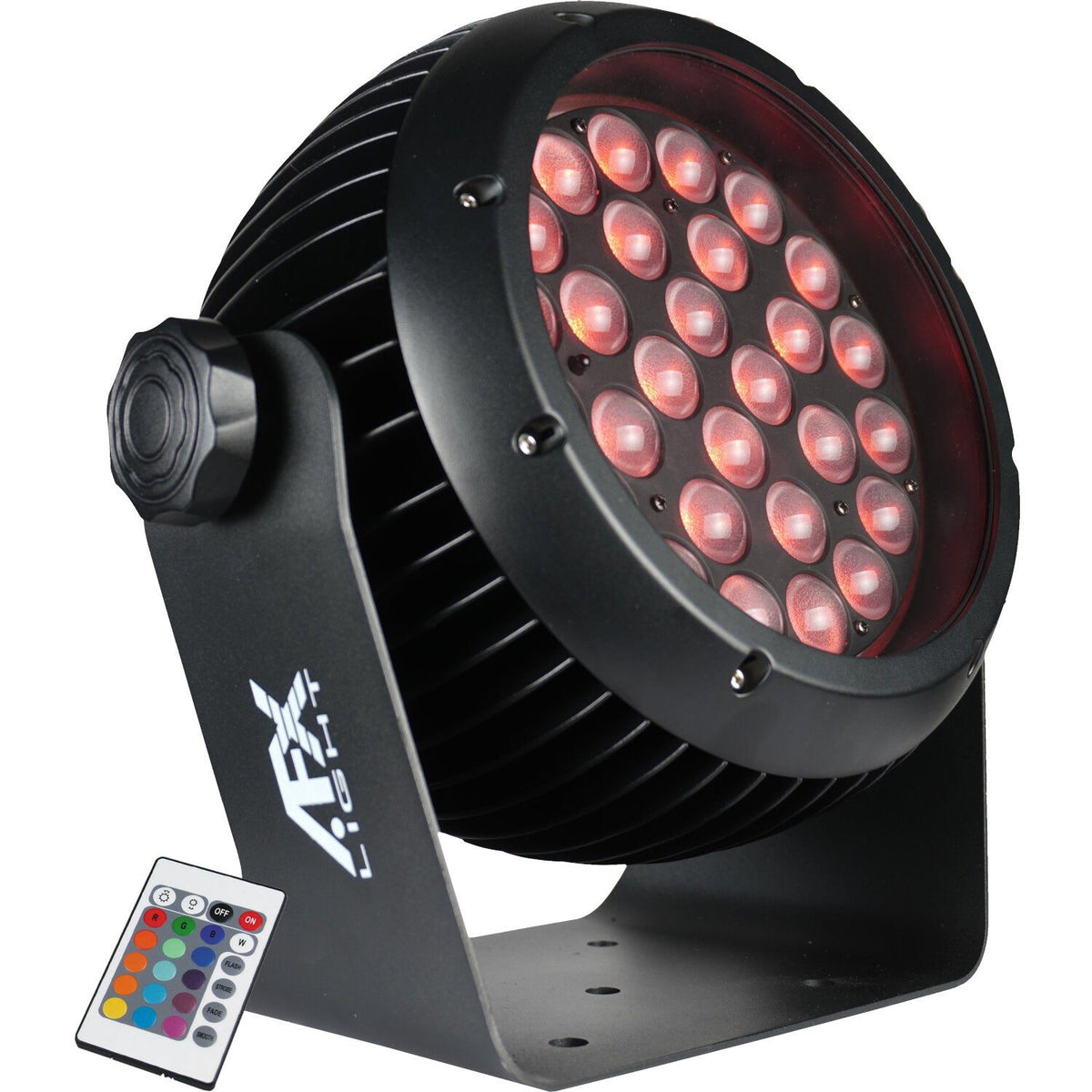

• Does it include mounting accessories? It comes with truss clamps and an IR remote; power and DMX cables are purchased separately.

Description for projects

LED PAR projector with 28×10 W RGBW, electronic zoom 12°–60°, zone control, color temperature adjustment 2 800–8 000 K, 13/29 DMX channels, strobe effects, automatic/DMX/master-slave/music modes, PowerCON and DMX inputs/outputs, power supply 90–240 V AC, consumption 285 W, IP65, 318×196×263 mm, 7.2 kg.
