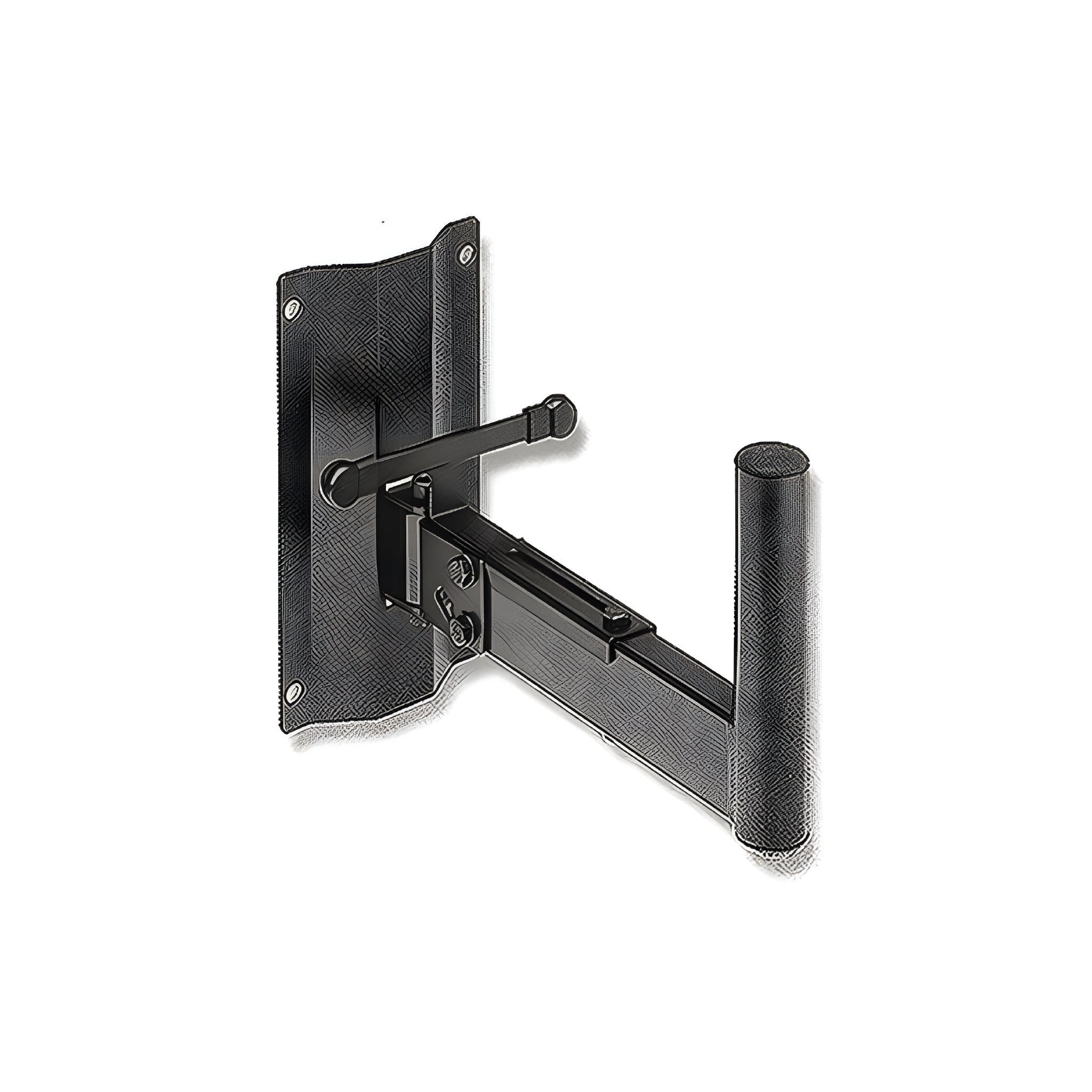

HK Audio BWH 1 WALL MOUNT BRACKET - Speaker wall mount with 35 mm diameter cup and adjustable tilt

HK Audio BWH 1 WALL MOUNT BRACKET – Speaker wall mount with 35 mm diameter cup and adjustable tilt

The HK Audio BWH-1 is a professional wall mount for installing speakers with standard Ø 35 mm speakers . Designed for fixed installations in venues, music bars, cultural centers, and corporate spaces, it offers precise speaker alignment thanks to its adjustable arm and swivel and tilt adjustments. Its robust construction allows a maximum load capacity of up to 50 kg, and the 140 × 250 mm wall plate with four fixing points ensures secure wall mounting.

The 30cm arm features a rear stop for cabinets up to ~ 260mm deep (centered to the cabinet axis), while the aiming mechanism offers up to 120° swivel and up to 45° tilt to precisely direct the sound beam toward the audience. It's compatible with numerous HK Audio series (PR:O, LINEAR, etc.) and any other brand of cabinet with a standard 35mm cup.

Main features

• Wall mount with Ø 35 mm spike for speakers with standard speaker cabinet.
• Maximum load: up to 50 kg (correct installation on a suitable wall).
• Precise orientation: 120° rotation and tilt up to 45° .
• Adjustable arm of 30 cm with rear stop to secure the box (approximately permissible depth: 260 mm ).
• Wall plate 140 × 250 mm with four fixing holes.
• Robust metal construction with black finish for professional use.

Product benefits

• Clean and safe installation: oversized plate and high-strength materials.
• Controlled directionality: adjusts pan and tilt to optimize coverage and minimize reflections.
• Wide Compatibility: Suitable for any speaker with 35mm cup (HK Audio and other brands).
• Aesthetic integration: discreet black finish that blends into installation environments.

Use cases

• Fixed installations in bars, clubs, restaurants and multipurpose rooms.
• Educational spaces, auditoriums and cultural centers.
• Conference rooms, retail and corporate environments.

Installation recommendations

• Check that the wall and the chosen hardware/anchors can support the total load (speaker + bracket) with a safety margin.
• Use anchors appropriate for the material (concrete, solid brick, etc.). Avoid non-structural partitions without reinforcements.
• Respect the minimum distances to ceilings/side walls and ensure a clear line of sight for the desired acoustic coverage.

Description for projects

Speaker wall mount with 35 mm diameter cup; max. load 50 kg; 120° swivel; tilt up to 45°; 300 mm adjustable arm with rear stop (permissible depth approx. 260 mm); wall plate 140 × 250 mm; black finish.
