beamZ Pro BTK050Z-5 - Mini Fresnel LED spotlight 2x50W warm/cool white with manual zoom

beamZ Pro BTK050Z-5 - Mini Fresnel LED spotlight 2x50W warm/cool white with manual zoom

The beamZ Pro BTK050Z-5 is a professional mini Fresnel spotlight designed to deliver fully adjustable white lighting for stage sets, soundstages, and studios where reliable results and quiet operation are essential. Its COB light source combines a 50W warm white emitter with a cool white emitter, allowing for continuous color temperature adjustment between 2700K and 6500K. This enables seamless transitions from a warm and inviting atmosphere to a neutral or cool white, suitable for television, video, and corporate events, without changing projectors.

The HQ optical system and Fresnel lens provide a clean, homogeneous beam with soft edges, ideal for both front and rim lighting of people, set pieces, or surfaces. The manual zoom, adjustable between 10° and 60°, transforms the beam from a high-impact, focused spot to a wide wash of light, making the BTK050Z-5 a highly versatile tool for theater companies, audiovisual production companies, schools, churches, and rental businesses.

Thanks to its high color rendering index (CRI 92) and TLCI values ​​of up to 98 at 3200K and 96 at 5600K, the light faithfully reproduces colors on camera, preventing unwanted color casts on skin, clothing, and sets. The 16-bit control electronics and flicker-free operation ensure smooth fades and a stable image, even during high-speed shooting. All of this is housed in a compact and lightweight enclosure with convection cooling and intelligent temperature control, allowing for fanless operation in sound-sensitive environments.

The BTK050Z-5 is controlled via DMX with a 5-pin XLR connector (2 or 3 channel modes) or entirely manually from its OLED display panel. It includes a barn door, mounting bracket, and power cable with a P-Con connector, allowing for immediate deployment on standard lighting grids, trusses, or stands. Its performance is comparable to that of classic 300–500W halogen Fresnels, with significantly lower power consumption and a much longer LED lifespan, reducing maintenance and operating costs.

Main features

• Tunable white LED Fresnel spotlight with COB source that combines warm white and cool white, 50W per channel for precise white mixing.
• Adjustable color temperature from 2700K to 6500K , from a very warm tungsten-like white to a cool white suitable for television and corporate applications.
• Manual zoom 10°–60° that allows you to configure the beam as a concentrated spot or as a wide wash in a matter of seconds.
• HQ optics that provides a uniform, smooth beam with excellent utilization of luminous flux.
• High luminous performance with an emittance of approximately 18,668 lx at 1 m, suitable for small and medium stages, studios and film sets.
• Advanced color reproduction with CRI 92 and TLCI 98 (3200K) / 96 (5600K), optimized for professional video and photography cameras.
• 16-bit dimmer and flicker-free operation , ideal for smooth fades, scene hangs and shooting without flicker artifacts.
• Professional DMX control via 5-pin XLR connector and 2 or 3 channel modes, plus manual mode from the panel.

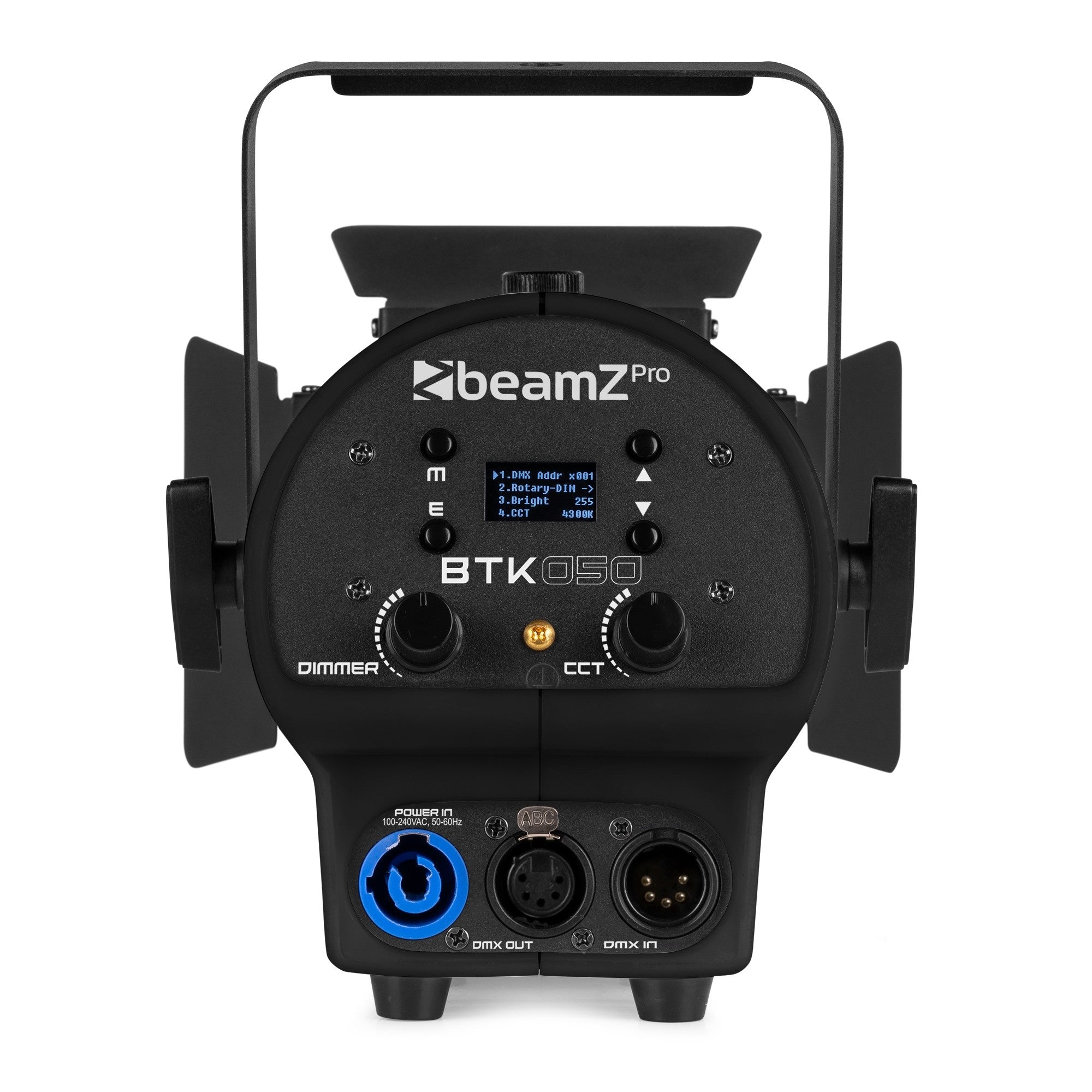

• Clear, high-contrast OLED display for setting DMX address, dimmer curves, refresh rate, and other parameters.
• Strobe function with adjustable frequency approximately between 1 and 13 Hz for spot flash effects.
• Convection cooling and intelligent temperature control keep the spotlight quiet during operation.
• Compact and lightweight construction , easy to integrate into grills, truss structures or foot supports.
• IP20 protection rating , designed for indoor use.
• Universal power supply 100–240 VAC, 50/60 Hz with power input via P-Con connector.
• Included accessories : visor (barndoor), mounting bracket and power cable.

Product benefits

• Natural light in camera : the combination of high CRI and optimized TLCI reduces the need for color corrections in post-production and maintains realistic skin tones in video and photography.
• One light for multiple environments : the full range of 2700K–6500K allows you to simulate everything from traditional tungsten lights to "daylight" or cool lighting, adapting to sets, branding or photography direction instructions.
• Energy saving and less heat : It offers an output level equivalent to 300–500W halogen fresnels with much lower consumption and drastically reduced heat emission on stage and talent.
• Silent operation : Convection cooling and thermal control prevent fan noise, which is key in intimate theaters, audio recording studios, filming with close microphones, or streaming in small spaces.
• Simple professional control : 2 and 3 channel DMX modes make it easy to integrate into simple consoles or advanced systems, allowing you to control intensity, color temperature and strobe without complex programming.
• Smooth, flicker-free transitions : the 16-bit dimmer allows for fine, precise fades, while flicker-free electronics prevent problems with camera shutters, high speeds, or nearby LED displays.
• Less maintenance : COB LED technology, combined with a very long emitter lifespan, reduces lamp changes, technical shutdowns and replacement costs compared to traditional fresnels.
• Quick assembly : Including a visor and mounting bracket, it can be hung and focused quickly, reducing setup times for tours, traveling productions, and rental companies.

Use cases

• Theatre and performing arts : frontal lighting of actors, soft backlighting, specific reinforcements of scenery or creation of atmospheres by varying color temperature without changing filters.
• Television studios and video sets : key light, fill or backlight on presenters and guests, with stable color and no flickering for broadcast or digital cinema cameras.
• Multipurpose rooms and auditoriums : corporate events, conferences, product presentations and institutional events requiring versatile white light controllable by DMX.
• Churches, cultural and educational centers : discreet and silent lighting for celebrations, chamber concerts, school plays or talks.
• Rental companies and integrators : compact solution for setting up theater grids, mobile sets, small stages or lighting reinforcement areas in permanent installations.

Frequently Asked Questions

What halogen wattage does it approximately replace?
The BTK050Z-5 falls within the output range of a traditional halogen Fresnel between 300 and 500 W, offering a similar level of illumination with lower consumption and heat emission.

Is it suitable for video and television recording?
Yes. The focuser is designed for professional on-camera use, with a CRI of 92, high TLCI values, and flicker-free operation. This makes it suitable for television, streaming, filming, and high-speed capture, provided the exposure and white balance are properly adjusted on the camera.

What DMX control options does it offer?
The projector features 2- and 3-channel DMX modes, accessible via the internal menu, and connects using a 5-pin XLR cable. It can also be used in fully manual mode, adjusting intensity and color temperature directly from the OLED screen without the need for a control console.

Can it be used outdoors?
The IP20 protection rating indicates exclusive use indoors or in environments protected from rain, humidity, and excessive dust. If installed outdoors, it must always be under cover or with specific protective solutions.

What accessories are included with the light bulb?
Standard features include a barn door for beam shaping, an adjustable mounting bracket for truss or bar, and a power cable with a P-Con connector. Clamps, DMX cables, and other rigging hardware are not included.

Installation and control

The beamZ Pro BTK050Z-5 comes ready to hang on standard structures thanks to its fork-type mounting bracket, compatible with common claws and clamps used in theater and live performance. Power input via a P-Con connector ensures a secure and reliable mains connection, and its universal 100–240 VAC power supply range facilitates use on international tours. DMX address, channel mode, and operating parameters are configured via the front OLED display, which features an intuitive menu and adjustment buttons easily accessible even at moderate working heights.

The 5-pin DMX system ensures compatibility with professional infrastructures, and the 2- and 3-channel modes allow you to choose between simplified control (e.g., just intensity and color temperature) or more detailed control that includes strobe or other parameters. Thanks to the 16-bit dimmer, the spotlight responds smoothly and precisely to console commands, preventing abrupt jumps during subtle transitions.

Design and maintenance

The compact housing of the BTK050Z-5 concentrates the electronics, COB module, and Fresnel optic assembly into a lightweight and easy-to-handle format. Convection cooling and internal thermal control regulate the operating temperature without the need for fans, reducing mechanical noise and minimizing wear points. COB LED technology offers a significantly longer lifespan compared to halogen lamps, resulting in considerably fewer maintenance interventions, replacements, and installation downtime.

The included visor allows for precise cutouts and prevents light spill onto screens, audiences, or other unwanted elements, while the high-quality optical system maintains even light distribution even when working with the zoom fully extended. All of this makes the BTK050Z-5 a robust solution suitable for permanent installations and intensive rental or touring use.

Project description

White BeamZ Pro BTK050Z-5 Tunable LED Fresnel Spotlight with 50W COB LED source in cool white and warm white, adjustable color temperature between 2700K and 6500K, manual zoom from 10° to 60°, CRI 92 and TLCI 98 (3200K) / 96 (5600K), illuminance of 18,668 lx @ 1 m, 16-bit flicker-free dimmer, 1–13 Hz strobe function, DMX and manual operating modes, 2/3 DMX channels with 5-pin XLR connector, convection cooling with intelligent temperature control, IP20 protection rating, 100–240 VAC 50/60 Hz power supply via P-Con connector, approximate dimensions 230 x 160 x 210 mm and weight 1.55 kg, with barn door, mounting bracket and power cable included.
